4-facher Gigabit-Firewall-Router
TWG-BRF114 (Version 1.0R)
- Netzwerkgeschwindigkeit im Gigabit-Bereich
- Erweiterter Firewall-Schutz mit NAT und SPI
- Sicheres Fernmanagement zur Überwachung des Netzwerks von beliebigem Ort aus
- Intuitive Bedienung über Webbrowser
DISCONTINUED PRODUCT
The TWG-BRF114 (Version 1.0R) has been discontinued. It has been replaced by the TWG-431BR (Version v1.0R). For a list of discontinued products, click here.Firmware
Firmware Version: 1.0.0.6
Date: 10/2010
Notes:
- Resolved an issue related to logging out from the Virtual Server page.
- Resolved DHCP reservation issue.
Dateiname: FW_TWG-BRF114_V1(1.0.0.6).zip
SHA-1 Checksum: 8D84CC5F786C1342F5FD74B31D205F8698B8D745
Datum: 7/28/2017
Dateigröße: 620.35 KB
Datenblätter
Dateiname: EN_Spec_TWG-BRF114(V1.0R).pdf
Datum: 12/20/2007
Dateigröße: 409.84 KB
Dateiname: FR_Spec_TWG-BRF114(V1.0R).pdf
Datum: 12/20/2007
Dateigröße: 415.00 KB
Dateiname: GE_Spec_TWG-BRF114(V1.0R).pdf
Datum: 12/20/2007
Dateigröße: 416.43 KB
Dateiname: SP_Spec_TWG-BRF114(V1.0R).pdf
Datum: 12/20/2007
Dateigröße: 413.97 KB
Dateiname: RU_Spec_TWG-BRF114(V1.0R).pdf
Datum: 12/20/2007
Dateigröße: 800.64 KB
Kurzanleitung zur Installation
Dateiname: EN_QIG_TWG-BRF114.pdf
Datum: 11/26/2007
Dateigröße: 639.97 KB
Dateiname: FR_QIG_TWG-BRF114.pdf
Datum: 11/26/2007
Dateigröße: 642.50 KB
Dateiname: GE_QIG_TWG-BRF114.pdf
Datum: 11/26/2007
Dateigröße: 643.33 KB
Dateiname: PO_QIG_TWG-BRF114.pdf
Datum: 9/24/2008
Dateigröße: 491.57 KB
Dateiname: SP_QIG_TWG-BRF114.pdf
Datum: 11/26/2007
Dateigröße: 644.54 KB
Dateiname: RU_QIG_TWG-BRF114.pdf
Datum: 11/26/2007
Dateigröße: 980.15 KB
Bedienungsanleitung

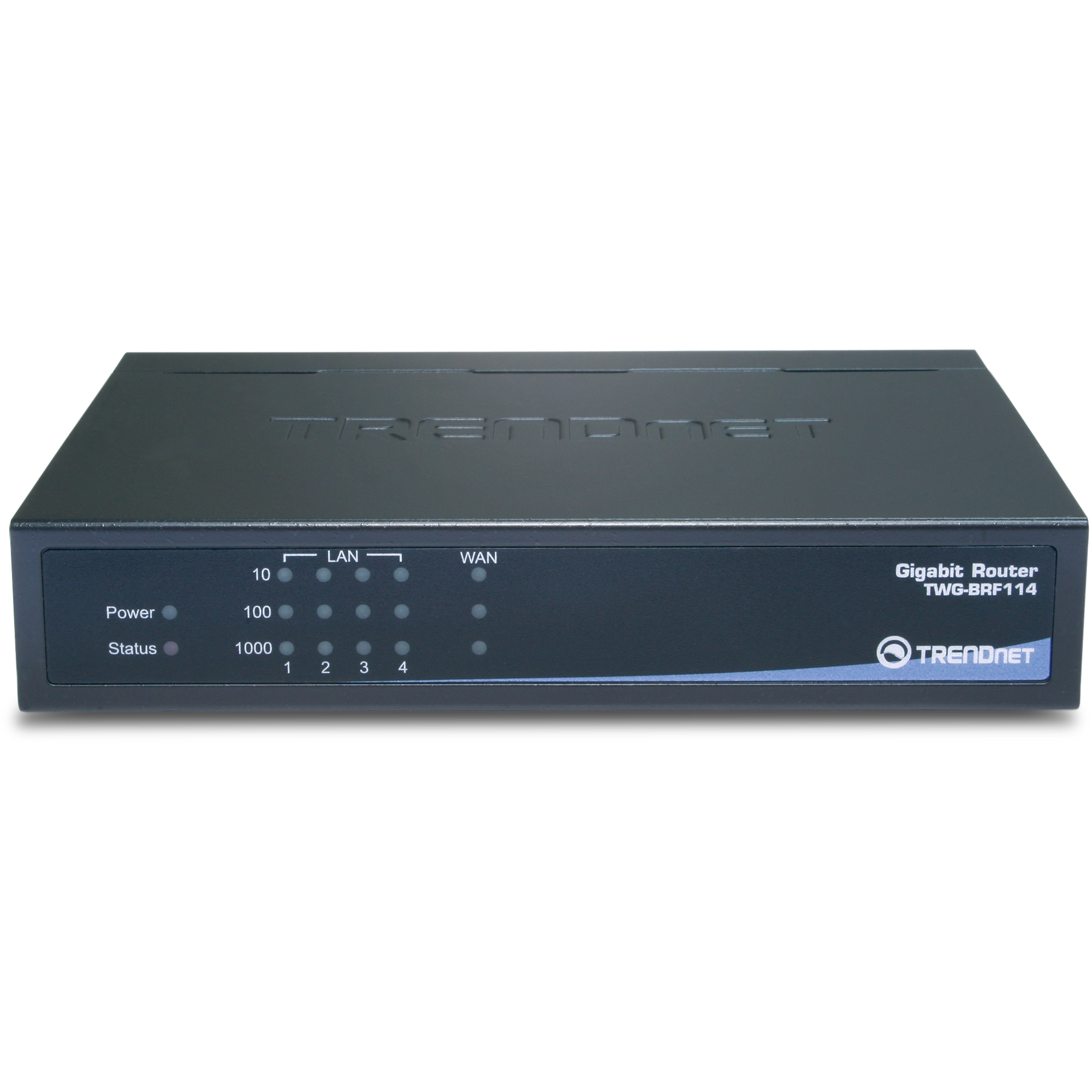

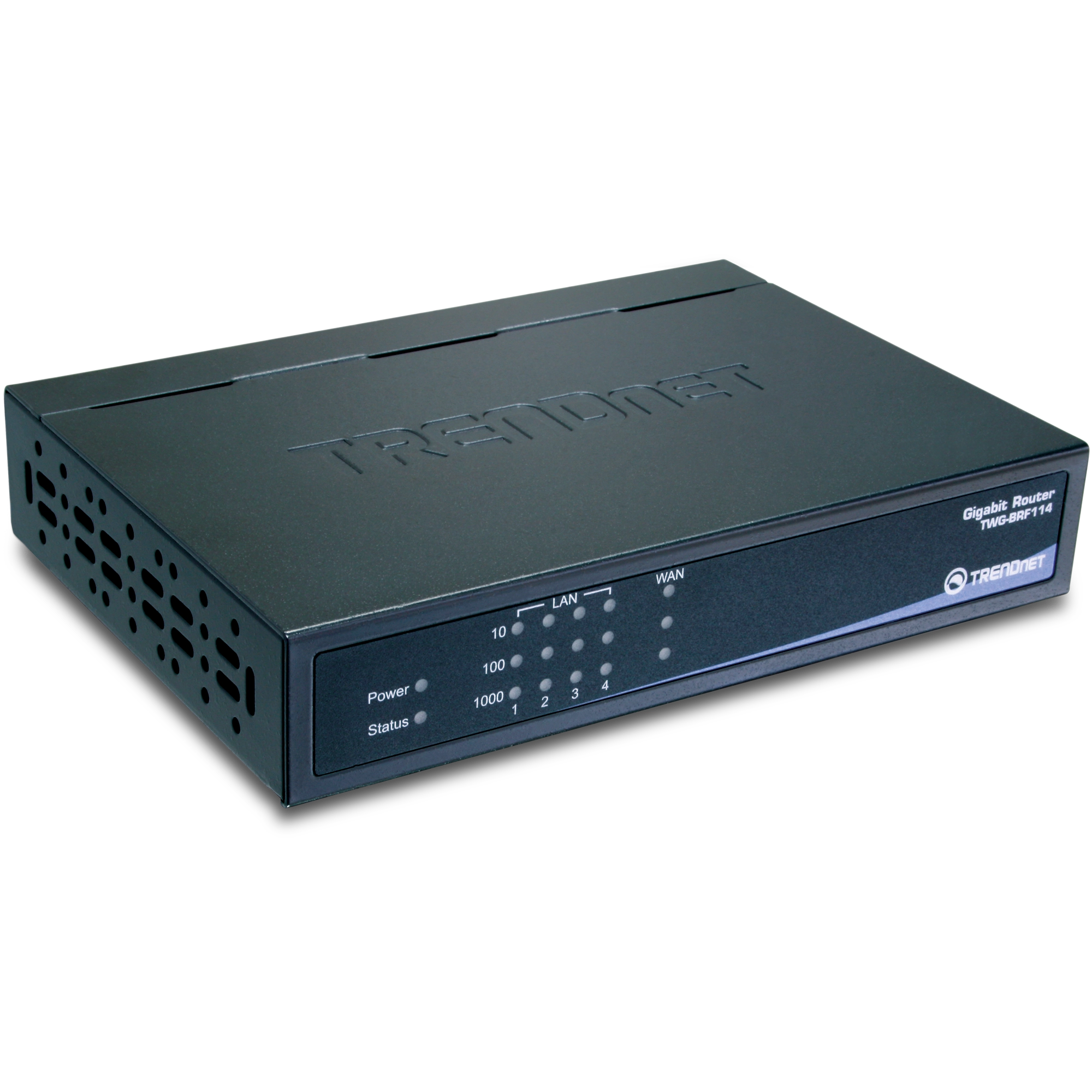

Produktbild(er)
Open your web browser and type the IP address of the TWG-BRF114 in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
Put a check mark in the Enable box. Rename the servic...
The MAC Address can be found on a label on the bottom of the router. You can alternately find it by doing the following:
Open your web browser and type the IP address of the TWG-BRF114 in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and pas...
Click Start then click on the Control Panel. For Windows 2000 click on Start, highlight settings then click on the Control Panel.
Double-Click on the Network Connection icon.
Right-Click on the Local Area Connection icon then click on Properties.
Highlight the Internet Protocol (TCP/I...
Open your web browser and type the IP address of the TWG-BRF114 in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
Click on LAN on the left hand side.
Change the IP addre...
The default username & password for the TWG-BRF114 are both (blank). There is no username and password set by default....
The default IP address for the TW100-BRF114U is 192.168.0.1.

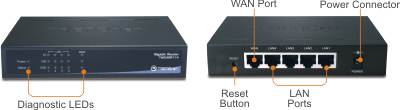

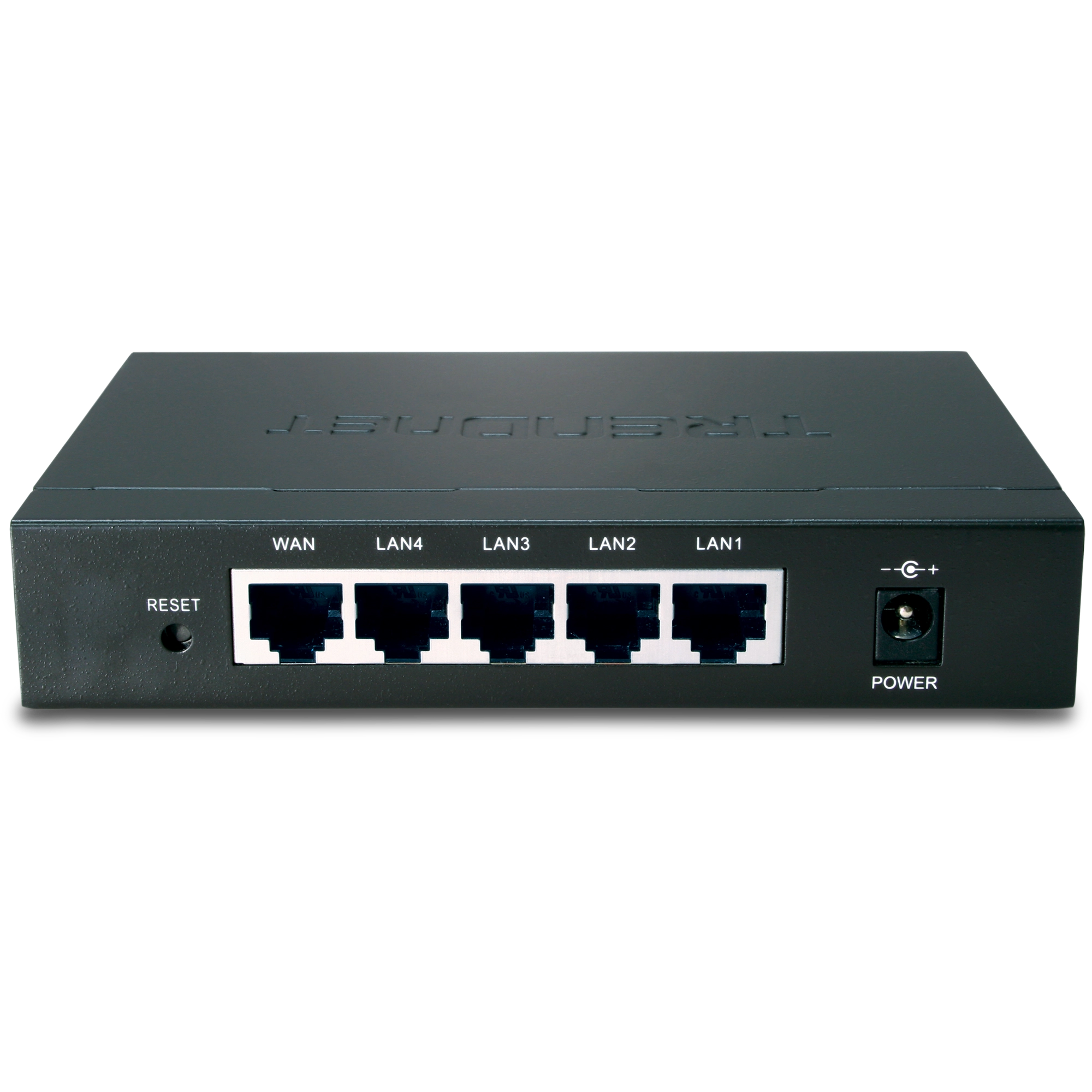

Locate the reset button on the back of the TWG-BRF114.
Press and hold in the reset button for approximately 15 seconds. This will reset the unit back to its default configuration.
...
Open your web browser and type the IP address of the TWG-BRF114 in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
Click on Password on the left hand side.
Enter in t...
Note: The default setting of the router is configured for a Cable connection using a Dynamic IP Address.
Open your web browser and type the IP address of the TWG-BRF114 in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank). ...
Open your web browser and type the IP address of the TWG-BRF114 in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
Click on WAN Port on the left hand side.
Choose PPPoE f...
| Hardware | |
| Standards | IEEE 802.3, 802.3u und 802.3ab |
| Protokolle | NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1 und DDNS |
| Firewall | NAT, Stateful Packet Inspection, Angriffswarnungen per E-Mail, Protokollierung von Denial-of-Service-Angriffen |
| Sicherheit | Zugriffskontrolle |
| Lokaler Port | 4 x RJ45 10/100/1000 MBit/s Gigabit-Ethernet Auto-MDI/MDIX |
| Internet-Port | 1 x abgeschirmt RJ45 10/100/1000 MBit/s Gigabit-Ethernet Auto-MDI/MDIX |
| Rücksetztaste | Stellt alle Einstellungen auf Herstellerstandard zurück |
| LEDs | Stromversorgung, Status, Verbindung/Aktivität, 10 MBit/s,100 MBit/s, 1000 MBit/s LAN und WAN |
| Stromversorgung | Externes Netzteil (12 V Gleichstrom, 800 mA) |
| Abmessungen (LxBxH) | 141 x 100 x 27 mm |
| Gewicht | 363g |
| Temperatur |
|
| Luftfeuchtigkeit |
|
| Zulassungen | CE |  |
PACKUNGSINHALT |
|
Alle erwähnten Geschwindigkeiten dienen ausschließlich dem Vergleich. Produktspezifikationen, Größe und Form unterliegen unangekündigten Änderungen, und das tatsächliche Aussehen des Produkts kann von dieser Beschreibung abweichen.
