SecurView Wireless-N Internetkamera mit Schwenk-/Neigekopf und Zoomfunktion
TV-IP410WN (Version v1.0R)
- Sehr schnelle Wireless-N-Verbindung
- Von beliebiger Internetverbindung aus seitlich um 330° schwenkbar und in der Höhe um 105° neigbar
- WiFi-geschützte Installation (WPS) auf Tastendruck
- Kostenlose Software mit Funktionen für Bewegungserkennung und E-Mail-Benachrichtigungen
DISCONTINUED PRODUCT
The TV-IP410WN (Version v1.0R) has been discontinued. It has been replaced by the TV-IP420P (Version v1.0R). For a list of discontinued products, click here.Hilfsprogramme
Dateiname: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Datum: 10/27/2017
Dateigröße: 20.98 MB
Dateiname: Utility_IPSetup(v1.0.0.9).zip
SHA-1 Checksum: DF2576962235590F425CAB35246A68886DD0C6C9
Datum: 7/26/2017
Dateigröße: 700.14 KB
Dateiname: SecurViewPro(v2.0.0.0)_08292011.zip
SHA-1 Checksum: 73065E14971D00A27ACF41BFA88C643EA081CFBE
Datum: 7/26/2017
Dateigröße: 76.79 MB
Firmware
Aktualisieren Sie die Firmware von TRENDnet-Produkten NICHT über eine drahtlose Verbindung. Wenn die Firmware über eine drahtlose Verbindung aktualisiert wird, kann das Produkt Schaden nehmen. Führen Sie Aktualisierungen deshalb bitte nur über verdrahtete Verbindungen durch. |
Firmware Version: V1.1.2
Release Date: 10/2013
Note:
- Fixed security vulnerabilities
Notes:
Dateiname: FW_TV-410WN(1.1.2).zip
SHA-1 Checksum: 5C4453BD99124AE10E6603C4C9D26683BBA51F9B
Datum: 7/26/2017
Dateigröße: 3.48 MB
Software
Software Version: 2.5.9
Release Date: 4/2017
Notes:
- Fixed TV-IP420P P/T issue
Dateiname: TRENDnetViewPro(2.5.9).zip
SHA-1 Checksum: 7CD1D9AE621816395E9FE9644B651F3696388215
Datum: 7/26/2017
Dateigröße: 41.15 MB
Datenblätter
Dateiname: EN_spec_TV_IP410WN(v1.0R).pdf
Datum: 2/17/2015
Dateigröße: 540.08 KB
Dateiname: FR_spec_TV_IP410WN(v1.0R).pdf
Datum: 2/17/2015
Dateigröße: 592.14 KB
Dateiname: GE_spec_TV_IP410WN(v1.0R).pdf
Datum: 2/17/2015
Dateigröße: 576.56 KB
Dateiname: SP_spec_TV_IP410WN(v1.0R).pdf
Datum: 2/17/2015
Dateigröße: 588.68 KB
Dateiname: RU_spec_TV_IP410WN(v1.0R).pdf
Datum: 2/17/2015
Dateigröße: 558.28 KB
Dateiname: IT_spec_TV_IP410WN(v1.0R).pdf
Datum: 2/17/2015
Dateigröße: 590.21 KB
Kurzanleitung zur Installation
Dateiname: EN_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 2.45 MB
Dateiname: FR_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 2.51 MB
Dateiname: GE_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 1.89 MB
Dateiname: PO_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 1.84 MB
Dateiname: SP_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 1.88 MB
Dateiname: RU_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 2.87 MB
Dateiname: EST_Web_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 1.61 MB
Bedienungsanleitung
Dateiname: UG_SecurViewPro.pdf
Datum: 6/5/2012
Dateigröße: 4.66 MB
Dateiname: UG_TV-IP410WN(1.01).pdf
Datum: 3/30/2011
Dateigröße: 5.85 MB

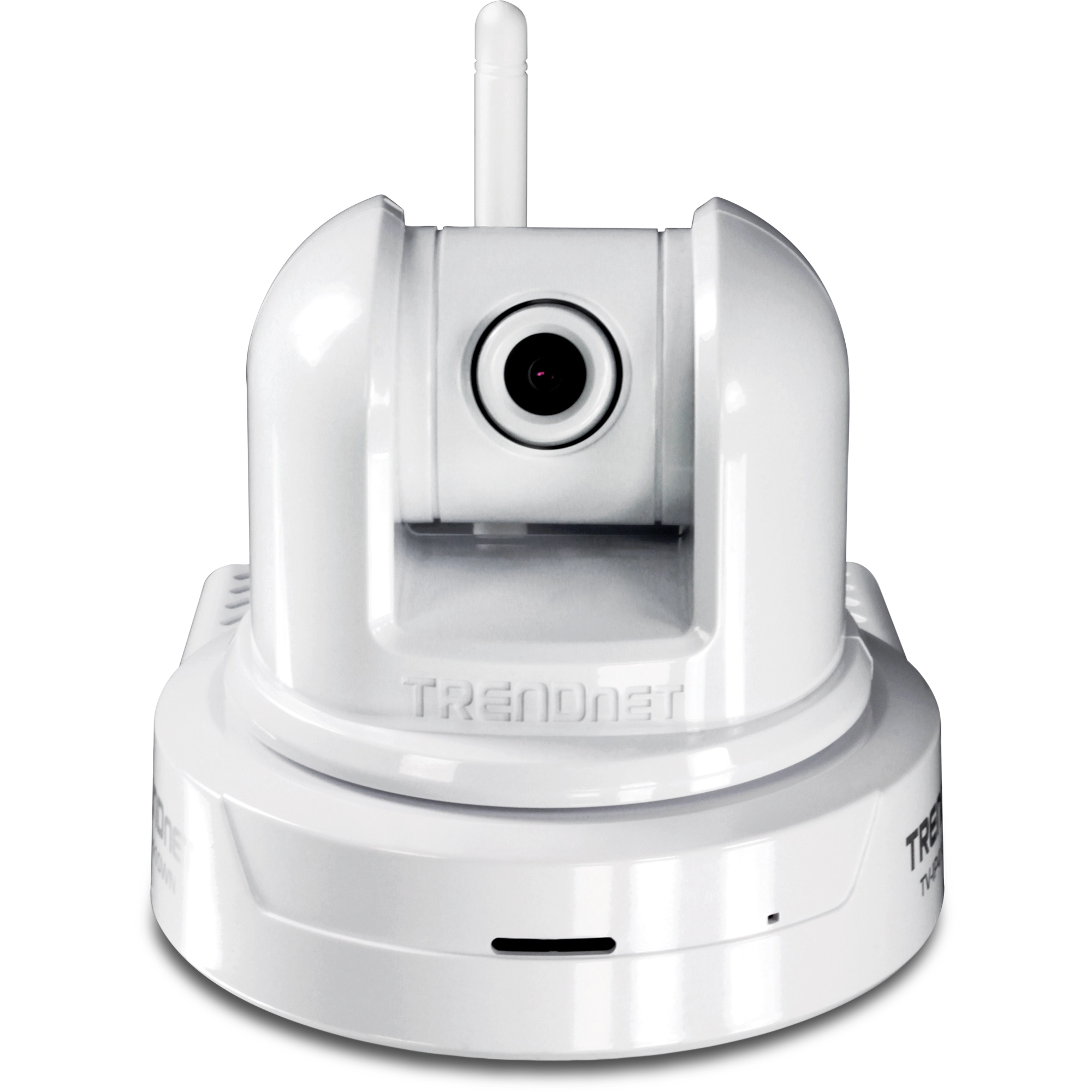

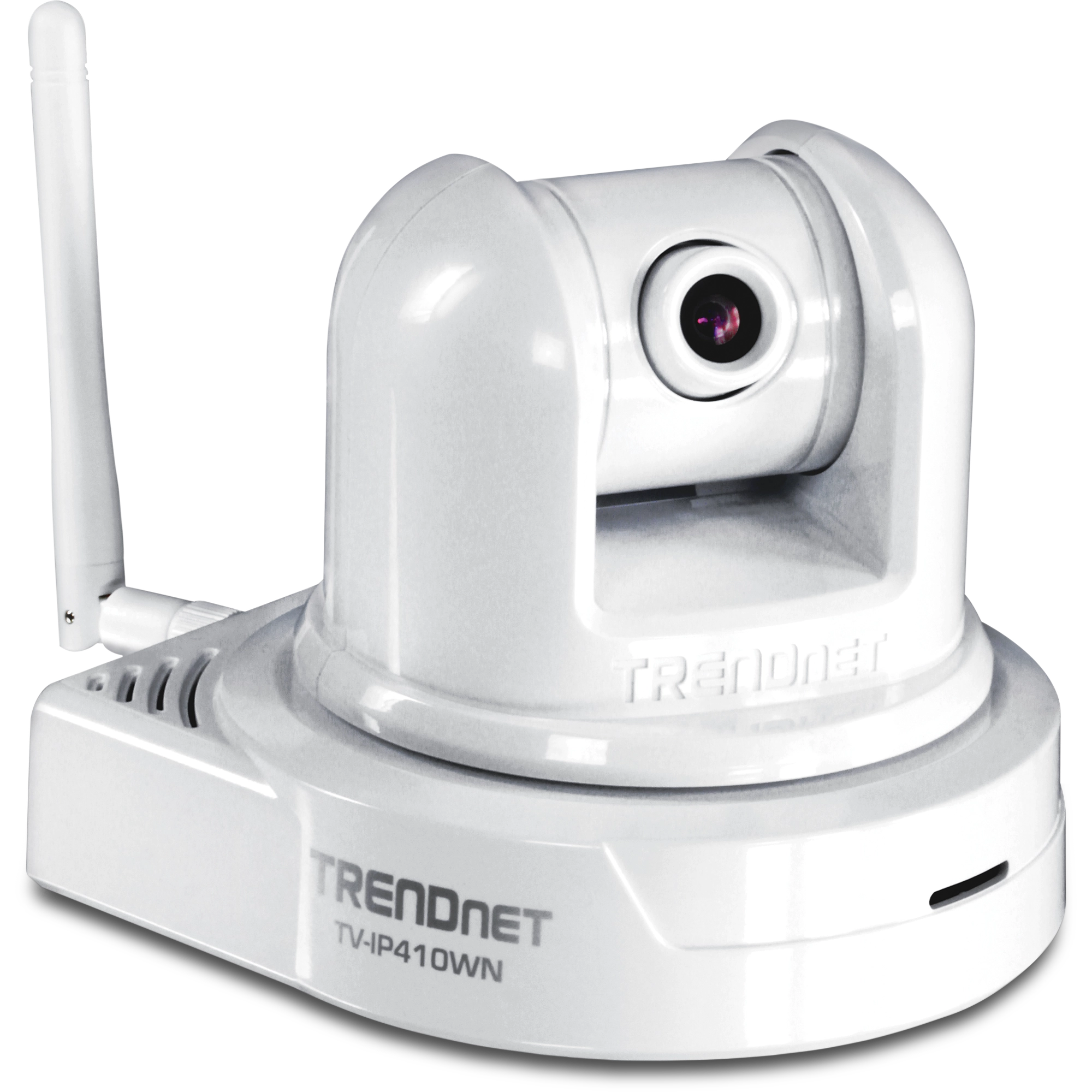

Produktbild(er)
OverviewPlease ensure you have followed the quick installation guide and have the camera setup and accessible on your home/office network. The following instructions are going to outline how to make a SecurView camera accessible over the Internet. We will start by assigning a unique static IP addres...
The camera must be configured properly to have Internet access. This includes making sure you have entered a valid default gateway address for the camera and valid DNS server entries to ensure it can resolve names.
Unfortunately the camera does not support SSL. If the email provider requires ...
Unfortunately the cameras from different families do not share a common, free, application and cannot be used together. SecurView cameras will not function in IPView Pro and vice versa....
By default the camera uses TCP port 80. Forward this port in your router or firewall to the camera.
Unfortunately SecurView is not compatible with Macintosh operating systems.
The camera can be configured from a Macintosh through its web-based configuration page. The camera's web configuration page can be reached by entering its IP address into a web browser. For example, if the IP address is 192.168.10.30 you would access it by opening your web browser and entering htt...
The camera's web configuration page can be reached by entering its IP address into a web browser. For example, if the IP address is 192.168.10.30 you would access it by opening Internet Explorer and entering https://192.168.10.30 into the address line....
The camera by default is configured to receive an IP address via DHCP. If it is unable to receive an IP address via DHCP it will default to 192.168.10.30. You can use the IP Setup Utility to find and change the IP address of the camera as well. Click Start and go to All Programs under TRENDnet to fi...
Log in to the camera and click on Setup. Click on Motion Detect on the left hand side. On this page you can setup two motion detection windows. Under "Window" you can select either 1 or 2. Place a check in "Enable" to turn on motion detection. You can adjust the threshold for each window individuall...
Warning:
Firmware upgrade failure may permanently damage the unit and cause it to malfunction. Do not interrupt the firmware upgrade process by disconnecting it from the network or unplugging its power from the power outlet once the firmware upgrade process has begun. Never perform a firmware upgr...
Log in to the camera and click on Setup then click on Event Server>Email on the left hand side. Enter your email server and user information here.
After applying the email server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uplo...
Log in to the camera and click on Setup then click on Event Server>FTP on the left hand side. Enter your FTP server information here.
After applying the FTP server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uploading and GPIO ...
After you have the camera configured on your network start SecurView. Click on the "Settings" button then click on the "Add Camera" button. It will search your network for any supported cameras and display a list of them. Highlight the camera you want to view in SecurView then click "Add Camera".
...
The supported browsers are Internet Explorer 6.0 or above.
Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Press and hold in the reset button on the back of the camera for approximately 10 seconds while the power is on to restore the factory default settings. ...

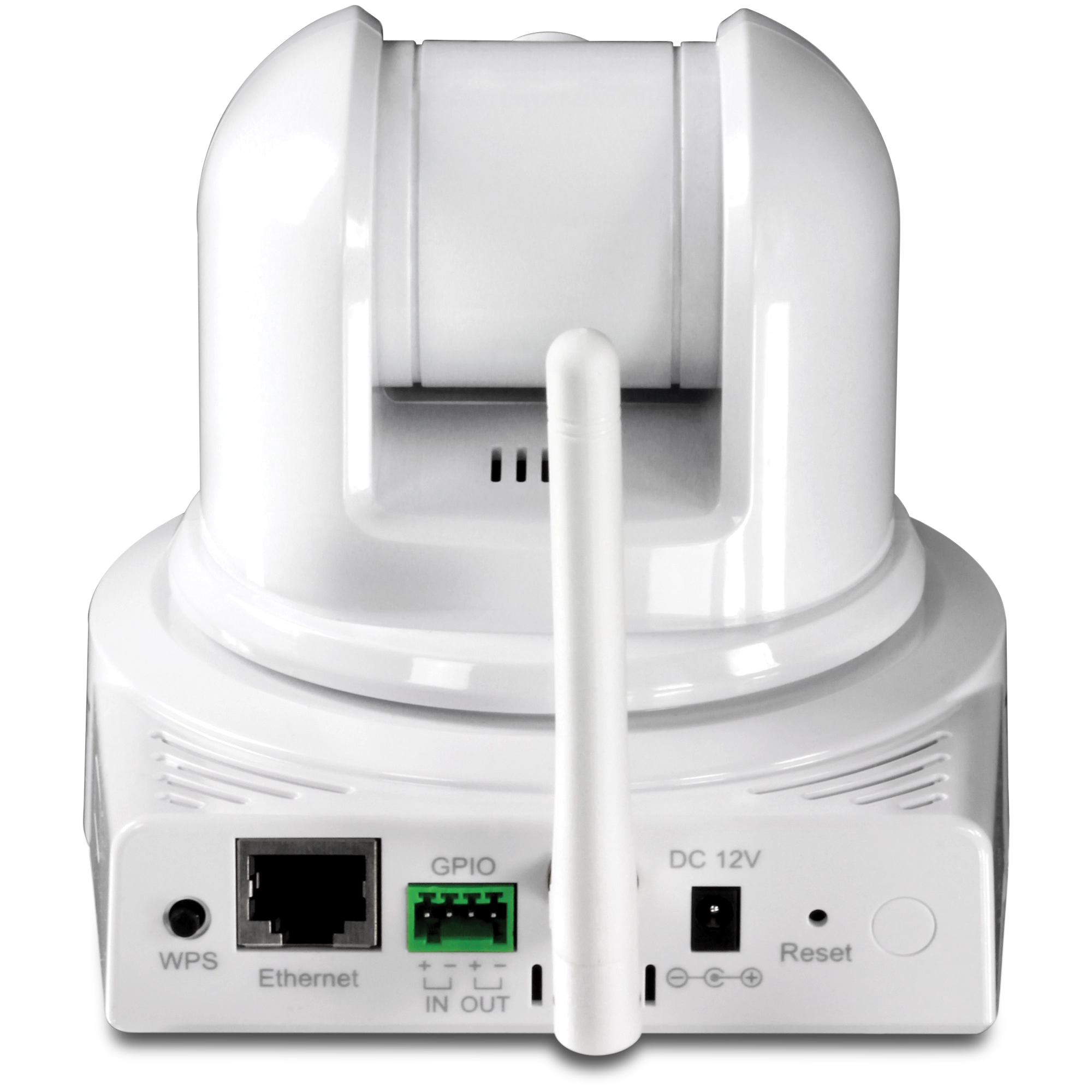

The top LED is a power light. It should be a steady orange light when power is applied to the camera. The bottom LED is a link light. It should be green and blinking when sending and receiving data. ...
Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both "admin".
After you have logged into the camera do the following.
-Click Setup
-Click Basic>User
You can define t...
Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both "admin".
After you have logged into the camera do the following.
-Click Setup.
-Click Network>Wireless.
-Clic...
Yes, the camera does support DDNS (Dynamic DNS). Dynamic DNS services will allow you to maintain a single hostname for the camera, even if your ISP changes your WAN IP address. The camera will update the DDNS record to reflect the new IP address. This ensures that each time you go to the hostname yo...
You will need to forward the port that the camera is using in the router to the camera. By default this is TCP port 80. From a remote location you would enter in the public or WAN IP address of your router into your browser or add it to SecurView using the public IP address.
Refer to your router'...
| Kamera | |
| Allgemein | Sensor: 1/4" Farb-CMOS-Sensor Auflösung: 640 x 480 pixels Bord-Objektiv Brennweite: 4.0 mm Blendenzahl (F/No): F1.8 Mindestbelichtung: 0.5 Lux Bilddiagonale: 64 ° |
| Schwenk-/Neigekopf | Schwenk: +165~-165 ° Neigekopf: +90 ~ -15 ° Voreingestellte Positionen: 8 Positionen |
| Bild & Video |
|
| Hardware | |
| Netzwerk | IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX |
| LED-Anzeige | Stromversorgung , Link |
| Rücksetztaste | Stellt alle Einstellungen auf Herstellerstandard zurück |
| WPS-Taste | Drucktaste für WiFi-geschützte Installation |
| Stromverbrauch | 9 Watts max. |
| Stromversorgung | 12 V DC, 1.5 A Externes Netzteil (3,5-mm-Stecker) |
| Abmessungen | 70 x 100 x 57 mm (2.67 x 3.94 x 2.95 in.) |
| Gewicht | 340 g (12 oz.) |
| Temperatur |
|
| Luftfeuchtigkeit | Max. 90% (nicht kondensierend) |
| Zulassungen | CE, FCC |
| Anforderungen | |
| Verwaltungsoberfläche | Internet Explorer 6.0 oder höhe |
| Für SecurView Pro | Windows 7 (32/64 bit), Vista (32/64 bit), XP (32/64 bit) |
| SecurView Pro 2.0 Software | Kanal: unterstützt bis zu 32 Kameras Aufnahme/Wiedergabe/Bewegungsmeldung |
| Network Protokolle | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, PPPoE, UPnP |
| Drahtlose Verbindung | |
| Standard | Basierend auf der IEEE 802.11n Technologie kompatibel mit IEEE 802.11b/g |
| Frequenzbereich | 2.4 ~ 2.4835GHz |
| Antenne | 1 Abnehmbare 2dBi-Dipolantenne mit Reverse-SMA-Anschluss |
| Datenrate (auto-fallback) |
|
| Sicherheit | 64/128-bit WEP, WPA/WPA2-PSK |
| Ausgangsleistung |
|
| Empfangsempfindlichkeit |
|
| Kanäle | 1~11 (FCC), 1~13 (ETSI) |
| Verwaltung | |
| Externe Anmeldung | Remote-Management unterstützt |
| Backup / Wiederherstellung | Konfigurationsdaten abspeichern/wiederherstellen |
| Einstellungen | |
| Bild | Helligkeit, Schärfe, Sättigung, drehen, spiegeln (horizontal/vertikal) |
| Video | Art des Encoders: Auflösung: 640 x 480, 320 x 240, 160 x 120 Bildwiederholungsrate: 1~ 30 fps Kompression: 5 levels |
| Aufzeichnungsarten | Aufzeichnungsarten: kontinuierlich, per Zeitplan oder bei Bewegungserkennung mit Software |
| Port Einstellungen | HTTP Port: 80 (voreingestellt) |
| Digitaler Zoom | 3x |
| Dynamisches DNS | Ja |
| Uhrzeit | Mit NTP Server synchronisieren oder Uhrzeit/Datum manuell stellen |
| SMTP | Unterstützung von SMTP-Mail für bis zu 2 Konten mit Software |
| Systemprotokoll | 100 Einträge (max.) |
PACKUNGSINHALT |
|
Alle erwähnten Geschwindigkeiten dienen ausschließlich dem Vergleich. Produktspezifikationen, Größe und Form unterliegen unangekündigten Änderungen, und das tatsächliche Aussehen des Produkts kann von dieser Beschreibung abweichen.
