ProView Wireless-N Internetkamera mit Schwenk-/Neigekopf und Zoomfunktion

OverviewPlease ensure you have followed the quick installation guide and have the camera setup and accessible on your home/office network. The following instructions are going to outline how to make a SecurView camera accessible over the Internet. We will start by assigning a unique static IP addres...

The camera must be configured properly to have Internet access.  This includes making sure you have entered a valid default gateway address for the camera and valid DNS server entries to ensure it can resolve names.  Unfortunately the camera does not support SSL.  If the email provider requires SS...

Unfortunately the cameras from different families do not share a common free application and cannot be used together. SecurView cameras will not function in IPView Pro (2) and vice versa....

By default the camera uses TCP port 80. Forward this port in your router or firewall to the camera.

Unfortunately IPView Pro 2 is not compatible with Macintosh operating systems.

The camera's web configuration page can be reached by entering its IP address into a web browser.  For example, if the IP address is 192.168.10.30 you would access it by opening Internet Explorer and entering https://192.168.10.30 into the address line....

The camera by default is configured to receive an IP address via DHCP.  If it is unable to receive an IP address via DHCP it will default to 192.168.10.30. In general, your router has a DHCP server. When you connect the camera to your Router, the Router would assign the camera an IP address. ...

Motion detection recording is provided through the IPView Pro 2 application.  Start IPView Pro and click on the Configuration button. Click on the Camera Settings tab and select the camera.   Enable Motion Detecting and under the Action field enable "Recording". Click on the "Configur...

Go to www.TRENDnet.com/downloads to download the latest firmware for the camera.  Included with the download are instructions to upgrade the firmware. ...

Log into the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Click on Setup and then the Network > Setup page and place a check to Enable Wireless.    Select your wireless network...

Log into the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Once you have logged into the camera click on Setup then the Action > Snapshot page and place a check mark into "Enable...

Log into the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Once you have logged into the camera click on Setup then the Action > Snapshot page and place a check mark into "Enable...

Once you have the camera configured on your network start IPView Pro 2.  If you are adding the first camera, skip to Step 3.    If you have already added a camera previously do the following. Click on the "Configure" button then click on the "Add Camera in local LAN" button.  It will search you...

Internet Explorer 7.0 or above.

Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

Press and hold in the reset button on the back of the camera for approximately 10 seconds while the power is on to restore the factory default settings. ...

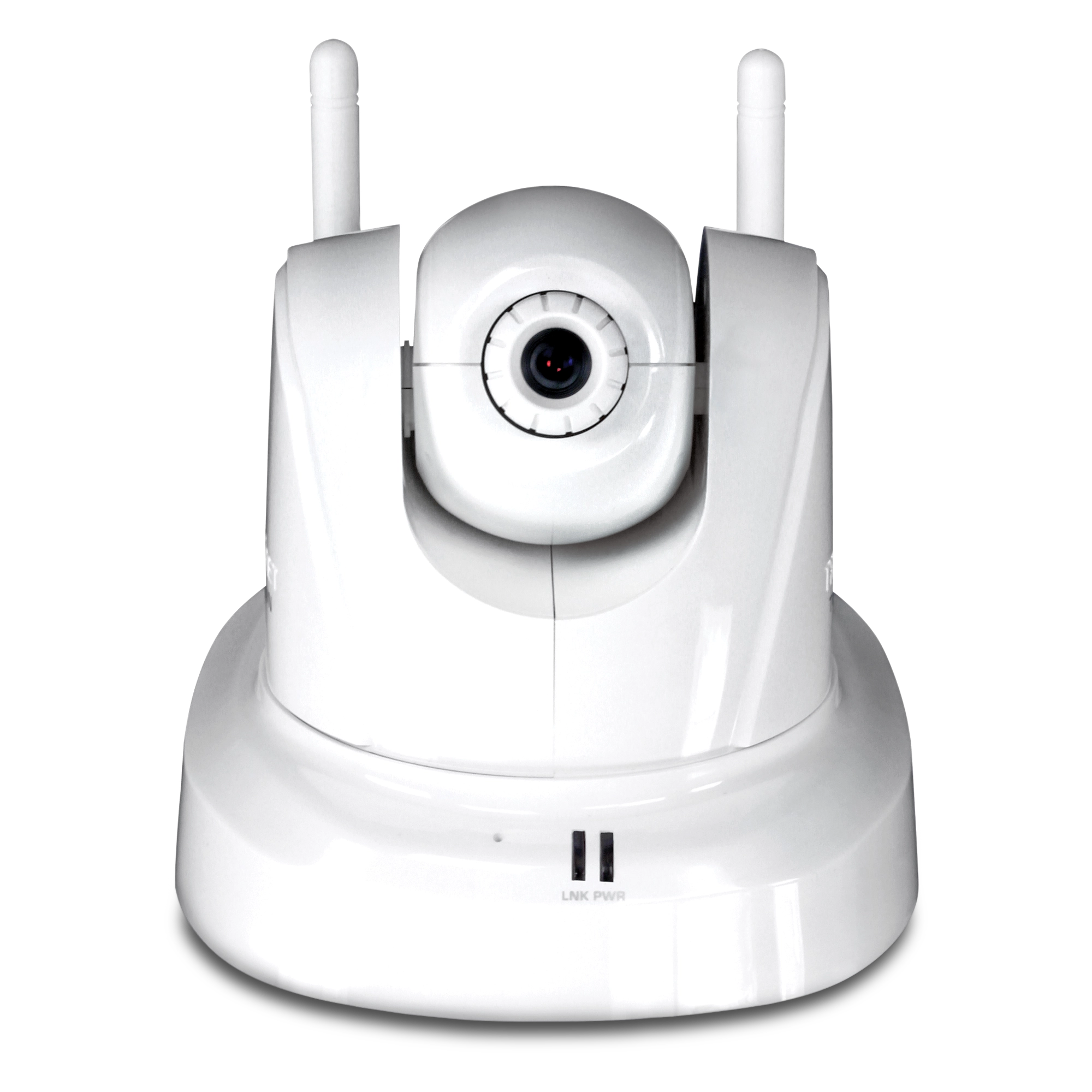

The link LED will illuminate when there is an active connection to a network. It will blink when traffic is being sent to and from the camera. The Power LED will illuminate when power is supplied to the camera. ...

Log into the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Once you have logged into the camera do the following to configure the cameras Admin username and password. -Click o...

Yes, the camera does support DDNS (Dynamic DNS).     Dynamic DNS services will allow you to maintain a single hostname for the camera, even if your ISP changes your WAN IP address.  The camera will update the DDNS record to reflect the new IP address.  This ensures that each time you go to the hostn...

You will need to forward the port that the camera is using in the router to the camera.   By default this is TCP port 80.  From a remote location you would enter in the public or WAN IP address of your router into your browser or add it to SecurView using the public IP address.  Refer to your rou...
