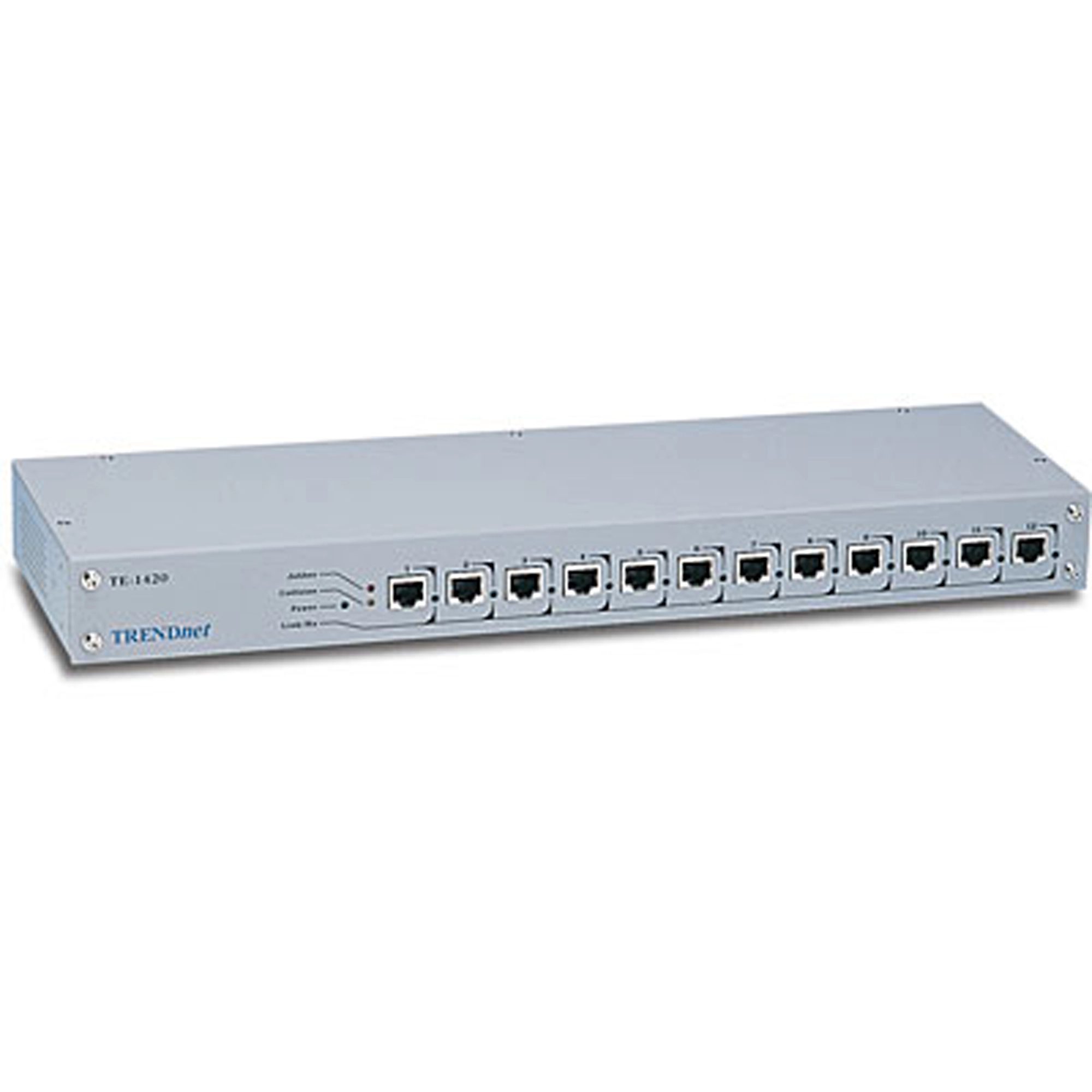

12-Port 10Base-T Ethernet Hub

TE-1420   (Version 1.0)

  • The TE-1420 rack mountable hub provides high capacity connectivity for use in medium to large corporate networks.
  • For added durability the TE-1420 is protected by a heavy gauge metal chassis
  • Enjoy data rates up to 10Mbps

DISCONTINUED PRODUCT

The TE-1420 (Version 1.0) has been discontinued. For a list of discontinued products, click here.
Hardware
Standards:
  • IEEE 802.3 10Base-T, 10Base-2, and 10Base-5
Ports:
  • 12 RJ-45, 1 BNC, and 1 AUI
Input Power:
  • AC 100V to 250V 50/60Hz, auto-selecting
Power Consumption:
  • 18W
Dimensions
  • 483mm x 44mm x 125mm (including mounting brackets):
Weight:
  • 2.0kg
Operating Temperature:
  • 0° to 55° C
Operating Humidity:
  • 10% to 90% non-condensing
Emissions:
  • FCC class A
Certifications:
  • UL, CSA
