ADSL/ADSL2+ Ethernet Modem Router

TDM-E400   (Version 2.0R)

  • Connect to the Internet at broadband speeds and create a wired network, all with one product
  • Works with the latest ADSL standards
  • Built-in firewall protects against Internet attack
  • Control access to your network with MAC Layer and IP Layer filtering

    • DISCONTINUED PRODUCT

    The TDM-E400 (Version 2.0R) has been discontinued. For a list of discontinued products, click here.

    Firmware

    Firmware
    Firmware Version: 8824A_2.5.060823w
    Release Date: April, 2008
    Note: Increase IP sessions and fix PPP LED issue
    Nome do arquivo: FW_TDM-400(8824A_2.5.060823w).zip
    SHA-1 Checksum: A2A71BDD58D4E0582ED03BFA1F042D0D1736AE5A
    Data: 7/28/2017
    Tamanho de arquivo: 1.56 MB
    Download

    Ficha técnica

    Datasheet (English)
    Nome do arquivo: EN_Spec_TDM-E400.pdf
    Data: 5/7/2008
    Tamanho de arquivo: 574.88 KB
    Download Email

    Guia de Instalação Rápida

    Guia de Instalação Rápida (English)
    Nome do arquivo: EN_QIG_TDM-E400_C400.pdf
    Data: 11/17/2006
    Tamanho de arquivo: 1.09 MB
    Download
    Guia de Instalação Rápida (Français)
    Nome do arquivo: FR_QIG_TDM-E400_C400.pdf
    Data: 11/17/2006
    Tamanho de arquivo: 1.08 MB
    Download
    Guia de Instalação Rápida (Deutsch)
    Nome do arquivo: GE_QIG_TDM-E400_C400.pdf
    Data: 11/17/2006
    Tamanho de arquivo: 1.09 MB
    Download
    Guia de Instalação Rápida (Español)
    Nome do arquivo: SP_QIG_TDM-E400_C400.pdf
    Data: 11/17/2006
    Tamanho de arquivo: 1.09 MB
    Download
    Guia de Instalação Rápida (Pусский)
    Nome do arquivo: RU_QIG_TDM-E400_C400.pdf
    Data: 11/17/2006
    Tamanho de arquivo: 1.38 MB
    Download
    Guia de Instalação Rápida (Polski)
    Nome do arquivo: POL_QIG_TDM-E400_C400.pdf
    Data: 7/21/2007
    Tamanho de arquivo: 928.55 KB
    Download

    Guia do Usuário

    Guia do Usuário (English)
    Nome do arquivo: UG_TDM-E400_C400.pdf
    Data: 11/17/2006
    Tamanho de arquivo: 2.18 MB
    Download

    Imagem(ns) do Produto

    JPEG Image
    Tamanho de arquivo: : 372.29 KB
    Data: : 11/17/2006
    Download
    JPEG Image
    Tamanho de arquivo: : 315.97 KB
    Data: : 11/17/2006
    Download
    JPEG Image
    Tamanho de arquivo: : 235.90 KB
    Data: : 11/17/2006
    Download
    JPEG Image
    Tamanho de arquivo: : 2.14 MB
    Data: : 11/17/2006
    Download
    TIFF Image
    Tamanho de arquivo: : 2.10 MB
    Data: : 11/17/2006
    Download
    TIFF Image
    Tamanho de arquivo: : 1.74 MB
    Data: : 11/17/2006
    Download
    ROHS compliant WEEE crossed-out bin symbol.

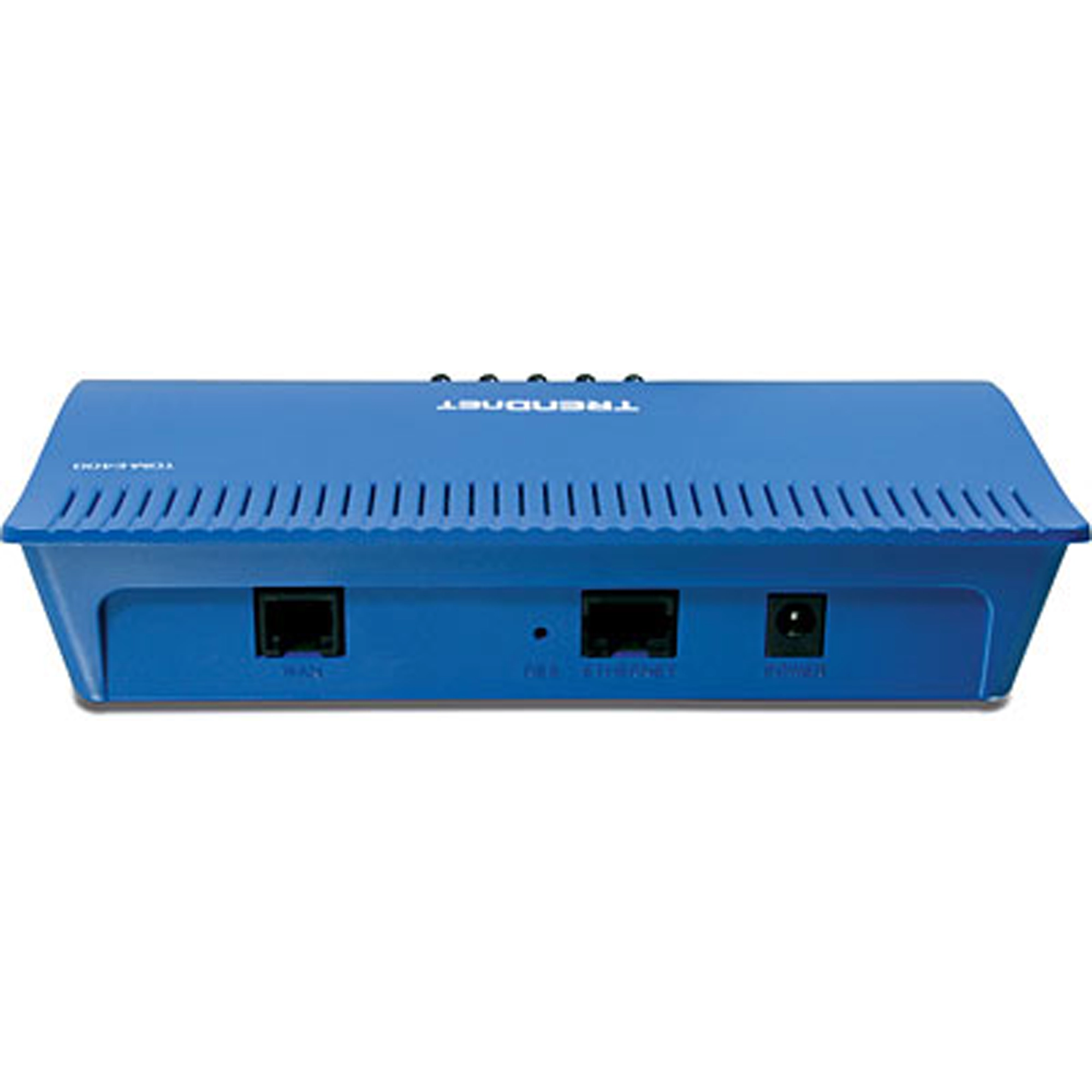

    Hardware
    LAN Interface
    • One 10/100 Base-TX Ethernet port, IEEE 802.3/3u, RJ-45 connector
    WAN Interface (ADSL line)
    • One pair (2-wire) loop, 100 Ω line impedance with RJ-11 connector
    • Compliance: ITU-T G.992.1, G.992.2 and ANSI T1.413 Issue 2 (Annex A)
    • Compliance: ITU-T G.992.1, G.992.2, G.992.3, G.992.5 & ANSI T1.413 Issue 2

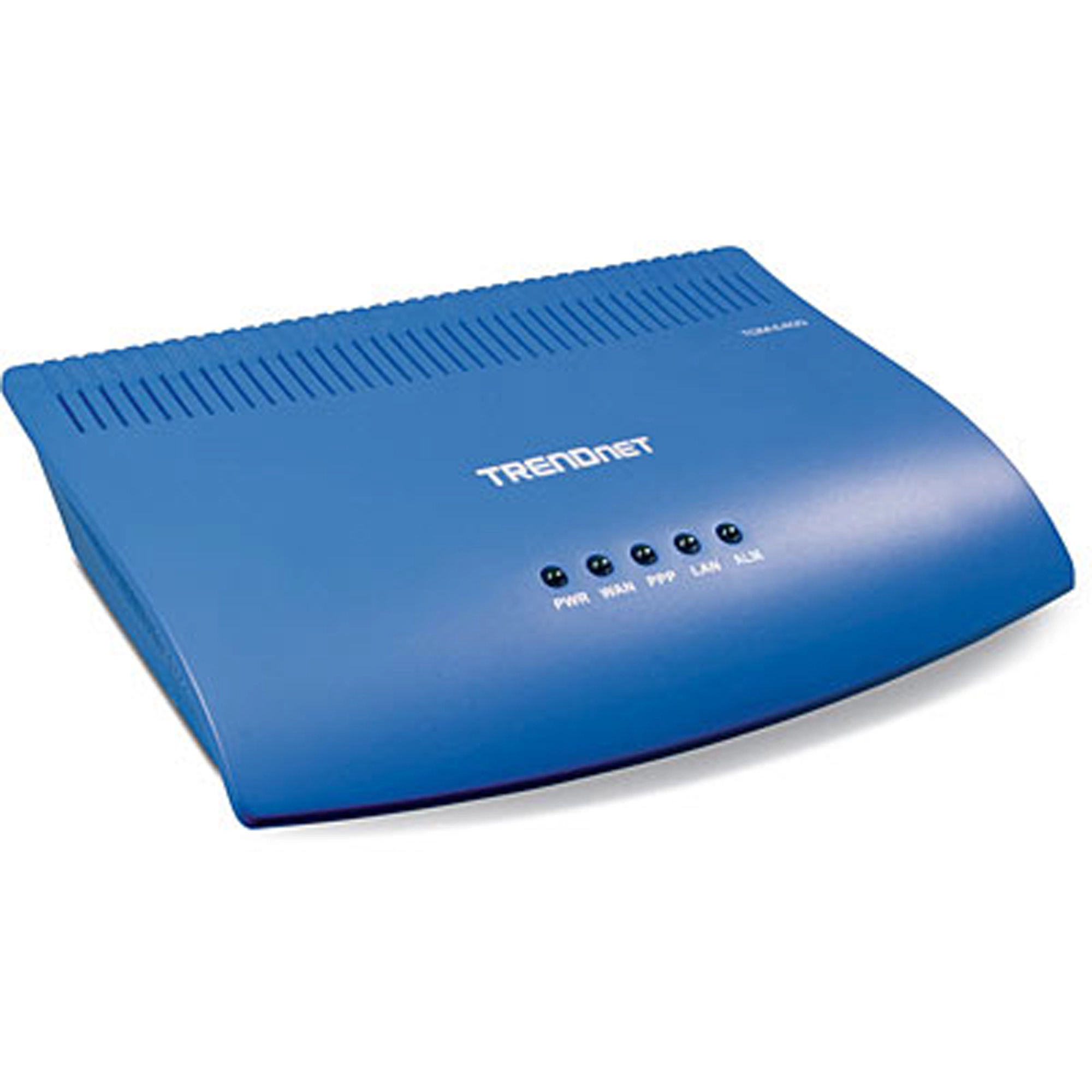

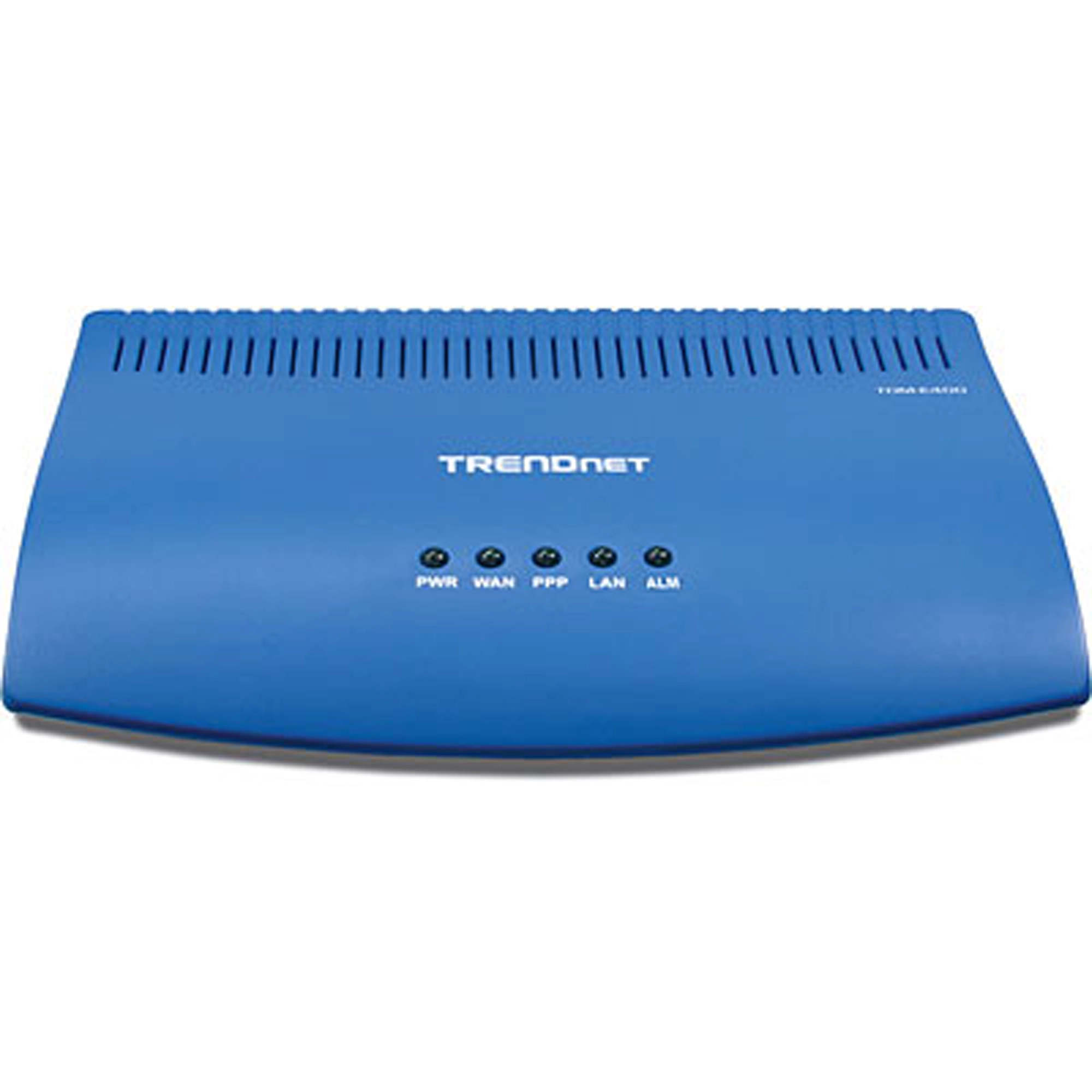

    Indicators
    • ALM (red LED) – Indicates data error or operation fault
    • LAN (green LED) – Continuous ON when Ethernet is active; blinking while transmitting / receiving data
    • PPP (green LED) – Continuous ON when PPP connection is established; blinking while transmitting / receiving data
    • WAN (green LED) – Continuous ON when ADSL link is up
    • PWR (green LED) – Continuous ON when power is properly connected
    OAM&P
    • Local: Telnet or Web management via Ethernet
    • Remote: Telnet or Web Management
    Power
    • AC adapter: Input 110/220VAC, 50/60Hz; Output 15VAC 1A
    • Power consumption: Less than 6 Watts
    Operating Temperature
    • Operation Temperature and Humidity: 0°C ~ 45°C,5% ~ 95% (non-condensing)
    • Storage Temperature and Humidity: -20°C ~ 85°C, 5% ~ 95% (non-condensing)
    Dimensions
    • 170 mm ×121 mm× 36 mm (6.7 x 4.8 x 1.4 in)
    Weight
    • 255g (9 oz)
    Certifications
    • FCC, CE
    Software
    ATM
    • ATM cells over ADSL, AAL5
    • Supports 8 PVCs
    • Supports UBR, CBR, rt-VBR, nrt-VBR and GFR traffic classes
    • ADSL-aware CAC (Connection Admission Control)
    • Support for F5 AIS, RDI, and loopback cells
    • Payload encapsulation
    • RFC2684 / RFC1483, Multiprotocol Encapsulation over ATM Adaptation Layer 5
    • RFC2225 / RFC1577, Classical IP and ARP over ATM (IPoA)
    • RFC2364, PPP over AAL5 (PPPoA)
    Bridging
    • RFC2684 / RFC1483 bridged PDU encapsulation
    • IEEE 802.1D transparent bridging and spanning tree protocol
    • ZIPB (Zero Installation PPP Bridge)
    Routing
    • RFC2684 / RFC1483 routed PDU encapsulation
    • Supports Point-to-Point Protocol (including PPPoA and PPPoE) and user authentication via PAP or CHAP
    • Supports TCP, UDP, ARP, RARP, IPCP, ICMP, IGMP, etc.
    • IP routing: static route, RIP v1 and v2
    • NAT/PAT with extensive ALG supports
    • DNS relay agent
    • Layer 2 tunneling protocol (L2TP)
    Security
    • Built-in firewall with protection against DOS attacks, IP spoofing, and other common types of attacks
    • Packet filtering at MAC layer (raw filter) and IP layer, including stateful packet filtering
    • Supports blacklist
    Configuration and Network Management
    • TR037-compliant auto-configuration using ILMI
    • SNMP v1 agent – over IP, ILMI VCC or HDLC/EOC
    • DHCP client, server and relay for IP management
    • Universal Plug and Play (UPnP) support
    • Telnet with CLI (command line interface) or Web-based configuration and management
    • FTP/TFTP or HTTP for firmware upgrade and configuration

    CONTEÚDO DA EMBALAGEM
    • TDM-E400
    • CD-ROM (User's Guide)
    • Quick Installation Guide
    • 1 x 1.5m(5ft) Cat.5 Cable
    • 1 x RJ11 Telephone Cable
    • Power Adapter
      (15V AC 1A)
