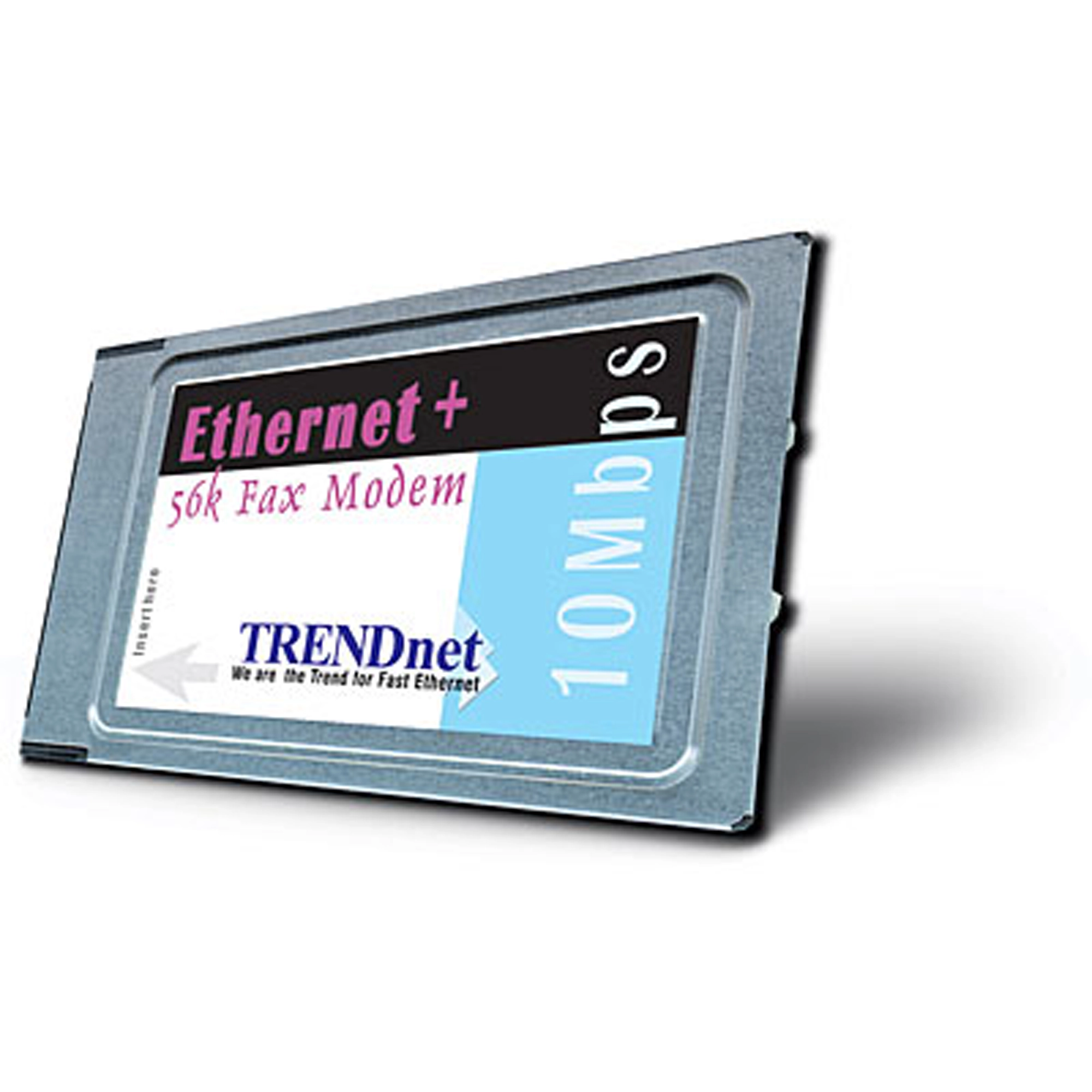

High Performance PCMCIA Ethernet Card with builted-in Fax Modem

TEM-560T

  • Instantly connect your laptop to the Internet with this high performance Internet and fax modem card
  • High speed 56Kbps data and 14.4Kbps fax communication
  • Enjoy a 5 year warranty

DISCONTINUED PRODUCT

The TEM-560T  has been discontinued. For a list of discontinued products, click here.

Utility

Driver/Utility
Nome do arquivo: tem560tg.zip
SHA-1 Checksum: 1FFAC9F9D8E3F728FDEF532565D472F3B6A7765B
Data: 7/25/2017
Tamanho de arquivo: 385.50 KB
Download

Ficha técnica

Datasheet
Nome do arquivo: Spec_TEM-560T.pdf
Data: 5/13/2013
Tamanho de arquivo: 117.74 KB
Download Email
Hardware
Compatibility:
  • PCMCIA 2.1/JEIDA 4.1 Type II Compatible
Ethernet Standards:
  • IEEE 802.3 10Base-T
Network Support:
  • Windows/Windows for Workgroups, Windows 95/98, Windows NT
Error Control:
  • V.42, MNP Class 2-4
Data Compression:
  • CCITT V.42 bis, MNP 5
Data Throughput Enhancement:
  • ETC protocol
Flow Control:
  • Hardware RTS/CTS, Software XON/XOFF
Transmit Level:
  • Permissive -10dBm
Software Control:
  • Industry Standard AT command set; Hayes Compatible
Dialing:
  • Pulse/Tone and adaptive dialing
Typical Power Consumption:
  • Operation: 640mW
  • Sleep Mode - 80mW

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
