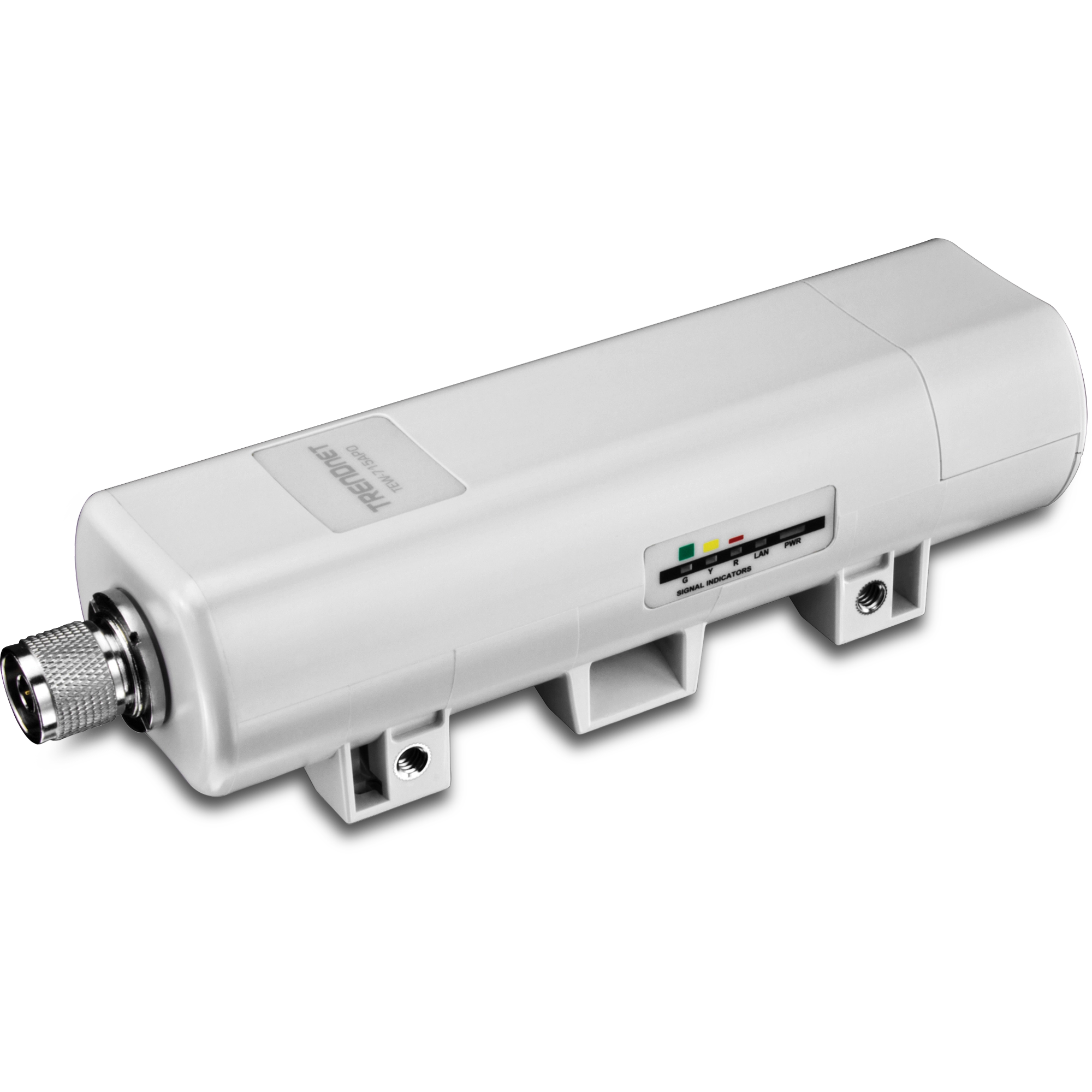

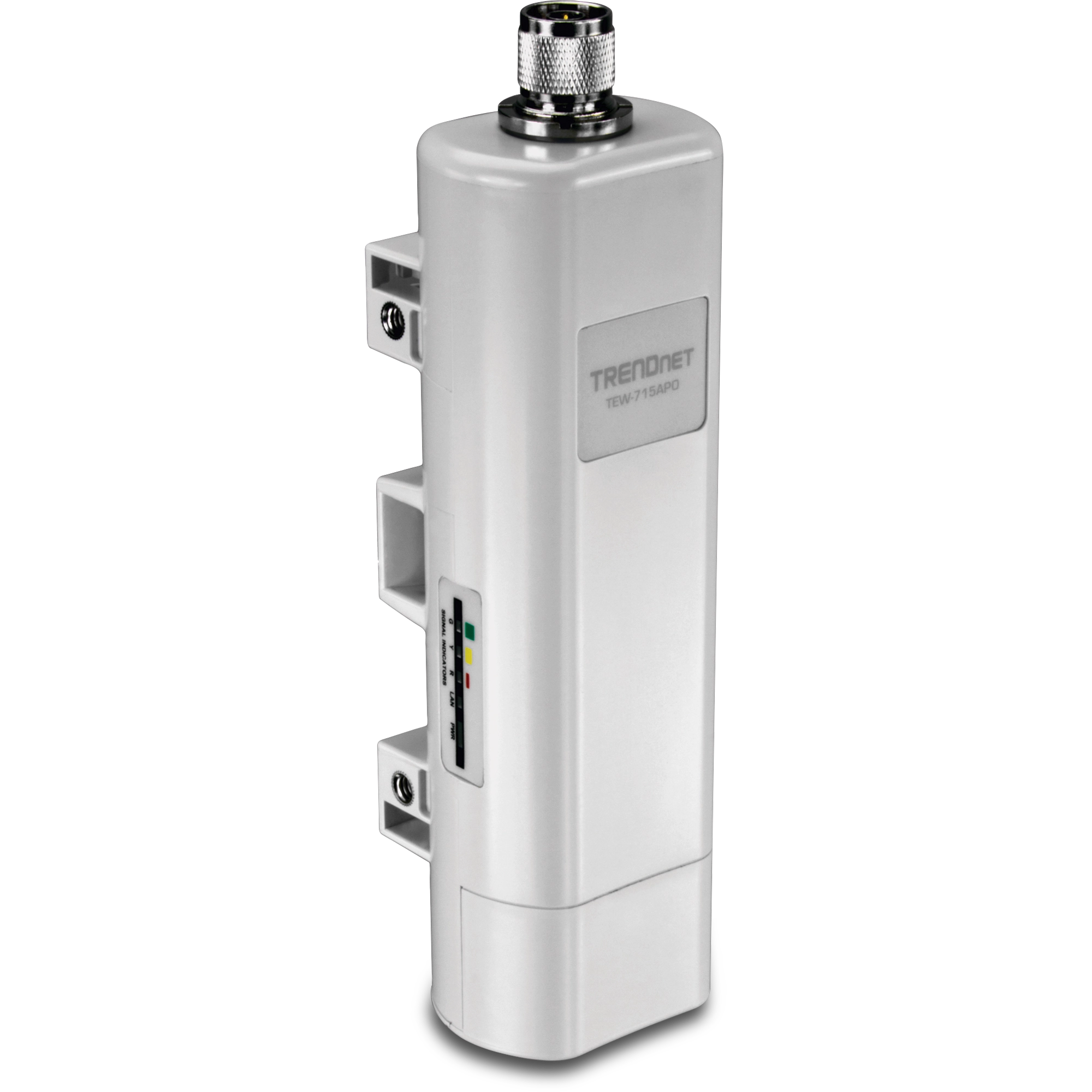

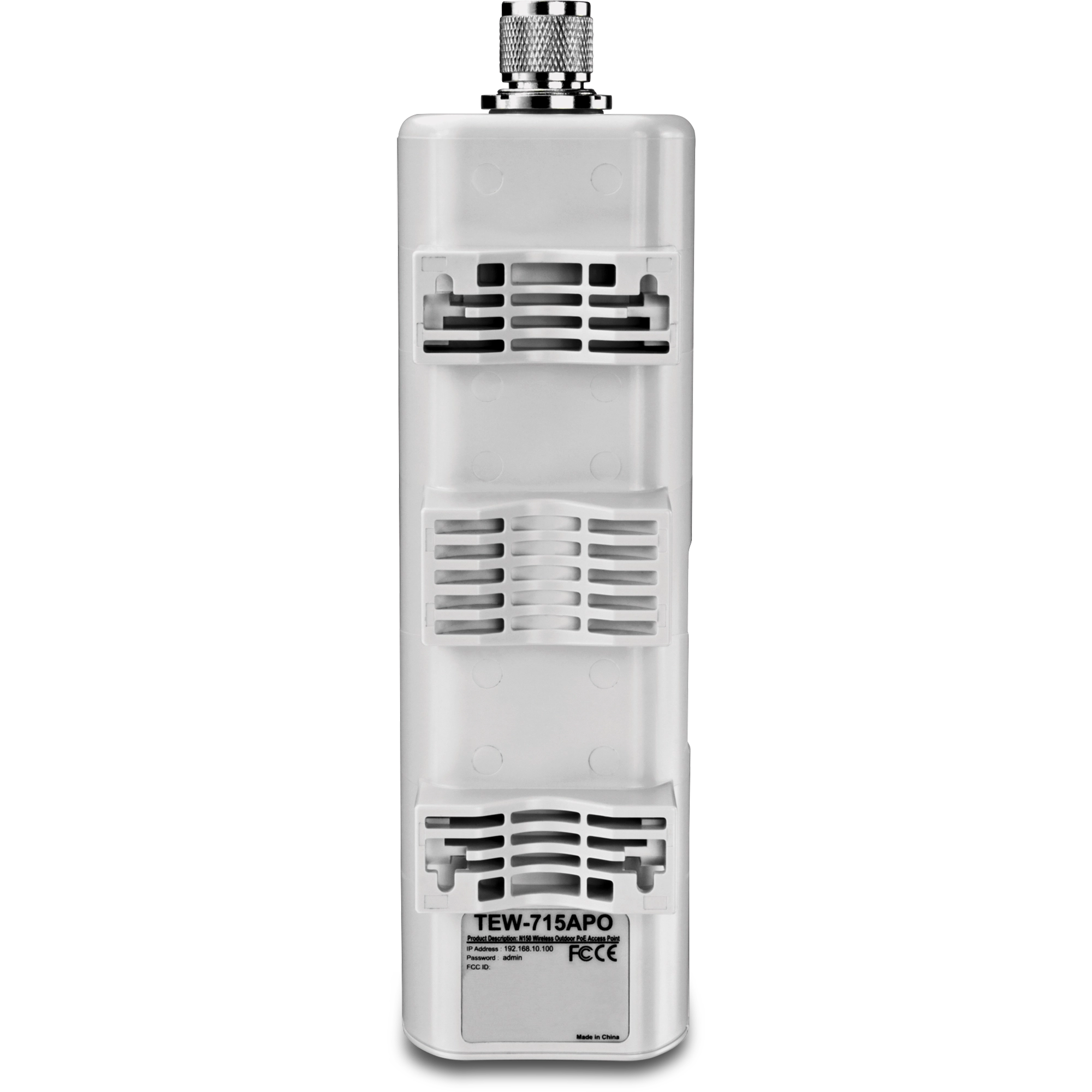

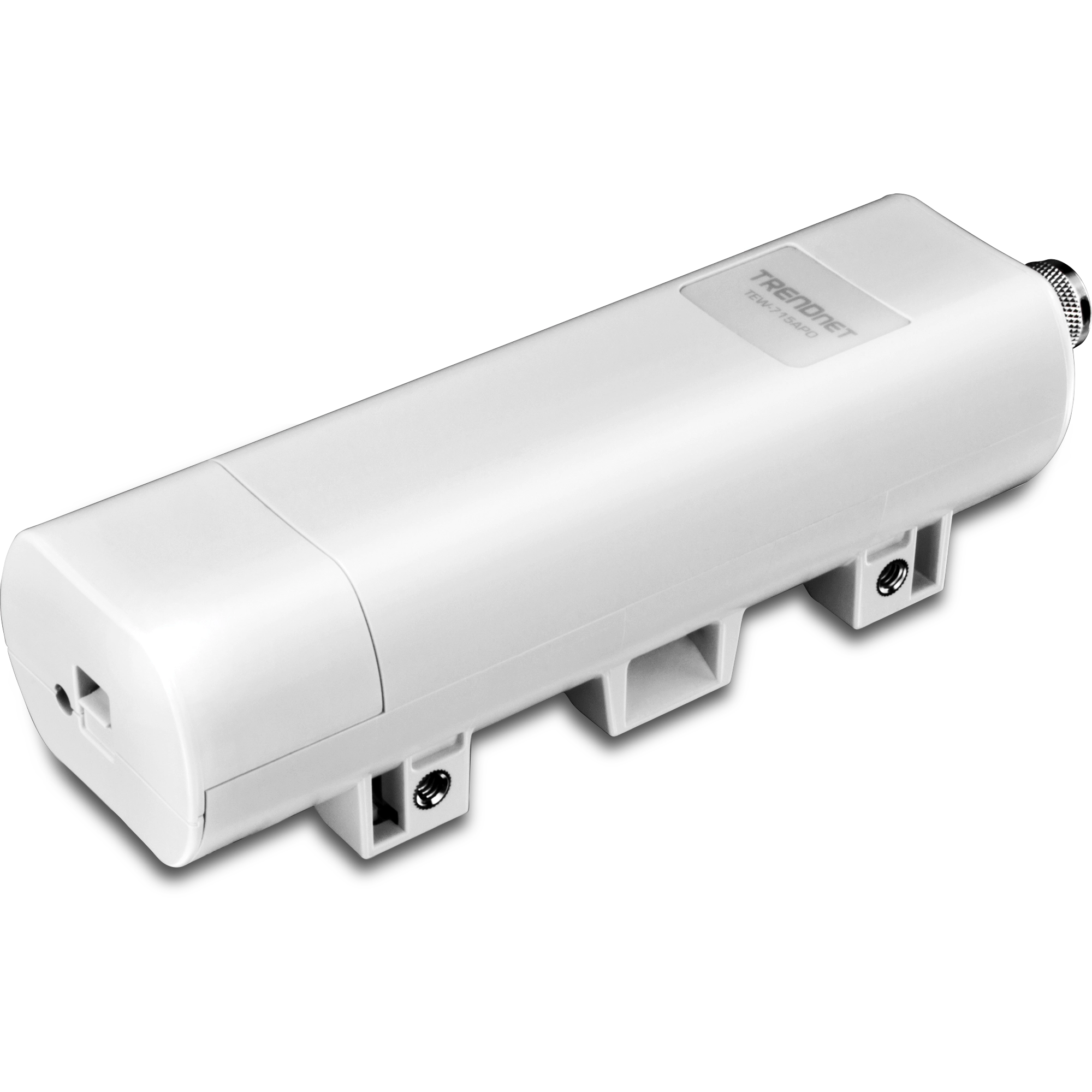

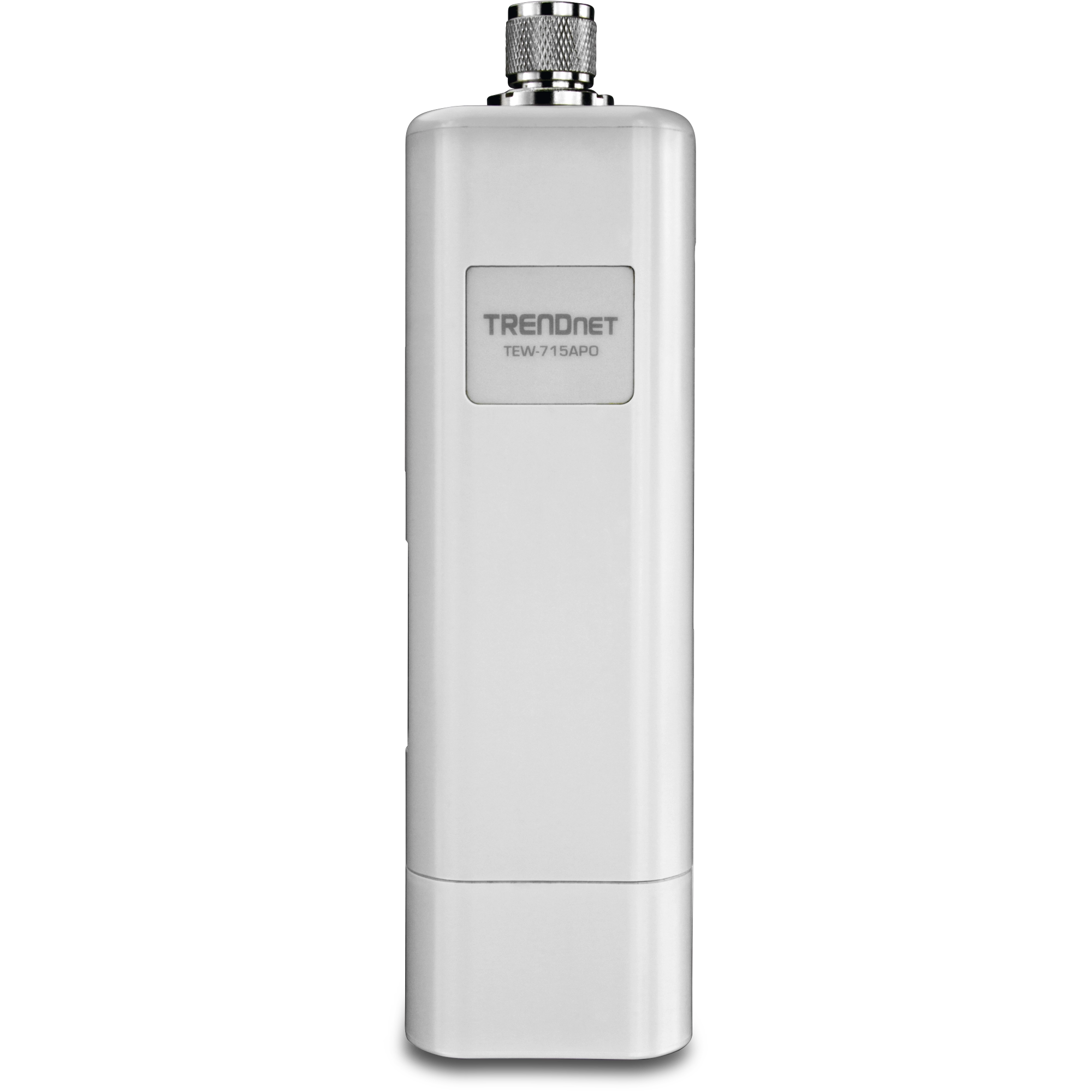

N150 Wireless Outdoor PoE Access Point

TEW-715APO   (Version v1.0R)

  • Built in dual polarization directional 8dBi antenna
  • Supports Access Point, Wireless Client, WDS, Bridge, CPE, and Repeater modes
  • Supports an external omni-directional antenna with a N-Type connector (not included) for blanket outdoor wireless applications
  • Outdoor IP55 weather rated enclosure
  • Includes Power over Ethernet (PoE) injector
  • Pole mount hardware included

DISCONTINUED PRODUCT

The TEW-715APO (Version v1.0R) has been discontinued. It has been replaced by the TEW-730APO (Version v1.0R). For a list of discontinued products, click here.

Firmware

Firmware

Version: 1.02
Release Date: 3/2012
Notes:

  1. Lançamento inicial

Nome do arquivo: TEW-715APOv1_(FW1.02).zip
SHA-1 Checksum: AE2B30CFD57049D922910425AD3D34E8A2E44EB7
Data: 7/28/2017
Tamanho de arquivo: 6.05 MB
Download

Ficha técnica

Datasheet (English)
Nome do arquivo: EN_spec_TEW-715APO(v1.0R).pdf
Data: 11/6/2014
Tamanho de arquivo: 568.48 KB
Download Email
Datasheet (Français)
Nome do arquivo: FR_spec_TEW-715APO(v1.0R).pdf
Data: 11/6/2014
Tamanho de arquivo: 585.83 KB
Download Email
Datasheet (Deutsch)
Nome do arquivo: GE_spec_TEW-715APO(v1.0R).pdf
Data: 11/6/2014
Tamanho de arquivo: 593.38 KB
Download Email
Datasheet (Español)
Nome do arquivo: SP_spec_TEW-715APO(v1.0R).pdf
Data: 11/6/2014
Tamanho de arquivo: 582.39 KB
Download Email
Datasheet (Pусский)
Nome do arquivo: RU_spec_TEW-715APO(v1.0R).pdf
Data: 11/6/2014
Tamanho de arquivo: 550.12 KB
Download Email
Datasheet (Italiano)
Nome do arquivo: IT_spec_TEW-715APO(v1.0R).pdf
Data: 11/6/2014
Tamanho de arquivo: 576.37 KB
Download Email

Guia de Instalação Rápida

Guia de Instalação Rápida (English)
Nome do arquivo: EN_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 3.02 MB
Download
Guia de Instalação Rápida (Français)
Nome do arquivo: FR_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 3.05 MB
Download
Guia de Instalação Rápida (Deutsch)
Nome do arquivo: GE_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.46 MB
Download
Guia de Instalação Rápida (Portugal)
Nome do arquivo: PO_Web_TEW-715APO(V1.0R).pdf
Data: 5/16/2013
Tamanho de arquivo: 2.89 MB
Download
Guia de Instalação Rápida (Español)
Nome do arquivo: SP_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.45 MB
Download
Guia de Instalação Rápida (Pусский)
Nome do arquivo: RU_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 3.60 MB
Download
Guia de Instalação Rápida (Eesti)
Nome do arquivo: EST_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.95 MB
Download
Guia de Instalação Rápida (Polski)
Nome do arquivo: PL_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.45 MB
Download
Guia de Instalação Rápida (Român)
Nome do arquivo: RO_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.46 MB
Download
Guia de Instalação Rápida (Netherlands)
Nome do arquivo: NL_Web_TEW-715APO(V1.0R).pdf
Data: 5/16/2013
Tamanho de arquivo: 2.43 MB
Download
Guia de Instalação Rápida (Magyar)
Nome do arquivo: HG_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.45 MB
Download
Guia de Instalação Rápida (български)
Nome do arquivo: BL_Web_TEW-715APO(V1.0R).pdf
Data: 12/11/2012
Tamanho de arquivo: 2.42 MB
Download

Guia do Usuário

Guia do Usuário
Nome do arquivo: UG_TEW-715APO(1.02).pdf
Data: 4/2/2013
Tamanho de arquivo: 1.30 MB
Download

Imagem(ns) do Produto

JPEG Image
Tamanho de arquivo: : 156.31 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 126.79 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 158.32 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 310.84 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 253.57 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 152.14 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 193.60 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 199.41 KB
Data: : 11/20/2012
Download
JPEG Image
Tamanho de arquivo: : 204.54 KB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 2.12 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 1.80 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 1.97 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 3.76 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 3.15 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 1.82 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 2.36 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 2.29 MB
Data: : 11/20/2012
Download
TIFF Image
Tamanho de arquivo: : 2.31 MB
Data: : 11/20/2012
Download
ROHS compliant WEEE crossed-out bin symbol.
How do I rest the TEW-715APO to factory default settings?
Press and hold in the reset button for approximately 15 seconds while the power is on. The default values are as follows. IP Address: 192.168.10.100 Username: admin Password: admin SSID: TRENDnet715 Encryption: none ...
Question: How do I log in to the TEW-715APO and configure it?
Log in to the TEW-715APO by entering https://192.168.10.1 into the address line of your browser. The default Username and Password are both admin ...
How do I setup a WDS link between 2 TEW-715APO’s?
Log in to the first TEW-715APO by entering https://192.168.10.100 into the address line of your browser. The default Username and Password are both admin. Click Wireless>Basic Settings and make sure that Operation Mode is set to Bridge then click Apply. Click Wireless>Profile Setting and ...
How do I secure my wireless network?
Log in to the TEW-715APO by entering https://192.168.10.1 into the address line of your browser. The default Username and Password are both admin. Click on Wireless>Profile Settings and click your profile. Select the highest form of security supported by your wireless computers and network...
Do I need to purchase antennas with the TEW-715APO?
The TEW-715APO comes with a built-in dual polarization directional 8dBi antenna. The built-in antenna is ideal for point-to-point bridging applications. You can also add an Omni-directional antenna for a full 360 degrees of wireless coverage. ...
Does the TEW-715APO support SNMP technology?
Yes, the TEW-715APO supports SNMP v2c and v3.
What’s the maximum amount of entries for the MAC address filter?
The TEW-715APO supports up to 32 entries.
Can I use an 802.3af PoE injector to power the TEW-715APO?
The TEW-715APO is not 802.3af compliant device. It uses proprietary Power over Ethernet adapter. You must use the PoE injector that comes with the TEW-715APO. ...
HARDWARE
Standards
  • Wired: IEEE 802.3u
  • Wireless: IEEE 802.11b, IEEE 802.11g, Based on IEEE 802.11n technology

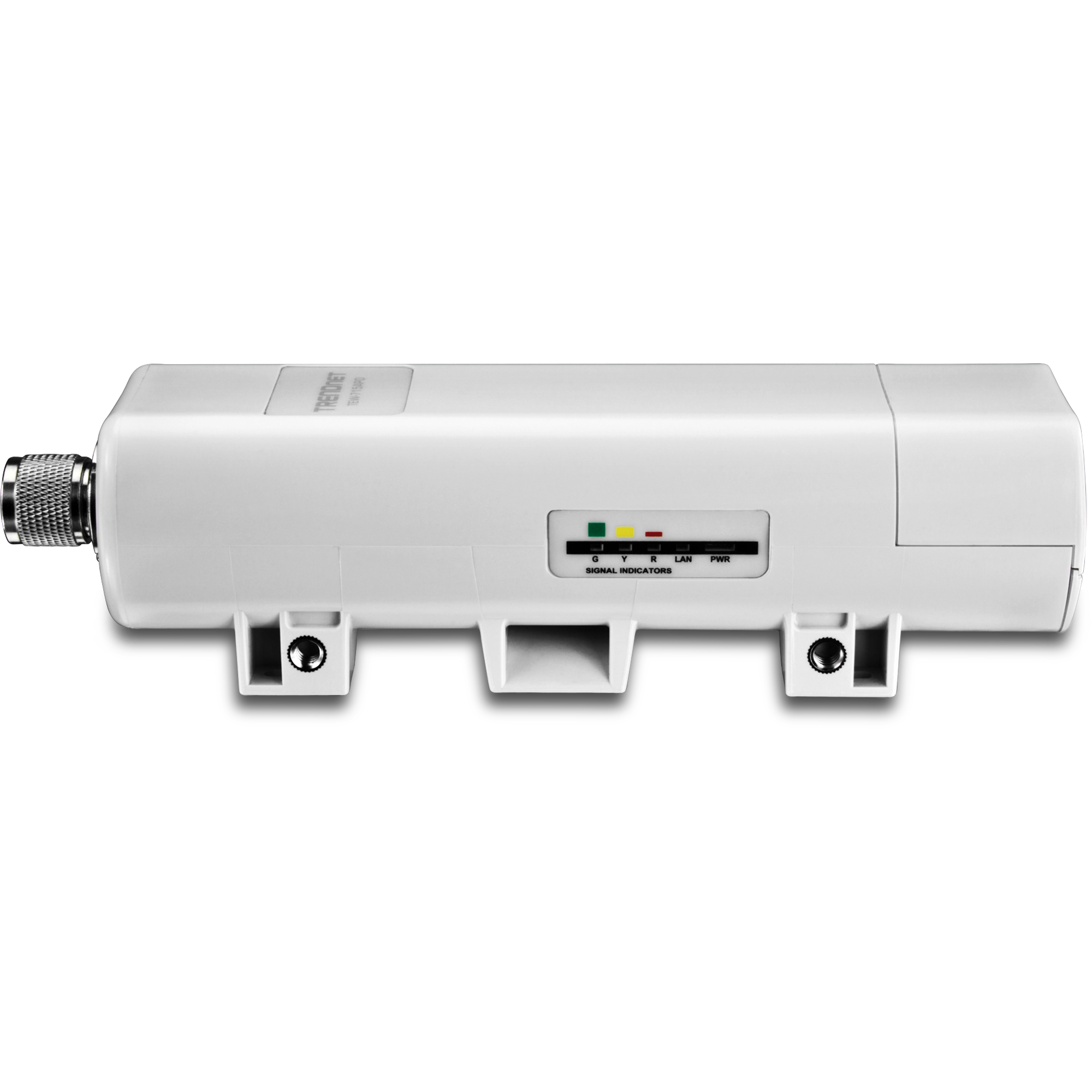

LED Indicator
  • Power
  • LAN
  • WLAN: Red (good), Yellow (better), Green (best)
Antenna
  • 8 dBi directional antenna

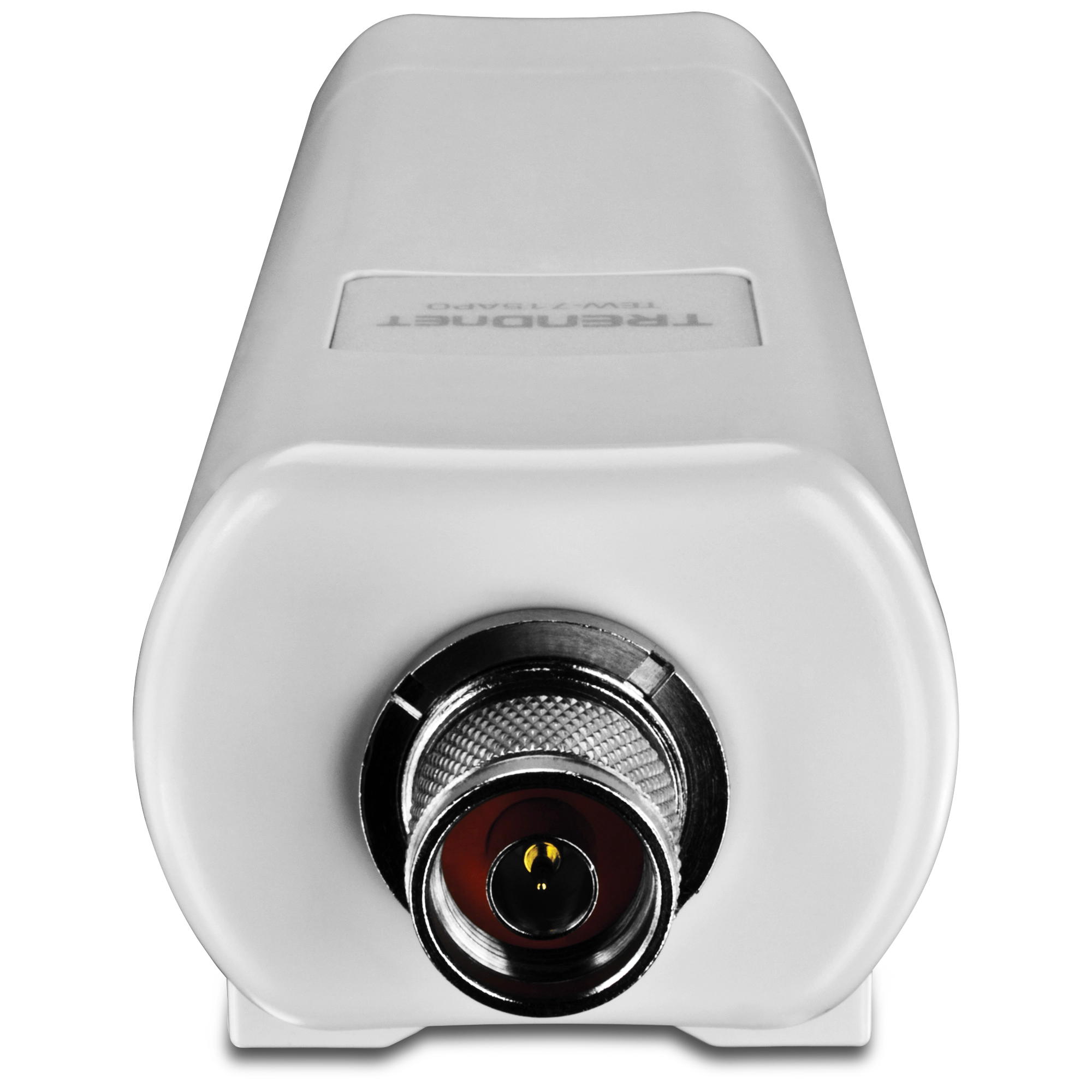

EXT (external antenna connector)
  • N -Type Male connector (up to 15 dBi)

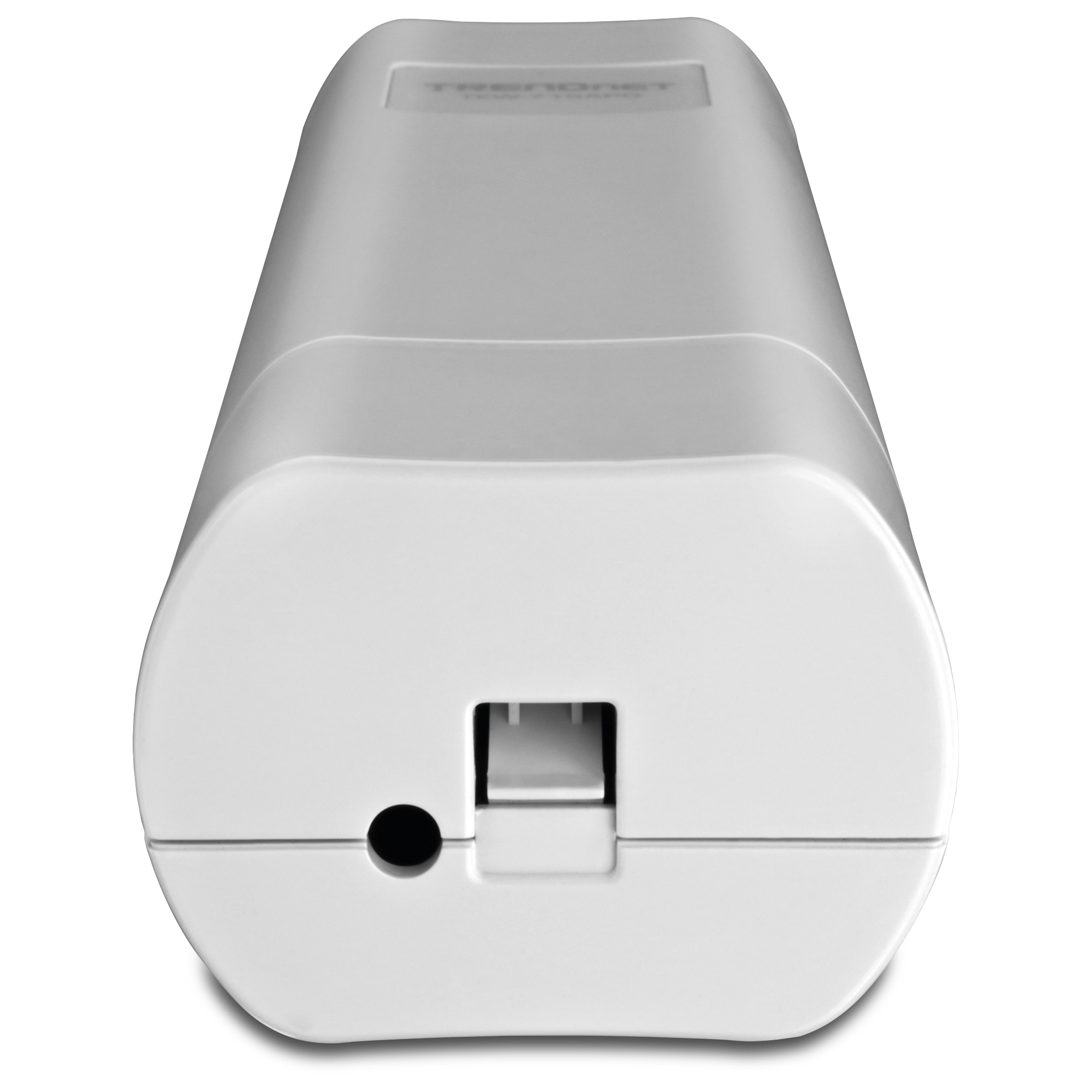

PoE

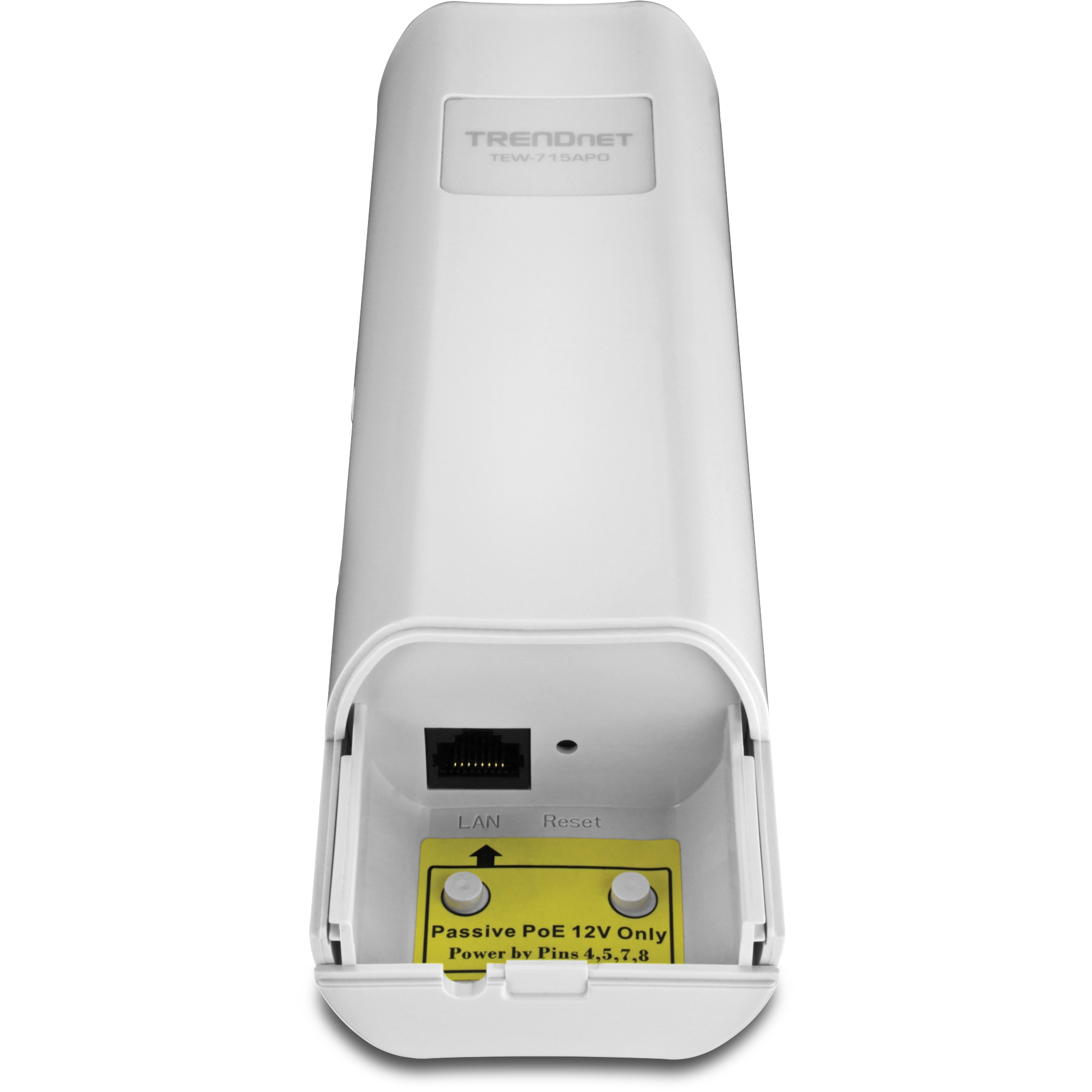

  • 12 V 1 x 10/100 Mbps RJ-45 PoE port, Passive only (non-802.3af compliant)
Dimension (L x W x H)
  • 228 x 64 x 61 mm (9.0 x 2.5 x 2.4 in)
Weight
  • 340 g (12 oz)
Power Consumption
  • 12 watts (max.)
Management
  • Web browser (HTTP/HTTPS), SNMP (v2c and 3), Telnet, SSH
Waterproof
  • IP55 compliant
Temperature
  • Operating: -20° ~ 70°C (-4°F ~ 158°F)
  • Storage: -30° ~ 80°C (-22°F ~ 176°F)
Humidity
  • Max 95% (non-condensing)
Power
  • Passive PoE power injector DC Output: 12 V DC, 1 A Input: 100 –240 V, ~50/60 Hz, 1A
Certifications
  • CE, FCC
Wireless
Frequency
  • FCC: 2.412 ~ 2.452
  • ETSI: 2.412 ~ 2.472
Modes
  • Access Point, CPE, Wireless Client AP, AP + Repeater
Virtual Access Points
  • 16
Associated Clients (max)
  • 32 (AP Mode), 32 (Repeater Mode)
Modulation Technique
  • OFDM, BPSK, QPSK, CCK, DQPSK, DBPSK
Data Rate (auto-fallback)
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 150 Mbps
Security
  • 64/128/152-bit WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS for AP / CPE mode, WEP / WPA2-PSK for WDS mode
  • MAC filter (32 entries)
Output Power (Includes 8 dBi antenna gain)
  • 802.11b: FCC (U.S.): 26 dBm (typical)/ETSI (EU): 19.93 dBm (max.)
  • 802.11g: FCC (U.S.): 24 dBm (typical)/ETSI (EU): 19.96 dBm (max.)
  • 802.11n: FCC (U.S.): 21 dBm (typical)/ETSI (EU): 19.98 dBm (max.)
Receiving Sensitivity
  • 802.11b: -88 dBm (typical) @ 11 Mbps
  • 802.11g: -73 dBm (typical) @ 54 Mbps
  • 802.11n: -67 dBm (typical) @ 150 Mbps
Channels
  • FCC: 1~11
  • ETSI: 1~13

CONTEÚDO DA EMBALAGEM
  • TEW-715APO
  • CD-ROM (User's Guide)
  • Multi-Language Quick Installation Guide
  • Mounting hardware
  • Power adapter (12 V, 1 A)
  • PoE injector
  • Grounding wire

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. For optimal results, we recommended that you consult a professional installer for site survey, safety precautions, and proper installation.

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
