NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Firmware Version: v1.14B02
Date: 10/2018
Notes:
- Updated dnsmasq version to 2.78 to address security vulnerability.
Nome do arquivo: FW_TEW-810DR_v1(1.14B02).zip
SHA-1 Checksum: 37575F86B9DC7206CF9231A112665794CB8E1F09
Data: 10/4/2018
Tamanho de arquivo: 5.64 MB
Nome do arquivo: EN_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.40 MB
Nome do arquivo: FR_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.39 MB
Nome do arquivo: GE_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.40 MB
Nome do arquivo: PO_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.39 MB
Nome do arquivo: SP_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.37 MB
Nome do arquivo: RU_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.36 MB
Nome do arquivo: IT_spec_TEW-810DR(v1.0R).pdf
Data: 7/2/2015
Tamanho de arquivo: 1.41 MB
Nome do arquivo: EN_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 2.11 MB
Nome do arquivo: FR_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 2.11 MB
Nome do arquivo: GE_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.59 MB
Nome do arquivo: PO_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.56 MB
Nome do arquivo: SP_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.59 MB
Nome do arquivo: RU_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.94 MB
Nome do arquivo: EST_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.56 MB
Nome do arquivo: POL_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.92 MB
Nome do arquivo: RO_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.96 MB
Nome do arquivo: NL_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.58 MB
Nome do arquivo: HU_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.66 MB
Nome do arquivo: BUL_Web_TEW-810DR(V1.0R).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.89 MB
Nome do arquivo: UG_TEW-810DR(v1).pdf
Data: 12/17/2014
Tamanho de arquivo: 1.59 MB
JPEG Image
Tamanho de arquivo: : 3.01 MB
Data: : 12/17/2014
JPEG Image
Tamanho de arquivo: : 410.66 KB
Data: : 12/17/2014
JPEG Image
Tamanho de arquivo: : 466.08 KB
Data: : 12/17/2014
TIFF Image
Tamanho de arquivo: : 1.14 MB
Data: : 12/17/2014
TIFF Image
Tamanho de arquivo: : 6.03 MB
Data: : 12/17/2014
TIFF Image
Tamanho de arquivo: : 6.67 MB
Data: : 12/17/2014
Log in to TEW-810DR by entering https://TEW-810DRinto the address line of your browser.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the router.
Enter your Password, ...
For added security, the router is preconfigured with unique management and wireless passwords. The default settings are located on a sticker on the front of the router and on the bottom label.
To change the wireless settings, log in to TEW-810DR by entering https://TEW-810DR into the address li...
Log in to TEW-810DR by entering https://TEW-810DR into the address line of your browser.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the router.
Enter your Password,...
Log in to the TEW-810DR by entering https://TEW-810DR into the address line of your browser.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the router.
Enter your Passw...
For added security, the router is preconfigured with unique management and wireless passwords. The default settings are located on a sticker on the front of the router and on the bottom label.
...

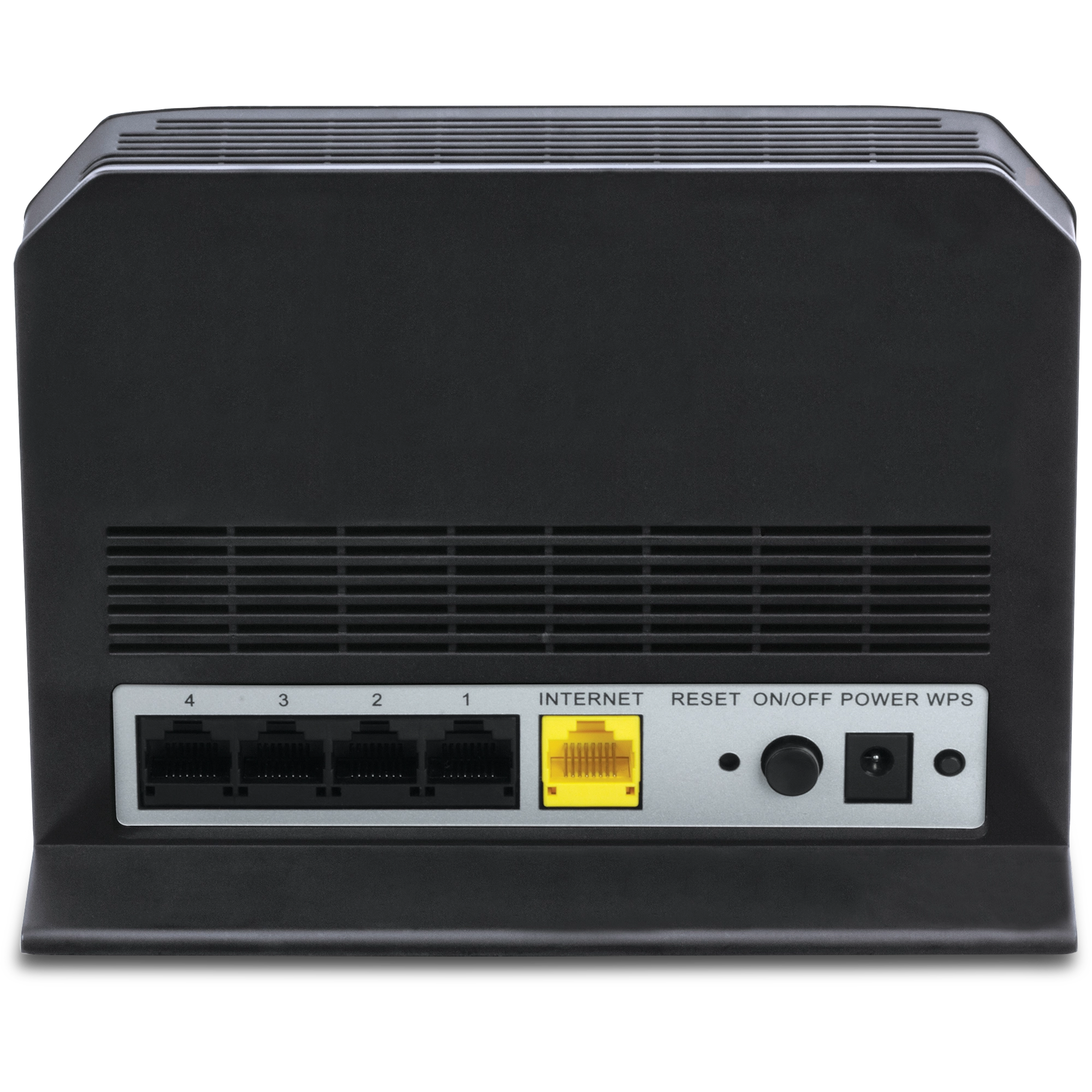

The reset button is located on the back of the TEW-810DR. Press and hold in the reset button for 10 seconds to reset your router to default settings. The default settings are located on a sticker on the front of the router and on the bottom label.
...
Connect a computer to one of the LAN ports on the TEW-810DR. Log in to it by entering https://TEW-810DR into the address line of your browser.
The username is admin. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the...
To connect at 802.11ac performance you must have an 802.11ac adapter, for example the TEW-805UB.
https://www.TRENDnet.com/products/product-detail.asp?prod=100_TEW-805UB
Please also ensure the router is secured using WPA2 encryption levels. By default the TEW-810DR is preconfigured with this secu...
Especificações |
Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (2.4 GHz até 300 Mbps)
- IEEE 802.11ac (5 GHz até 433 Mbps)
|
---|
Interfaccia de hardware | - 4 portas LAN 10/100 Mbps
- 1 porta WAN 10/100 Mbps
- Interruptor de alimentação
- Botão WPS
- LED indicadores
|
---|
Segurança | - Criptografia Wireless até WPA2
- Firewall: NAT
- Controle de Acesso a Conteúdo: Mac, URL, IP Filter
|
---|
Funzioni Speciali | - Suporte IPv6
- Rede convidada com isolamento de Internet
- Suporte WDS
- Poupança de energia graças à tecnologia GREENnet
- QoS controls
- Suporte DynDNS para: Dyn.com, easyDNS.com, e NO-IP.com
|
---|
Alimentação | - Entrada: 100 - 240 V AC, 50 - 60 Hz, 0.3 A
- Saídas: 12 V DC, 1 A
- Consumo de energia: 8 Watts (máx)
|
---|
Temperatura de operação | |
---|
Umidade de Operação | - Máx. de 95% sem-condensação
|
---|
Certificações | |
---|
Dimensões | - 151 x 113 x 60 mm (5,9 x 4,4 x 2,3 polegadas)
|
---|
Peso | |
---|
Garantia | |
---|
CONTEÚDO DA EMBALAGEM |
- TEW-810DR
- Guia de Instalação Rápido Multilíngue
- CD-ROM (O Guia de Usuário)
- Cabo da rede de x (1,5 m/5 pés)
- Adaptador do alimentazione (12 V, 1A)
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
