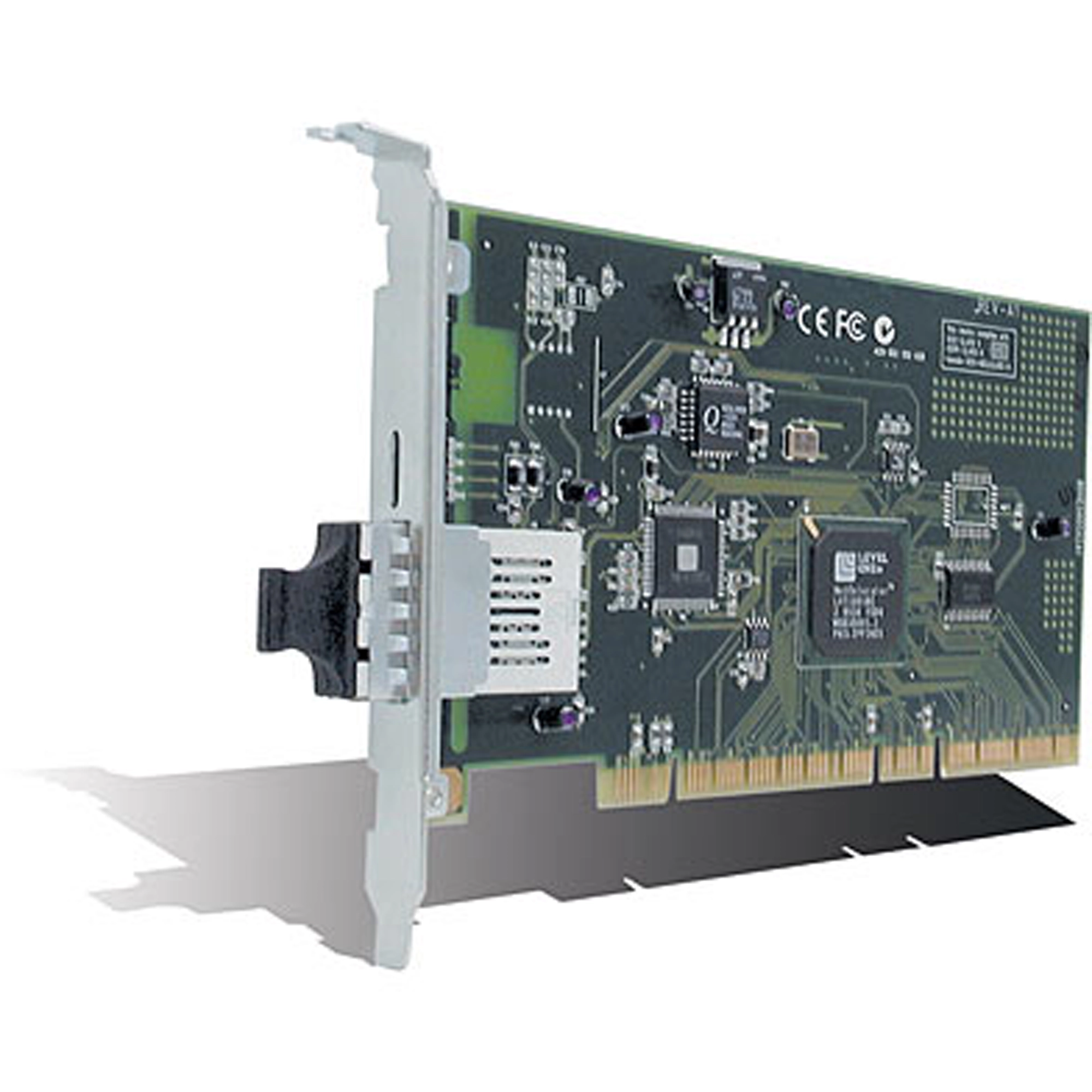

64-bit 1000Base-SX Gigabit Ethernet Adapter with SC Connector

TEG-PCISX

  • -The full-duplex gigabit adapter brings high bandwidth with 10/100/1000Mbps speeds, which makes more processing power available for applications
  • Plug and Play supports all popular network operating systems
  • Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TEG-PCISX  has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Nome do arquivo: Driver_TEG-PCISX.zip
SHA-1 Checksum: 0CBED053D1BAAA257132D3746280B60D303852E2
Data: 7/25/2017
Tamanho de arquivo: 1.40 MB
Download

Ficha técnica

Datasheet
Nome do arquivo: Spec_TEG-PCISX.pdf
Data: 5/10/2013
Tamanho de arquivo: 225.23 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TEG-PCISX.pdf
Data: 8/18/2004
Tamanho de arquivo: 236.00 KB
Download
Hardware
Standards:
  • IEEE 802.3z/D3.2 1000Base-SX Gigabit Ethernet standards and IEEE 802.3 Ethernet standards
Data Transfer Rate:
  • 1000Mbps Gigabit Ethernet
Cabling:
  • Multimode Fiber 50/125 micron-meter, 525 Meter max.; Multimode Fiber 62.5/125 micron-meter, 275 Meter max.
Connector:
  • 850 mm SC fiber optical connector
Driver Support:
  • Windows 95 NDIS3, Windows 98 NDIS5, Windows NT 4.0 NDIS4, Windows 2000 Beta NDIS5, Linux OS kernel v2.0/2.2, NetWare 4.11, v4.2, and 5.0
Diagnostic LEDs:
  • Link (green), 1000Mbps (green), FDX (green, full-duplex), TX/RX (green; Transmit/Receive)
Power Consumption:
  • 7.8 W
Dimensions:
  • 164 x 95 mm ( 6.46 x 3.74 inches)
Weight:
  • 107 g (3.8 lbs.)
Temperature:
  • Operating: 0° to 50° C (32° to 122° F)
  • Storage: -5° to 55° C (23° to 131° F)
Humidity:
  • 5 % to 95 % non-condensing
Certifications:
  • FCC Class B, CE, VCCI Class B, C-tick

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
