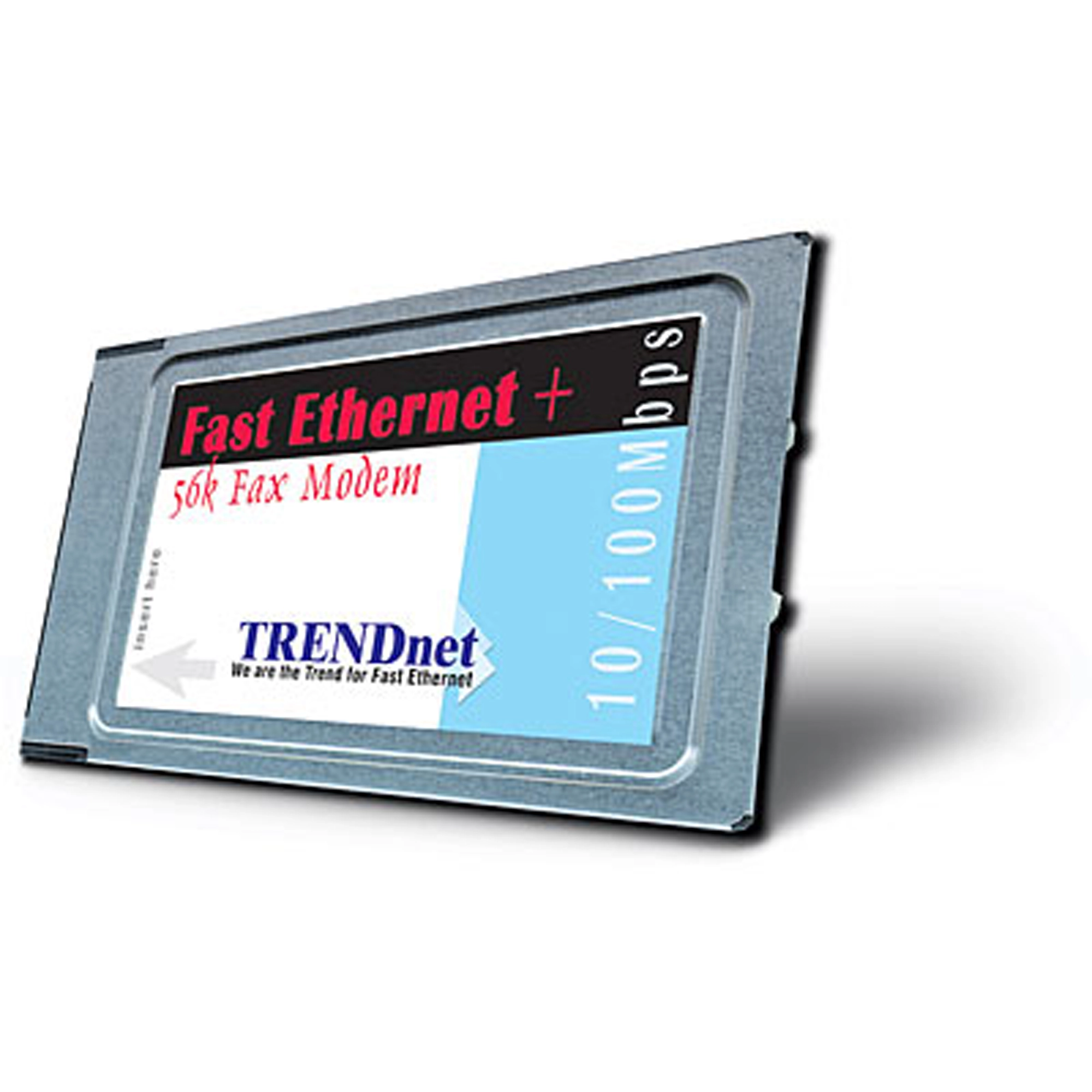

10/100Mbps Fast Ethrenet Fax Modem Card

TEM100-56

  • Instantly connect your laptop to the Internet
  • The 16-bit PC card adapter combines both 10/100Mbps dual-speed fast Ethernet and the optimal power of V.90/K56 flex dual mode 56K fax/modem capabilities
  • Enjoy a 5 year warranty

DISCONTINUED PRODUCT

The TEM100-56  has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Nome do arquivo: TEM100-56.zip
SHA-1 Checksum: 1BDDE14014C155FA37F90261FCA84F6BBA8707BB
Data: 7/25/2017
Tamanho de arquivo: 582.13 KB
Download
Hardware
Fax Modem Operating Protocol:
  • V.90 (down-stream up to 56,000 bps)
  • K56flex (down-stream up to 56,000 bps)
  • V.34bis (up to 33,600 bps)
  • V.34 (2,400 to 28,800 bps)
  • V.32bis, V.32, V.22bis, V.23, V.22/Bell 212A, V.21/Bell 103
Error Control:
  • V.42/V.42bis and MNP Class 2 to 5
Fax Compatibility:
  • Groups 3 send and receive EIA, Class 1 fax commands V.17 (14.4K bps), V.29 (9.6K bps), V.27ter (4.8K bps), V.21 (300 bps)
Card and Socket:
  • PCMCIA Card/Socket Service Support PCMCIA PC Card standard version 2.0 and newer
Operating Modes:
  • Asynchronous full duplex, Manual/Automatic answer
Network Driver's:
  • Windows 98, Windows 95 & OS/2, Windows NT 4.x/3.x, Windows 3.x, DOS, Novell Netware Client, Personal Netware, Netware IPX/SPX, Microsoft LAN Manager, Artisoft LANtastic, IBM LAN Support, FTP TCP/IP, Banyan VINES, Packet Driver, and more.
Ethernet LAN Standards:
  • Network Standard & Interface, IEEE 802.3 (10Base-T), IEEE 802.3m (100Base-TX)
Interrupt & I/O Address:
  • IRQ: 3, 4, 5, 7, 9, 10, 11, 12, 15, I/O base for LAN: 220
Base Selection:
  • 300, 320, 340, I/O base for fax/modem: COM 2, COM 3, COM 4
Power Consumption:
  • Operation Mode: 440mA
  • Power Down Mode: 90mA
Operating Humidity:
  • 10% to 95% non-condensing
Operating Temperature:
  • 32° to 149° F (0° to 65° C)
Transmit Level:
  • Permissive -10 (+/- 1) dBm
