Servidor Impressão Multi-Funcional USB 2.0 10/100 Mbps 2 portas
TE100-MP2U (Version 1.0)
- Turns a standalone multi-function printer/fax/scanner into a shared network resource
- Connect 2 multi-function printers and supports additional USB storage device
- Provides high speed USB 2.0 printing
- Manages print server through web browser or utility
DISCONTINUED PRODUCT
The TE100-MP2U (Version 1.0) has been discontinued. For a list of discontinued products, click here.Utility
Utility Version: v2.60
Aviso de Lançamento:
Aviso de Lançamento:
- Resolves Windows 7 compatibility issues.
Nome do arquivo: Utility_TE100-MP1U_2U_TEW-MP2U(v2.60).zip
SHA-1 Checksum: 77366A7A5C441B68FF1C01160EFD9A2A9416CA5E
Data: 1/2/2018
Tamanho de arquivo: 7.03 MB
Firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Firmware Version: v2.60
Release Date: 2/11/2011
Resolved the following items:
- Resolves Windows 7 compatibility issues.
- Fixes SMB security bug.
Nome do arquivo: TE100-MP2U_v2.60.zip
SHA-1 Checksum: A2EE2ACE85AD95FD059D546A9E73C0AC070CDBEB
Data: 1/2/2018
Tamanho de arquivo: 1,007.50 KB
Ficha técnica
Nome do arquivo: EN_Spec_TE100-MP2U.pdf
Data: 11/14/2008
Tamanho de arquivo: 311.55 KB
Nome do arquivo: FR_Spec_TE100-MP2U.pdf
Data: 11/14/2008
Tamanho de arquivo: 310.06 KB
Nome do arquivo: GE_Spec_TE100-MP2U.pdf
Data: 11/14/2008
Tamanho de arquivo: 315.87 KB
Nome do arquivo: SP_Spec_TE100-MP2U.pdf
Data: 11/14/2008
Tamanho de arquivo: 313.02 KB
Nome do arquivo: RU_Spec_TE100-MP2U.pdf
Data: 11/14/2008
Tamanho de arquivo: 1.07 MB
Guia de Instalação Rápida
Nome do arquivo: EN_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 1.25 MB
Nome do arquivo: FR_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 1.27 MB
Nome do arquivo: GE_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 1.25 MB
Nome do arquivo: PO_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 1.26 MB
Nome do arquivo: SP_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 1.25 MB
Nome do arquivo: RU_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 2.82 MB
Nome do arquivo: EST_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Data: 2/19/2009
Tamanho de arquivo: 1.25 MB
Guia do Usuário
Nome do arquivo: UG_TE100-MP1U_MP2U_TEW-MP2U_Update.pdf
Data: 3/28/2008
Tamanho de arquivo: 3.68 MB

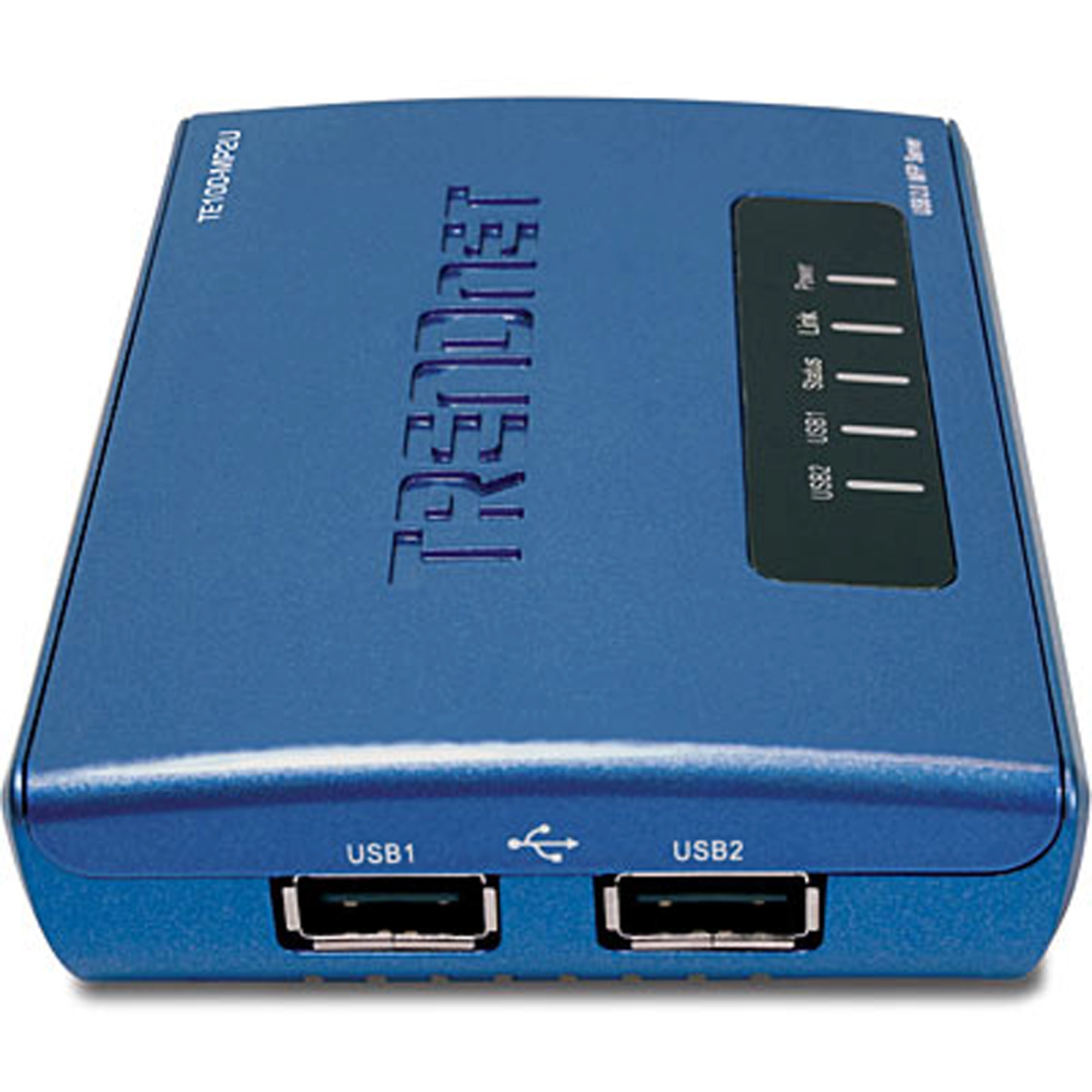

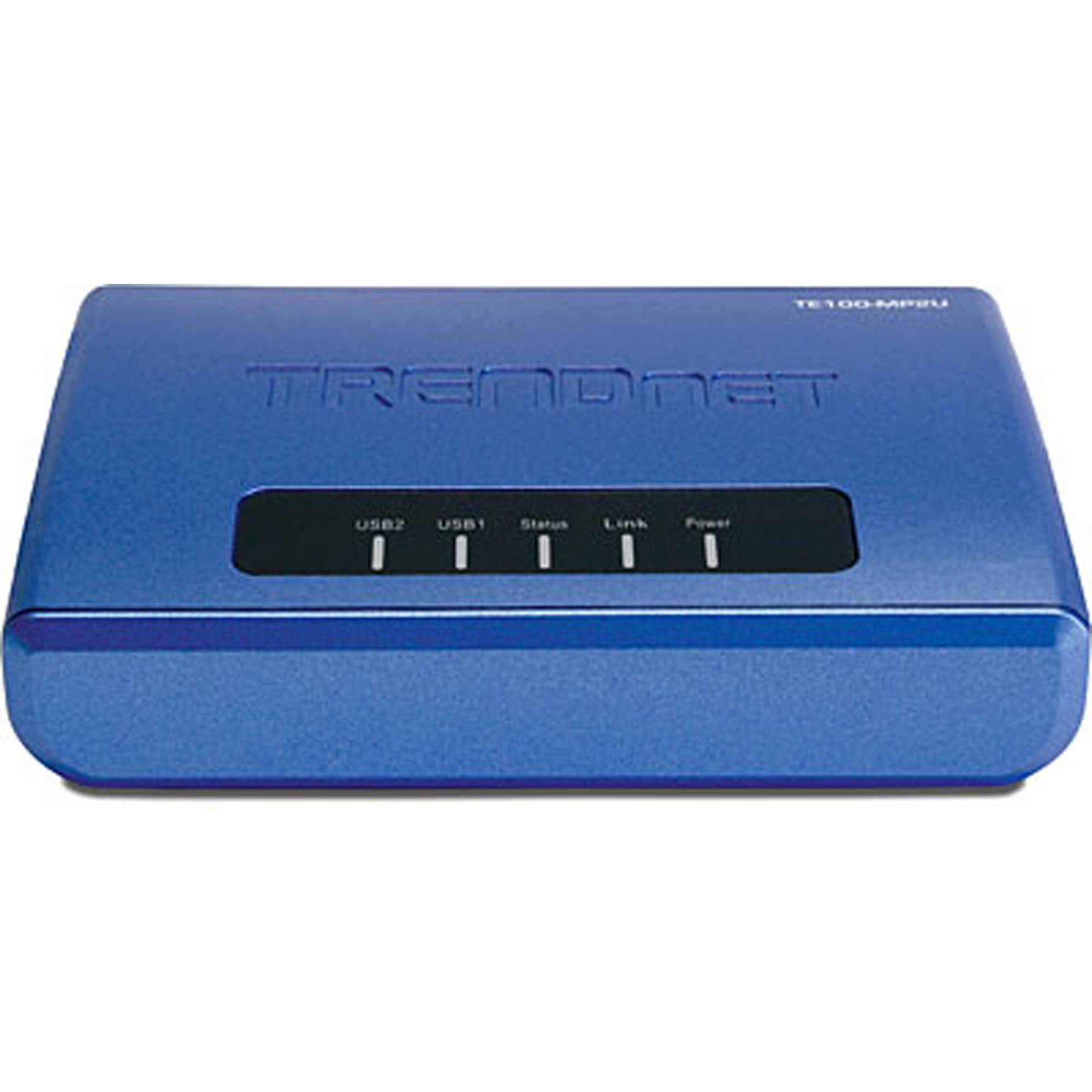

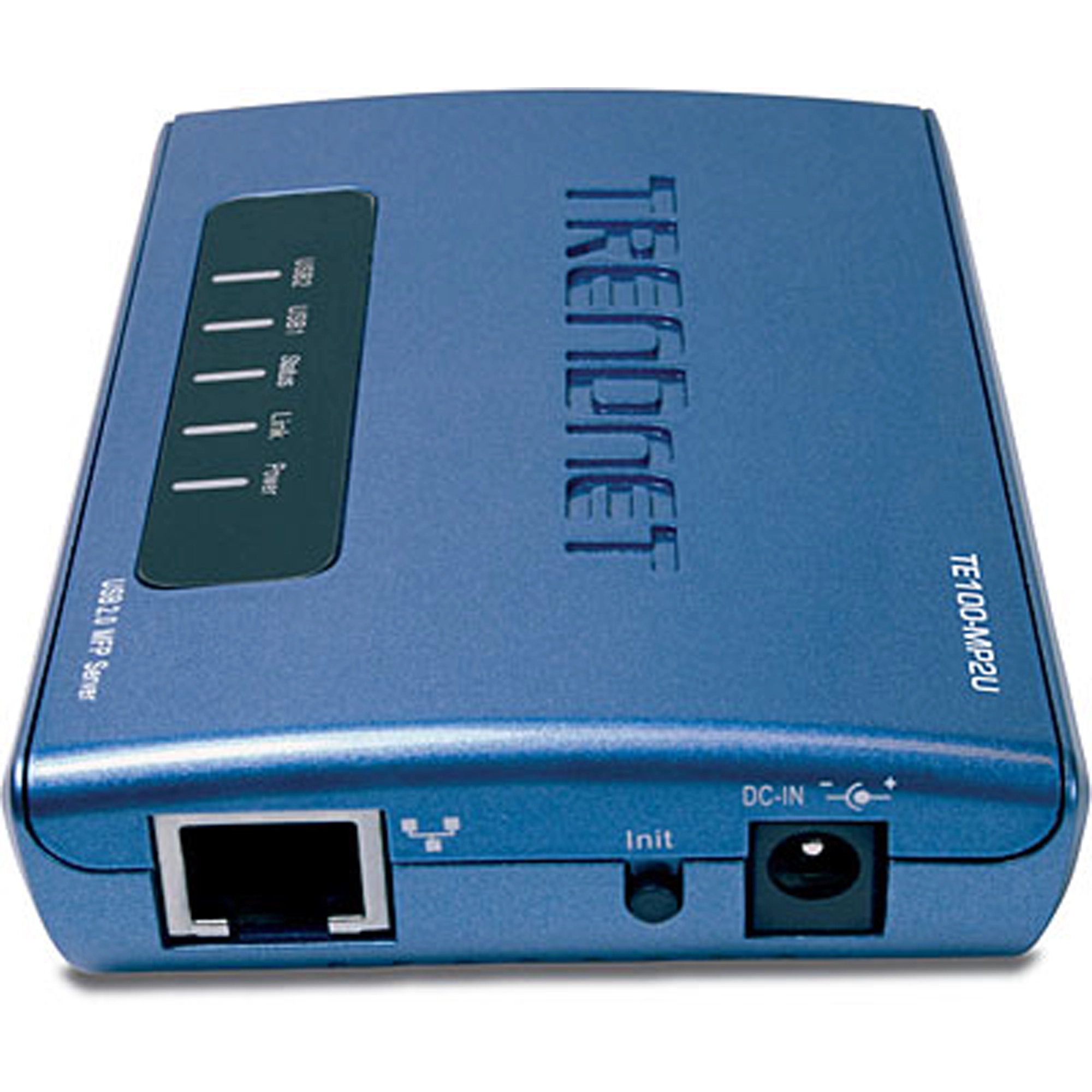

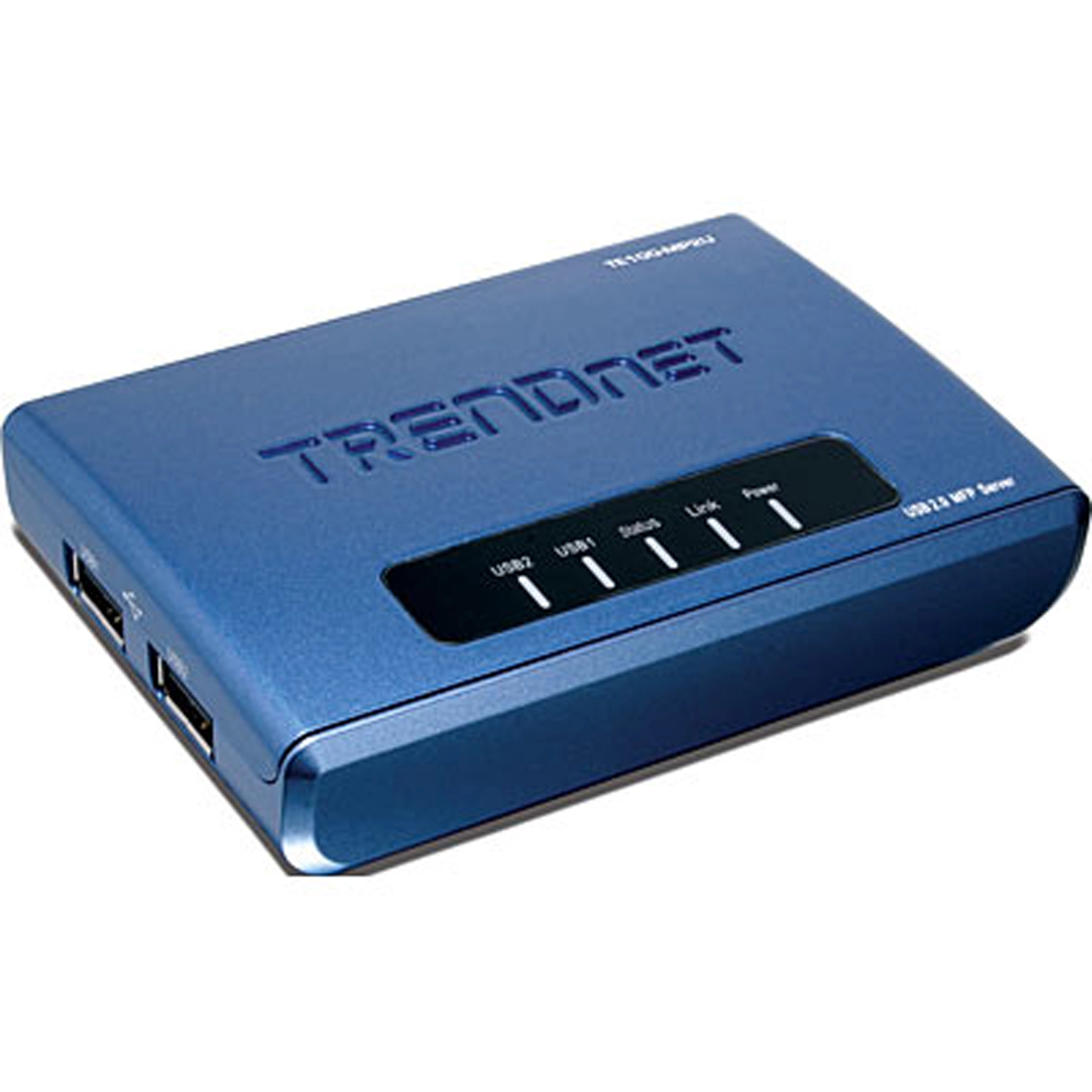

Imagem(ns) do Produto
Unfortunately the USB ports on the Multi-Function Print Server do not support USB hubs.
Performance
server mode
FTP
server mode
SMB
NetUSB mode
San Disk CF Card,Write
25 Mbit/sec
14 Mbit/sec
18 Mbit/sec
San Disk CF Card,Read
18 Mbit/sec
12 Mbit/sec
15 Mbit/sec
2.5" USB HDD, Write
26 Mbit/sec
16 Mbit/sec
...
Yes. The Multi-Function Print Server does support FTP protocol for remote access using the MFP Server Control Utility. Further instructions can be found on page 49 of the User Manual....
The goal of TE100-MP1U/TE100-MP2U/TEW-MP2U USB MFP Server is to provide print/scan/fax/file server sharing in a single product. There is no industry standard to network popular multifunction printers. We have developed a new technology, called "NetUSB", to solve this problem. TE100-MP1U/TE100-MP2U/T...
This product supports FAT12/16/32 and NTFS file formats. However, the "write" operation on NTFS is only supported in NetUSB mode....
No you can use the standard Windows LPR Printing Protocol that is integrated in Windows operating system. You will still need to install device driver that comes with your multi-function printer. You can find step by step instructions for this setup on page 24 of the User Manual....
No. Our Multi-Function Print Servers come with a Quick Install Guide, which walks you through the entire installation process. It does help to have some experience in setting up network devices, but definitely not required....
No, the antenna is fixed to the device.
TEW-MP2U is the best choice in this scenario because it will detect if a network cable is plugged-in or not. If a network cable is plugged-in, TEW-MP2U will always connect to the network through the network cable. Otherwise it will always connect to the network through wireless module. Once the TEW-...
Yes, TRENDnet's USB Multi-Function Print Servers have been verified to be Windows Vista compatible.
These devices are designed to connect your All-In-One/Multifunction Printers, Print-only Printers, and USB Mass Storage (Hard Drives, Flash Drives, and Memory Card Readers) to your network, allowing all network users access to these shared USB devices resources....
Multi-Function Print Servers, or MFP Servers, are used to share not only your printing tasks, but now your scanning, faxing, copying, and storage functions all on the data network. MFP Servers differ from conventional print servers primarily because single-function print servers are only capable of ...
| Hardware | |
| Padrões |
|
|---|---|
| Interface Impressoras |
|
| Porta LAN |
|
| CPU/ SDRAM / Flash ROM |
|
| Armazenamento USB |
|
| LEDs de Diagnóstico |
|
| Protocolo de Transporte |
|
| Protocolo TCP/IP Suportado |
|
| Sistemas Operacionais Suportados |
|
| Gerenciamento |
|
| Alimentação |
|
| Consumo |
|
| Dimensões |
|
| Peso |
|
| Temperatura |
|
| Umidade |
|
| Certificados |
|
CONTEÚDO DA EMBALAGEM |
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
