Roteador Firewall VPN Avançado Cabo/DSL
TW100-BRV304 (Version 2)
- Provide up to 70 Virtual Private Networks tunnels
- Enjoy Fast Ethernet networking speeds
- Advanced firewall protection (NAT, NAPT & SPI)
- Secure remote management allows global network monitoring
DISCONTINUED PRODUCT
The TW100-BRV304 (Version 2) has been discontinued. It has been replaced by the TWG-431BR (Version v1.0R). For a list of discontinued products, click here.Firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Nome do arquivo:
TW100-BRV304v2_1014.zip
Release Note:
This firmware is for TW100-BRV304 Version 2. To check the version number, pleaselook for the serial number sticker on the bottom of the unit, the version number isprinted on the sticker.
Firmware Upgrade Instruction:
Please download and unzip the firmware file.
Nome do arquivo: TW100-BRV304v2_1014.zip
SHA-1 Checksum: 5675B13FC37AFD2EFB76AD5BFFDE58DDEBA74E8D
Data: 7/28/2017
Tamanho de arquivo: 1.06 MB
Ficha técnica
Nome do arquivo: EN_Spec_TW100-BRV304.pdf
Data: 7/20/2006
Tamanho de arquivo: 312.76 KB
Nome do arquivo: FR_Spec_TW100-BRV304.pdf
Data: 7/20/2006
Tamanho de arquivo: 315.53 KB
Nome do arquivo: GE_Spec_TW100-BRV304.pdf
Data: 7/20/2006
Tamanho de arquivo: 316.87 KB
Nome do arquivo: SP_Spec_TW100-BRV304.pdf
Data: 7/20/2006
Tamanho de arquivo: 316.03 KB
Nome do arquivo: RU_Spec_TW100-BRV304.pdf
Data: 7/20/2006
Tamanho de arquivo: 1.32 MB
Guia de Instalação Rápida
Nome do arquivo: QIG_TW100-BRV304v2.pdf
Data: 11/30/2005
Tamanho de arquivo: 23.39 MB
Nome do arquivo: PO_QIG_TW100-BRV304(old).pdf
Data: 10/19/2007
Tamanho de arquivo: 2.94 MB
Nome do arquivo: QIG_TW100-BRV304_IT.pdf
Data: 11/30/2005
Tamanho de arquivo: 1.37 MB
Nome do arquivo: QIG_TW100-BRV304_EST_ONLY.pdf
Data: 1/26/2007
Tamanho de arquivo: 1.12 MB
Nome do arquivo: POL_QIG_TW100-BRV304.pdf
Data: 7/23/2007
Tamanho de arquivo: 1.06 MB
Guia do Usuário
Nome do arquivo: UG_TW100-BRV304v2.pdf
Data: 12/3/2005
Tamanho de arquivo: 1.55 MB
Frequently Asked Questions (FAQ)

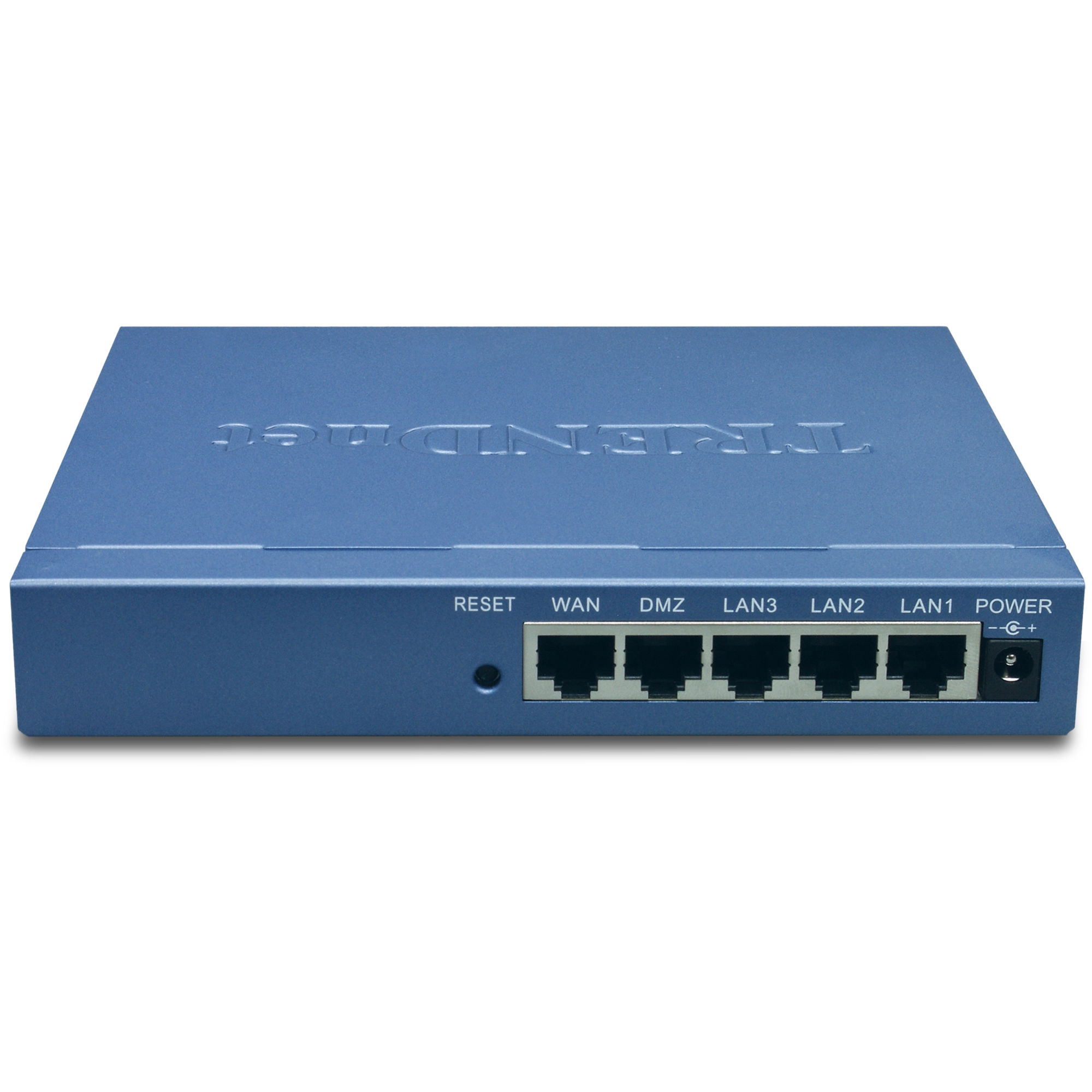

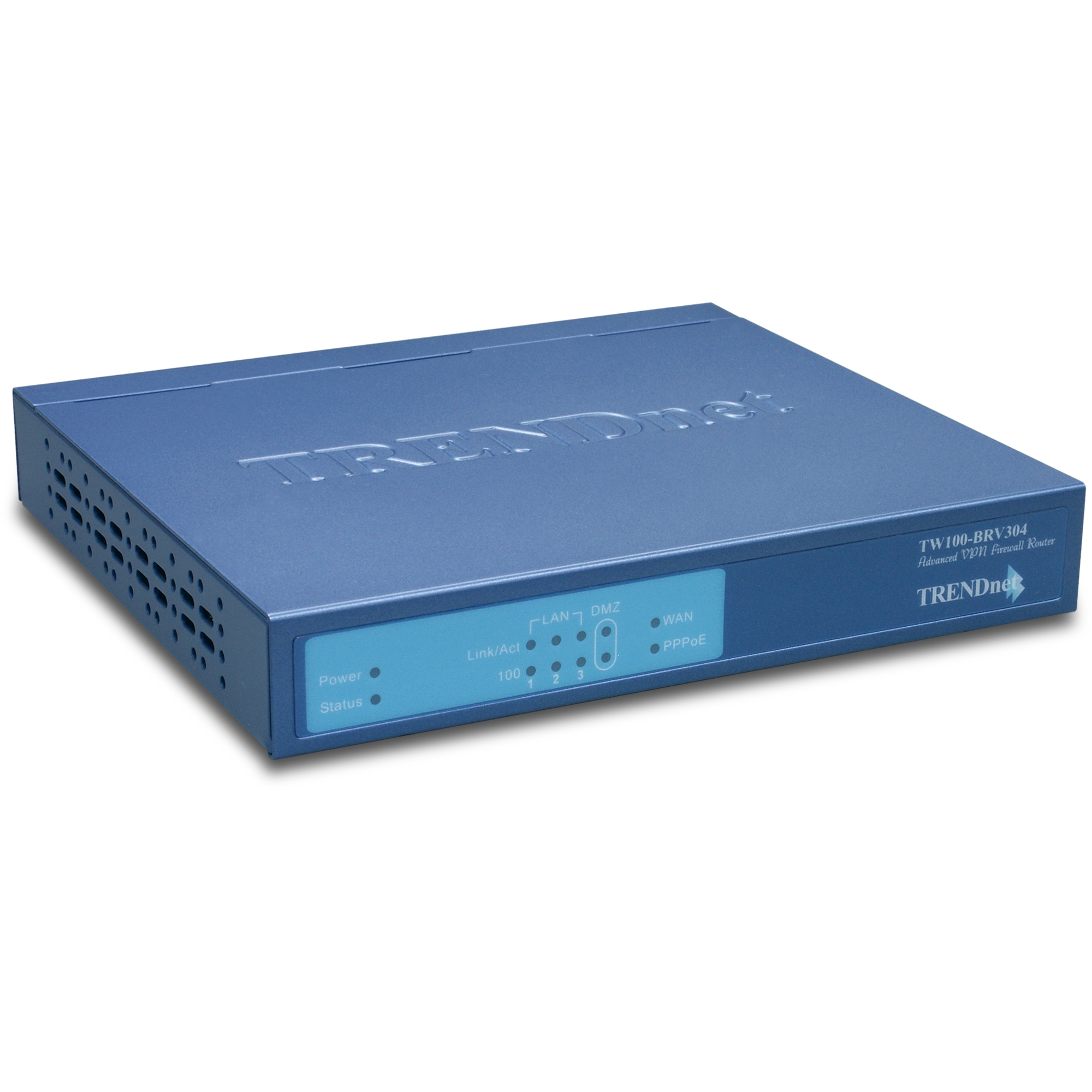

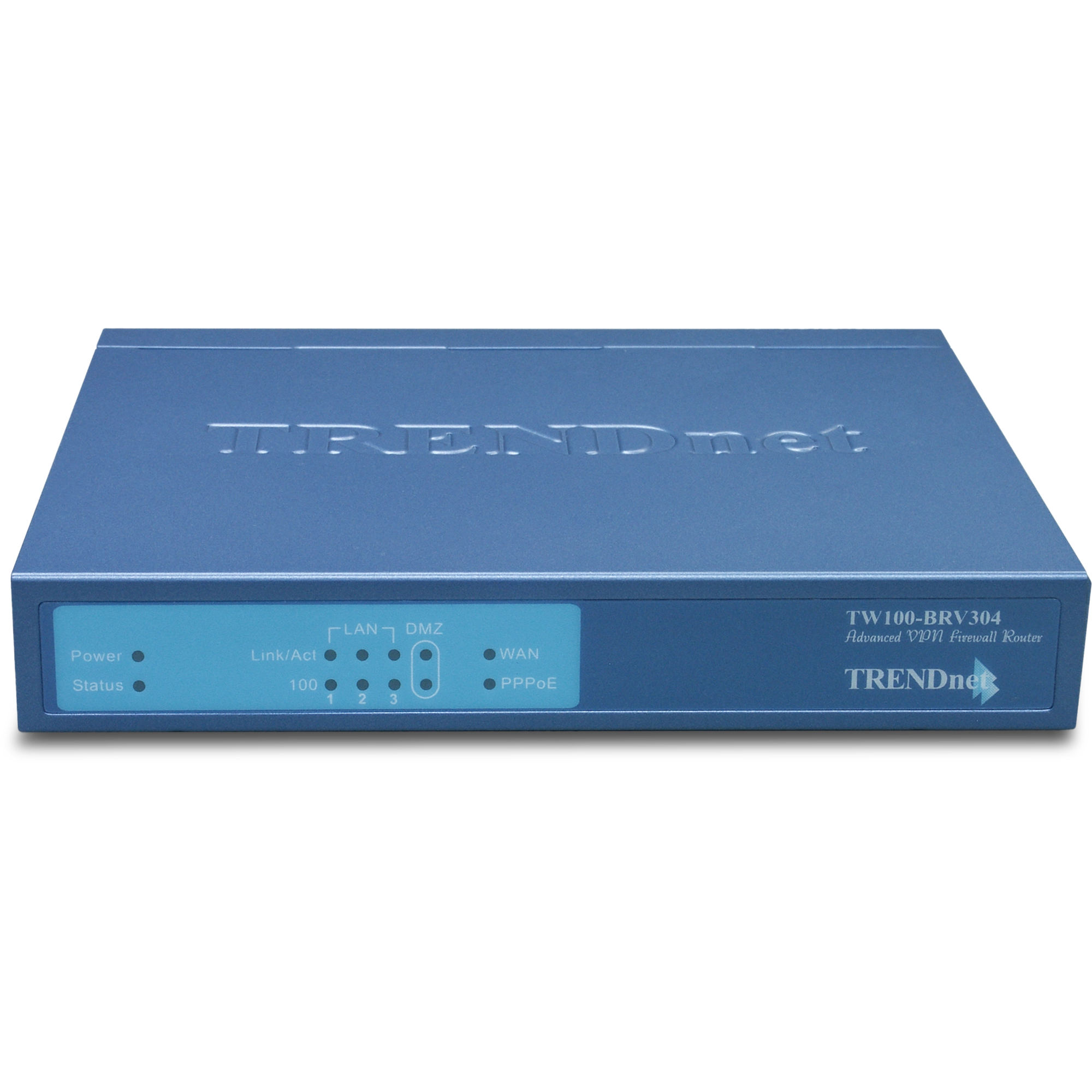

Imagem(ns) do Produto
Well Known Ports
1) Open your web browser and type the IP address of the TW100-BRV204/304
in the address bar. The default IP address is 192.168.0.1. At the login,
enter your username (blank) and password (blank).
2) Click Security then
Firewall Rules on the left hand side.
3) Select...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click Microsoft VPN then Server on
the left hand side. Place a check mark in Enable PPTP (VPN)...
Use the following screenshots as a guide.
Scenario
PC1 (192.168.1.x)-BRV204 (66.135.11.92) ~ BRV304 (64.11.212.22)–PC
2 (192.168.2.x) Simply match both ends information. After the connections are
created, 192.168.1.x should be able to ping 192.168.2.x.
Settings on BRV204
Settings on BRV3...
Use the following screenshots as a guide
Scenario
PC1 (192.168.1.x)-BRV204 (dynamic) ~ BRV304 (64.11.212.22)–PC 2 (192.168.2.x)
Simply match both ends information. After the connections are created, 192.168.1.x
should be able to ping 192.168.2.x.
Important Note:
1. Please match Local/Remote...
The MAC Address can be found on a label on the bottom of the router. You can
alternately find it by doing the following:
1) Open your web browser and type
the IP address of the TW100-BRV204/304 in the address bar. The default IP address
is 192.168.0.1. At the login, enter your username (bl...
1) Click Start then click on the Control Panel. For Windows 2000 click on Start,
highlight settings then click on the Control Panel.
2) Double-Click on the Network
Connection icon.
3) Right-Click on the Local Area Connection icon then click
on Properties.
4) Highlight the Internet ...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on LAN on the left hand side.
3) Change the IP address in the IP Address field ...
The default username & password for the TW100-BRV204/304 are both (blank). There is no username and password set by default....
1) Locate the reset button on the back of the TW100-BRV204/304.
2) Press and
hold in the reset button for approximately 15 seconds.
This will reset the
unit back to its default configuration.
...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Security then Admin Login
on the left hand side.
3) Enter in the desired u...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose None (Direct Conne...
Note: The default setting of the router is configured for a Cable connection
using a Dynamic IP Address.
1) Open your web browser and type the IP address
of the TW100-BRV204/304 in the address bar. The default IP address is 192.168.0.1.
At the login, enter your username (blank) and passwor...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose PPPoE for the Logi...
Option 1: Go to the Status section of the configuration page, and click the Connection Detail button. Click the Release/Renew button to allow the router to refresh your connection. Then, try accessing a website such as https://www.TRENDnet.com with your web browser. Option 2: Turn off your Cable/DS...
You can simply contact your Internet Service Provider's (ISP) Customer Service or Technical Support Department for the correct information. ...
Verify your hardware and TCP/IP settings again by reviewing the instructions in sections 1-3. Also, make sure the Power, WAN, and on the LAN lights on the Router's front panel are on. Then, try accessing https://192.168.0.1 again using your web browser. ...
| Hardware | |
| Padrões: |
|
|---|---|
| Protocolos: | NAT, PPPoE, NTP, SMTP, HTTP, TFTP, DHCP, TCP/IP, PAP, CHAP, RIP1, RIP2, DDNS |
| WAN: | 1 Porta 10/100 Mbps (Internet) |
| LAN: | 4 Portas 10/100 Mbps Auto-MDIX |
| DMZ: | 1 Porta 10/100 Mbps Auto-MDIX |
| LEDs Indicadores: |
|
| Adaptador de Tensão: | 12 VDC, 800 mA |
| Dimensões: | 170 x 147 x 27 mm (6.7x 5.8 x 1.06") |
| Peso: | 0.6 kg ( 20.8 oz.) |
| Temperatura: |
|
| Umidade: |
|
| Certificados: | FCC, CE, VCCI |
| Roteador | |
| Firewall: | Firewall NAT e Firewall SPI |
| Segurança: | Filtro URL , Controle de Acesso, Proteção por Senha, Email de Alerta e Logs |
| VPN (IPSec): | Autenticação MD5-HMAC/SHA1-HMAC, Criptografia DES-CBC, 3DES-CBC, Internet Key Exchange e Manual Key Negotiation |
| Túneis VPN: | 70 (IPSec), 10 (PPTP) |
| VPN Pass-Through: | IPSec, PPTP e L2TP (100 Sessões) |
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
