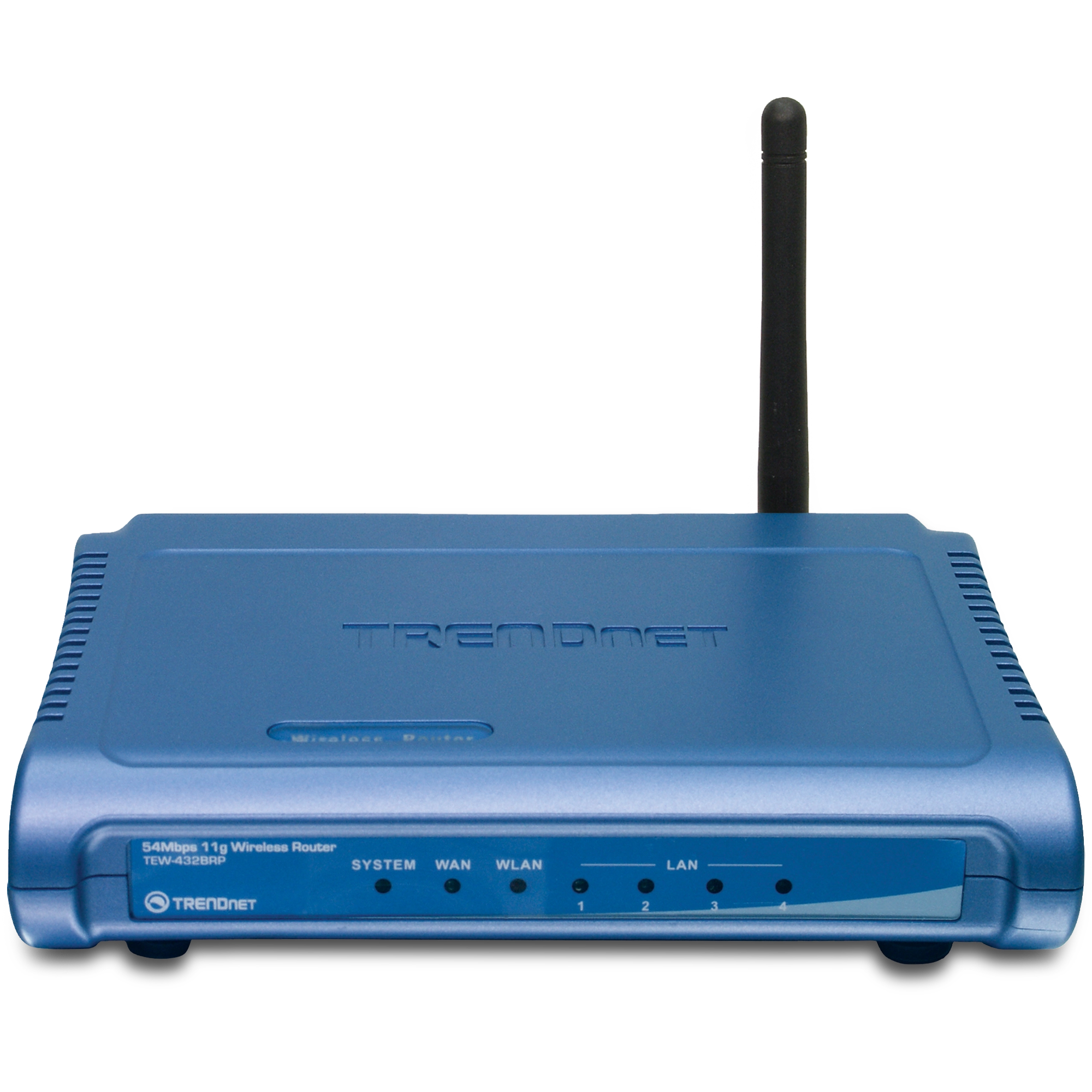

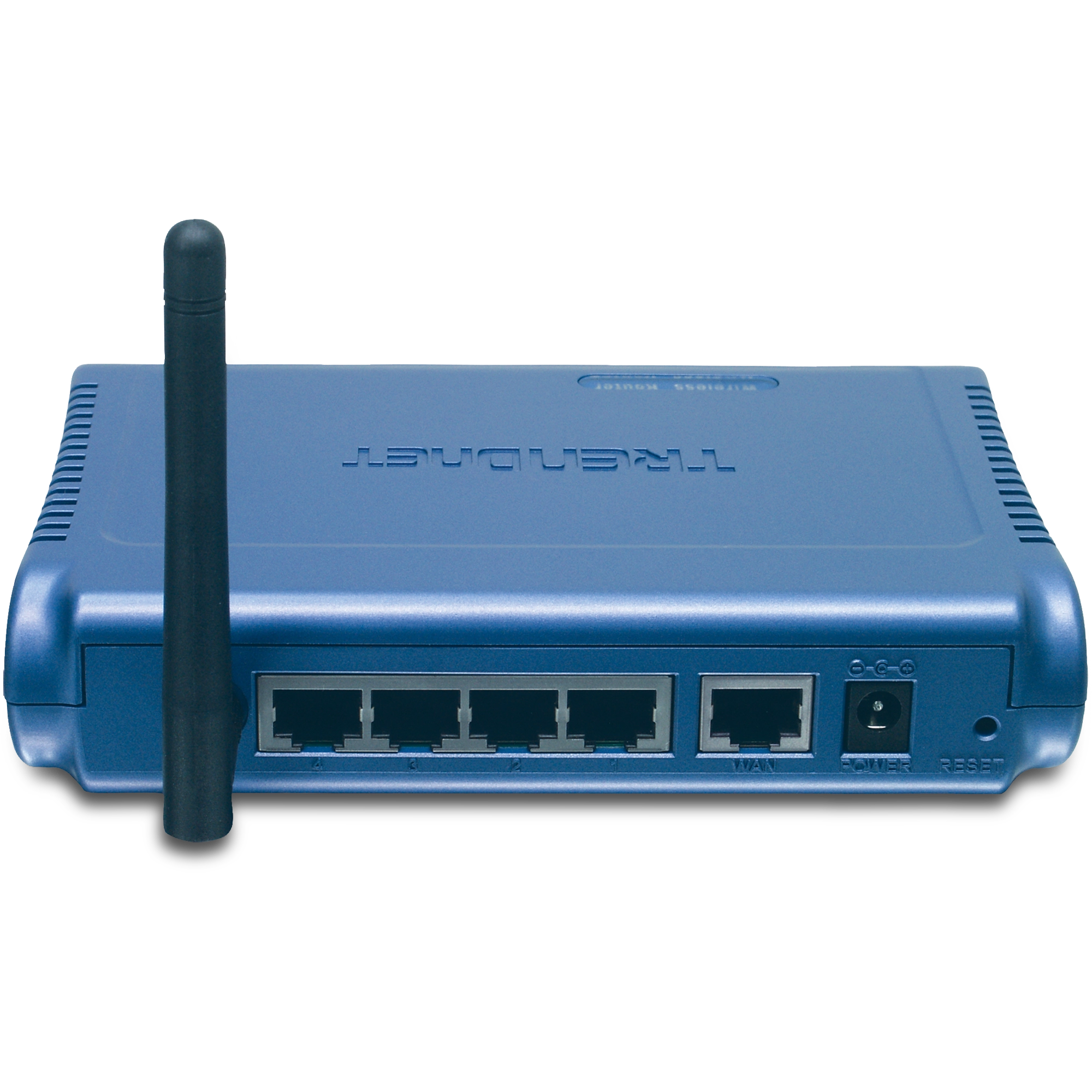

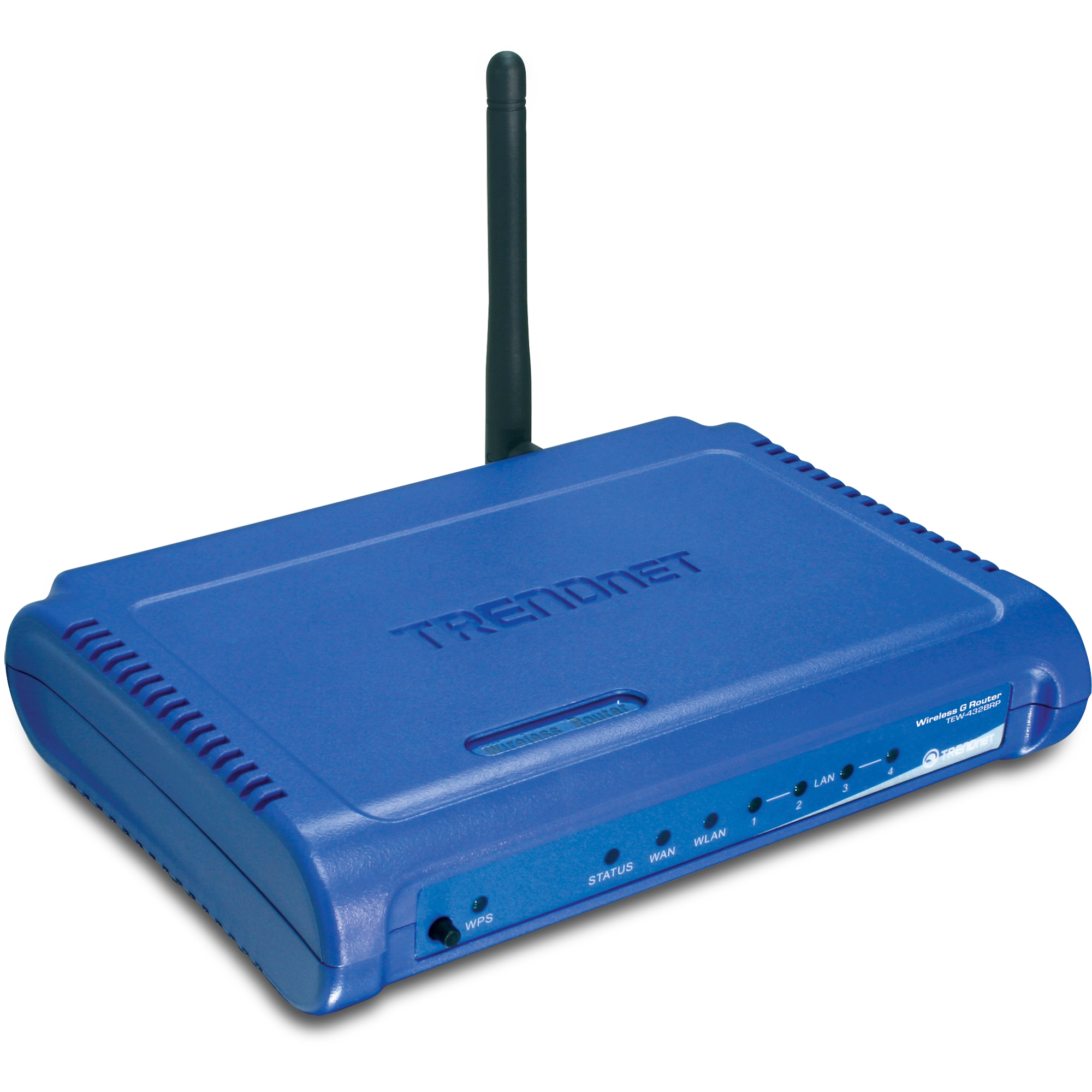

54Mbps 802.11g Wireless Firewall Router

TEW-432BRP   (Version B1.xR)

   Select Another Version
  • Proven wireless g performance and reliability
  • Stream videos, download files and play games
  • Create a network in minutes with Easy-Go installation
  • Advanced firewall and wireless encryption ensures data security

DISCONTINUED PRODUCT

The TEW-432BRP (Version B1.xR) has been discontinued. It has been replaced by the TEW-831DR (Version v1.0R). For a list of discontinued products, click here.

Utility

Easy Go CD Files
Nome do arquivo: TEW-432BRP_EASY_GO.zip
SHA-1 Checksum: 97D85B181DD8D4CE21EE7FD4C1D614F5C055B3E6
Data: 3/29/2021
Tamanho de arquivo: 36.26 MB
Download

Firmware

Firmware (version 1.2.0.0019)
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless
Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada.

Upload Procedures:

  1. Download the firmware file, unzip and save it to your local disk
  2. Go to TEW-432BRP’s web browser configuration page firmware upload section
  3. Select the downloaded file to upgrade

Note:
For Hardware B1/B1.1R unit, please update to firmware version 1.2.0.0015 first then update to firmware version 1.2.0.0019.

For Hardware B2.0R/B2.1R unit, firmware 1.2.0.0019 can be downloaded and upgraded directly.
Nome do arquivo: Firmware_TEW-432BRP(1.2.0.0019).zip
SHA-1 Checksum: 30FC04D419D9ACC6ACBD6332367E1DFC96632AD9
Data: 7/26/2017
Tamanho de arquivo: 611.97 KB
Download
Firmware (version 1.2.0.0015)
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless
Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada.

Upload Procedures:

  1. Download the firmware file, unzip and save it to your local disk
  2. Go to TEW-432BRP’s web browser configuration page firmware upload section
  3. Select the downloaded file to upgrade

Nome do arquivo: Firmware_TEW-432BRP(1.2.0.0015).zip
SHA-1 Checksum: 2CD5089B99555671940A59A840ADB481771CF422
Data: 7/26/2017
Tamanho de arquivo: 600.74 KB
Download

Ficha técnica

Datasheet (English)
Nome do arquivo: EN_Spec_TEW-432BRP(bx).pdf
Data: 1/25/2007
Tamanho de arquivo: 468.02 KB
Download Email
Datasheet (Français)
Nome do arquivo: FR_Spec_TEW-432BRP(bx).pdf
Data: 1/25/2007
Tamanho de arquivo: 435.83 KB
Download Email
Datasheet (Deutsch)
Nome do arquivo: GE_Spec_TEW-432BRP(bx).pdf
Data: 1/25/2007
Tamanho de arquivo: 435.17 KB
Download Email
Datasheet (Español)
Nome do arquivo: SP_Spec_TEW-432BRP(bx).pdf
Data: 1/25/2007
Tamanho de arquivo: 435.19 KB
Download Email
Datasheet (Pусский)
Nome do arquivo: RU_Spec_TEW-432BRP(bx).pdf
Data: 1/25/2007
Tamanho de arquivo: 1.45 MB
Download Email

Guia de Instalação Rápida

Guia de Instalação Rápida (English)
Nome do arquivo: EN_QIG_TEW-432BRP_Bx.pdf
Data: 1/20/2007
Tamanho de arquivo: 505.90 KB
Download
Guia de Instalação Rápida (Français)
Nome do arquivo: FR_QIG_TEW-432BRP_Bx.pdf
Data: 1/20/2007
Tamanho de arquivo: 508.70 KB
Download
Guia de Instalação Rápida (Deutsch)
Nome do arquivo: GE_QIG_TEW-432BRP_Bx.pdf
Data: 1/20/2007
Tamanho de arquivo: 507.51 KB
Download
Guia de Instalação Rápida (Português)
Nome do arquivo: PO_QIG_TEW-432BRP.pdf
Data: 1/20/2007
Tamanho de arquivo: 321.78 KB
Download
Guia de Instalação Rápida (Español)
Nome do arquivo: SP_QIG_TEW-432BRP_Bx.
Data: 1/20/2007
Tamanho de arquivo: 508.65 KB
Download
Guia de Instalação Rápida (Pусский)
Nome do arquivo: RU_QIG_TEW-432BRP_Bx.pdf
Data: 1/20/2007
Tamanho de arquivo: 566.09 KB
Download
Guia de Instalação Rápida (Estonia)
Nome do arquivo: EST_QIG_TEW-432BRP.pdf
Data: 1/20/2007
Tamanho de arquivo: 318.47 KB
Download
Guia de Instalação Rápida (Polski)
Nome do arquivo: POL_QIG_TEW-432BRP.pdf
Data: 7/24/2007
Tamanho de arquivo: 401.59 KB
Download
Guia de Instalação Rápida (Romania)
Nome do arquivo: RO_QIG_TEW-432BRP_Bx.pdf
Data: 1/20/2007
Tamanho de arquivo: 501.51 KB
Download
Guia de Instalação Rápida (Chinese)
Nome do arquivo: CN_QIG_TEW-432BRP.pdf
Data: 5/16/2013
Tamanho de arquivo: 925.06 KB
Download

Guia do Usuário

Guia do Usuário
Nome do arquivo: UG_TEW-432BRP(Bx).pdf
Data: 1/20/2007
Tamanho de arquivo: 4.79 MB
Download

Frequently Asked Questions (FAQ)

FAQ
Nome do arquivo: FAQ_TEW-432BRP_(bx).zip
Data: 1/20/2007
Tamanho de arquivo: 876.46 KB
Download

Imagem(ns) do Produto

JPEG Image
Tamanho de arquivo: : 558.11 KB
Data: : 7/28/2006
Download
TIFF Image
Tamanho de arquivo: : 3.53 MB
Data: : 7/11/2006
Download
JPEG Image
Tamanho de arquivo: : 430.08 KB
Data: : 7/11/2006
Download
TIFF Image
Tamanho de arquivo: : 3.34 MB
Data: : 7/11/2006
Download
JPEG Image
Tamanho de arquivo: : 444.87 KB
Data: : 7/11/2006
Download
TIFF Image
Tamanho de arquivo: : 3.57 MB
Data: : 7/11/2006
Download
ROHS compliant WEEE crossed-out bin symbol.
I am unable to connect to MSN Messenger and browse to MSN.com. However, I can access all other web sites.
Step 1 The TEW-432BRP is connected behind a modem router or another router. To verify this, log onto the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. The default username is admin with a password of admin. They are case sensitive. Step 2 Click...
I got an error when running the EasyGo setup. What can I do?
The EasyGo setup will only work on a Windows PC.  If you want to setup the router from a non-Windows PC, follow the steps below. Step 1 Connect an Ethernet cable from your modem to the WAN port on the router. Step 2 Connect a second Ethernet cable from your computer to one of the 4 LAN port...
How do I improve my wireless signal?
Step 1 Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. In an indoor environment try to position the wireless devices so that the signal pass...
How do I use my router as an Access Point only?
Step 1 Log into the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. The default username is admin with a password of admin. Step 2 Click on "Main" on the left hand side then click on "LAN&DHCP Server". Step 3 Click on "Disable" on the "D...
Why doesn’t it save or make changes when I click "Apply" for WEP or changing the Time?
Make sure that you are using Internet Explorer and not an unsupported browser like Fire Fox. You can also clear the cache in your browser to ensure you are not looking at a cached image of the web page....
How do I connect the TEW-432BRP using a DSL Connection?
First make sure you have the router physically connected properly. Connect the DSL modem via Ethernet to the WAN port of the TEW-432BRP. If you have any computers that need to be hard wired into the router you will connect them to one of the four LAN ports. Make sure the connection from the modem...
How do I forward ports in my router?
For Well Known Ports Log into the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. At the login, enter your username (admin) and password (admin). Click on "Cancel" if the Setup Wizard comes up. Click on "Access" on the left hand side. ...
How do I secure my wireless network?
Step 1 Log into the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. At the login, enter your username (admin) and password (admin).Step 2 Click on "Wireless" on the left hand side then click on "Security" below wireless. Next select "Security" from t...
How do I configure the router through the web-based configuration?
Step 1 Log into the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. At the login, enter your username (admin) and password (admin)....
How do I change the IP address of my router?
Step 1 Log into the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. At the login, enter your username (admin) and password (admin). Step 2 Click on "Main" on the left hand side then click on "LAN&DHCP Server". Step 3 Enter in the new va...
How do I upgrade the firmware on my router?
> Firmware upgrade failure may permanently damage the unit and causing it not to function. If the issues in the "Release Notes" do not address the problem you are experiencing with the router, please do not upgrade the firmware. Do not perform the upgrade if the router's firmware is newer than th...
How do I save or reload the configuration of my router?
Step 1 Log into the router by entering its IP address into a browser. The default IP address is https://192.168.10.1. The default username is admin with a password of admin. Step 2 Click "Tools" on the left hand side then click on "Settings". ...
What can I do if I forgot my password or want to reset back to factory defaults.
Press and hold in the reset button on the back of the router for approximately 15 seconds while the power is on....
Where can I find the MAC address of my router?
Step 1 Log into the router by entering it's IP address into a browser. The default IP address is https://192.168.1.1. At the login, enter your username (admin) and password (admin). Step 2 Click "Status" on the left hand side then click on "Device Information". ...
How do I enable encryption on my router?
Step 1 Log into the router by entering its IP address into a browser. The default IP address is https://192.168.1.1. At the login, enter your username (admin) and password (admin). Step 2 Click on "Wireless" on the left hand side then click on "WEP". Step 3 Enter in the desired encryption...
What is the default IP address of my router?
The default IP address is https://192.168.1.1. The default username is (admin) and the default password is (admin)....
How do I connect the TEW-432BRP if my service provider is Bell Sympatico?
First make sure you have the router physically connected properly. Connect the DSL modem via Ethernet to the WAN port of the TEW-432BRP. If you have any computers that need to be hard wired into the router you will connect them to one of the four LAN ports. Make sure the connection from the...
Hardware
Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX),ANSI/IEEE 802.3 Auto Negotiation
  • Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps)
WAN
  • 1 x 10/100Mbps Auto-MDIX Port (Internet)
LAN
  • 4 x 10/100Mbps Auto-MDIX Port
Connection Type
  • Dynamic IP, Static (Fixed) IP, PPPoE, PPTP
Supported Network Protocols
  • TCP/IP, NAT, PPPoE/PPTP, HTTP, DHCP Server/Client
LED Indicators
  • System, WAN, WLAN, LAN
Dimension (L x W x H)
  • 155 x 110 x 30 mm (6 x 4.3 x 1.2 inches)
Weight
  • 226g (8 oz.)
Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F)Storage:-10°~ 70°C (14°F~ 158°F)
Humidity
  • Max. 95% (Non-Condensing)
Power Adapter
  • 7.5V DC, 1A External Power Adapter
Certification
  • FCC &CE
Wireless
Frequency
  • 2.412 ~ 2.484GHz (Industrial Scientific Medical Band)
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps),DBPSK (1Mbps)
  • 802.11g: OFDM
Antenna
  • 1 x 2dBi External Detachable Dipole Antenna (Female Reverse SMA Connector)
Media Access Protocol
  • CSMA/CA with ACK
Security
  • 64/128-bit WEP (HEX/ASCII), 802.1x WPA/WPA2,WPA-PSK/WPA2-PSK, MAC Address Filter, Protocol Filter
Transmit Power
  • 13 dBm (typically)
Data Rate
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbpsand 6Mbps
Receiving Sensitivity
  • 11Mbps 8% PER @ -85 dBm (typical)
  • 54Mbps 10% PER @ -70 dBm (typical)
Channels
  • 11 Channels (US), 13 Channels (EU)

CONTEÚDO DA EMBALAGEM
  • TEW-432BRP
  • Multi-Language QIG
  • CD-ROM (User's Guide)
  • Power Adapter (7.5V, 1A)
  • RJ-45 Cat. 5 Cable (1.5M)

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
