85Mbps Powerline Fast Ethernet Adapter
TPL-202E (Version A1.1R)
- Building-wide home networking
- Create a secure network using your building's existing electrical system
- Plug in this adapter into an electrical socket for immediate network access
DISCONTINUED PRODUCT
The TPL-202E (Version A1.1R) has been discontinued. It has been replaced by the TPL-422E (Version v1.0R). For a list of discontinued products, click here.Utility
Ficha técnica
Nome do arquivo: EN_Spec_TPL-202E(A1.1R).pdf
Data: 7/7/2008
Tamanho de arquivo: 334.31 KB
Nome do arquivo: FR_Spec_TPL-202E(A1.1R).pdf
Data: 2/18/2009
Tamanho de arquivo: 326.84 KB
Nome do arquivo: GE_Spec_TPL-202E(A1.1R).pdf
Data: 7/7/2008
Tamanho de arquivo: 341.31 KB
Nome do arquivo: SP_Spec_TPL-202E(A1.1R).pdf
Data: 7/7/2008
Tamanho de arquivo: 337.67 KB
Nome do arquivo: RU_Spec_TPL-202E(A1.1R).pdf
Data: 7/7/2008
Tamanho de arquivo: 1,002.32 KB
Nome do arquivo: ITA_Spec_TPL-202E(A1.1R).pdf
Data: 7/7/2008
Tamanho de arquivo: 337.27 KB
Guia de Instalação Rápida
Nome do arquivo: EN_QIG_TPL-202E-202E2K(v1.1R).pdf
Data: 5/14/2008
Tamanho de arquivo: 610.65 KB
Nome do arquivo: FR_QIG_TPL-202E-202E2K(v1.1R).pdf
Data: 5/14/2008
Tamanho de arquivo: 613.60 KB
Nome do arquivo: GE_QIG_TPL-202E-202E2K(v1.1R).pdf
Data: 5/14/2008
Tamanho de arquivo: 614.71 KB
Nome do arquivo: D:\FTP\TPL-202E_A1_1R\manual\EN_QIG_TPL-202E-202E2K(v1.1R).p
Data: 5/14/2008
Tamanho de arquivo: 614.76 KB
Nome do arquivo: RU_QIG_TPL-202E-202E2K(v1.1R).pdf
Data: 5/14/2008
Tamanho de arquivo: 1.17 MB

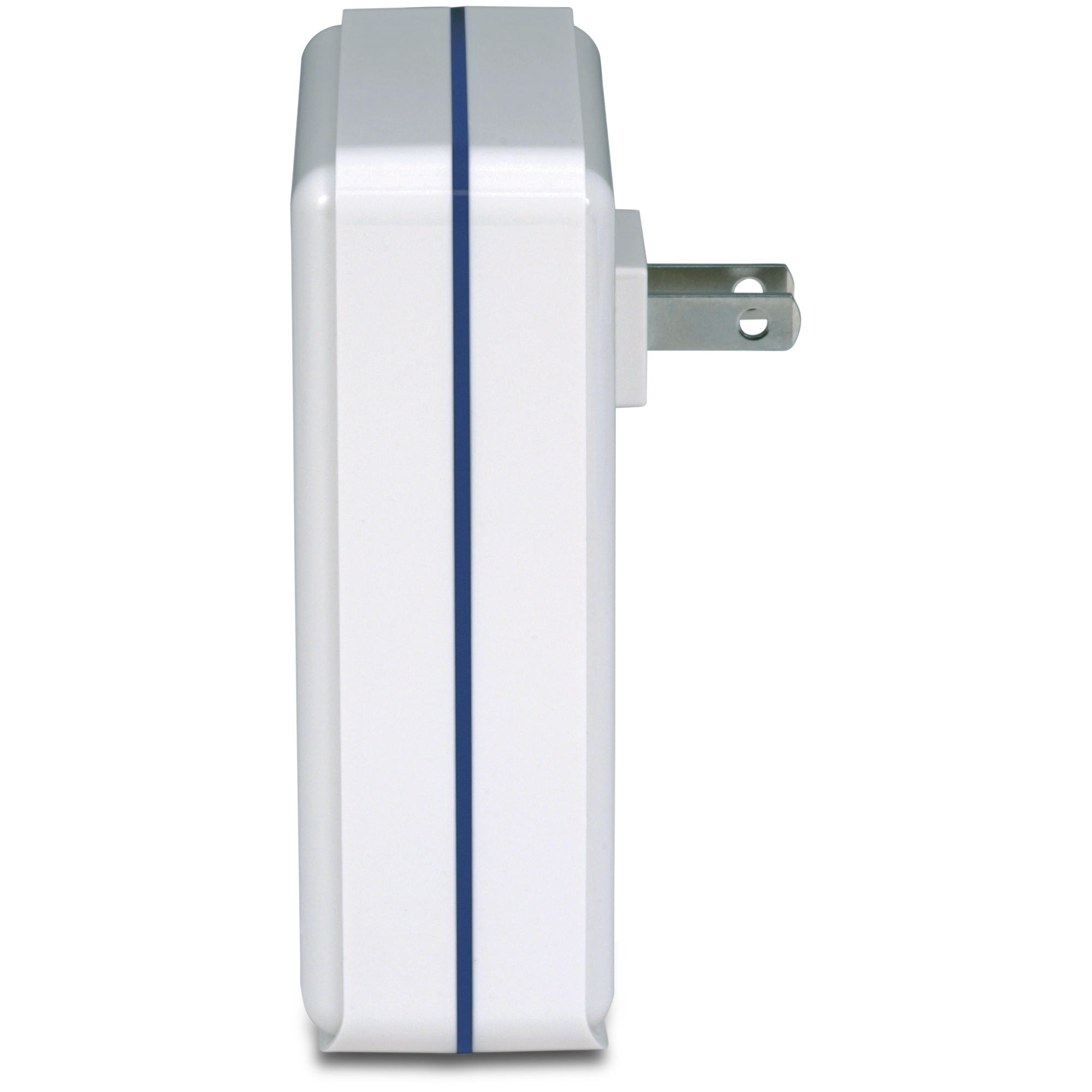

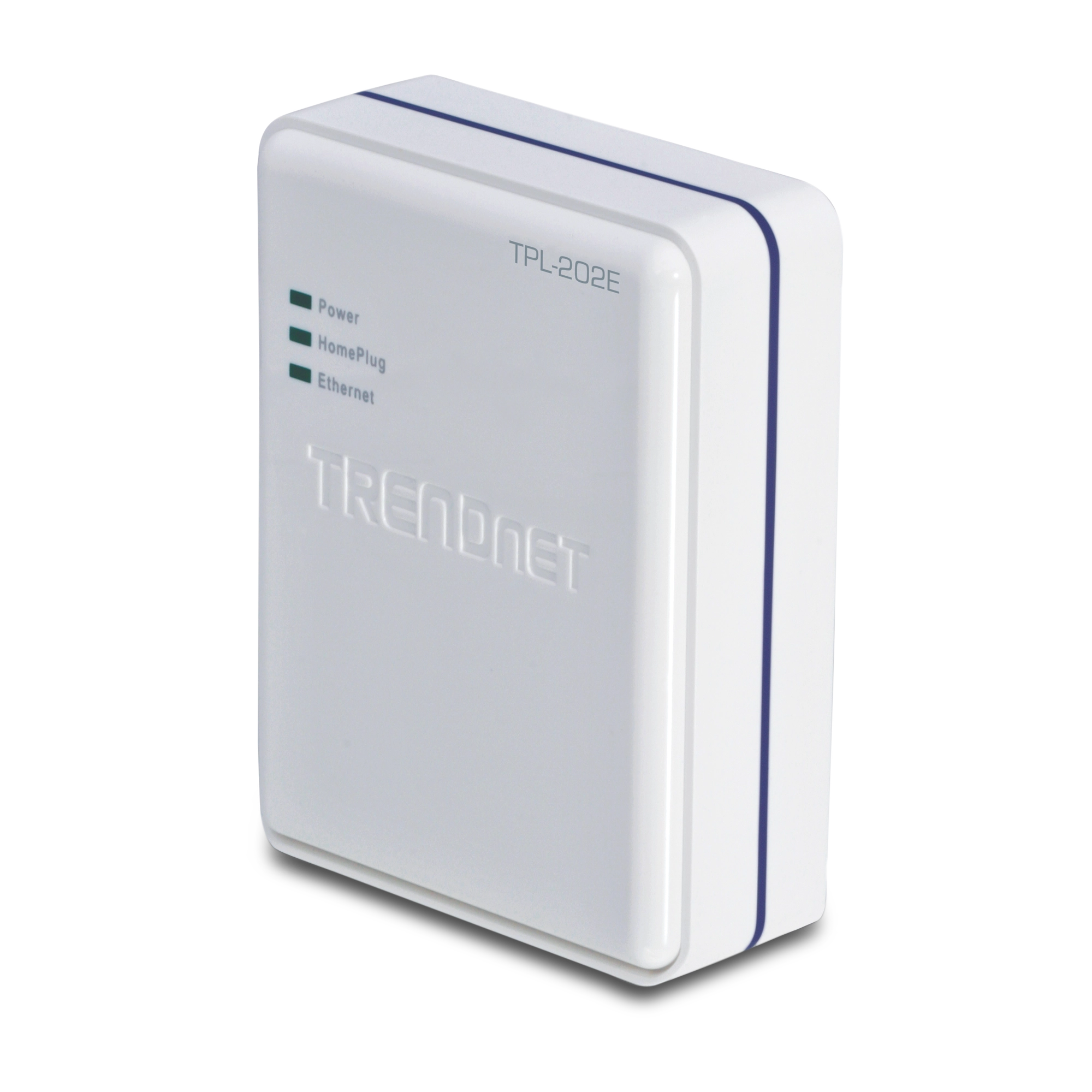

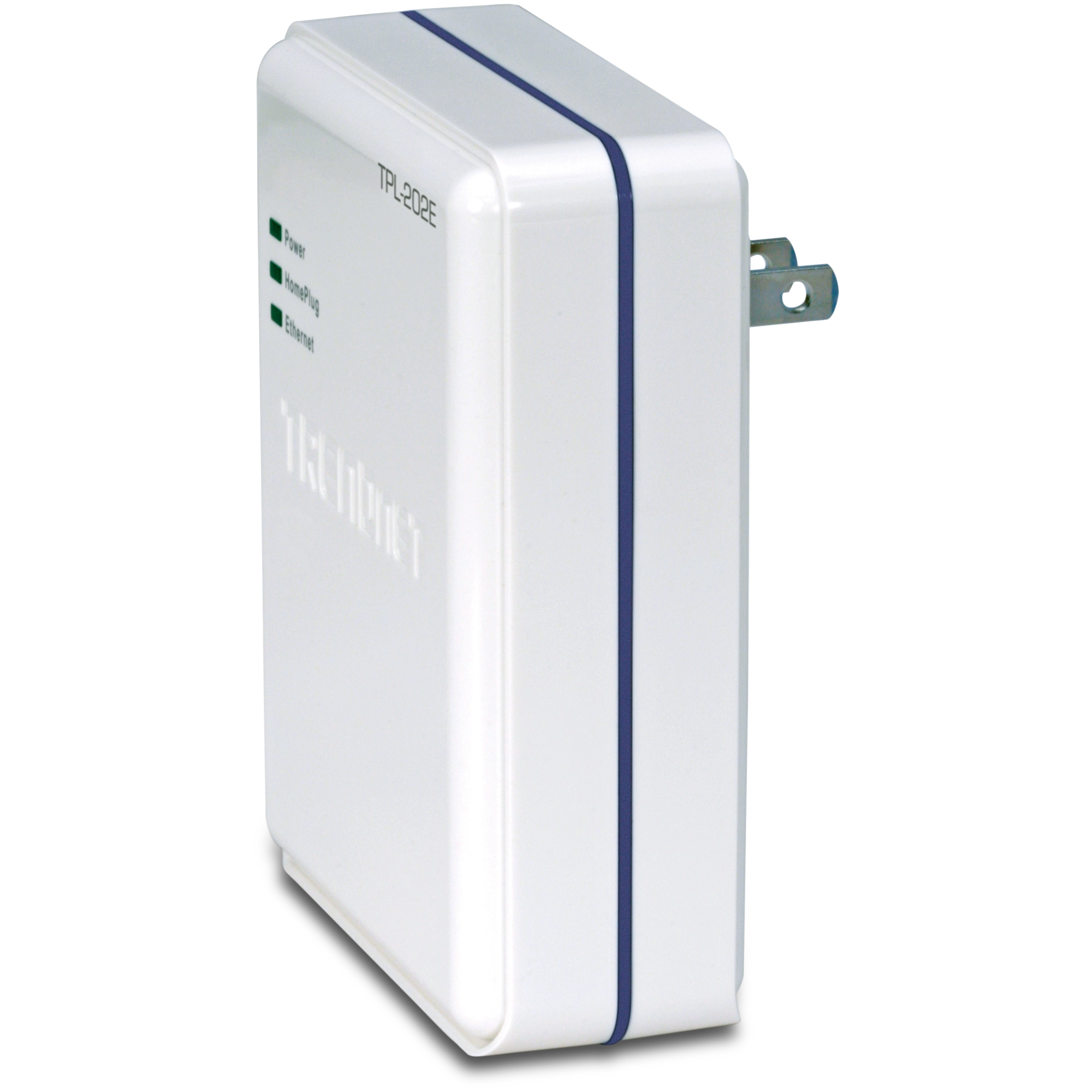

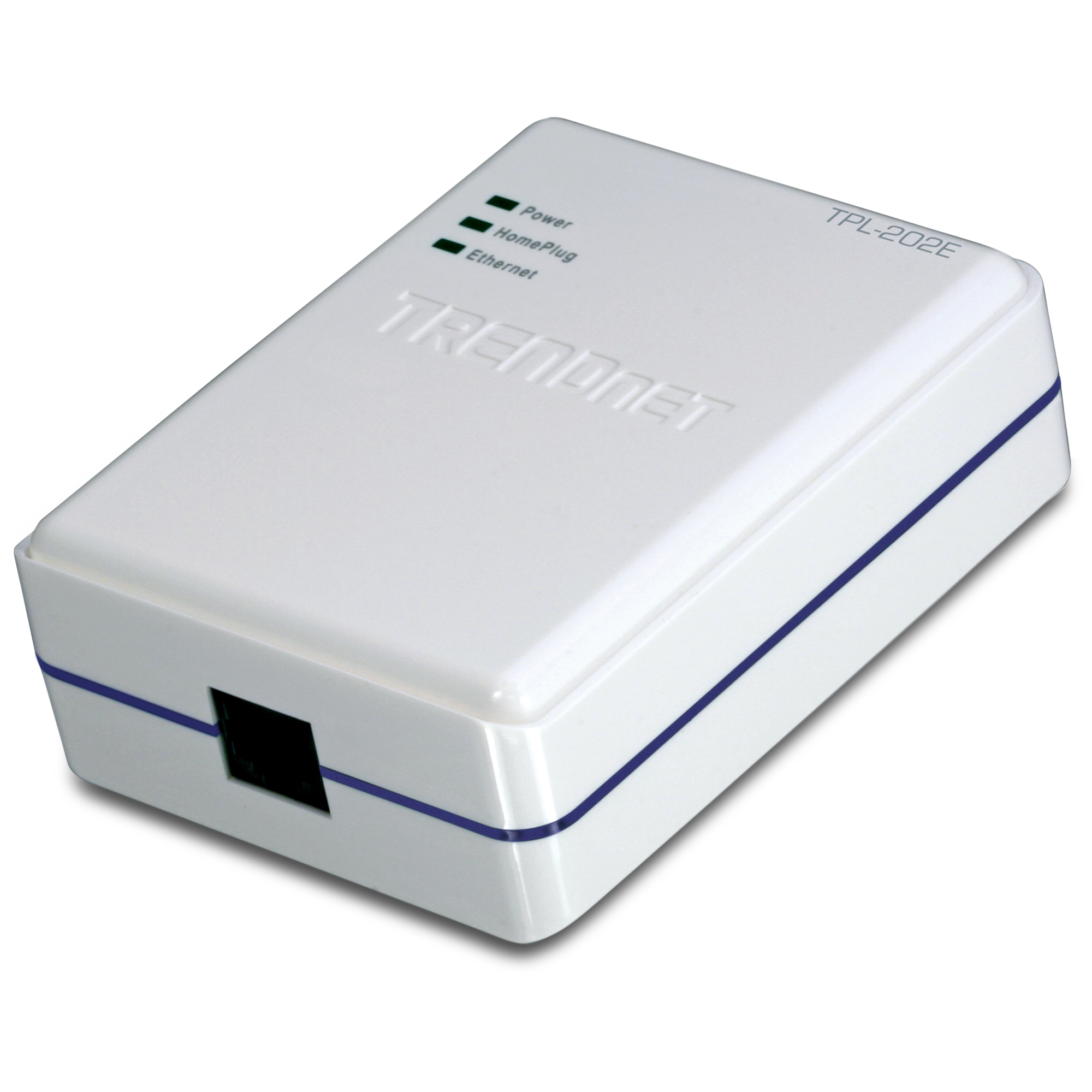

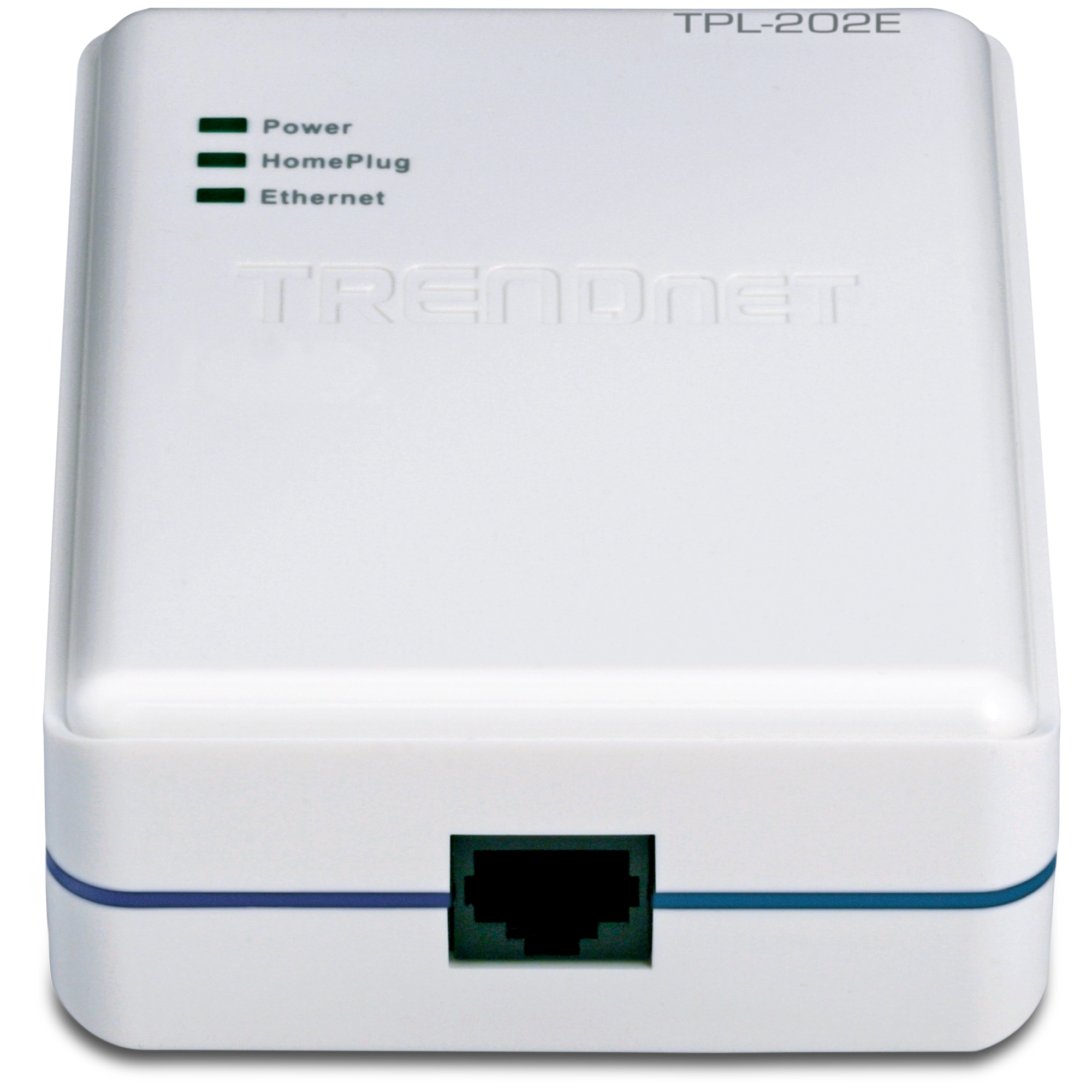

Imagem(ns) do Produto
To connect the remote computer you would require two TPL-202E Powerline Ethernet Bridges.
One TPL-202E Powerline Ethernet Bridge connects to a LAN port on the back of your Cable/DSL Internet Router (e.g. TW100-S4WICA) with a standard CAT-5 Ethernet cable. Next plug the TPL-202E into a power o...
The Ethernet port on the TPL-202E is Auto-MDI/MDIX allowing users to connect with a straight-through or crossover Ethernet cable....
The TPL-202E is compatible with Ethernet switches, game consoles, and any other Ethernet enabled device....
The TPL-202E Ethernet Bridge is a pass-through device that does not use an IP Address.
Surge Protectors are not compatible with Powerline devices. Noise filters on surge protectors detect network traffic as interference and filter it out before it reaches your PC....
The TPL-202E is ultra portable and will allow users to plug the Powerline Ethernet Bridge into any power outlet in the household....
Each Powerline network is password protected, and only devices knowing the password can connect. The Network password also ensures the each Powerline network is privatized to a single household....
Yes, the TPL-202E is backwards compatible with Homeplug 1.0 devices.
The TPL-202E can be used in combination with a standard Ethernet switch (e.g. TE100-S5) to add network access for two more computers....
The Homeplug 1.0 standard limits users to a maximum of 16 Powerline devices per Powerline network.
| Hardware | |
Standards | IEEE 802.3, IEEE 802.3u |
Interface | 10/100Mbps Auto-MDIX RJ45 Port |
Frequency Band | 4.5 ~ 21 MHz |
Modulation | OFDM, QAM 16/24/256, DBPSK, ROBO |
Speed | Powerline: Up to 85Mbps |
Supported OS | Windows 98SE/ME/2000/XP (32/64-bit) /Vista (32/64-bit) |
Nodes | Up to 16 client nodes |
Encryption | 56-bit DES with key management |
LED | Power, HomePlug, Ethernet |
Dimension | 78 x 30 x 102 mm |
Weight | 140g (5 oz.) |
Power Source | Input: 100~240V AC, 50/60 Hz |
Consumption | 2.5 watts (max.) |
Temperature | 0° ~ 40° C (32° ~ 104° F) |
Operating Humidity | 0% to 90% (Non-Condensing) |
Certification | FCC, CE |
CONTEÚDO DA EMBALAGEM |
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
