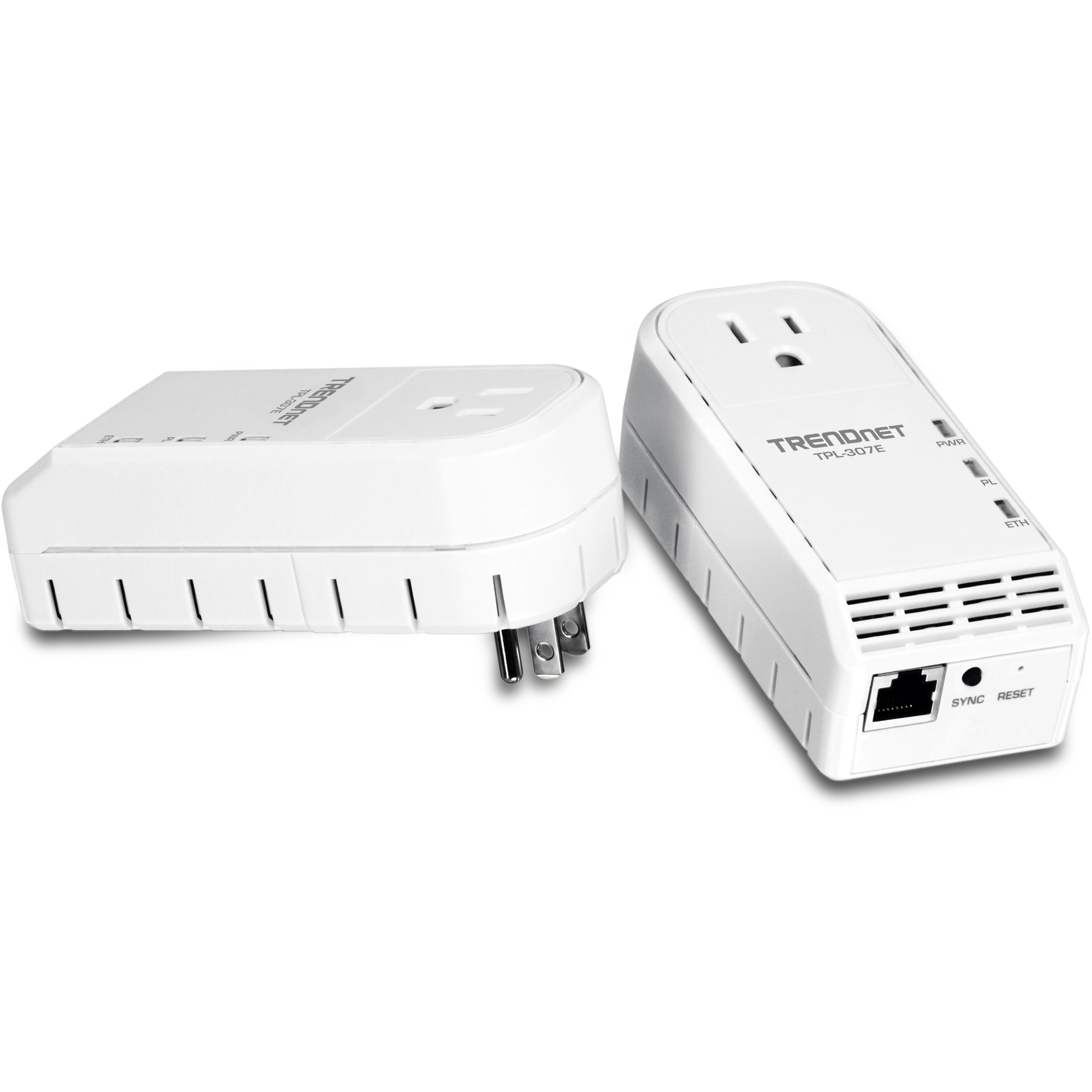

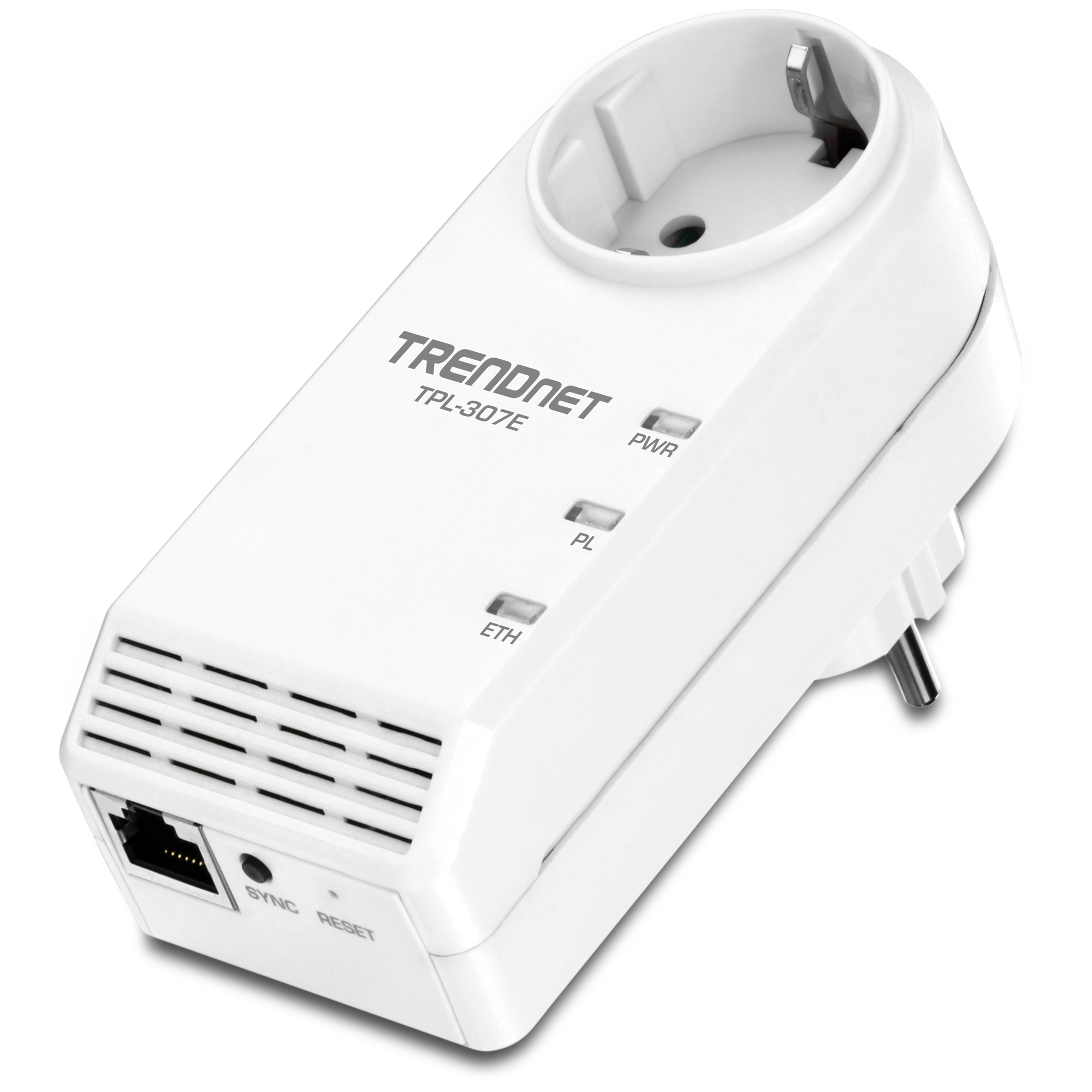

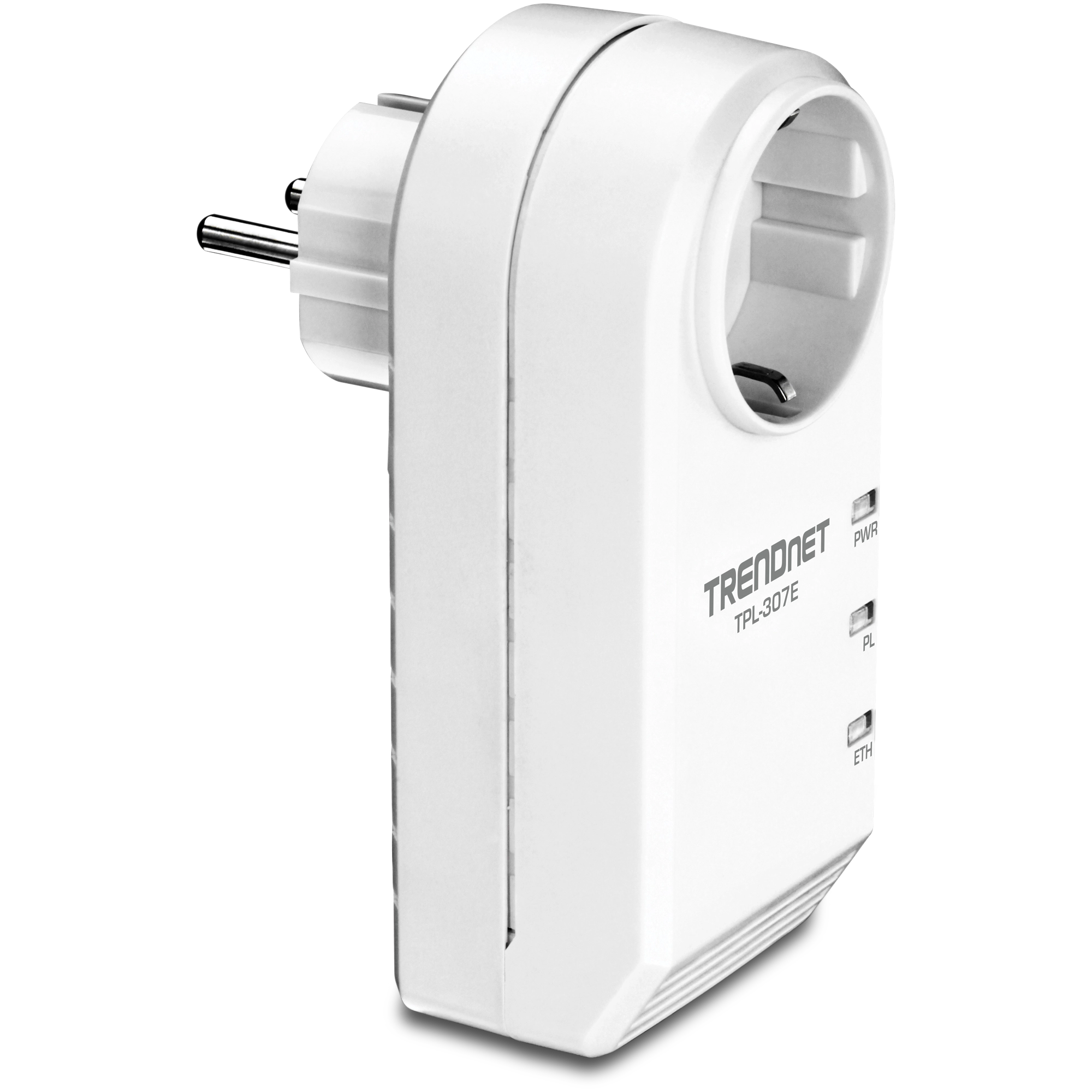

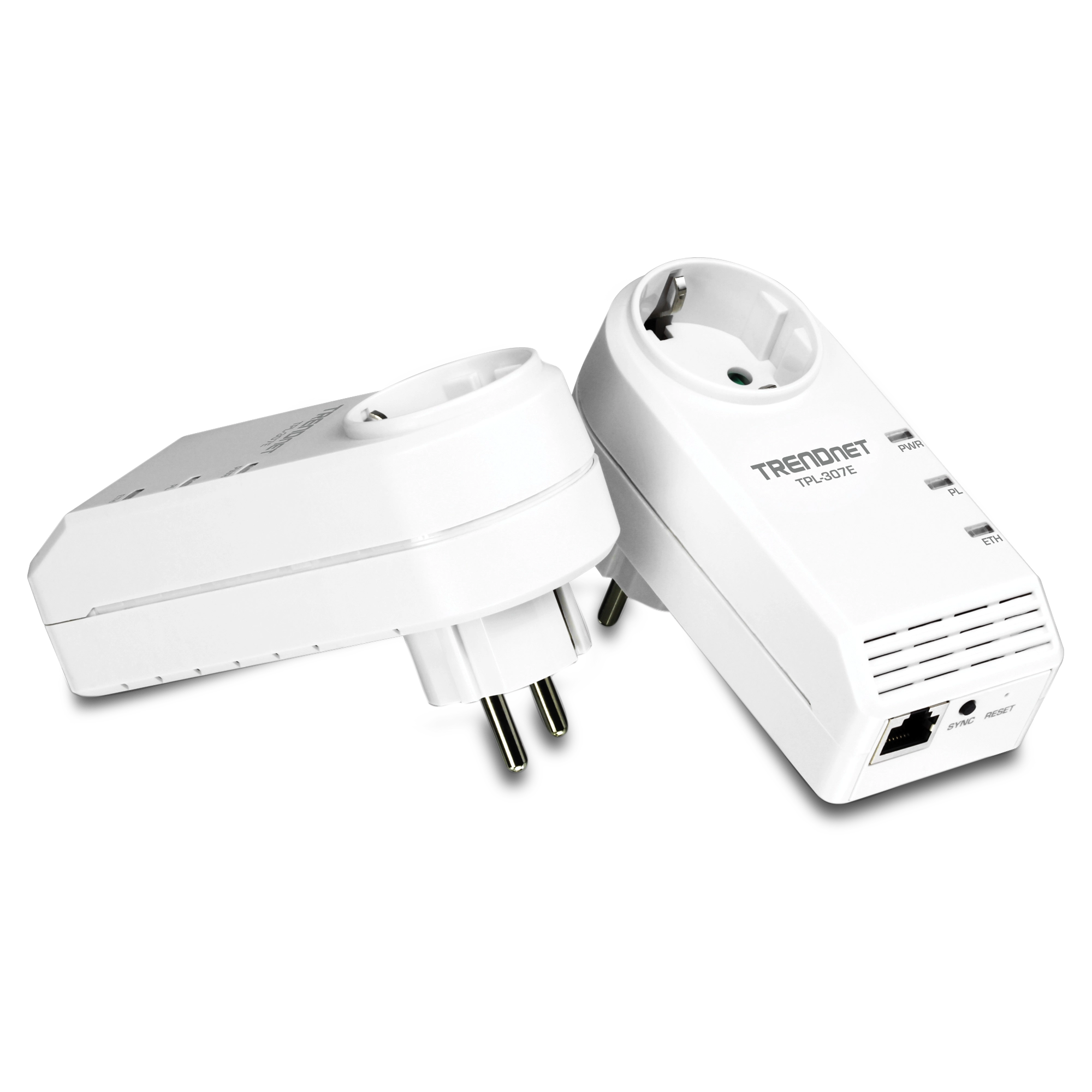

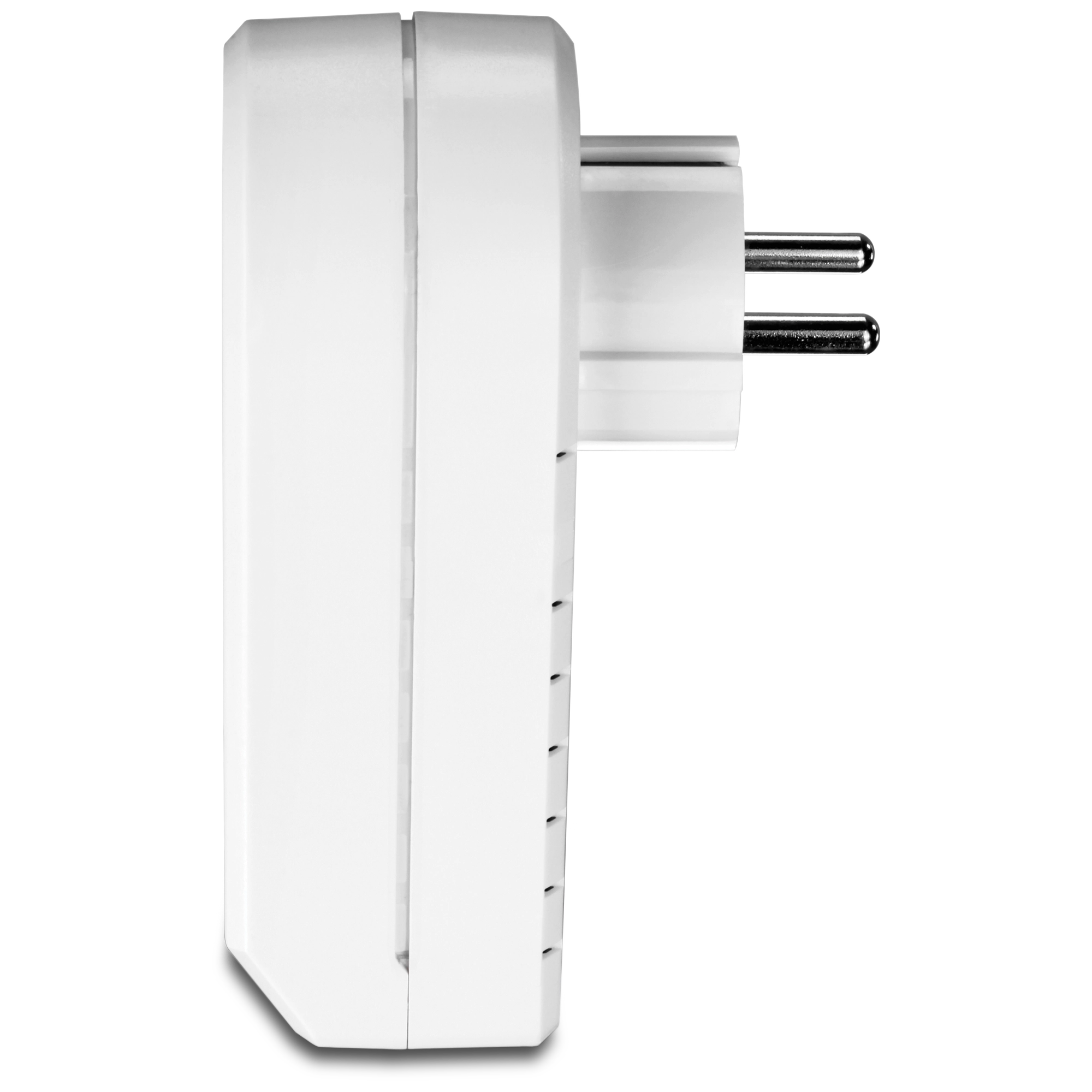

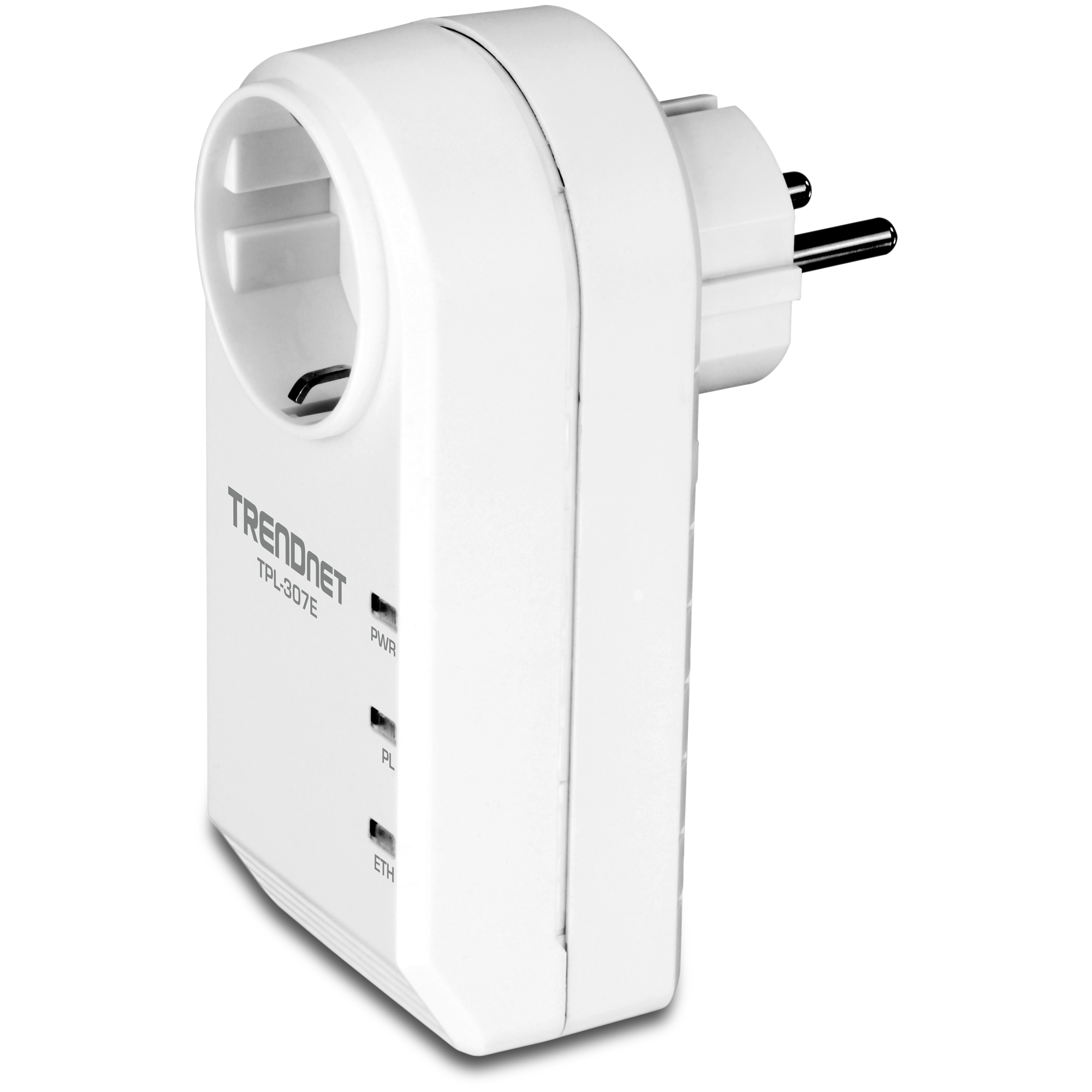

200Mbps Powerline AV Adapter Kit with Bonus Outlet

TPL-307E2K   (Version v1.0R)

  • Includes two TPL-307E adapters

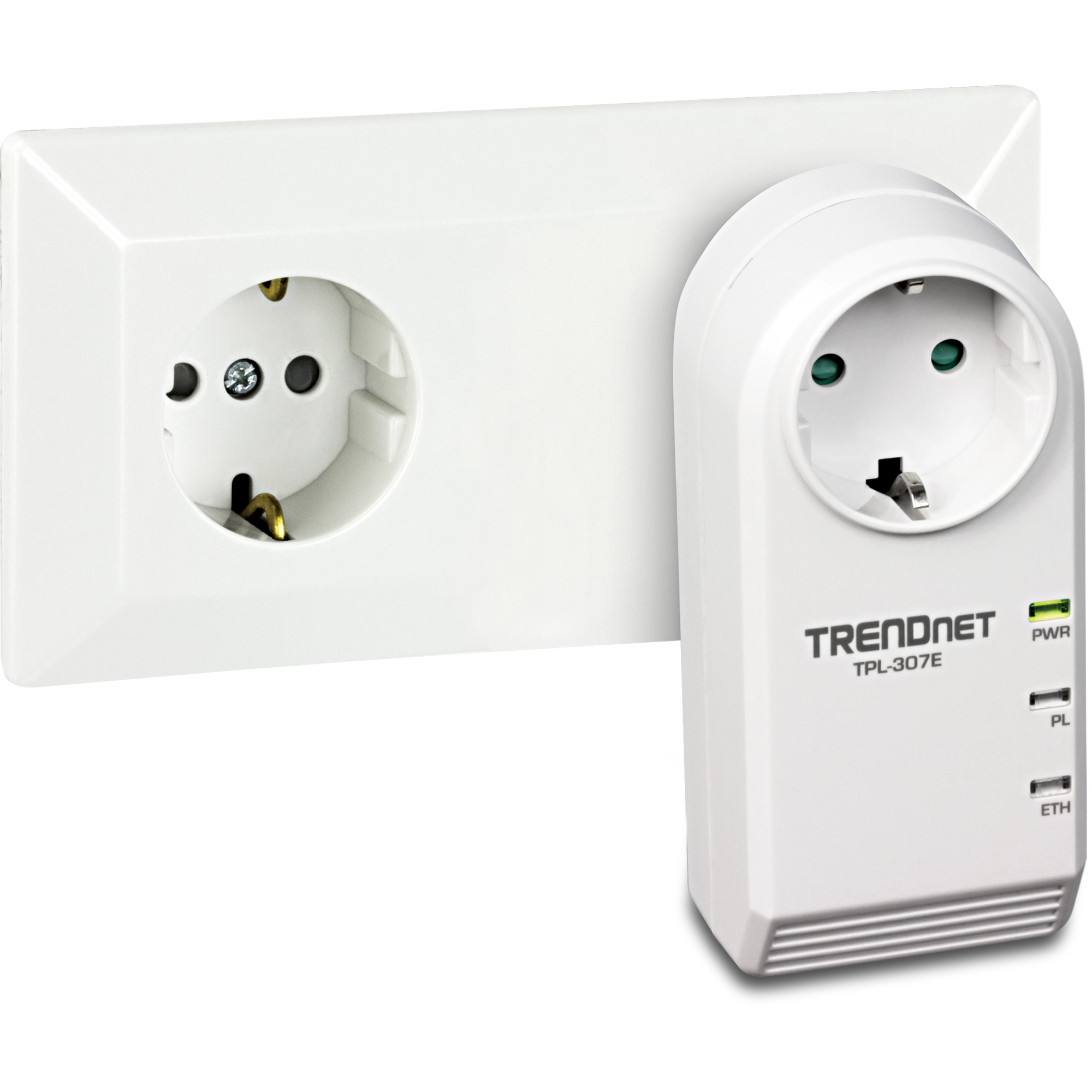

  • Never lose an electrical outlet with the built in socket
  • Compact form factor does not block adjacent electrical outlets
  • Advanced noise filter boosts performance
  • Power Save mode reduces electrical consumption by 80%

DISCONTINUED PRODUCT

The TPL-307E2K (Version v1.0R) has been discontinued. It has been replaced by the TPL-423E2K (Version v1.0R). For a list of discontinued products, click here.

Utility

Driver/Utility

Date: 12/2012
Version: 6.1.0008
Notes:

  1. Compatible with Windows 8

*Prerequisite: Requires Microsoft® .NET Framework 2.0. Please refer to the Microsoft download center for details on downloading and installing .NET Framework 2.0.


Nome do arquivo: Utility_Powerline(v6.1.0008).zip
SHA-1 Checksum: 92DEED182D68719A8EED8A2D1CA7B86FA16BE9E7
Data: 7/28/2017
Tamanho de arquivo: 1.56 MB
Download

Firmware

Firmware
Firmware Version: 4.5.0.01
Release Date: 9/2011
Note: Lançamento inicial
Nome do arquivo: FW_TPL-307E_v1.0R(4.5.0.01).zip
SHA-1 Checksum: 9F20408C19D7DEAC120B3DA86654DC8EA290B515
Data: 7/28/2017
Tamanho de arquivo: 5.93 MB
Download

Ficha técnica

Datasheet (English)
Nome do arquivo: EN_spec_TPL-307E2K(V1.0R).pdf
Data: 12/27/2012
Tamanho de arquivo: 683.40 KB
Download Email
Datasheet (Français)
Nome do arquivo: FR_spec_TPL-307E2K(V1.0R).pdf
Data: 12/27/2012
Tamanho de arquivo: 660.74 KB
Download Email
Datasheet (Deutsch)
Nome do arquivo: GE_spec_TPL-307E2K(V1.0R).pdf
Data: 12/27/2012
Tamanho de arquivo: 627.22 KB
Download Email
Datasheet (Español)
Nome do arquivo: SP_spec_TPL-307E2K(V1.0R).pdf
Data: 12/27/2012
Tamanho de arquivo: 658.23 KB
Download Email
Datasheet (Pусский)
Nome do arquivo: RU_spec_TPL-307E2K(V1.0R).pdf
Data: 12/27/2012
Tamanho de arquivo: 625.02 KB
Download Email
Datasheet (Italiano)
Nome do arquivo: IT_spec_TPL-307E2K(V1.0R).pdf
Data: 12/27/2012
Tamanho de arquivo: 644.03 KB
Download Email

Guia de Instalação Rápida

Guia de Instalação Rápida (English)
Nome do arquivo: QIG_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 1.55 MB
Download
Guia de Instalação Rápida (Français)
Nome do arquivo: FR_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 982.43 KB
Download
Guia de Instalação Rápida (Deutsch)
Nome do arquivo: GE_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 601.61 KB
Download
Guia de Instalação Rápida (Português)
Nome do arquivo: PO_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 602.10 KB
Download
Guia de Instalação Rápida (Español)
Nome do arquivo: SP_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 601.71 KB
Download
Guia de Instalação Rápida (Pусский)
Nome do arquivo: RU_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 604.40 KB
Download
Guia de Instalação Rápida (Eesti)
Nome do arquivo: EST_Web_TPL-307K_307E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 601.19 KB
Download

Guia do Usuário

Guia do Usuário
Nome do arquivo: UG_TPL-307E_E2K(1.01).pdf
Data: 12/27/2012
Tamanho de arquivo: 3.96 MB
Download

Imagem(ns) do Produto

JPEG Image
Tamanho de arquivo: : 178.96 KB
Data: : 10/7/2011
Download
JPEG Image
Tamanho de arquivo: : 298.14 KB
Data: : 10/7/2011
Download
JPEG Image
Tamanho de arquivo: : 199.37 KB
Data: : 10/7/2011
Download
JPEG Image
Tamanho de arquivo: : 194.20 KB
Data: : 10/7/2011
Download
JPEG Image
Tamanho de arquivo: : 183.42 KB
Data: : 10/7/2011
Download
TIFF Image
Tamanho de arquivo: : 1.75 MB
Data: : 10/7/2011
Download
TIFF Image
Tamanho de arquivo: : 2.48 MB
Data: : 10/7/2011
Download
TIFF Image
Tamanho de arquivo: : 15.30 MB
Data: : 10/7/2011
Download
TIFF Image
Tamanho de arquivo: : 1.73 MB
Data: : 10/7/2011
Download
TIFF Image
Tamanho de arquivo: : 1.73 MB
Data: : 10/7/2011
Download
ROHS compliant WEEE crossed-out bin symbol.
Troubleshooting
Please reference the items below if you continue to experience difficulty with installing and using your Powerline adapters. Power-cycle the Powerline adapters by disconnecting them from their power outlets for 15 seconds and then reconnect them.  If the Powerline (PL) LED is red, try pluggi...
How many TPL-307E/TPL-307E2K adapters can I use in a single network?
We do not recommend any more than 6 total TPL-307E/TPL-307E2K adapters on a single network.
What do the LED’s on the TPL-307E/TPL-307E2K indicate?
LED Color Sequence Definition PWR (Power) Green Solid Device powered on N/A Off Device powered off PL (Powerline) Green Solid Powerline connected (Connection quality is Best) Blinking Syncing or Powerline data transmitting/receiving (Conn...
How do I change my default encryption key using the Powerline Utility?
Please reference page 9 of the User's Guide. The User's guide is located on the CD that was included with the product. You can also download it from our website here. https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1507 ...
How do I change my default encryption key using the Sync button?
Please reference page 7 of the User's Guide. The User's Guide is located on the CD that was included with the product. You can also download it from our website here.https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1507...
How do I reset the TPL-307E/TPL-307E2K?
Reset the TPL-307E/TPL-307E2K by pressing and holding in the reset button for 1 second. The default network ID is HomePlugAV. ...
I’m not getting a connection through the TPL-307E/TPL-307E2K. What should I do?
Ensure you do not have the TPL-307E/TPL-307E2K units connected to surge protectors or to any outlet with appliances.   Please also ensure the units are connected to outlets within the same circuit breaker box.  Reset the units and ensure they are configured with the same Network ID or use the sync b...
Hardware
Standards
  • IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Interface
  • 1 x 10/100Mbps Auto-MDIX RJ-45 Port
  • 1 x electrical power socket with noise filtering (12A max. load)
  • Power prong:
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • FR: French Type E (CEE 7/5)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 ~ 28 MHz
Modulation
  • OFDM Symbol modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO carrier
Protocols
  • TDMA and CSMA/CA
Speed
  • Powerline: up to 200Mbps**
  • Ethernet: up to 200Mbps with Full Duplex mode
Utility OS Compatibility
  • Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Nodes
  • Up to 6 (max.)
Overlapping Powerline Networks Supported
  • Up to 4 (per electrical system)
Coverage
  • Up to 300 m (984 ft.)
Security
  • 128-Bit AES (Advanced Encryption Standard)

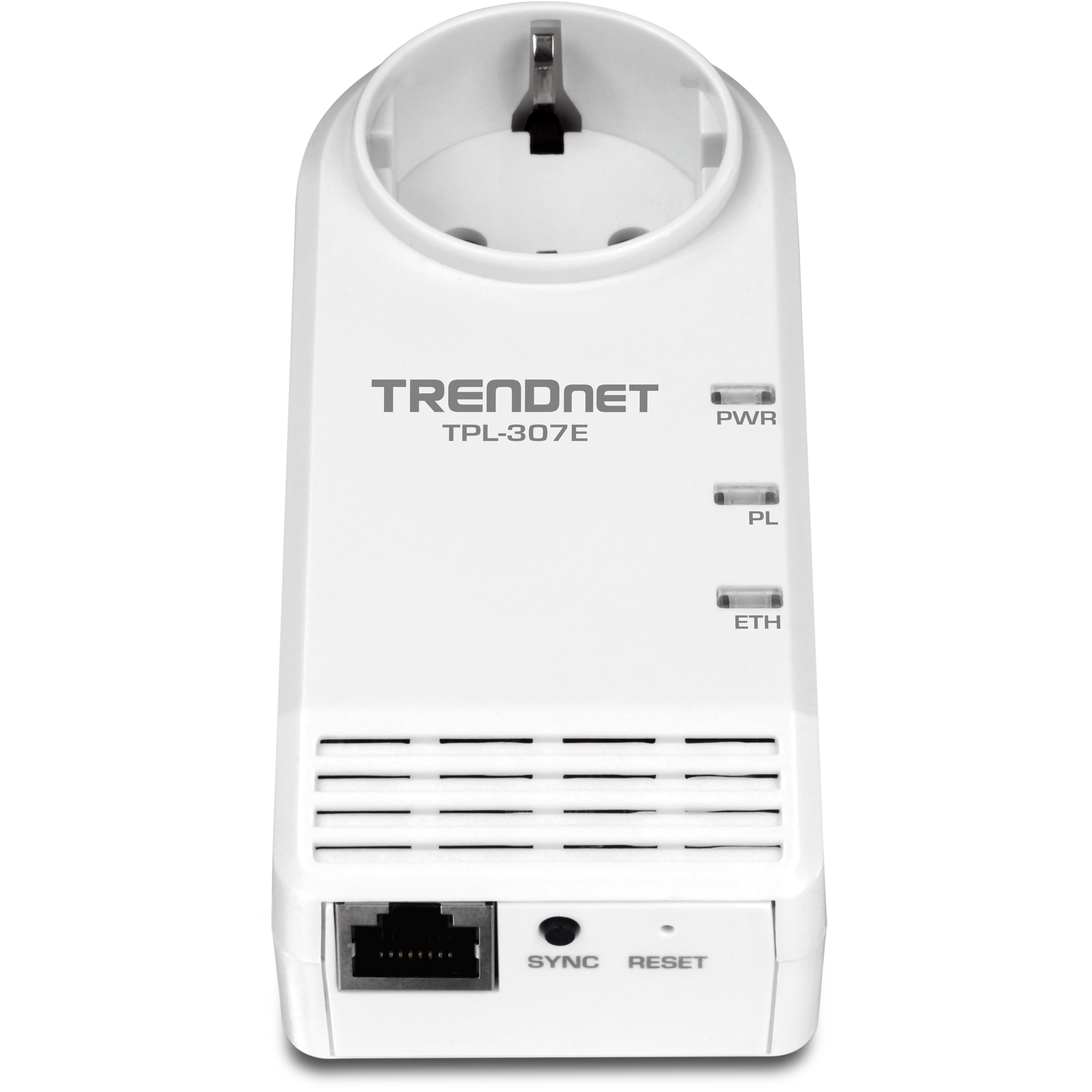

LED
  • Power (PWR)
  • Powerline (PL) connection
  • Best (Green)
  • Better (Amber)
  • Good (Red)
  • No connection (Off)
  • Ethernet (ETH) Connection
  • Solid
  • Blinking
  • Off
Buttons
  • Sync, Reset
Dimension (L x W X H)
  • A: 122 x 55 x 60 mm (4.8 x 2.2 x 2.4 in.) per unit
  • EU/FR: 122 x 55 x 78 mm (4.8 x 2.2 x 3.1 in.) per unit
  • UK: 122 x 55 x 72 mm (4.8 x 2.2 x 2.8 in.) per unit
Weight
  • A: Total Weight: 294 g (10.4 oz)/Per Unit Weight: 147 g (5.2 oz)
  • EU: Total Weight: 336 g ( 11.8 oz)/Per Unit Weight: 168 g (5.9 oz)
  • FR: Total Weight: 338 g (12 oz)/Per Unit Weight: 169 g (6.0 oz)
  • UK: Total Weight: 350 g (12.4 oz)/Per Unit Weight: 175 g (6.2 oz)
Power Source
  • 100~240V AC, 50~60Hz
Consumption
  • Active mode: 3 Watts (max.)
  • Standby mode: 0.6 Watts (max.)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20° ~ 70°C (-4° ~ 158°F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC, HomePlug® AV

CONTEÚDO DA EMBALAGEM
  • 2 x TPL-307E
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • 2 x network cables (1.5 m / 5 ft.)

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
