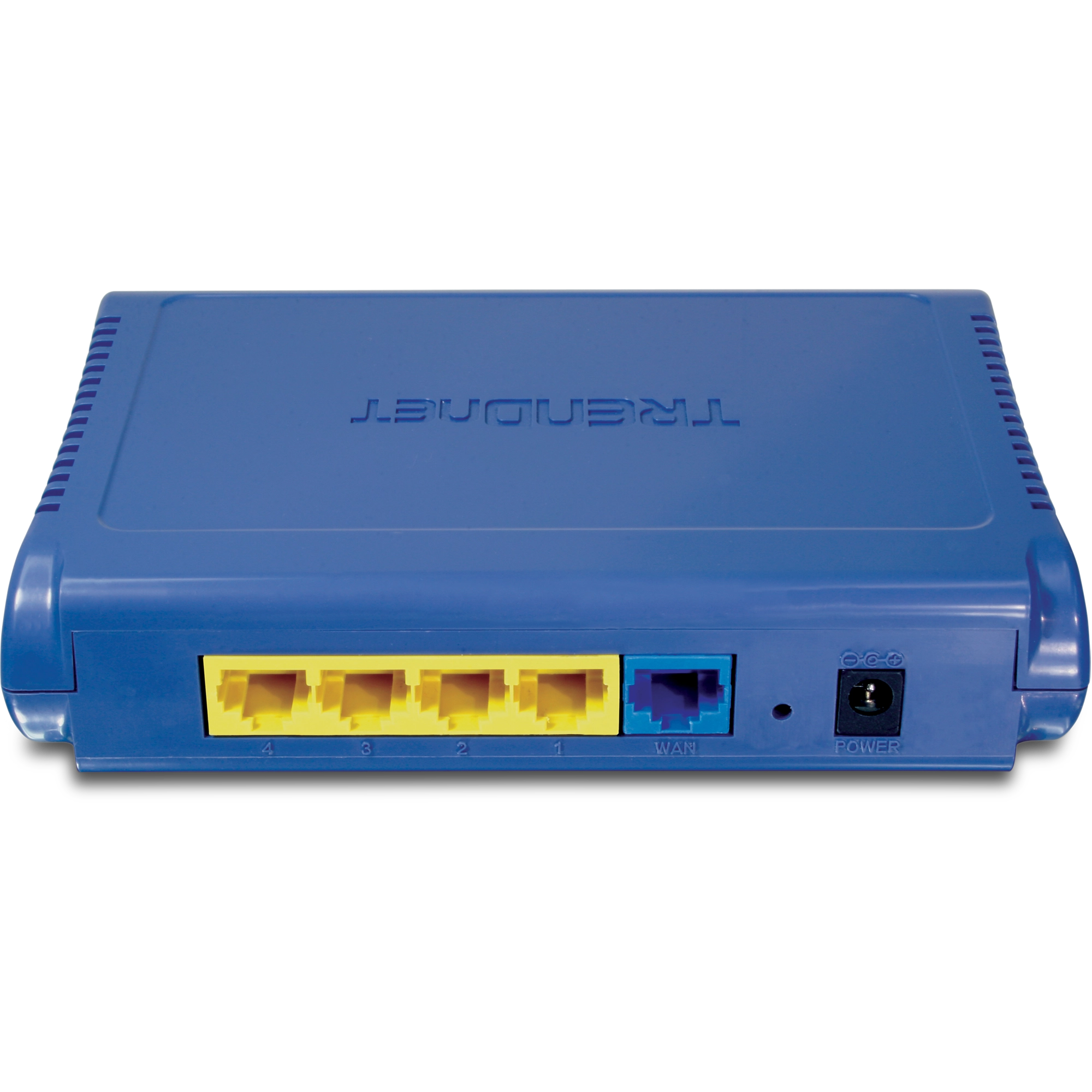

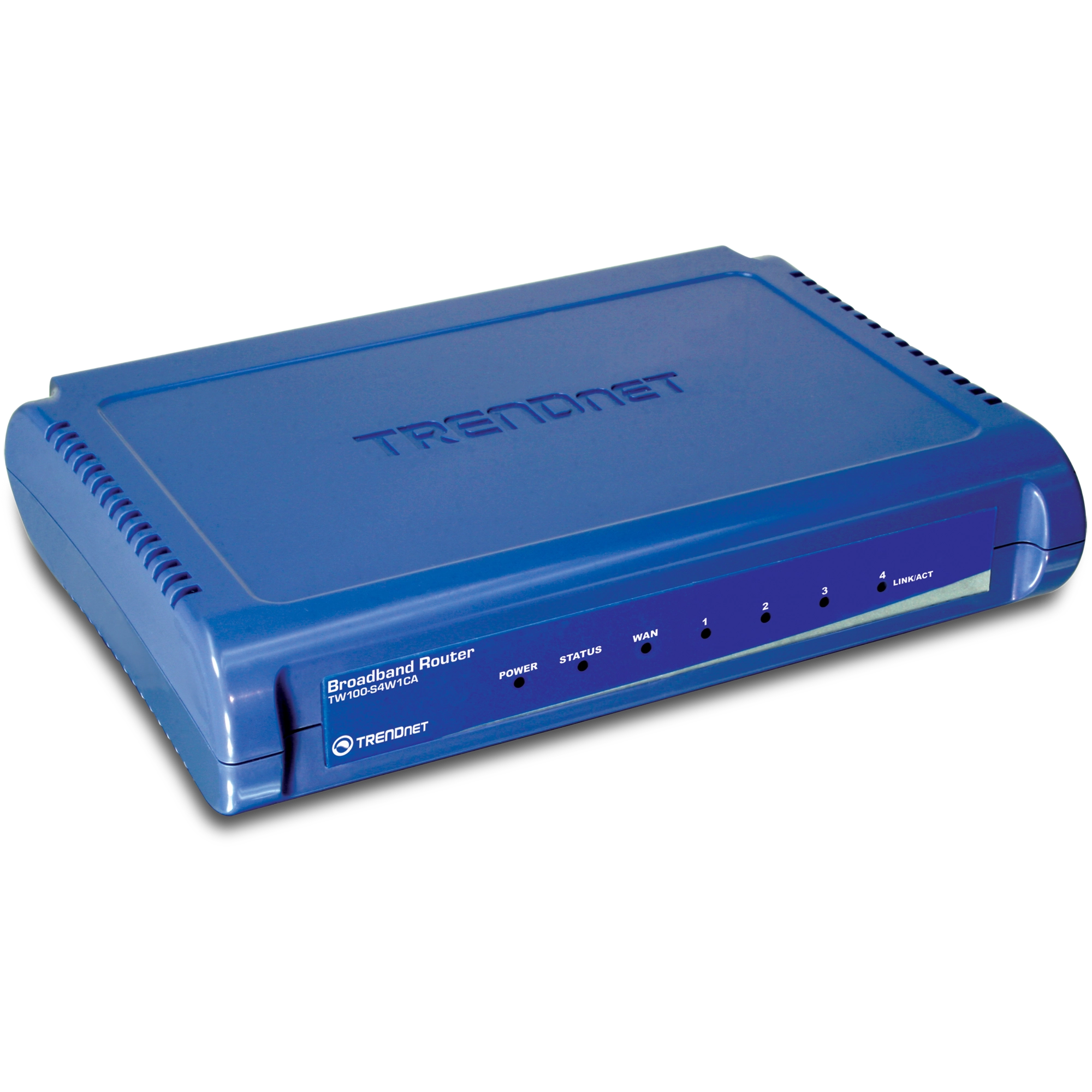

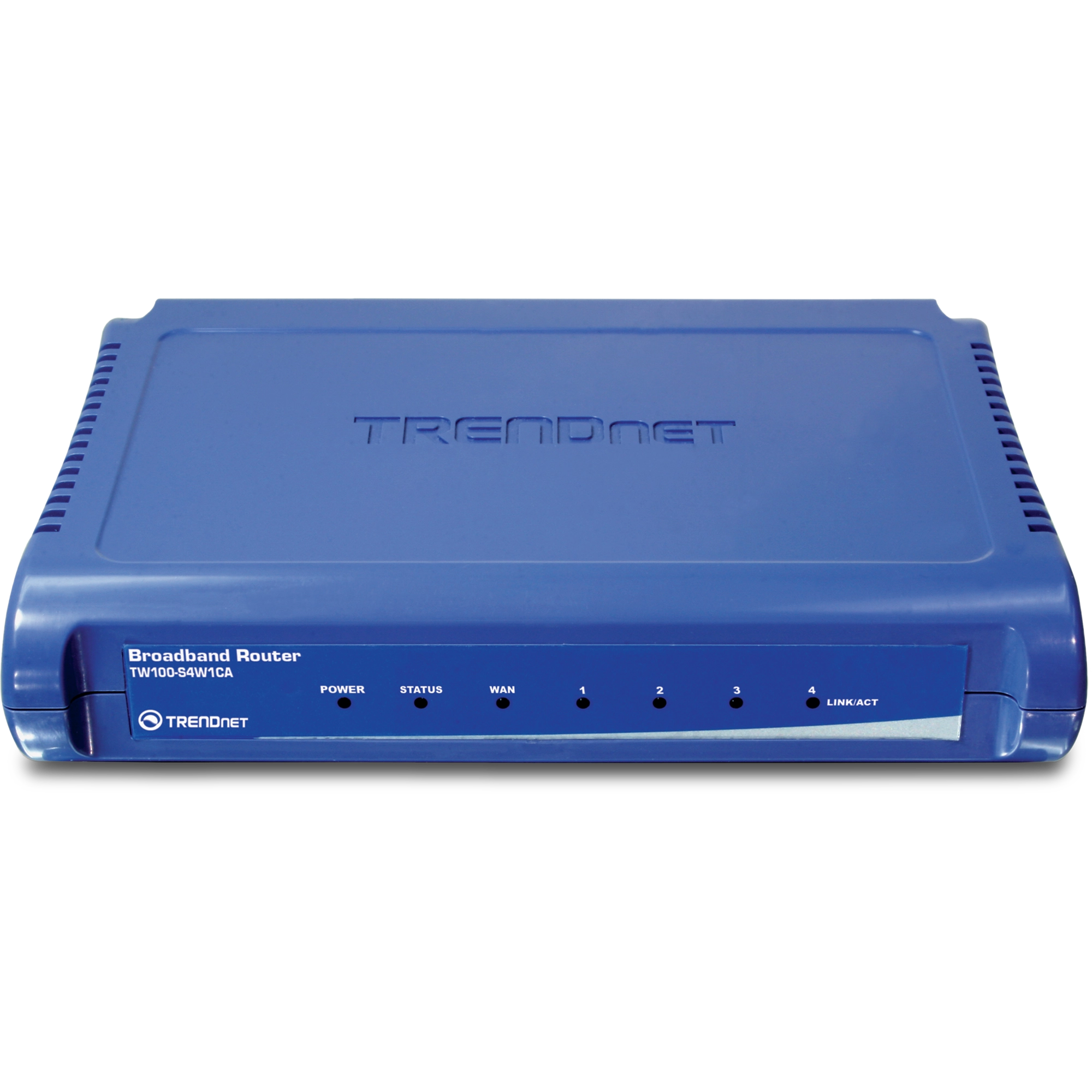

4-Port Broadband Router

TW100-S4W1CA   (Version G1.0R)

   Select Another Version
  • Enjoy Fast Ethernet networking speeds
  • Instantly recognizes other devices with Universal Plug and Play
  • Advanced firewall protection
  • Secure remote management

DISCONTINUED PRODUCT

The TW100-S4W1CA (Version G1.0R) has been discontinued. It has been replaced by the TW100-S4W1CA (Version v2.1R). For a list of discontinued products, click here.

Firmware

firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless
Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada.

Firmware Version: 1.00b12
Release Date: Jan 2008
Nome do arquivo: TW100-SW1CA_v1_00B12.zip
SHA-1 Checksum: 98C6815E39533E0091A1FAF0B119A8E1346FF9CB
Data: 7/28/2017
Tamanho de arquivo: 417.06 KB
Download
firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless
Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada.

Firmware Version: 1.00b7
Release Date: Oct 2006
Nome do arquivo: Firmware_TW100-S4W1CA_G(1.00b7).zip
SHA-1 Checksum: B03688F46422FC987FC89E8DEEEDBD279A8159AF
Data: 7/28/2017
Tamanho de arquivo: 406.88 KB
Download

Ficha técnica

Datasheet (English)
Nome do arquivo: EN_Spec_TW100-S4W1CA(G1.0R).pdf
Data: 3/24/2009
Tamanho de arquivo: 268.36 KB
Download Email
Datasheet (Français)
Nome do arquivo: FR_Spec_TW100-S4W1CA(G1.0R).pdf
Data: 3/24/2009
Tamanho de arquivo: 272.93 KB
Download Email
Datasheet (Deutsch)
Nome do arquivo: GE_Spec_TW100-S4W1CA(G1.0R).pdf
Data: 3/24/2009
Tamanho de arquivo: 272.54 KB
Download Email
Datasheet (Español)
Nome do arquivo: SP_Spec_TW100-S4W1CA(G1.0R).pdf
Data: 3/24/2009
Tamanho de arquivo: 270.97 KB
Download Email
Datasheet (Pусский)
Nome do arquivo: RU_Spec_TW100-S4W1CA(G1.0R).pdf
Data: 3/24/2009
Tamanho de arquivo: 1.10 MB
Download Email
Datasheet (Italiano)
Nome do arquivo: ITA_Spec_TW100-S4W1CA(G1.0R).pdf
Data: 3/24/2009
Tamanho de arquivo: 270.96 KB
Download Email

Guia de Instalação Rápida

Guia de Instalação Rápida (English)
Nome do arquivo: EN_QIG_TW100-S4W1CA(V3).pdf
Data: 12/18/2006
Tamanho de arquivo: 738.16 KB
Download
Guia de Instalação Rápida (Français)
Nome do arquivo: FR_QIG_TW100-S4W1CA(V3).pdf
Data: 12/18/2006
Tamanho de arquivo: 740.69 KB
Download
Guia de Instalação Rápida (Deutsch)
Nome do arquivo: GE_QIG_TW100-S4W1CA(V3).pdf
Data: 12/18/2006
Tamanho de arquivo: 742.71 KB
Download
Guia de Instalação Rápida (Português)
Nome do arquivo: PO_QIG_TW100-S4W1CA(V3).pdf
Data: 8/7/2008
Tamanho de arquivo: 612.33 KB
Download
Guia de Instalação Rápida (Español)
Nome do arquivo: SP_QIG_TW100-S4W1CA(V3).pdf
Data: 12/18/2006
Tamanho de arquivo: 743.39 KB
Download
Guia de Instalação Rápida (Pусский)
Nome do arquivo: RU_QIG_TW100-S4W1CA(V3).pdf
Data: 12/18/2006
Tamanho de arquivo: 1.19 MB
Download
Guia de Instalação Rápida (Eesti)
Nome do arquivo: EST_QIG_TW100-S4W1CA(V3).pdf
Data: 10/19/2007
Tamanho de arquivo: 1,001.15 KB
Download
Guia de Instalação Rápida (Român)
Nome do arquivo: RO_QIG_TW100-S4W1CA(G1).pdf
Data: 10/3/2007
Tamanho de arquivo: 1,020.01 KB
Download

Guia do Usuário

Guia do Usuário (English)
Nome do arquivo: UG_TW100-S4W1CA(G1.0R).pdf
Data: 1/5/2007
Tamanho de arquivo: 999.92 KB
Download

Imagem(ns) do Produto

JPEG Image
Tamanho de arquivo: : 387.84 KB
Data: : 12/18/2006
Download
JPEG Image
Tamanho de arquivo: : 283.33 KB
Data: : 12/18/2006
Download
JPEG Image
Tamanho de arquivo: : 282.10 KB
Data: : 12/18/2006
Download
TIFF Image
Tamanho de arquivo: : 2.61 MB
Data: : 12/18/2006
Download
TIFF Image
Tamanho de arquivo: : 2.49 MB
Data: : 12/18/2006
Download
TIFF Image
Tamanho de arquivo: : 2.61 MB
Data: : 12/18/2006
Download
ROHS compliant WEEE crossed-out bin symbol.
How do put my computer in the DMZ on my TW100-S4W1CA?
Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and leave the password blank, click LOGIN then click on Advanced Setup. Click on Firewall then DMZ on the left hand side of th...
How do I forward ports in my TW100-S4W1CA
Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and leave the password blank, click LOGIN then click on Advanced Setup. Next, click on NAT then Virtual Server. Input t...
Where can I find the MAC Address of my TW100-S4W1CA?
The MAC Address can be found on a label on the bottom of the router.  You can alternately find it by doing the following: Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and ...
How do I configure the TW100-S4W1CA?
Click Start then click on the Control Panel. For Windows 2000 click on Start, highlight settings then click on the Control Panel. Double-Click on the Network Connection icon. Right-Click on the Local Area Connection icon then click on Properties.  Highlight the Internet Protocol (TCP/IP...
How do I change the IP Address of my TW100-S4W1CA?
Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and leave the password blank, click on LOGIN then click on Advanced Setup. Click on LAN and then LAN Settings on the left hand side...
What is the default username and password for the TW100-S4W1CA?
The default username & password for the TW100-S4W1CA is admin for the username and leave the password blank...
What is the default IP address of my TW100-S4W1CA?
The default IP address for the TW100-S4W1CA is 192.168.0.1.
What can I do if I forgot my password or want to reset back to factory defaults?
Locate the reset button on the back of the TW100-S4W1CA. Press and hold in the reset button for approximately 15 seconds. This will reset the unit back to its default configuration. ...
How do I change the username & password on my TW100-S4W1CA?
Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and leave the password blank, click LOGIN and click on Advanced Setup. Click on System on the left hand side. If the Cu...
How do I configure the TW100-S4W1CA for a Cable connection using a Dynamic IP Address?
Note: The default setting of the router is configured for a Cable connection using a Dynamic IP Address. Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and leave the password b...
How do I configure the TW100-S4W1CA for a DSL, PPPoE connection?
Open your web browser and type the IP address of the TW100-S4W1CA in the address bar. The default IP address is 192.168.0.1. At the LOGIN, input admin for the username and leave the password blank, click LOGIN and click on Advanced Setup. Next, click on WAN, PPPoE. Now input your Username and ...
I set up my Internet Connection Type and saved it, but I still cannot access the Internet with my PC. What should I do?
Turn off your Cable/DSL modem, Router, PC. Then, turn on the Cable/DSL modem and wait for 60 seconds. Next, turn on the router, wait 60 seconds, and turn on your PC. This simple power cycle normally helps the router connect to your Internet connection. Then, try accessing a website such as https://w...
I don't know what my Internet Connection Type I have. How do I find out?
You can simply contact your Internet Service Provider's (ISP) Customer Service or Technical Support Department for the correct information. ...
When I attempt to access http://192.168.1.1 in my web browser, an error message tells me "The page cannot be displayed." How can I get into the TW100-S4W1CA web configuration page?
Verify your hardware and TCP/IP settings again by reviewing the instructions in sections 1-3. Also, make sure the Power, WAN, and on the LAN lights on the Router's front panel are on. Then, try accessing https://192.168.1.1 again using your web browser....
Hardware

Padrões

IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet

Protocolos

TCP/IP, NAT, PPPoE, UPnP, HTTP, DHCP Servidor/Cliente, SNTP

WAN

1 porta 10/100 Mbps Port (Internet)

LAN

4 portas 10/100 Mbps Auto-MDIX

Cabeamento

  • Ethernet: Cat. 3, 4, 5, UTP EIA/ITA-568 100 Ohms, 100 metros máx
  • Fast Ethernet: Cat. 5, UTP EIA/TIA-568 100 Ohms, 100 metros máx

Taxa de Transferência de Dados

  • Ethernet : 10 Mbps/20 Mbps (Half-Duplex/Full-Duplex)
  • Fast Ethernet: 100 Mbps/200 Mbps (Half-Duplex/Full-Duplex)

LEDs Indicadores

Power, WAN, Link/Act, portas LAN

Dimensões

154 x 110 x 33 mm

Peso

225 g

Temperatura

0° a 55°C

Umidade

95% (sem condensação)

Adaptador de Tensão

5 VDC, 800 mA

Certificados

FCC & CE
Roteador
Tipo de Conexão IP Dinâmico, IP Fixo, PPPoE ou PPTP
FirewallNAT, Filtro de Endereço MAC/IP, Bloqueio a URL/Domínio, Agendamento, UPnP
VPNIPSec, PPTP pass-through
GerenciamentoConfiguração por Web Browser e Gerenciamento Remoto


CONTEÚDO DA EMBALAGEM
  • TW100-S4W1CA
  • Guia de Instalação Rápida Multi-Línguas
  • CD-ROM com Guia do usuário
  • Cabo RJ-45 (1.5 m)
  • Adaptador de Tensão

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
