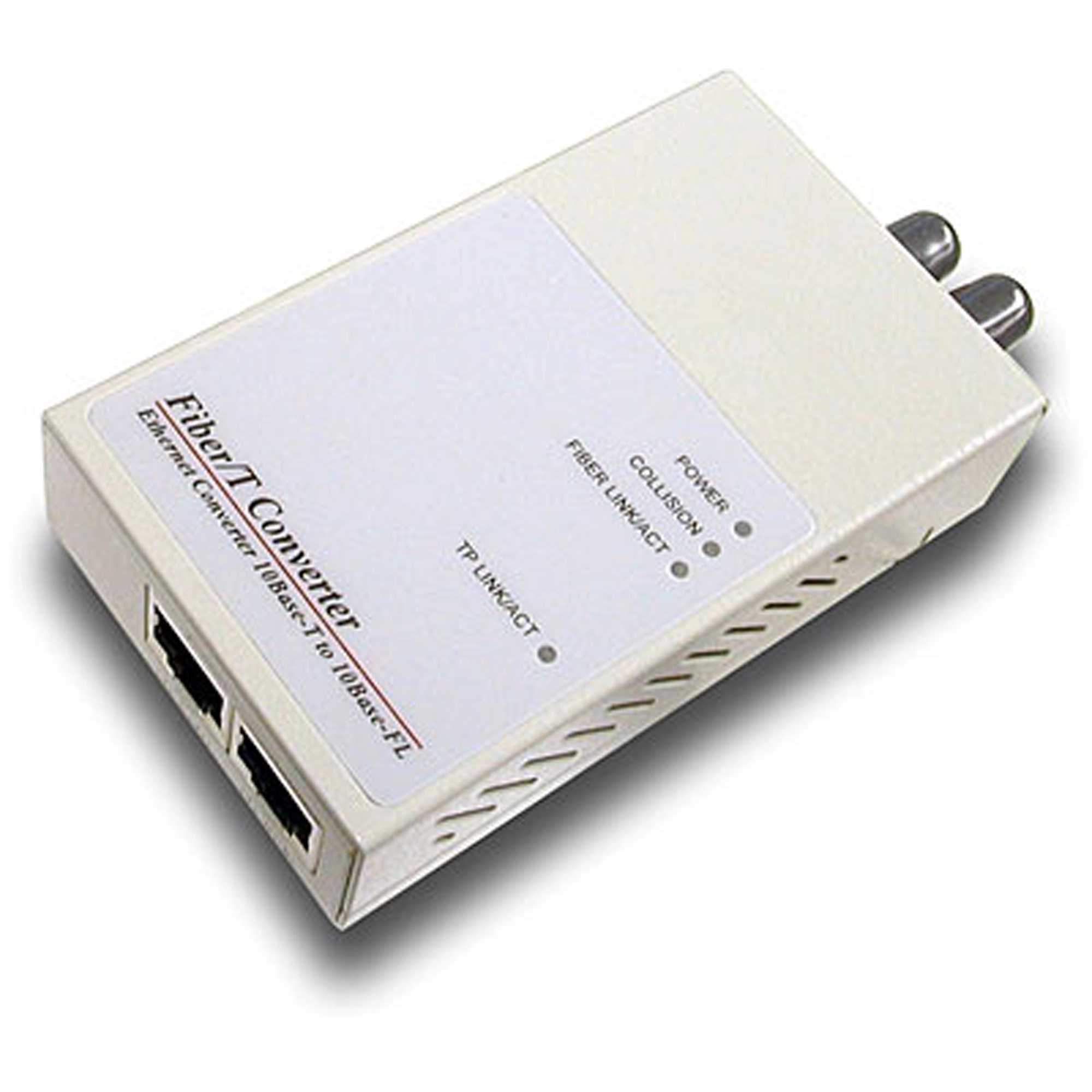

UTP to ST Transceiver for Fiber Optic Cable

TE-TFT   (Version 1.0)

  • This Ethernet transceiver is used for fiber optic cables
  • Fiber segment supports up to 2Km
  • Built-In standard ST connectors and can use multiple fiber size 50/125, 62/125, and 100/140mm
  • 5 Year Warranty

DISCONTINUED PRODUCT

The TE-TFT (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE-TFT.pdf
Data: 5/13/2013
Tamanho de arquivo: 118.31 KB
Download Email
Hardware
Standards:
  • IEEE802.3 10BaseT, 10BaseFL
Protocol:
  • CSMA/CD
Interface:
  • RJ-45: UTP 100 Ohm Cat.3, 4, 5
  • ST: 50/125m , 62.5/125m , 100/140m micro multi-mode fiber
LED Indicators:
  • Power, collision, jabber, FL Link/Act, TP Link/Act
Maximum Segment Length:
  • Twisted Pair: 100M
  • 10BaseFL 2000M
Temperature:
  • 0° C ~ 70° C (standard operation)
Humidity:
  • 10% to 90% (Non condensing)
External Power Supply:
  • Input rate 100V/220V AC, 50~60Hz
  • Output rate: 5V DC
Certifications:
  • FCC Class A, CE; UL, TUV

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
