Servidor Impressão 2 portas USB e 1 porta Paralela
TE100-P2U1P (Version 1.0)
- Enjoy this fast Ethernet print server that transforms virtually all stand-alone USB or parallel printer into a shared network printer
- Network professionals can easily manage the print server using a Web browser or Windows based setup wizard
- 5-year warranty and firmware upgrades provide user peace of mind
DISCONTINUED PRODUCT
The TE100-P2U1P (Version 1.0) has been discontinued. For a list of discontinued products, click here.Utility
Firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Date: 7-12-2005
Nome do arquivo:
Firmware _TE100P2U1P_6.10.17W Build0082.zip
Description:
MPS17TRE.BIN (5-3-2004) TE100-P2U1P Firmware 6.10.17 7-12-2005
Release Note:
Update from 6.9.17
1. Added "SMB over TCP/IP" support.
Firmware Upgrade Instruction:
1. Save the new firmware file on to hard disk.
2. Open web browser and go to print server's IP address.
3. From the web config page, click on "MISC", click on "upgrade from browser", click on "browse" to locatethe new firmware file, and then click on "upgrade".
Nome do arquivo: Firmware_TE100P2U1P_6.10.17W_Build0082.zip
SHA-1 Checksum: 2118D915FC824950F08CDC2D83E7C1BF9C79E8E8
Data: 7/25/2017
Tamanho de arquivo: 248.35 KB
Ficha técnica
Nome do arquivo: Spec_TE100-P2U1P(English).pdf
Data: 1/3/2005
Tamanho de arquivo: 173.84 KB
Nome do arquivo: Spec_TE100-P2U1P(French).pdf
Data: 1/17/2005
Tamanho de arquivo: 303.48 KB
Nome do arquivo: Spec_TE100-P2U1P(German).pdf
Data: 2/7/2005
Tamanho de arquivo: 197.75 KB
Nome do arquivo: Spec_TE100-P2U1P(Portuguese).pdf
Data: 2/25/2005
Tamanho de arquivo: 196.14 KB
Nome do arquivo: Spec_TE100-P2U1P(Spanish).pdf
Data: 2/18/2005
Tamanho de arquivo: 196.68 KB
Guia de Instalação Rápida
Nome do arquivo: QIG_TE100-P2U1P.pdf
Data: 5/2/2013
Tamanho de arquivo: 1.66 MB
Guia do Usuário
Frequently Asked Questions (FAQ)

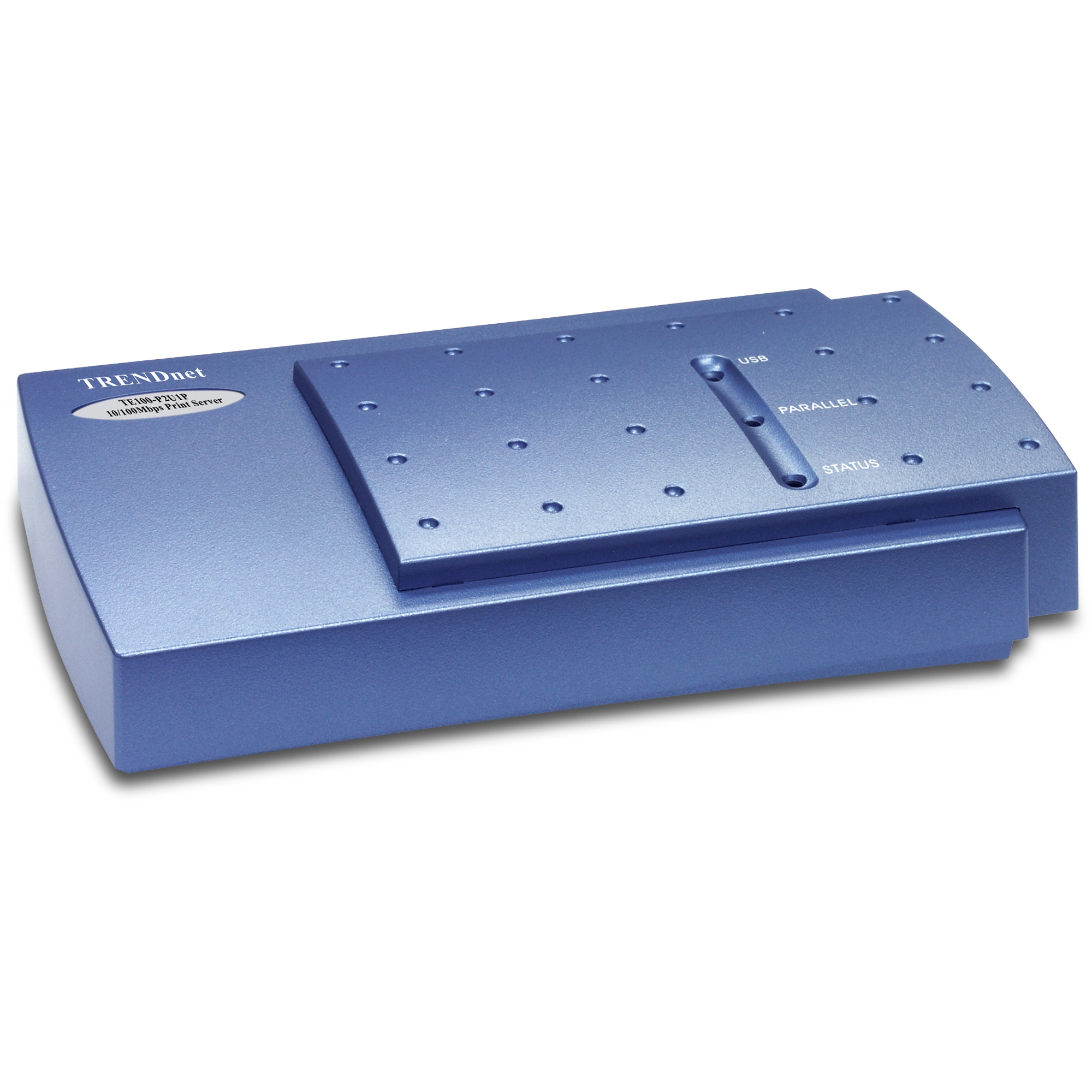

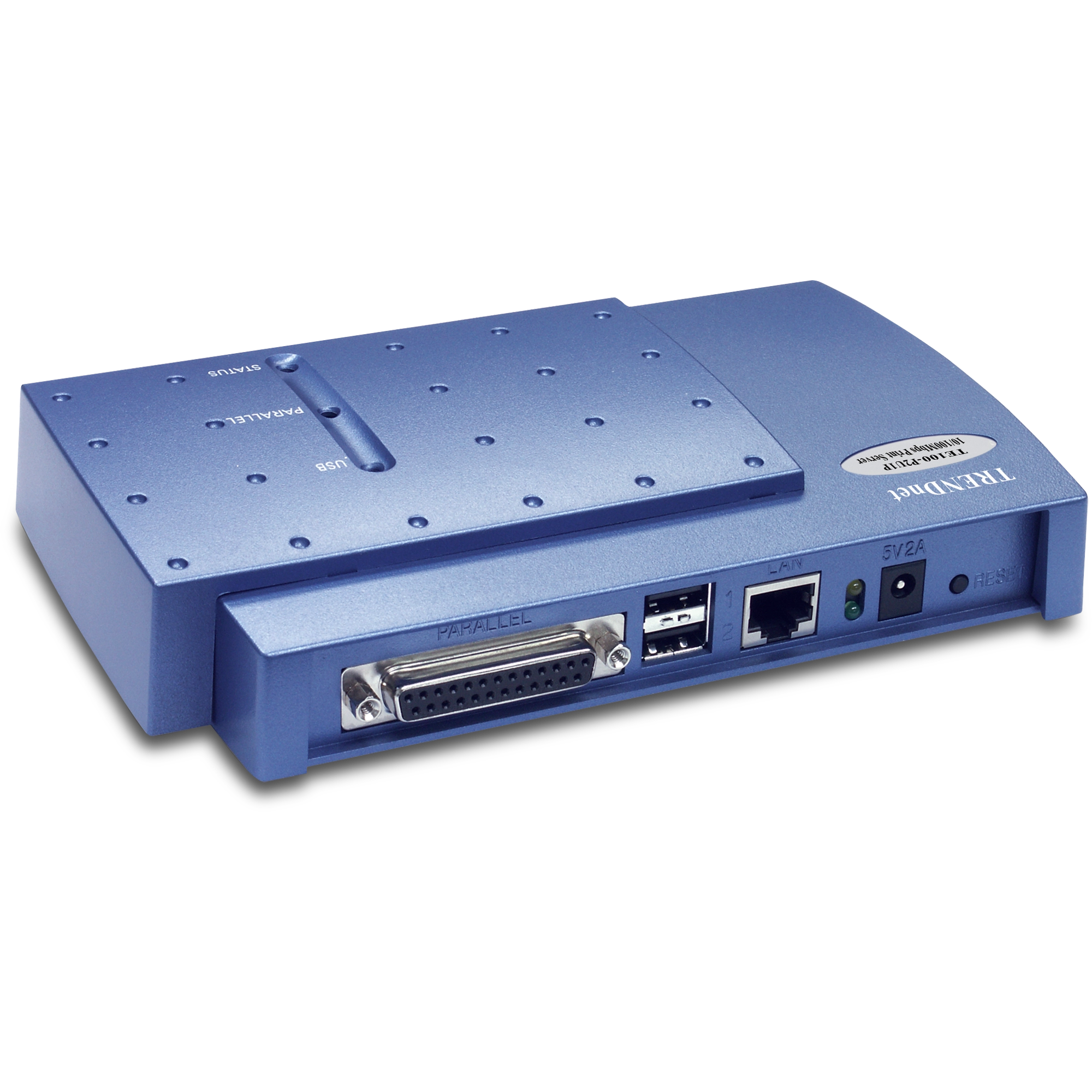

Imagem(ns) do Produto
Toner status, paper level, etc., will not be communicated back to the PC. In order to get printer status information, the proprietary printer driver has embedded code that needs to be passed on to the print server, decoded, then interpreted by the print server. TRENDnet print servers do not support ...
For the TEW-P1P/U the port name is lp1. For the P2U1P the port names are lp1 for the parallel, lp2 for the top USB and lp3 for the bottom USB. They are case sensitive....
Yes, but you must assign the print server an IP address from a Windows based operating system first. Once that is done you can use LPR or LPD printing for the Macs and you can manage the print server by entering its IP address into a web browser. Also the printer must be a postscript printer....
Step 1 Go to Start>Settings>Printers>Add New Printer (WinXP - Start>Printers
and Faxes>Add a Printer).
Step 2 Select Local Printer. Make sure to uncheck Automatically
detect and install my plug and play printer. Click Next.
Step 3 Select Create a New Port and select Standard
TCP/IP po...
In Windows 98/Me you will need to install the LPR client.
For Windows 98/ME you will also need to know the port name that you are printing
to (For the TEW-P1P/U the port name is lp1. For the P2U1P the port names are
lp1 for the parallel, lp2 for the top usb and lp3 for the bottom usb.
Inst...
Step 1 Open up the PS Admin utility. Highlight your Print server and click on
Properties.
Step 2 Click on TCP/IP tab.
...
If you are using Windows XP you will have to disable the built in firewall. But for all operating systems you have to disable any other form of firewall software such as Norton Internet Security, Black Ice, and Zonealarm....
| Padrões LAN: |
|
|---|---|
| Porta LAN: |
|
| Interface Impressora: |
|
| Cabos de rede: |
|
| Protocolos Suportados: |
|
| LEDs Indicadores: |
|
| Potência: |
|
| Dimensões (W x Lx H): |
|
| Peso: |
|
| Temperatura: |
|
| Umidade: |
|
| Certificados: |
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
