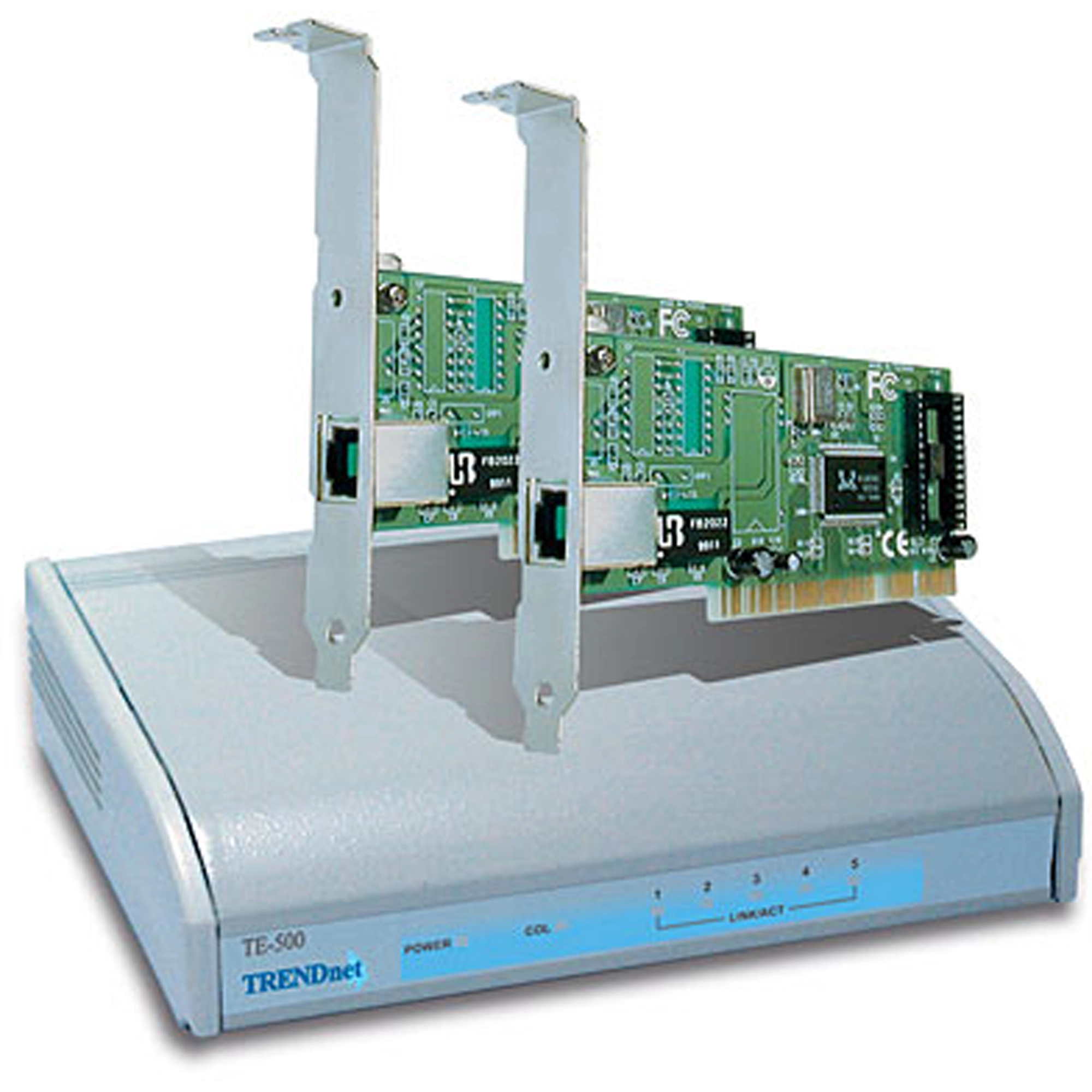

5-Port 10Base-T Hub Ethernet Starter Kit

TE-SK1   (Version 1.0)

  • This 5 port Ethernet starter kit is a total solution connecting two personal computers to enable them to share files, printers, fax servers, and/or email
  • Add a server, internet station, network printer or a third PC without changing the hub
  • Enjoy a 5 year warranty

DISCONTINUED PRODUCT

The TE-SK1 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE-SK1.pdf
Data: 5/13/2013
Tamanho de arquivo: 193.02 KB
Download Email
TE-500- Hardware
DC Input:
  • 5-16 VDC
Power Consumption:
  • 2W Max.
Cabling:
  • EIA Category 3,4 and 5 STP/UTP
Uplink Port:
  • Shared Port #5 (slide switch)
Dimensions:
  • 102 x 81 x 25mm (LxWxH)
Weight:
  • 114 grams (excluding power adapter)
Operating Temperature:
  • 0° - 55° C
Certification:
  • FCC, UL, , C-tick, CE
TE-PCIWT- Hardware
Standards:
  • IEEE 802.3 10Base-2 and 10Base-T
Data Transfer Rate:
  • 10Mbps (Half Duplex) / 20Mbps (Full Duplex)
Topology:
  • Star or Bus (Dependent on media type)
Diagnostic LED's:
  • Tx/Rx, Link, and UTP/BNC Media

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
