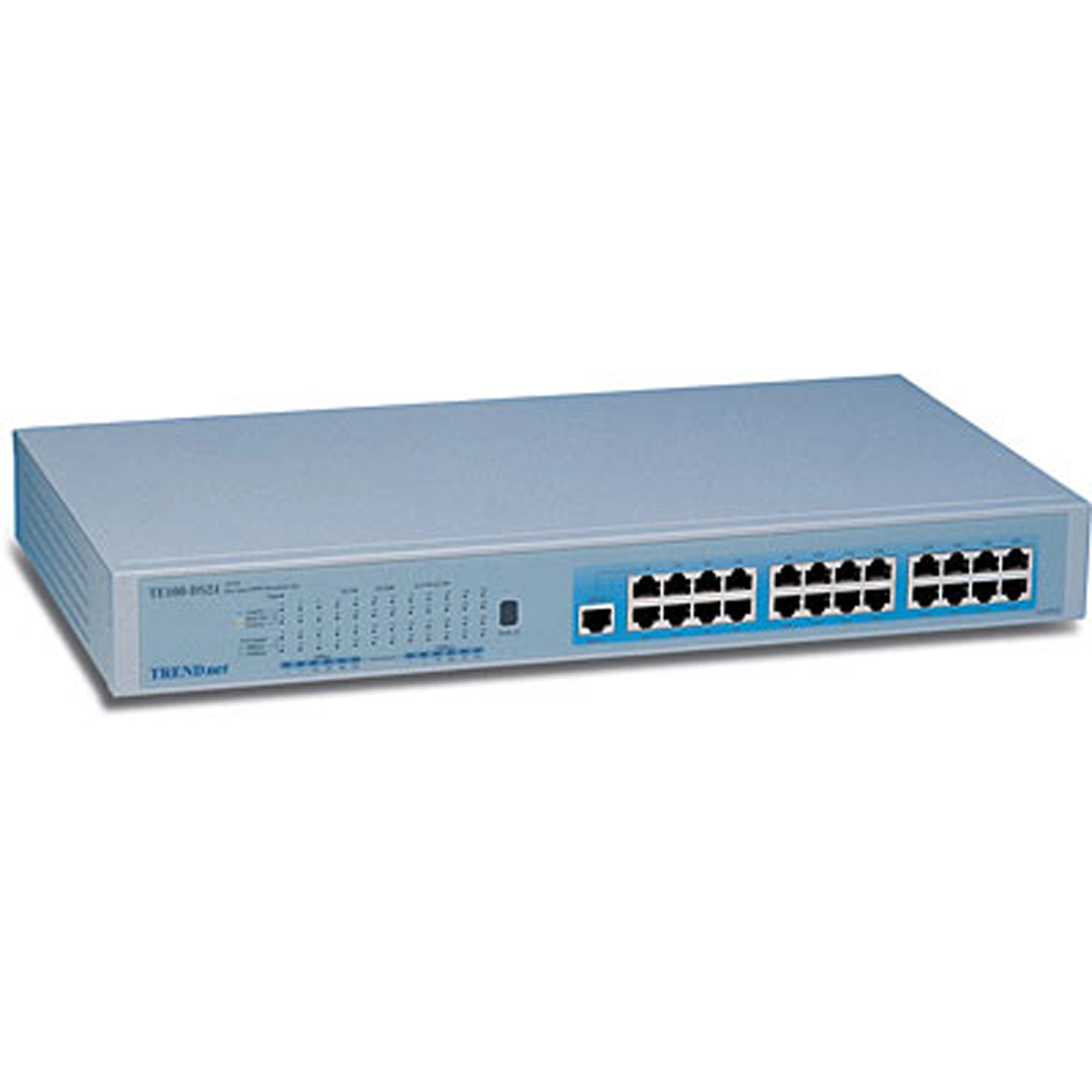

24-port 10/100Mbps Dual Speed Stackable Fast Ethernet Hub

TE100-DS24   (Version 1.0)

  • The TE100-DS24 dual speed stackable fast Ethernet hub provides a phenomenal level of flexibility and ease of use for migration to higher bandwidth network environments.
  • The optional TE100-DSM switch module can be installed in any hub in the stack, making it possible to transparently bridge between 10Mbps and 100Mbps segments.
  • In a managed hub stack, more than one TE100-DSM module can be used to provide automatic redundancy.
  • One 100Base-TX switched port module and one switched 100Base-FX port are also available for greater configuration flexibility.

DISCONTINUED PRODUCT

The TE100-DS24 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-DS24.pdf
Data: 5/2/2013
Tamanho de arquivo: 217.17 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-DMS24.pdf
Data: 8/19/2004
Tamanho de arquivo: 533.99 KB
Download
Hardware
Standards:
  • IEEE 802.3µ 100Base-TX/100Base-FX, and IEEE 802.3 10Base-T
Protocol:
  • CSMA/CD
Speed:
  • 10Mbps for 10Base-T/100Mbps for 100Base-TX
Cabling:
  • CAT 3, 4, 5 UTP/STP for 10Base-T
  • CAT 5 UTP/STP for 100Base-FX 62.5/125 micron multi mode SC fiber (2km)
Daisy-Chain Port:
  • SCSI 50 pin x 2
LED's:
  • Per Hub: Power, Collision (10, 100) Slot 1 or 2, Hub ID, Bandwidth Utilization %
  • Per Port: Link/Rx, Auto Partition, Disable, Port Speed (10Mbps, 100Mbps)
Power:
  • Internal Power Supply, (100 - 240V, 50/60Hz)
Dimensions:
  • 441 x 237 x 55 mm / 17.36" x 9.33" x 2.17" (L x W x H)
Weight:
  • 3.87 kg / 8.53 lb.
Temperature:
  • Operating: -10° to 55° C / 14° to 131° F
  • Storage: -25° to 80° C / -13° to 176° F
Humidity:
  • 5% to 95% (non-condensing)
Certification:
  • FCC, UL, VCCI, CSA, C-tick, TUV, CE

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
