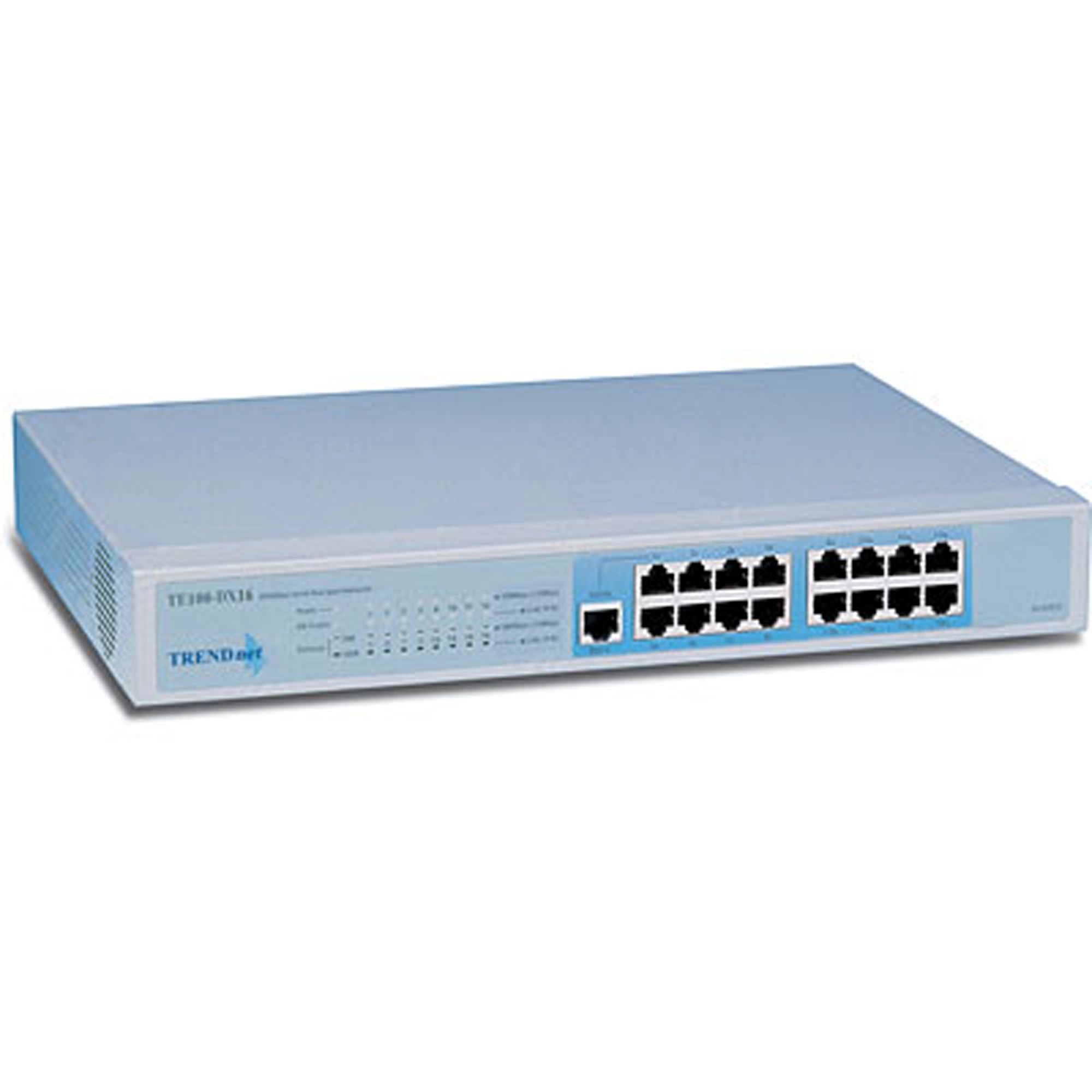

16-port 10/100Mbps Dual Speed Switching Hub

TE100-DX16   (Version 1.0)

  • Plug and Play installation with automatic port configuration
  • Supports sixteen 10/100Mbps auto-sensing and auto-negotiation ports
  • Provides 10Mbps, 100Mbps hub and 10/100 switch functionality in one unit
  • Scalable expansion of up to two stacks using the TE100-DX8 or TE100-DX16

DISCONTINUED PRODUCT

The TE100-DX16 (Version 1.0) has been discontinued. For a list of discontinued products, click here.
Hardware
Standard:
  • IEEE 802.3µ, 100Base-TX, and IEEE 802.3 10Base-T
Protocol:
  • CSMA/CD
Cabling:
  • CAT 3, 4, 5 UTP/STP for 10Base-T/CAT 5 for 100Base-TX
LED's:
  • Per Hub: Power, Collision (10, 100) SLOT, Hub ID, Bandwidth Utilization %
  • Per Port: Link/Rx, Auto Partition, Disable, Port Speed (10, 100)
Power:
  • Internal Power Supply, (100 - 240V, 50/60Hz)
Dimensions:
  • 324 x 231 x 55 mm / 12.75" x 9.09" x 2.16" (L x W x H)
Weight:
  • 2.5 Kg / 5.5 lb.
Temperature:
  • Operating: -10° to 55° C / 14° to 131° F
  • Storage: -25° to 80° C / -13° to 176° F
Humidity:
  • 10% to 90% (non-condensing)
Certification:
  • FCC, UL, VCCI, CSA, C-tick, TUV, CE

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
