Câmera Internet Wireless N SecurView
TV-IP110WN (Version v1.0R)
- Cobertura até 4 vezes maior se comparada com Câmeras Internet Wireless G
- Veja, grave, e gerencie recursos avançados de qualquer lugar com conexão na internet
- Programe gravação por detecção de movimentos,receba alertas de e-mail e muito mais com software complementar
- Com apenas um toque você habilita sua proteção (WPS)protegendo sua conexão wireless
DISCONTINUED PRODUCT
The TV-IP110WN (Version v1.0R) has been discontinued. It has been replaced by the TV-IP324PI (Version v1.0R). For a list of discontinued products, click here.Utility
Nome do arquivo: Utility_IPSetup(v1.0.0.9).zip
SHA-1 Checksum: DF2576962235590F425CAB35246A68886DD0C6C9
Data: 7/25/2017
Tamanho de arquivo: 700.14 KB
Nome do arquivo: SecurViewPro(v2.0.0.0)_08292011.zip
SHA-1 Checksum: 73065E14971D00A27ACF41BFA88C643EA081CFBE
Data: 7/25/2017
Tamanho de arquivo: 76.79 MB
Firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Release Date: 4/2013
Notes:
- Upload.asp removed.
- Updated save configuration file encryption type.
Notes:
Nome do arquivo: FW_TV-IP110WN_V1(1.1.1.24).zip
SHA-1 Checksum: 62C85046B2CE305C9CCA09F883969932774B6E34
Data: 7/25/2017
Tamanho de arquivo: 3.36 MB
Software
Version: 2.1.1.294
Release Date: 6/2012
Notes:
- Enhanced Functionality
Download TRENDnetView Pro Guia do Usuário
Nome do arquivo: SecurViewPro(2.1.1.294).zip
SHA-1 Checksum: 37413E7BE0E60F3F91AC8EF11F282FCCF621C2B0
Data: 7/25/2017
Tamanho de arquivo: 27.81 MB
Ficha técnica
Nome do arquivo: EN_spec_TV-IP110WN(v1.0R).pdf
Data: 3/31/2011
Tamanho de arquivo: 4.63 MB
Nome do arquivo: FR_spec_TV-IP110WN(v1.0R).pdf
Data: 3/31/2011
Tamanho de arquivo: 4.64 MB
Nome do arquivo: GE_spec_TV-IP110WN(v1.0R).pdf
Data: 3/31/2011
Tamanho de arquivo: 5.28 MB
Nome do arquivo: PO_spec_TV-IP110WN(v1.0R).pdf
Data: 10/5/2011
Tamanho de arquivo: 600.61 KB
Nome do arquivo: SP_spec_TV-IP110WN(v1.0R).pdf
Data: 3/31/2011
Tamanho de arquivo: 4.67 MB
Nome do arquivo: RU_spec_TV-IP110WN(v1.0R).pdf
Data: 3/31/2011
Tamanho de arquivo: 5.56 MB
Nome do arquivo: IT_spec_TV-IP110WN(v1.0R).pdf
Data: 3/31/2011
Tamanho de arquivo: 4.67 MB
Guia de Instalação Rápida
Nome do arquivo: EN_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 3.43 MB
Nome do arquivo: FR_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 3.47 MB
Nome do arquivo: GE_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 2.89 MB
Nome do arquivo: PO_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 2.71 MB
Nome do arquivo: SP_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 2.87 MB
Nome do arquivo: RU_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 3.85 MB
Nome do arquivo: EST_Web_TV-IP110WN(2.01).pdf
Data: 7/26/2011
Tamanho de arquivo: 2.50 MB
Guia do Usuário
Nome do arquivo: UG_SecurViewPro.pdf
Data: 6/5/2012
Tamanho de arquivo: 4.66 MB
Nome do arquivo: UG_TV-IP110WN(v1.02).pdf
Data: 5/9/2011
Tamanho de arquivo: 5.30 MB

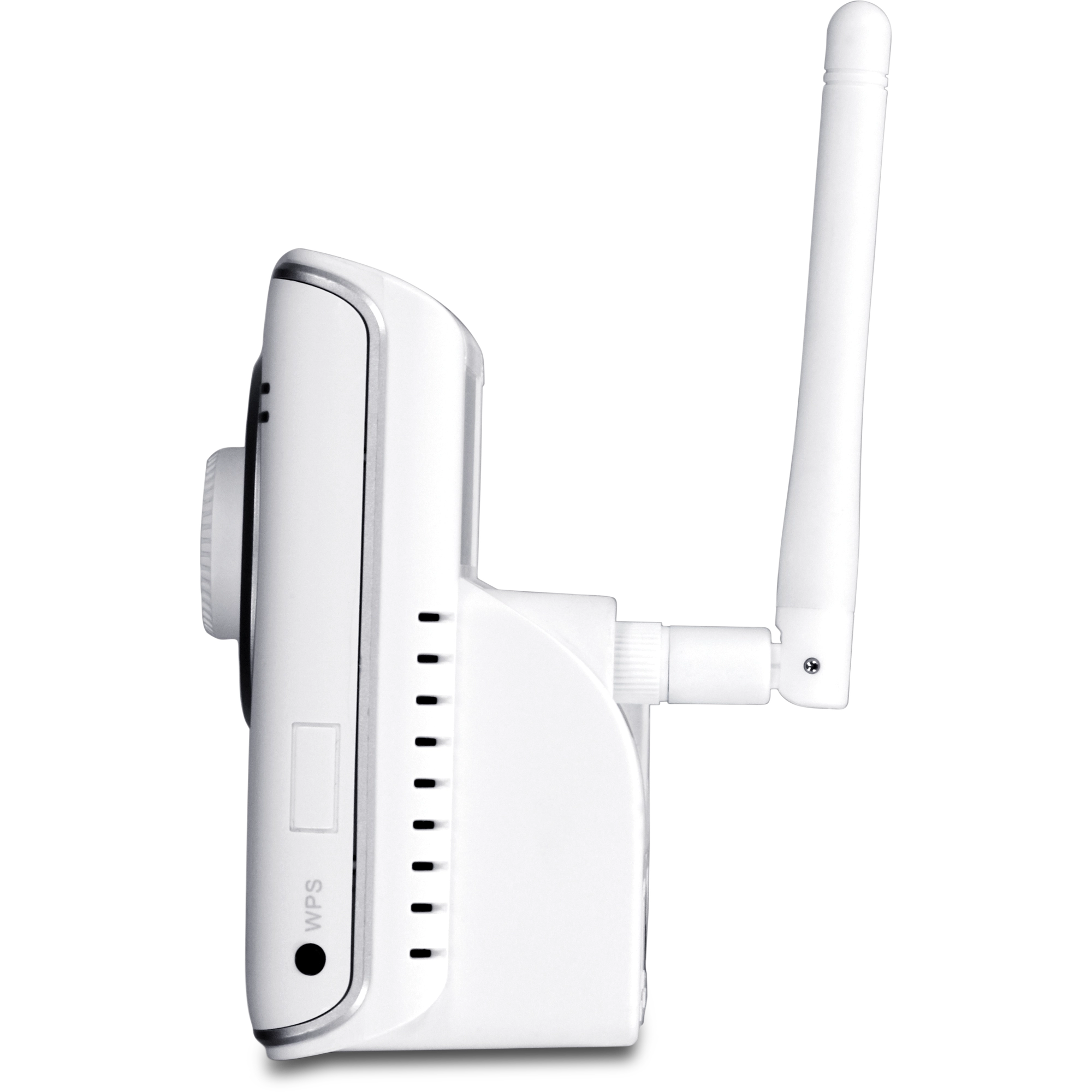

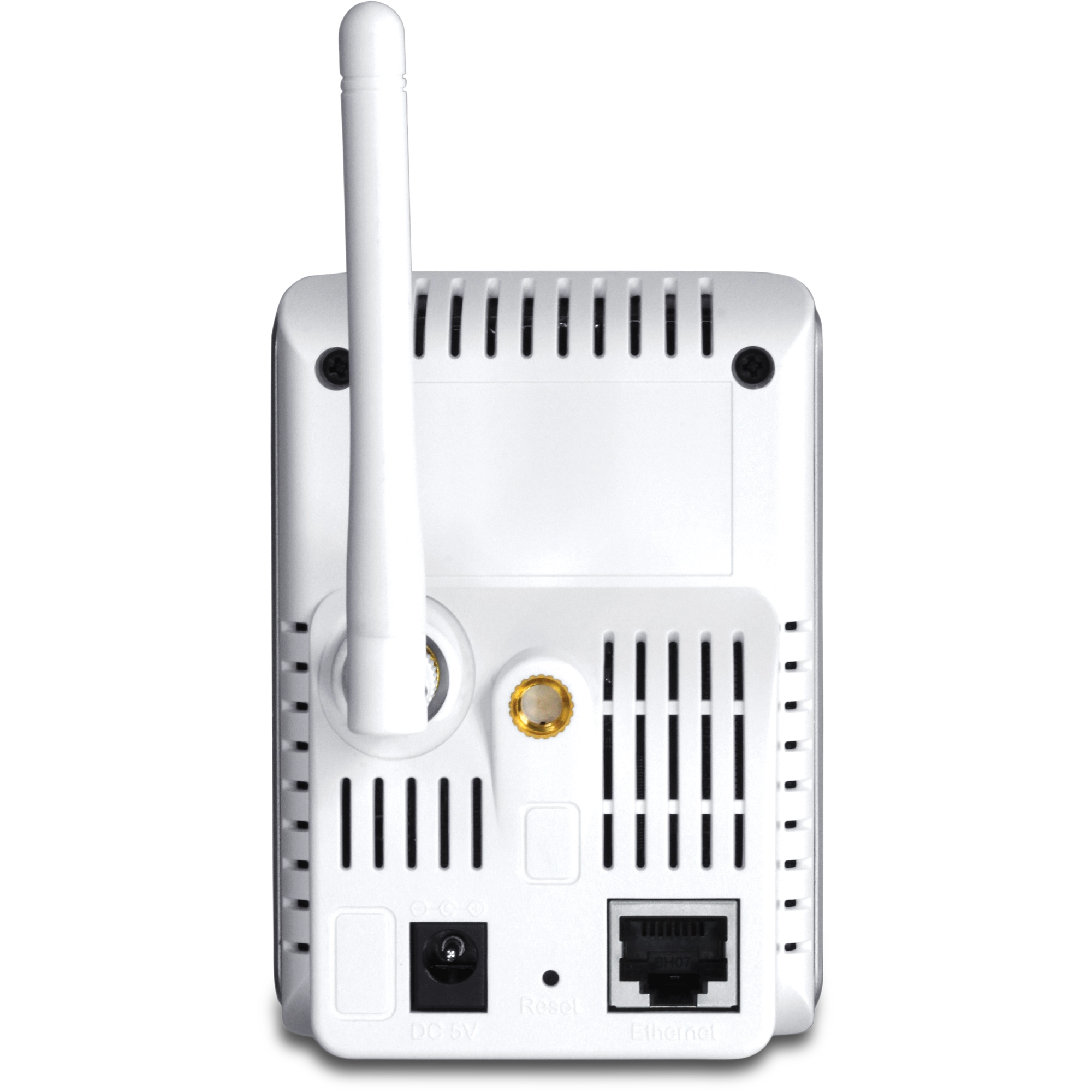

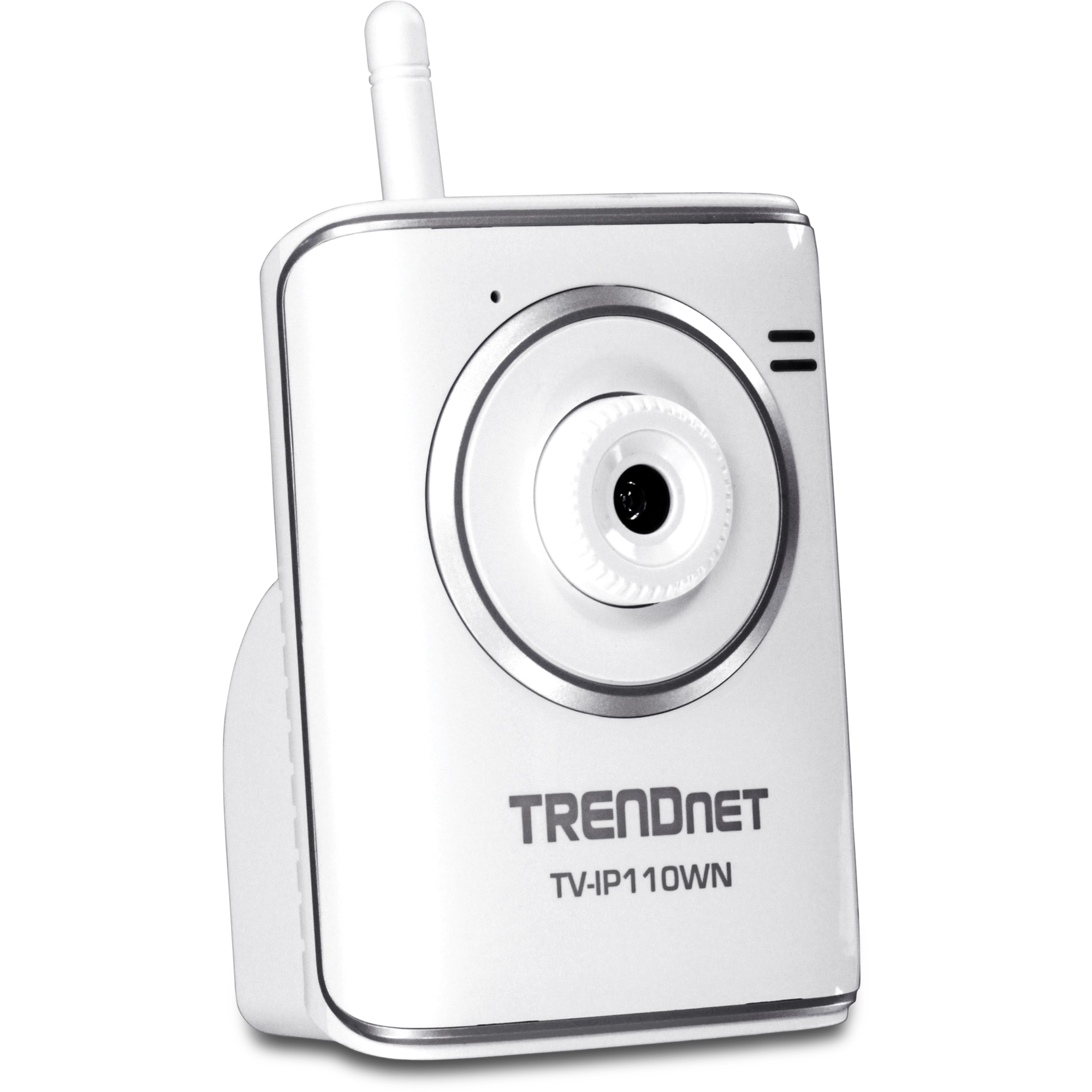

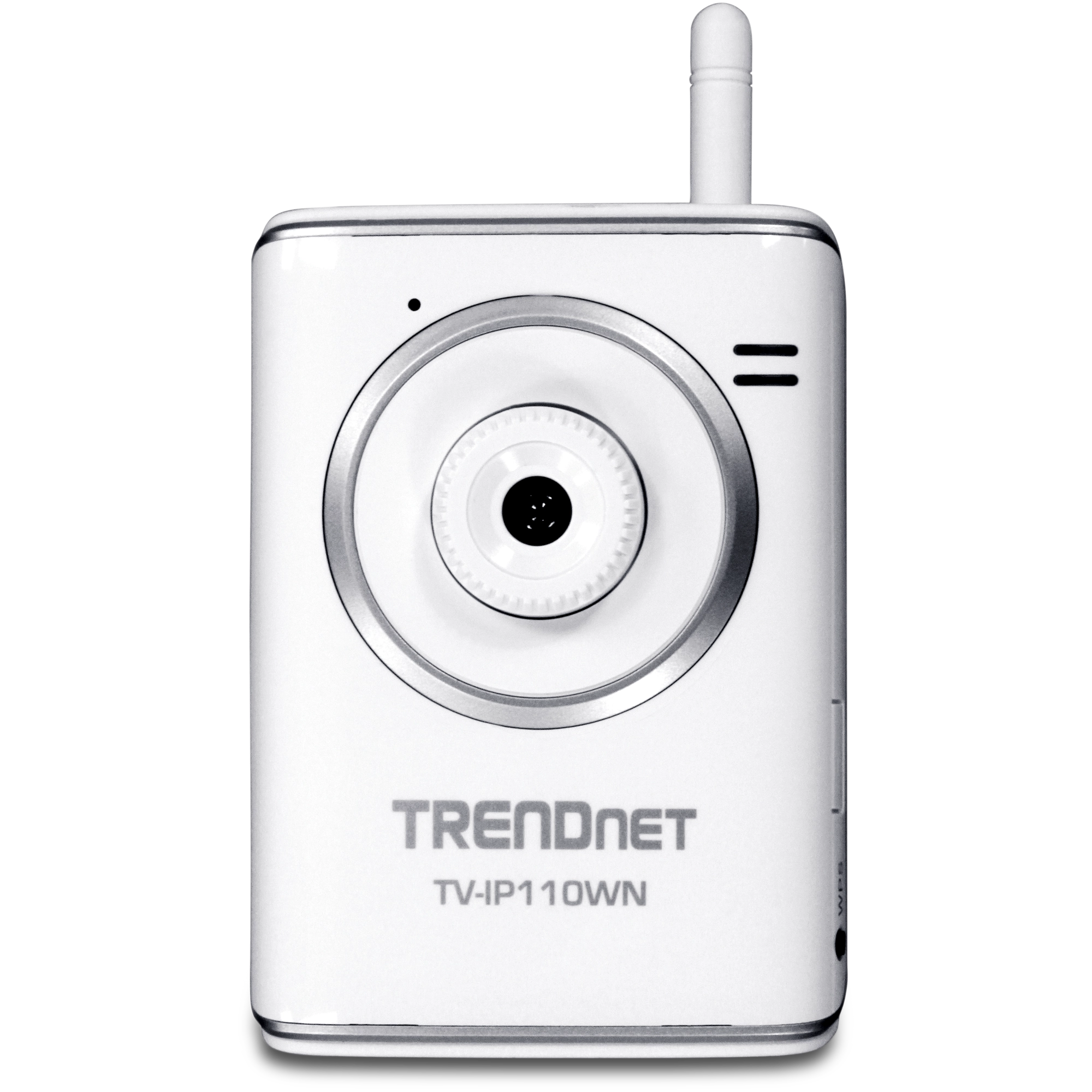

Imagem(ns) do Produto
OverviewPlease ensure you have followed the quick installation guide and have the camera setup and accessible on your home/office network. The following instructions are going to outline how to make a SecurView camera accessible over the Internet. We will start by assigning a unique static IP addres...
The camera must be configured properly to have Internet access. This includes making sure you have entered a valid default gateway address for the camera and valid DNS server entries to ensure it can resolve names.
Unfortunately the camera does not support SSL. If the email provider requires S...
Unfortunately the cameras from different families do not share a common, free, application and cannot be used together. SecurView cameras will not function in IPView Pro and vice versa....
By default the camera uses TCP port 80. Forward this port in your router or firewall to the camera.
Unfortunately SecurView is not compatible with Macintosh operating systems.
The camera can be configured from a Macintosh through its web-based configuration page. The camera's web configuration page can be reached by entering its IP address into a web browser. For example, if the IP address is 192.168.10.30 you would access it by opening your web browser and entering htt...
The camera's web configuration page can be reached by entering its IP address into a web browser. For example, if the IP address is 192.168.10.30 you would access it by opening Internet Explorer and entering https://192.168.10.30 into the address line....
The camera by default is configured to receive an IP address via DHCP. If it is unable to receive an IP address via DHCP it will default to 192.168.10.30. You can use the IP Setup Utility to find and change the IP address of the camera as well. Click Start and go to All Programs under TRENDnet to fi...
Log in to the camera and click on Setup. Click on Motion Detect on the left hand side. On this page you can setup two motion detection windows. Under "Window" you can select either 1 or 2. Place a check in "Enable" to turn on motion detection. You can adjust the threshold for each window individuall...
Warning:
Firmware upgrade failure may permanently damage the unit and cause it to malfunction. Do not interrupt the firmware upgrade process by disconnecting it from the network or unplugging its power from the power outlet once the firmware upgrade process has begun. Never perform a firmware upgr...
Log in to the camera and click on Setup then click on Event Server>Email on the left hand side. Enter your email server and user information here.
After applying the email server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uplo...
Log in to the camera and click on Setup then click on Event Server>FTP on the left hand side. Enter your FTP server information here.
After applying the FTP server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uploading and GPIO...
After you have the camera configured on your network start SecurView. Click on the "Settings" button then click on the "Add Camera" button. It will search your network for any supported cameras and display a list of them. Highlight the camera you want to view in SecurView then click "Add Camera".
...
The supported browsers are Internet Explorer 6.0 or above.
Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Press and hold in the reset button on the back of the camera for approximately 10 seconds while the power is on to restore the factory default settings. ...
The top LED is a power light. It should be a steady orange light when power is applied to the camera. The bottom LED is a link light. It should be green and blinking when sending and receiving data. ...
Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both "admin".
After you have logged into the camera do the following.
-Click Setup
-Click Basic>User
You can define the Admin...
Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both "admin".
After you have logged into the camera do the following.
-Click Setup.
-Click Network>Wireless.
-Click the...
Yes, the camera does support DDNS (Dynamic DNS). Dynamic DNS services will allow you to maintain a single hostname for the camera, even if your ISP changes your WAN IP address. The camera will update the DDNS record to reflect the new IP address. This ensures that each time you go to the hostname yo...
You will need to forward the port that the camera is using in the router to the camera. By default this is TCP port 80. From a remote location you would enter in the public or WAN IP address of your router into your browser or add it to SecurView using the public IP address.
Refer to your router'...
| Câmera | |
| Geral |
|
| Imagem e Vídeo |
|
| Hardware | |
| Rede | IEEE 802.3u 10/100 Mbps Fast Ethernet, Auto-MDIX |
| LEDs Indicadores | Ligado, Conectado |
| Botão de Reset | Restaura padrão de fábrica |
| Consumo de Energia | 6 Watt |
| Alimentação | 5 V, 2.5 A adaptador de tensão externo |
| Dimensão | 70 x 100 x 57mm |
| Peso |
|
| Temperatura |
|
| Umidade | Máx. 85% (sem condensação) |
| Certificações | CE, FCC |
| Requisitos | |
| Para Visualização | Internet Explorer 6.0 ou superior |
| Software SecurView Pro | Windows 7(32/64-bit), Vista(32/64-bit), XP(32/64-bit) |
| SecurView Pro |
|
| Protocolos de Rede | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE e UPnP |
| Wireless | |
| Padrão | Baseado em tecnologia IEEE 802.11n Compatível com IEEE 802.11g/b |
| Frequência | 2.4 ~ 2.4835 GHz |
| Antena | 1 x antena dipolar 2 dBi (Conector Reverso-SMA) |
| Taxa de Tranferência (auto fallback) |
|
| Segurança | 64/128-bit WEP, WPA/WPA2-PSK |
| Potência de Saída |
|
| Sensibilidade de Recepção |
|
| Canal | 1~11 (FCC), 1~13 (ETSI) |
| Gerenciamento | |
| Remoto | Suporta gerenciamento remoto |
| Backup / Restauração | Salva / Restaura arquivos de configuração |
| Configurações | |
| Imagem | Brilho, contraste, saturação, tremulação, espelho (horizontal/vertical) |
| Vídeo |
|
| Gravação | Metodos de gravação: contínuo, por horário ou por detecção de movimentos através de software |
| Configuração de Porta | Porta padrão: 80 HTTP |
| Digital Zoom | 3x |
| DNS Dinâmico | Sim |
| Hora e Data | Sincronização com servidor NTP ou configuração manual de hora e data |
| SMTP | Suporta até 2 contas de email SMTP |
| Log de sistema | 100 items Guia de Instalação |
CONTEÚDO DA EMBALAGEM |
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
