Nome do arquivo: setupwizard(1.2.3.2904).zip
SHA-1 Checksum: 111694484772DF57FE9771FA93D540C8F1BF3013
Data: 7/27/2017
Tamanho de arquivo: 1.29 MB
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Version: v 1.1.3
Date: 10/2015
Note:
- digital certificate update
Nome do arquivo: FW_TV-IP672P_672W(1.1.3).zip
SHA-1 Checksum: C00EEA09AF53360BB877DA22666A2E58BA4DADAF
Data: 7/27/2017
Tamanho de arquivo: 11.87 MB
Software Version: 2.5.9
Release Date: 4/2017
Notes:
- Fixed TV-IP420P P/T issue
Nome do arquivo: TRENDnetViewPro(2.5.9).zip
SHA-1 Checksum: 7CD1D9AE621816395E9FE9644B651F3696388215
Data: 7/27/2017
Tamanho de arquivo: 41.15 MB
Nome do arquivo: EN_spec_TV-IP672P(V1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 620.17 KB
Nome do arquivo: FR_spec_TV-IP672P(V1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 637.92 KB
Nome do arquivo: GE_spec_TV-IP672P(V1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 630.94 KB
Nome do arquivo: PO_spec_TV-IP672P(v1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 618.82 KB
Nome do arquivo: SP_spec_TV-IP672P(V1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 625.56 KB
Nome do arquivo: RU_spec_TV-IP672P(V1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 578.43 KB
Nome do arquivo: IT_spec_TV-IP672P(V1.0R).pdf
Data: 12/14/2016
Tamanho de arquivo: 628.44 KB
Nome do arquivo: EN_Web_TV_IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.05 MB
Nome do arquivo: FR_Web_TV_IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.03 MB
Nome do arquivo: GE_Web_TV_IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.05 MB
Nome do arquivo: PO_Web_TV-IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.02 MB
Nome do arquivo: SP_Web_TV_IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.05 MB
Nome do arquivo: RU_Web_TV_IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.63 MB
Nome do arquivo: EST_Web_TV_IP672P(V1.0R).pdf
Data: 5/8/2012
Tamanho de arquivo: 3.02 MB
Nome do arquivo: PL_Web_TV-IP672P(V1.0R).pdf
Data: 4/19/2013
Tamanho de arquivo: 3.34 MB
Nome do arquivo: RO_Web_TV-IP672P(V1.0R).pdf
Data: 4/19/2013
Tamanho de arquivo: 3.36 MB
Nome do arquivo: NL_Web_TV-IP672P(V1.0R).pdf
Data: 4/19/2013
Tamanho de arquivo: 3.17 MB
Nome do arquivo: HG_Web_TV-IP672P(V1.0R).pdf
Data: 4/19/2013
Tamanho de arquivo: 3.25 MB
Nome do arquivo: BL_Web_TV-IP672P(V1.0R).pdf
Data: 4/19/2013
Tamanho de arquivo: 3.33 MB
Nome do arquivo: EN_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.63 MB
Nome do arquivo: FR_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.63 MB
Nome do arquivo: GE_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.62 MB
Nome do arquivo: SP_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.62 MB
Nome do arquivo: RU_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.64 MB
Nome do arquivo: POL_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.64 MB
Nome do arquivo: RO_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.65 MB
Nome do arquivo: NL_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.63 MB
Nome do arquivo: HU_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.64 MB
Nome do arquivo: BUL_Web_TRENDnetVIEW_Pro.pdf
Data: 6/24/2014
Tamanho de arquivo: 1.62 MB
Nome do arquivo: UG_TV-IP672P_TV-IP672PI(v1.0R).pdf
Data: 9/21/2012
Tamanho de arquivo: 4.49 MB
Nome do arquivo: UG_TRENDnetVIEW_Pro.pdf
Data: 6/11/2014
Tamanho de arquivo: 7.92 MB
JPEG Image
Tamanho de arquivo: : 233.37 KB
Data: : 6/15/2012
JPEG Image
Tamanho de arquivo: : 210.82 KB
Data: : 6/15/2012
JPEG Image
Tamanho de arquivo: : 244.40 KB
Data: : 6/15/2012
TIFF Image
Tamanho de arquivo: : 21.32 MB
Data: : 6/15/2012
TIFF Image
Tamanho de arquivo: : 2.73 MB
Data: : 6/15/2012
TIFF Image
Tamanho de arquivo: : 19.06 MB
Data: : 6/15/2012
OverviewPlease ensure you have followed the quick installation guide and have the camera setup and accessible on your home/office network. The following instructions are going to outline how to make a SecurView camera accessible over the Internet. We will start by assigning a unique static IP addres...
Press the privacy button to redirect the cameras view straight down to obstruct its view. Press the button again to return the camera back to its original position....
The speakers need to have an external power source with a 3.5mm jack.
Motion detected recording is accomplished through the use of SecurView Pro.
Please refer to page 17 of the SecurView Pro user's guide. It is included on the CD and available for download from our website here.
TV-IP672P:
https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1549
...
TV-IP672P: Download the firmware file from our website here.
https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1549
Included with the firmware update are step-by-step instructions on how to update the firmware.
TV-IP672PI: Download the firmware file from our website here.
ht...
Press and hold in the reset button on the side of the camera for 3 seconds to reset the camera to default values. Note: The reset button is recessed. Use a paperclip or similar object to reach the button.
...

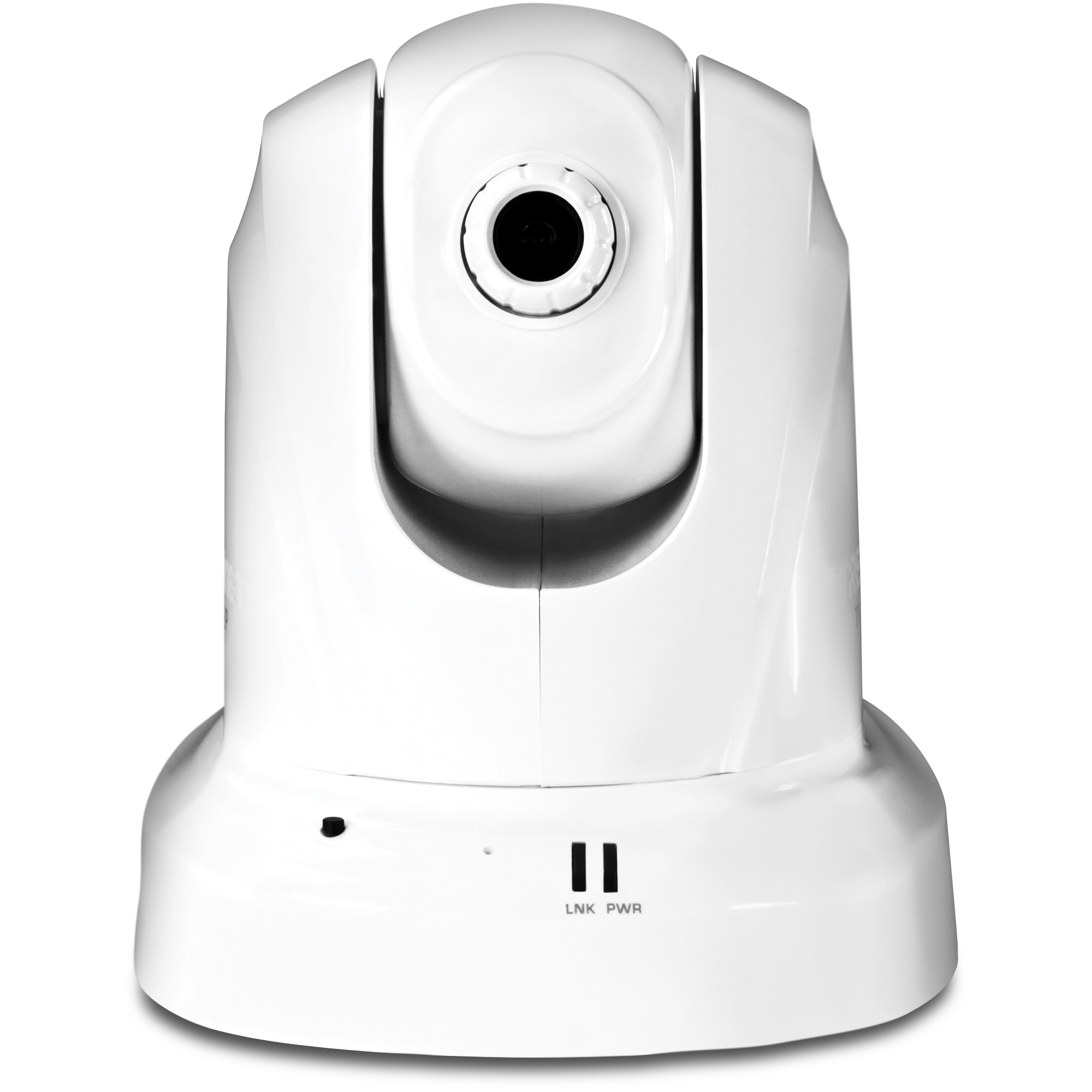

TV-IP672P
Power: This LED indicator will be solid blue when the camera is powered on.
Link: This LED indicator will blink orange when there is an active network connection.
TV-IP672PI
Power: This LED indicator will be solid blue when the camera is powered on.
Link: This LED indicator ...
Camera |
General | - Sensor: 1/4” CMOS Sensor
- Board Lens
- Focal Length: 4 mm
- F/No: 1.5
- Minimum illumination: 1 lux
- Focus Depth: 20 cm ~ infinity
- View:
- Horizontal: 51.8 degrees
- Vertical: 33.8 degrees
- Diagonal: 59.6 degrees
- Digital Zoom: 4x
|
---|
Audio | - Built-in omni-directional microphone
- Sensitivity: -40dB +/- 3dB (5 meters max.)
- Frequency: 100~2 Hz
- Format: PCM/ADPCM
- External speaker output (speaker sold separately)
- Two-way audio
|
---|
Pan & Tilt | - Pan: - 170° ~ + 170°
- Tilt: up 90°and down 25°
- Auto-Patrol preset positions: 10
|
---|
Hardware |

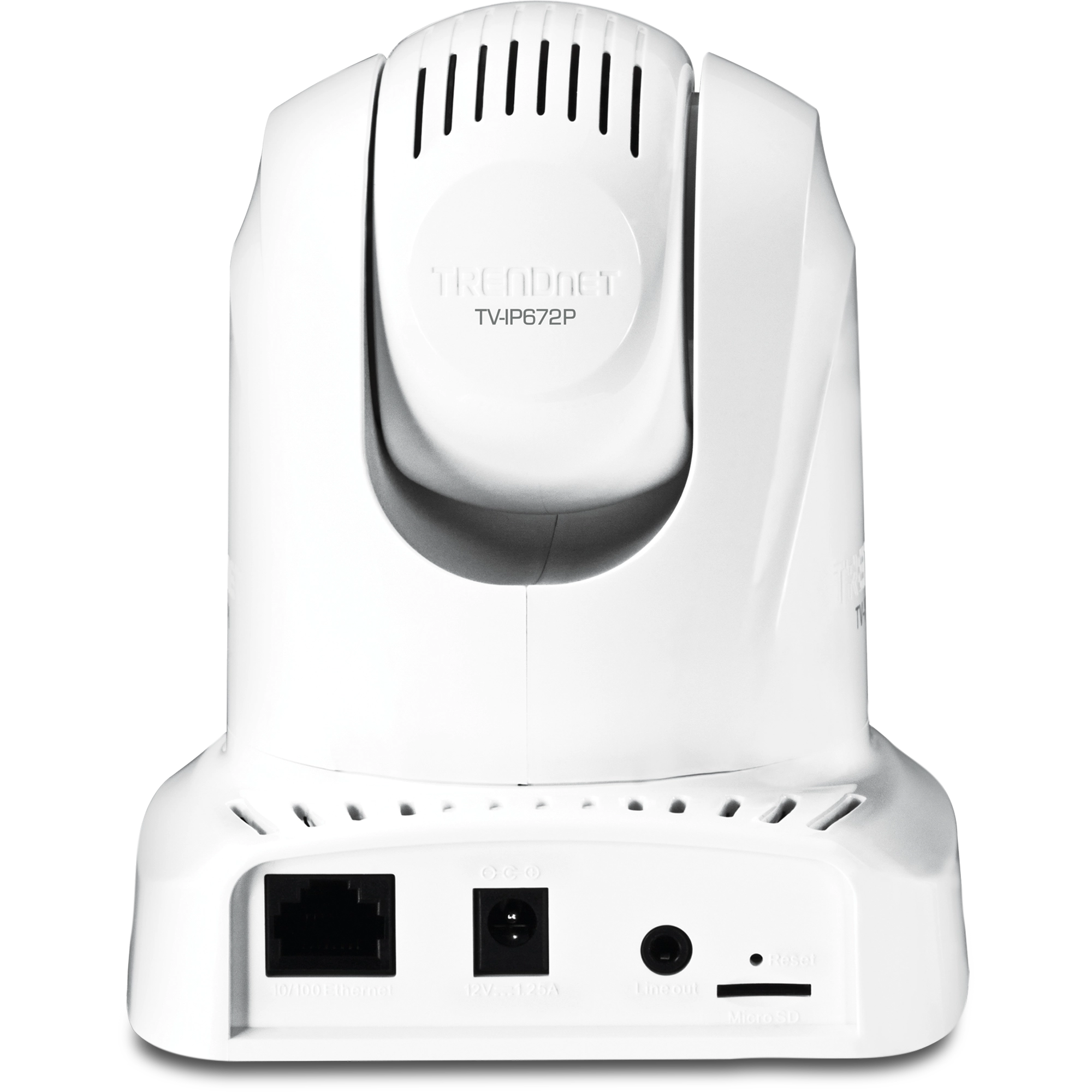

Network | - IEEE 802.3u 10/100Mbps Auto-MDIX Fast Ethernet
- IEEE 802.3af Power over Ethernet (PoE)
|
---|
LED | |
---|
Reset Button | |
---|
Privacy Button | |
---|
Power Consumption | |
---|
Power | - Input: 100~240V, 50/60Hz 0.5A
- Output: 12V, 1.25A external power adapter
|
---|
Dimension | - 113 x 113 x 130 mm (4.5 x 4.5 x 5.1 in.)
|
---|
Weight | |
---|
Temperature | - Operating: 0°C ~ 40°C (32°F ~ 104°F)
- Storage: -25°C ~ 70°C (-13°F ~ 158°F)
|
---|
Humidity | - Max. 90% (non-condensing)
|
---|
Certifications | |
---|
Requirement |
Management Interface | - Internet Explorer 7.0 or above
- Firefox, Safari 4 - 8, and Chrome
|
---|
To Run software | - Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
- Windows Server 2003, 2008
|
---|
TRENDnetVIEW Pro Software | - Channel: supports up to 32 cameras
- Record/Playback/Motion Detection/Audio
|
---|
Network Protocols | - IPv4, ARP, TCP, UDP, ICMP
- DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
- HTTP
- Samba Client
- PPPoE
- UPnP
- LLTD
- RTP (Real Time Protocol)
- RTCP (Real Time Control Protocol)
- RTSP (Real Time Streaming Protocol)
- 3GPP (video only)
|
---|
Management |
System | |
---|
Access | |
---|
Backup/Restore | - Save/retrieve configuration files
|
---|
Log | - System log up to 500 entries
|
---|
Micro SD | - View, download, delete files
- Format and remove Micro SD card
|
---|
Settings |
Image | - Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical), black & white, indoor, outdoor, schedule mode
|
---|
Video Setting | - Profile 1: H.264/MPEG-4
- Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
- Max frame rate: 30fps
- Profile 2: H.264/MPEG-4
- Resolution: 640 x 400, 320 x 192, 160 x 96
- Max frame rate: 30fps
- Profile 3: MJPEG
- Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
- Max frame rate: 1280 x 800 @ 5fps, 640 x 400/320 x 192@30fps
- JPEG quality: Low, Fair, Standard, Good, Excellent
- Profile 4: H.264/MPEG-4
- Resolution: 640 x 400, 320 x 192, 160 x 96
- Max frame rate: 30fps
- RTSP: http://ipcamera_ip/3gpp
|
---|
3GPP | - Audio format: AMR
- Video format: MPEG4
- Protocols:RTSP, RTP, RTCP
|
---|
Recording | - Resolution: Define individual resolution for up to 4 profiles
- Required storage: 32MB (minimum per profile)
- Recording type: event based (motion detection and digital input trigger), continuous, and scheduled
|
---|
Event Action | - Trigger event: motion detection or digital input signal
- Action: send real-time snapshot or video recording to FTP or email
|
---|
Port Settings | - HTTP port: 80 (default)
- RTSP port: 554 (default)
|
---|
Time | - Synchronize with NTP server or set time/date manually
|
---|
CONTEÚDO DA EMBALAGEM |
- TV-IP672P
- CD-ROM (Utility & User's Guide)
- Multi-Language Quick Installation Guide
- Network cable (1.5 m / 5 ft.)
- Power adapter (12V, 1.25A)
- Camera mounting kit
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
