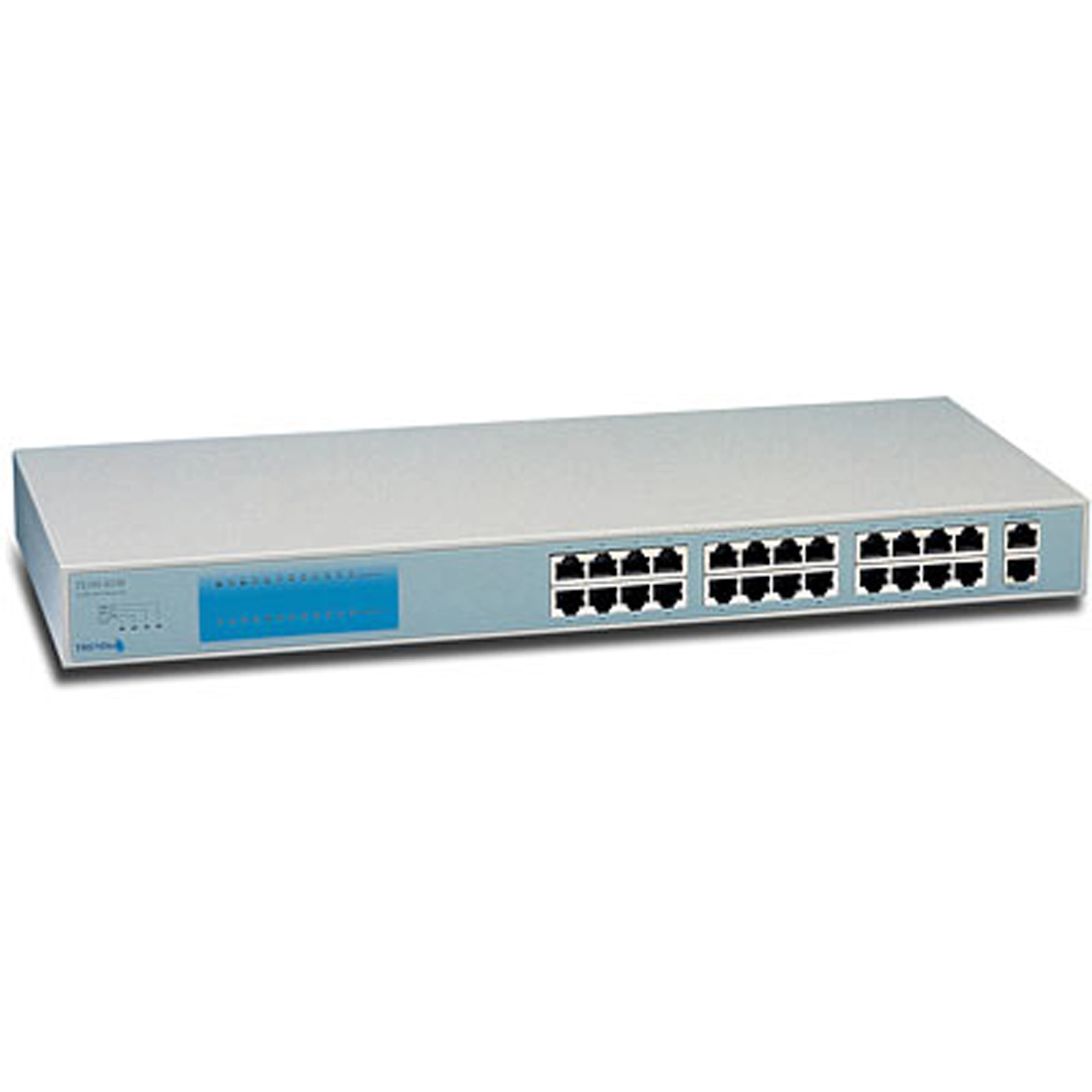

24-Port 100Base-TX Stackable Fast Ethernet Hubs

TE100-H24R   (Version 1.0)

  • This 24 port fast Ethernet hub is designed to overcome the inherent limitation of two 100Base-TX repeater counts
  • The Fast Ethernet network can be easily expanded by stacking a total of four TE100-H16R, four TE100-H24R, or any combination of the two together to increase the number of ports.
  • 16 port model can stack with 24 port model. Optional Fiber Module connects network to distance as far as 412 meter

DISCONTINUED PRODUCT

The TE100-H24R (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-H24R.pdf
Data: 5/2/2013
Tamanho de arquivo: 150.29 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-H16_24R.pdf
Data: 8/20/2004
Tamanho de arquivo: 431.33 KB
Download
Hardware
Standards:
  • IEEE 802.3µ, 100Base-TX, IEEE802.3µ, 100Base-FX
Protocol:
  • CSMA/CD
Cabling:
  • CAT 5, UTP/STP 62.5/125 micron multimode fiber (half-duplex, 412 Meters)
LED's:
  • Per Hub: Power, FX Link/RX, Activity, Collision,
  • Per Port: Link/Rx
Power:
  • Internal Power Supply, (100 - 240V, 50/60Hz)
Dimensions:
  • 440 x200 x 44 mm / 17.30" x 7.87" x 1.73" (L x W x H)
Weight:
  • 2.68 kg / 5.89 lb
Temperature:
  • Operating: -10° to 40° C / 14° to 104° F
  • Storage: -20° to 70° C / -4° to 158° F
Humidity:
  • Operating: 10% to 90% (non-condensing)
  • Storage: 5% to 90% (non-condensing)
Certification:
  • FCC, UL, CE

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
