NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada. |
Firmware Version: 1.03.B15
Release Date: 03/2015
Note: - Security updates
Nome do arquivo: TEW-658BRMv1_(FW1.03.B15).zip
SHA-1 Checksum: 78771D84DA623B0F4D9C88E244899F0E2CA4B21E
Data: 7/28/2017
Tamanho de arquivo: 4.32 MB
Nome do arquivo: EN_Spec_TEW-658BRM(V1.0R).pdf
Data: 11/5/2012
Tamanho de arquivo: 470.49 KB
Nome do arquivo: FR_Spec_TEW-658BRM(V1.0R).pdf
Data: 11/5/2012
Tamanho de arquivo: 476.25 KB
Nome do arquivo: GE_Spec_TEW-658BRM(V1.0R).pdf
Data: 11/5/2012
Tamanho de arquivo: 467.24 KB
Nome do arquivo: SP_Spec_TEW-658BRM(V1.0R).pdf
Data: 10/22/2012
Tamanho de arquivo: 490.49 KB
Nome do arquivo: RU_Spec_TEW-658BRM(V1.0R).pdf
Data: 2/6/2014
Tamanho de arquivo: 968.03 KB
Nome do arquivo: IT_Spec_TEW-658BRM(V1.0R).pdf
Data: 11/5/2012
Tamanho de arquivo: 464.10 KB
Nome do arquivo: EN_Web_TEW-658BRM(1.01).pdf
Data: 11/5/2012
Tamanho de arquivo: 4.34 MB
Nome do arquivo: FR_Web_TEW-658BRM(1.01).pdf
Data: 11/5/2012
Tamanho de arquivo: 4.40 MB
Nome do arquivo: GE_Web_TEW-658BRM(1.01).pdf
Data: 11/5/2012
Tamanho de arquivo: 3.84 MB
Nome do arquivo: SP_Web_TEW-658BRM(1.01).pdf
Data: 11/5/2012
Tamanho de arquivo: 3.84 MB
Nome do arquivo: RU_Web_TEW-658BRM(1.01).pdf
Data: 11/5/2012
Tamanho de arquivo: 6.70 MB
Nome do arquivo: EST_Web_TEW-658BRM(1.01).pdf
Data: 11/5/2012
Tamanho de arquivo: 3.25 MB
Nome do arquivo: TEW-658BRM(v1.0R).pdf
Data: 11/5/2012
Tamanho de arquivo: 4.94 MB
JPEG Image
Tamanho de arquivo: : 193.82 KB
Data: : 2/16/2011
JPEG Image
Tamanho de arquivo: : 183.49 KB
Data: : 2/16/2011
JPEG Image
Tamanho de arquivo: : 177.33 KB
Data: : 2/16/2011
TIFF Image
Tamanho de arquivo: : 13.22 MB
Data: : 2/16/2011
TIFF Image
Tamanho de arquivo: : 2.22 MB
Data: : 2/16/2011
TIFF Image
Tamanho de arquivo: : 2.12 MB
Data: : 2/16/2011
Log in to the TEW-658BRM by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default User Name and Password are both admin, without the quotes.
Click on Setup >WirelessSettings and then Basic
On this page you can configu...
Log in to the TEW-658BRM by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default username and password are both admin.
...
The default username and password for the TEW-658BRM are both admin.
Log in to the TEW-658BRM by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The default username and password are both admin.
After you have logged in to the TEW-658BRM click on the Advanced >NATpage. Enable Virtual Server ...
Press and hold in the recessed reset button on the back of the router for approximately 10 seconds while the power is on to reset the unit. The default login values are as follows.
IP Address: 192.168.10.1
Username: admin
Password: admin
...
This is referring to the WPS (WiFi Protected Setup) PIN. To find the PIN, do the following.
Connect your computer to one of the LAN ports. Log in to the TEW-658BRM by entering https://192.168.10.1 into the address line of your browser.
You will be prompted to log in to the router. The defaul...
Log in to the TEW-658BRM by going to https://192.168.10.1. The default username and password are both admin. Click on Advanced > Firewall > IP Filter.
IP Filters: Check this box to enable IP filtering.
Filter Name: Define a name for the Filter.
Example: You can name the filter rule a...
Hardware |
Standards | - IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
---|
RJ-11 Port (ADSL line Interface) | - Complies with ADSL standards ANSI T1.413 Issue2
- G.992.1 (G.dmt, Annex A)
- G.992.2 (G.lite)
- Complies with ADSL2 standard G.992.3 (G.dmt.bis, Annex L)
- Complies with ADSL2+ standard G.992.5 Annex M
|
---|
ATM | - VC and LLC Multiplexing
- Bridged / Routed Ethernet over ATM (RFC1483/2684)
- OAM F4/F5 loop-back
- PPP over ATM (RFC2364)
- PPP over Ethernet (RFC2516)
- ATM Traffic QoS (UBR, CBR, rt-VBR, nrt-VBR)
|
---|
Management | - Web based Configuration (HTTP)
- Command Line Interface (CLI) via Telnet
- TR-069 Remote Management
- IGMP v1/v2 Support
- SW upgrade
|
---|

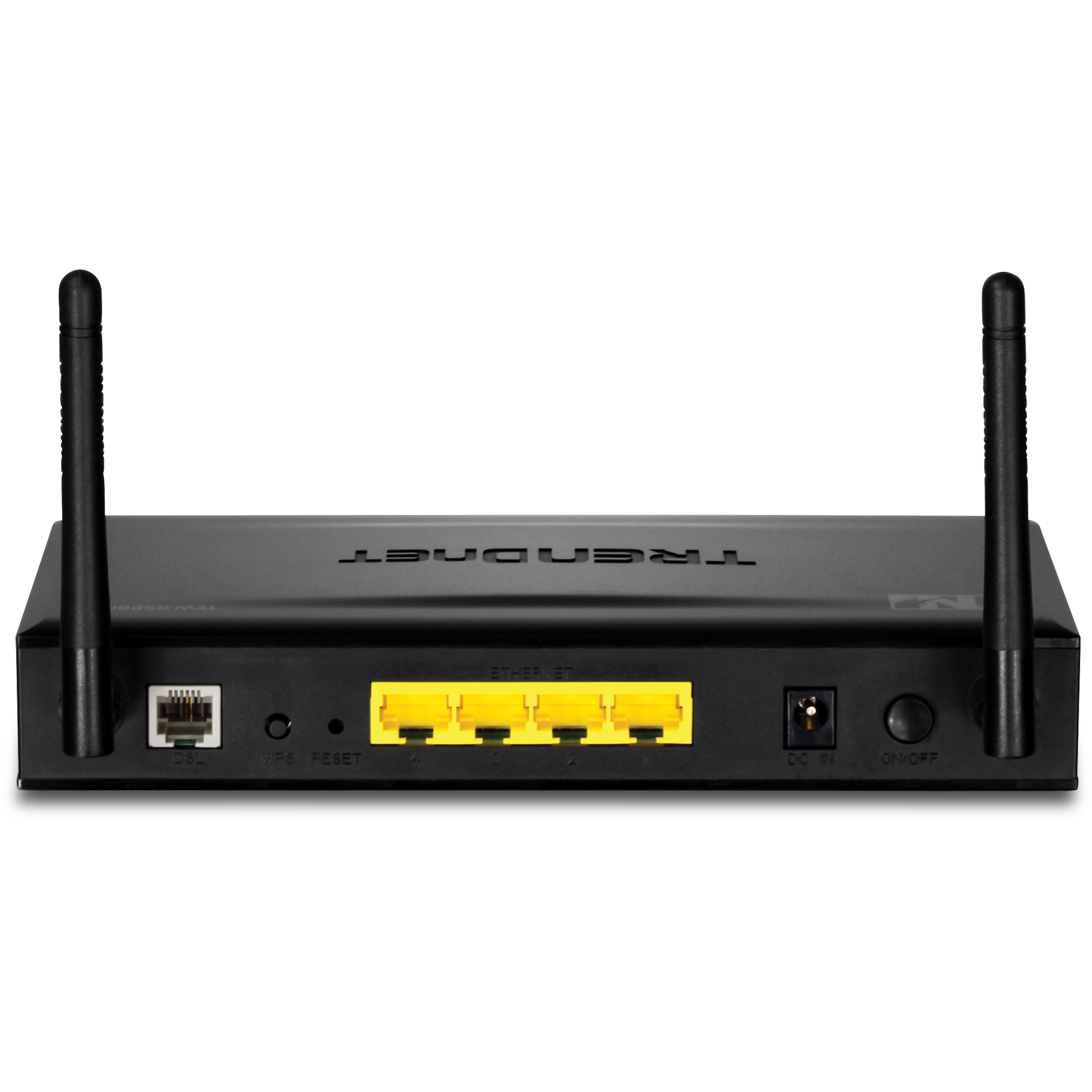

LAN | - 4 x 10/100 Mbps Auto-MDIX ports
|
---|
Button | - Power: On / off power button
- WPS: Enables Wi-Fi Protected Setup (WPS) function
- Reset: Reset to factory defaults
|
---|
Firewall | - NAT, SPI, Content Filter IP, MAC, Domain, and Keyword
|
---|

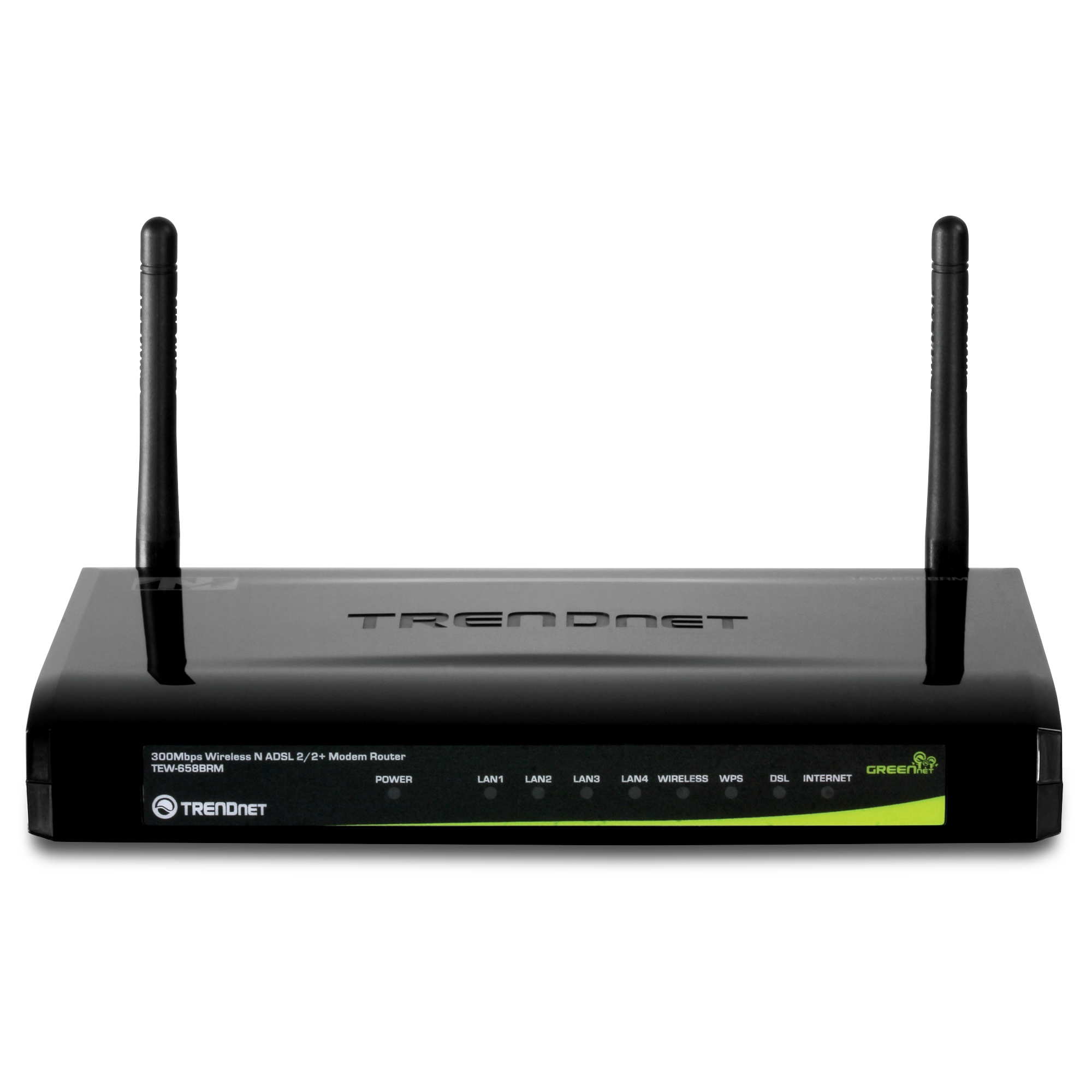

LED Indicator | - Power, LAN1~LAN4, WLAN, ADSL and Internet, WPS
|
---|
Power Adapter | - 12V DC, 1A external power adapter
|
---|
Power Consumption | |
---|
Dimension (L x W x H) | - 201 x 116 x 31 mm (8 x 4.6 x 1.2 in.)
|
---|
Weight | |
---|
Temperature | - Operation: 0° ~ 40°C (32°F ~ 104°F)
- Storage: -10° ~ 70°C (14°F ~ 158°F)
|
---|
Humidity | |
---|
Certifications | |
---|
Wireless |
Frequency | |
---|
Modulation | - DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
|
---|
Antenna | - 2 x 2 dBi fixed dipole antennas
|
---|
Data Rate | - 802.11b: up to 11 Mbps
- 802.11g: up to 54 Mbps
- 802.11n: up to 300 Mbps
|
---|
Security | - WEP(HEX/ASCII): 64/128-bit
- WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
|
---|
Output Power | - 802.11b: 15 dBm (typical)
- 802.11g: 12 dBm (typical)
- 802.11n: 11 dBm (typical)
|
---|
Receiving Sensitivity | - 802.11b: -80 dBm (typical) @ 11 Mbps
- 802.11g: -65 dBm (typical) @ 54 Mbps
- 802.11n: -64 dBm (typical) @ 300 Mbps
|
---|
Channels | |
---|
CONTEÚDO DA EMBALAGEM |
- TEW-658BRM
- Multi-Language Quick Installation Guide
- CD-ROM (User's Guide)
- Power adapter (12V DC, 1A)
- Network cable (1.5m / 5ft.)
- RJ-11 telephone cable (1m / 3ft.)
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
