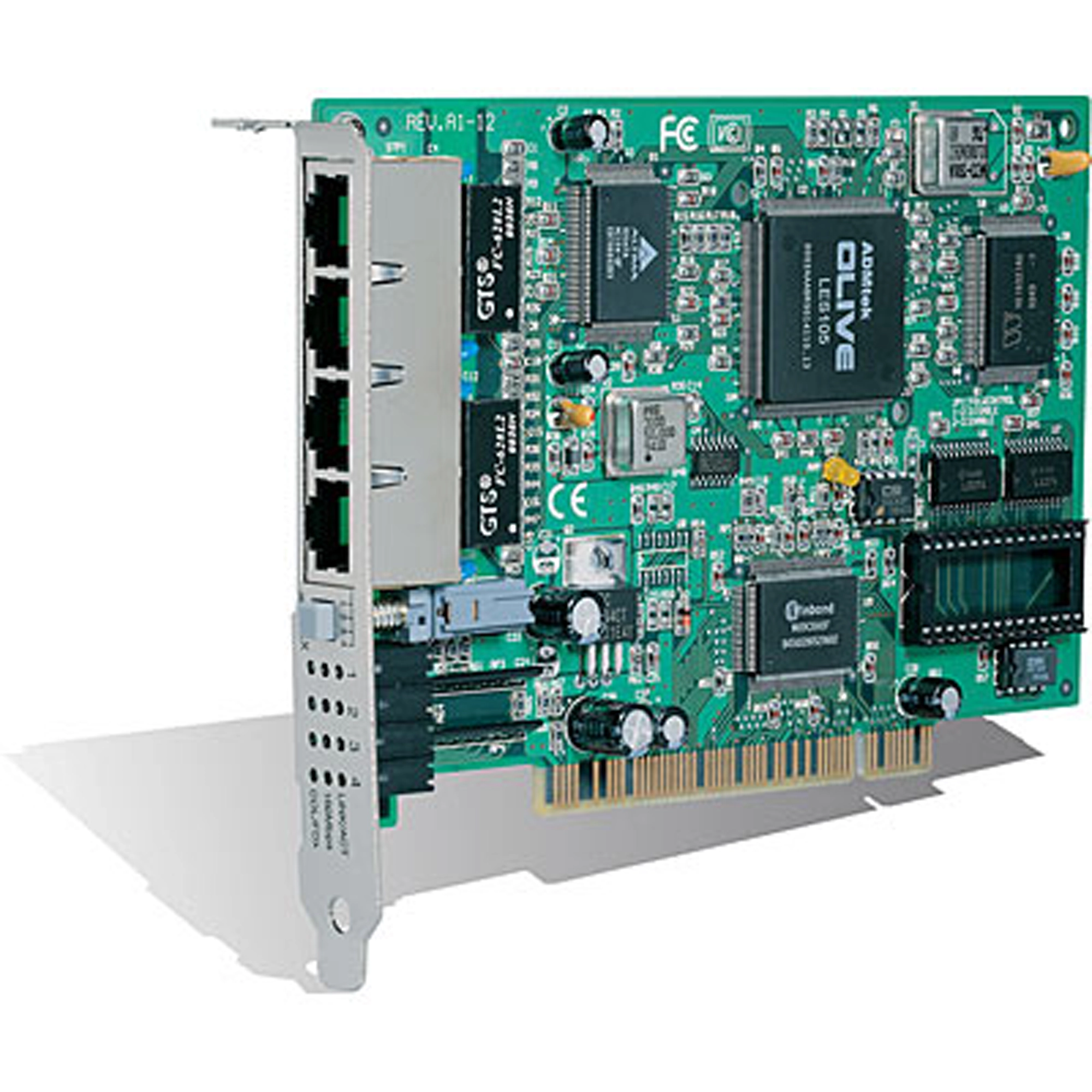

4-port 10/100Mbps N-way Ethernet Switch Card

TE100-S4PCI

  • Instantly connect this 4-port 10/100Mbps fast Ethernet Switch Card to the PCI bus
  • With Plug-and-Play function, you can easily install and configure the switch card automatically
  • This unique card provides a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S4PCI  has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Nome do arquivo: Driver_TE100-S4PCI.zip
SHA-1 Checksum: 38A7F94599CBE0D4F574B0BF8CF69974161BBFE8
Data: 7/25/2017
Tamanho de arquivo: 521.98 KB
Download

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-S4PCI.pdf
Data: 5/2/2013
Tamanho de arquivo: 221.68 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-S4PCI.pdf
Data: 8/18/2004
Tamanho de arquivo: 173.07 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX, ANSI/IEEE 802.3 N-way auto-negotiation
Protocol:
  • CSMA/CD
Network Media:
  • UTP CAT 3 (10Mbps), UTP CAT 5 (10/100Mbps), EIA/TIA-568 100-ohm screened twisted pair (STP) (10/100Mbps)
Data Transfer Rate:
  • 10/100Mbps (Half-duplex), 20/200Mbps (Full-duplex)
Power Consumption:
  • 12 Watts max.
Diagnostic LED's:
  • Link/Activity, 100M Indicator, Collision/Full-duplex
Network Drivers:
  • Novell NetWare ODI, NDIS, SCO UNIX, LAN Manager, Windows 95/OSR2/98/2000/NT, Windows for Workgroups, Packet Driver, LAN server, Warp server, Linux and more
Temperature:
  • Operating Temperature: 0° to 55° C (32° to 131° F)
  • Storage Temperature: -20° to 70° C (-4° to 158° F)
Humidity:
  • Operating Humidity: 10 % to 90 % non-condensing
  • Storage Humidity: 5 % to 90 % non-condensing
Certifications:
  • FCC, CE, VCCI-II

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
