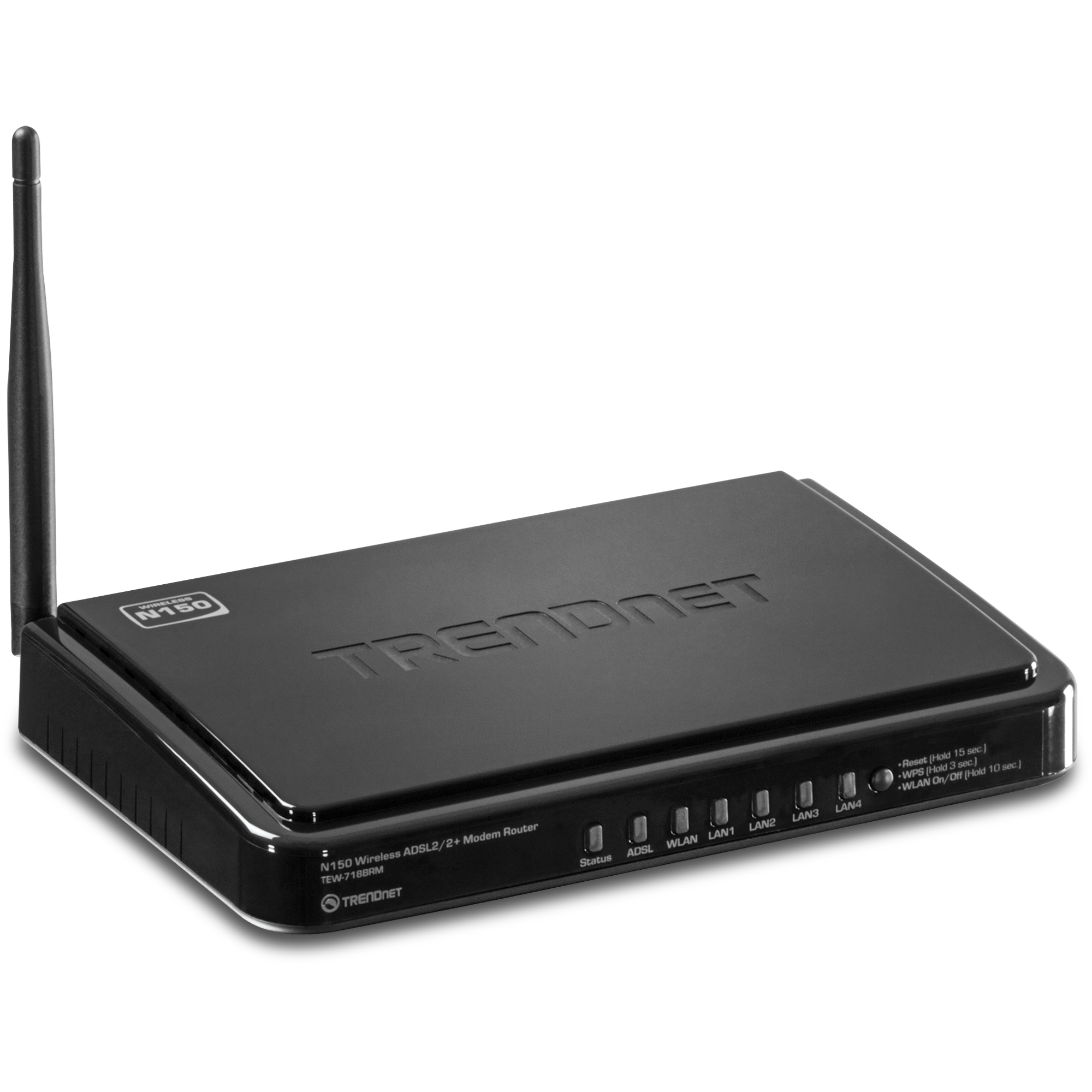

N150 Wireless ADSL 2/2+ Modem Router

TEW-718BRM   (Version v1.0R)

  • Combination modem and wireless n router
  • Compatible with ADSL 2 and ADSL 2+ ISP networks
  • No need to rent a modem from a service provider
  • Four Ethernet ports for wired devices

DISCONTINUED PRODUCT

The TEW-718BRM (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Firmware

Firmware Upgrade Procedure
Nome do arquivo: Firmware_Upgrade_Procedure.pdf
SHA-1 Checksum: A1416AE8724B309C4268E5B94CFF002D1CA11BD5
Data: 7/28/2017
Tamanho de arquivo: 67.16 KB
Download
Firmware
NÃO atualize firmware em nenhum produto da TRENDnet utilizando conexão wireless
Atualização de firmware sobre conexão wireless pode causar dano ao produto. Por favor execute a atualização de firmware somente com conexão cabeada.

Version:1.00.11
Date: 9/2013
Note:

  1. Added UPnP stealth mode when enabled to prevent against UPnP scan/detection tools

Firmware Upgrade Procedure


Nome do arquivo: FW_TEW-718BRM_v1(1.00.11).zip
SHA-1 Checksum: DFC4C85240E1F08C9DC8FA1616BA340503FFBE45
Data: 7/28/2017
Tamanho de arquivo: 5.75 MB
Download

Ficha técnica

Datasheet (English)
Nome do arquivo: EN_spec_TEW-718BRM(v1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 512.64 KB
Download Email
Datasheet (Français)
Nome do arquivo: FR_spec_TEW-718BRM(v1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 507.31 KB
Download Email
Datasheet (Deutsch)
Nome do arquivo: GE_spec_TEW-718BRM(v1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 501.54 KB
Download Email
Datasheet (Español)
Nome do arquivo: SP_spec_TEW-718BRM(v1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 517.94 KB
Download Email
Datasheet (Pусский)
Nome do arquivo: RU_spec_TEW-718BRM(v1.0R).pdf
Data: 2/6/2014
Tamanho de arquivo: 994.14 KB
Download Email
Datasheet (Italiano)
Nome do arquivo: IT_spec_TEW-718BRM(v1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 510.98 KB
Download Email

Guia de Instalação Rápida

Guia de Instalação Rápida (English)
Nome do arquivo: EN_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.88 MB
Download
Guia de Instalação Rápida (Français)
Nome do arquivo: FR_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.90 MB
Download
Guia de Instalação Rápida (Deutsch)
Nome do arquivo: GE_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.88 MB
Download
Guia de Instalação Rápida (Português)
Nome do arquivo: PO_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.89 MB
Download
Guia de Instalação Rápida (Español)
Nome do arquivo: SP_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.88 MB
Download
Guia de Instalação Rápida (Pусский)
Nome do arquivo: RU_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 5.28 MB
Download
Guia de Instalação Rápida (Eesti)
Nome do arquivo: EST_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.28 MB
Download
Guia de Instalação Rápida (Polski)
Nome do arquivo: POL_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.41 MB
Download
Guia de Instalação Rápida (Român)
Nome do arquivo: RO_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 2.02 MB
Download
Guia de Instalação Rápida (Nederlands)
Nome do arquivo: NL_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.55 MB
Download
Guia de Instalação Rápida (Magyar)
Nome do arquivo: HU_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.39 MB
Download
Guia de Instalação Rápida (български)
Nome do arquivo: BL_Web_TEW-718BRM(V1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 1.70 MB
Download

Guia do Usuário

Guia do Usuário
Nome do arquivo: UG_TEW-718BRM(v1.0R).pdf
Data: 2/14/2013
Tamanho de arquivo: 2.12 MB
Download

Imagem(ns) do Produto

JPEG Image
Tamanho de arquivo: : 235.71 KB
Data: : 12/12/2012
Download
JPEG Image
Tamanho de arquivo: : 241.71 KB
Data: : 12/12/2012
Download
JPEG Image
Tamanho de arquivo: : 217.87 KB
Data: : 12/12/2012
Download
TIFF Image
Tamanho de arquivo: : 2.92 MB
Data: : 12/12/2012
Download
TIFF Image
Tamanho de arquivo: : 2.95 MB
Data: : 12/12/2012
Download
TIFF Image
Tamanho de arquivo: : 2.66 MB
Data: : 12/12/2012
Download
ROHS compliant WEEE crossed-out bin symbol.
I have gone through the Setup Wizard but still am not able to go online. What should I check?
Please verify all settings with your ISP. You will need the correct VPI and VCI values. Please also verify if they require the use of a Service Name. Check to see if the require a specific MTU value as well. When you have gathered this information do the following to apply them to the TEW-718BRM. ...
How do I connect my wireless devices using the WPS button?
Push and hold the WPS button located on the back of your router for 3 seconds and release it. A blue LED on your router WPS button will flash indicating that the WPS setup process has been activated on your router. Push the WPS button on the wireless device you are connecting. ...
When I attempt to connect to the router I am prompted for PIN. Where is this located?
Log in to the TEW-718BRM by entering https://192.168.10.1 into the address line of your browser. You will be prompted to log in to the Router. The default User Name and Password are both admin, without the quotes. Click Setup>Wireless Settings>WPS Setup The AP PIN will be the pin number th...
How do I reset the TEW-718BRM to factory default settings?
Press and hold in the recessed reset button on the back of the Router for approximately 10 seconds while the power is on to reset the unit. The default login values are as follows. IP Address: 192.168.10.1 Username: admin Password: admin...
How do I forward ports in the TEW-718BRM?
Log in to the TEW-718BRM by entering https://192.168.10.1 into the address line of your browser. You will be prompted to log in to the Router. The default username and password are both admin. After you have logged in to the TEW-718RM click on the Advanced > NAT page>Virtual Server and create...
What is the default username and password on the router?
The default username and password for the TEW-718BRM are both admin.
How do I login to the router?
Log in to the TEW-718BRM by entering https://192.168.10.1 into the address line of your browser. You will be prompted to log in to the Router. The default User Name and Password are both admin, without the quotes. ...
How do I setup and secure my wireless network?
Log in to the TEW-718BRM by entering https://192.168.10.1 into the address line of your browser. You will be prompted to log in to the Router. The default User Name and Password are both admin, without the quotes. Click on Setup, and click on Wireless Settings. Here you can setup your wire...
Hardware
Standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, based on IEEE 802.11n technology
  • Complies with ADSL standards ANSI T1.413 Issue2
  • G.992.1 (G.dmt, Annex A)
  • G.992.2 (G.lite)
  • Complies with ADSL2 standard
  • G.992.3 (G.dmt.bis, Annex L)
  • Complies with ADSL2+ standard
  • G.992.5 (G.dmt.bis+, Annex M)
WAN (ADSL Line Interface)

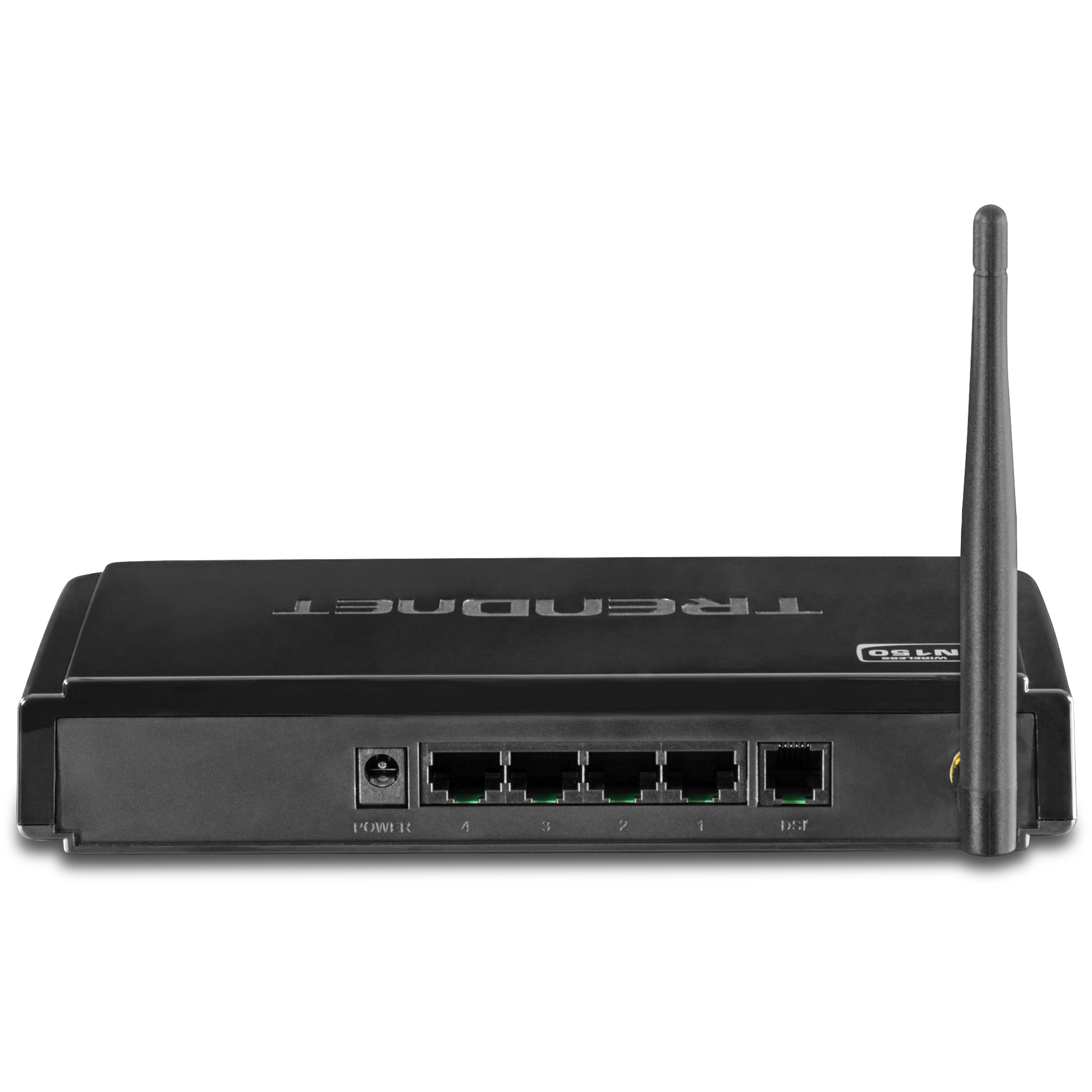

  • 1 x RJ-11 port (telephone)
LAN
  • 4 x 10/100 Mbps Auto-MDIX RJ-45 ports (option to convert port 1 to WAN port)
Reset / WPS / WLAN On & Off Button
  • Reset: Reset to factory defaults (Hold for 15 sec.)
  • WPS: Activates Wi-Fi Protected Setup (WPS) (Hold for 3 sec.)
  • WLAN On / Off: Enables or disables wireless radio (Hold for 10 sec.)
ATM & PPP Protocols / Modes
  • VC and LLC multiplexing (Up to 8 PVCs)
  • Ethernet over ATM (RFC 1483 Bridged) with NAT
  • RFC 1483 bridged
  • IP over ATM (RFC 1483 Routed)
  • PPP over ATM (RFC2364)
  • PPP over Ethernet (RFC2516)
  • ATM Traffic QoS (UBR, CBR, VBR, GFR)
Firewall
  • NAT, SPI, DMZ host, virtual servers, MAC / IP filters, URL / keyword filters, deny WAN ping requests, and WAN stealth mode
Schedules
  • Define schedules for wireless, virtual server, packet filters, and QoS
Network Protocols/Features
  • IGMP v1/2/3 proxy and snooping
  • Static and dynamic routing RIP v1/2
  • UPnP
  • DHCP (Dynamic Host Configuration Protocol) server / relay
  • Dynamic DNS (DynDNS.com, No-IP.com, TZO.com, and dhs.org)
  • NTP (Network Time Protocol)
  • PPTP / L2TP / IPsec VPN pass through
  • IPv6: Static, DHCPv6, PPPoE, 6 to 4, and IPv6 in IPv4 Tunnel, Stateful / Stateless auto-configuration
Quality of Service
  • Smart-QoS (simple) or manually defined QoS ToS / CoS (Type of service / Class of service) based on IP, TCP/UDP port, MAC, DSCP (Differentiated Services Code Point), and WMM
Management / Monitoring
  • Local / remote configuration, upgrade firmware, backup / restore configuration via web browser, TR-069 remote management, DoS (Denial of Service) detection, internal system log, Syslog, email alert, SNMP v1/v2c, ping test tool, and Wake-on-LAN (WoL), NAT Status log, Client List log, Web log, Modem log

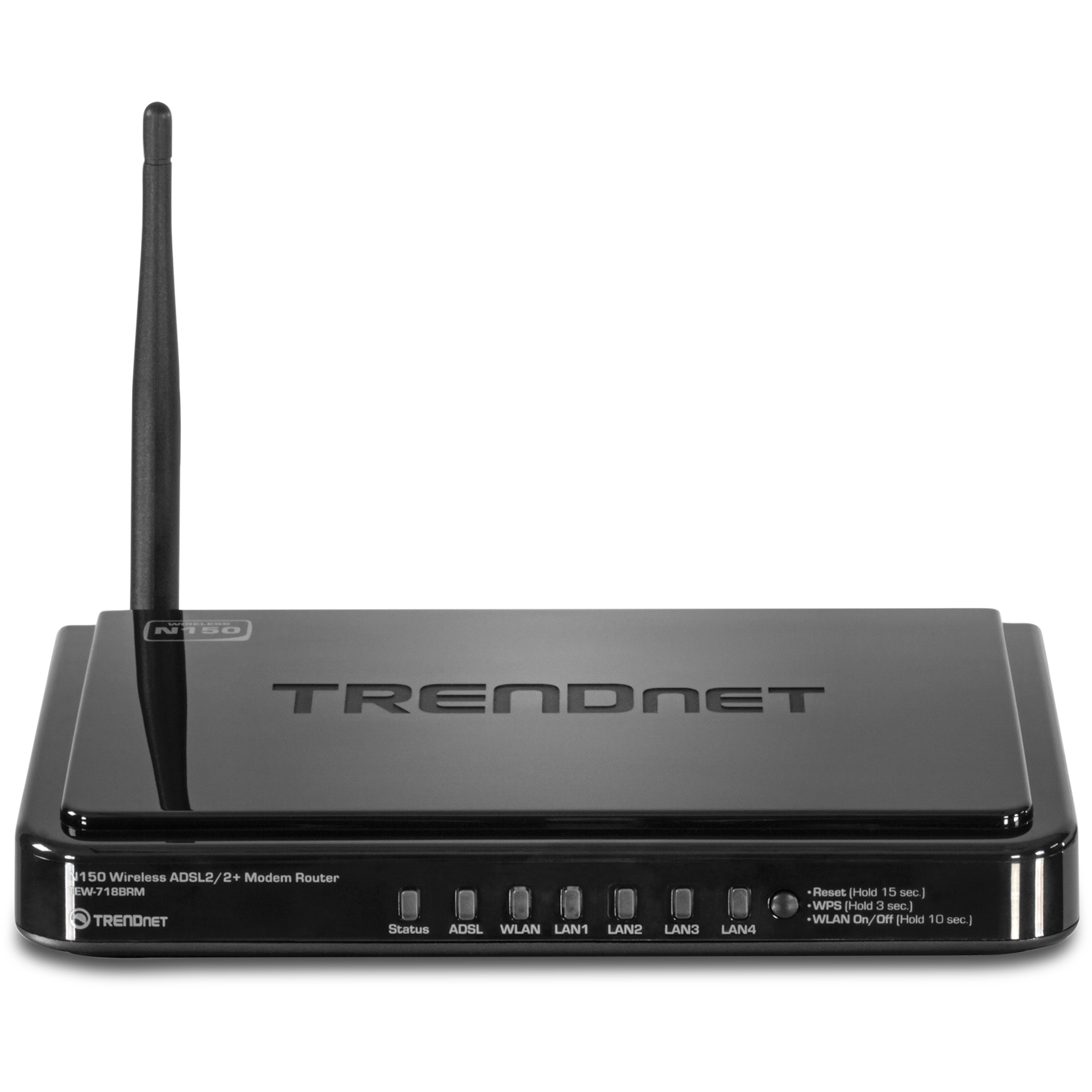

LED Indicators
  • Status, ADSL, WLAN, LAN1~LAN4
Power Adapter
  • Input: 100~240 V AC, 50~60 Hz, 0.2 A
  • Output: 5 V DC, 1.2 A external power adapter
Power Consumption
  • 5 watts (max)
Dimension (L x W x H)
  • 189 x 118 x 33 mm (7.4 x 4.6 x 1.3 in.)
Weight
  • 221.1 g (7.8 oz)
Temperature
  • Operation: 0° ~ 40°C (32°F ~ 104°F)
  • Storage: -10° ~ 70°C (14°F ~ 158°F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC
Wireless
Frequency
  • 2.4 ~2.483 GHz band
Modulation
  • DBPSK / DQPSK / CCK / OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
Modes
  • Access Point Router
  • Access Point Only
  • WDS Hybrid
  • WDS Only
  • Universal Repeater
SSID
  • Broadcast up to 2 SSIDs each with different wireless encryption with support for VLAN mapping
Antenna
  • 1 x 2 dBi detachable dipole antenna (TEW-718BRM5: 1 x 5 dBi detachable dipole antenna)
Data Rate
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 150 Mbps
Security
  • WEP (HEX/ASCII): 64/128-bit
  • WPA (AES/TKIP): WPA / WPA2-RADIUS, WPA-PSK / WPA2-PSK
Output Power
  • 802.11b: 17 dBm (typical)
  • 802.11g: 14 dBm (typical)
  • 802.11n: 14 dBm (typical)
Receiving Sensitivity
  • 802.11b: -91 dBm (typical) @ 11 Mbps
  • 802.11g: -91 dBm (typical) @ 54 Mbps
  • 802.11n: -87 dBm (typical) @ 150 Mbps
Channels
  • 1~ 11 (FCC), 1~13 (ETSI)

CONTEÚDO DA EMBALAGEM
  • TEW-718BRM
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Power adapter (5 V DC, 1.2 A)
  • Detachable antenna
  • Network cable (1.5 m / 5 ft.)
  • RJ-11 telephone cable (1.8 m / 5.4 ft)

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
