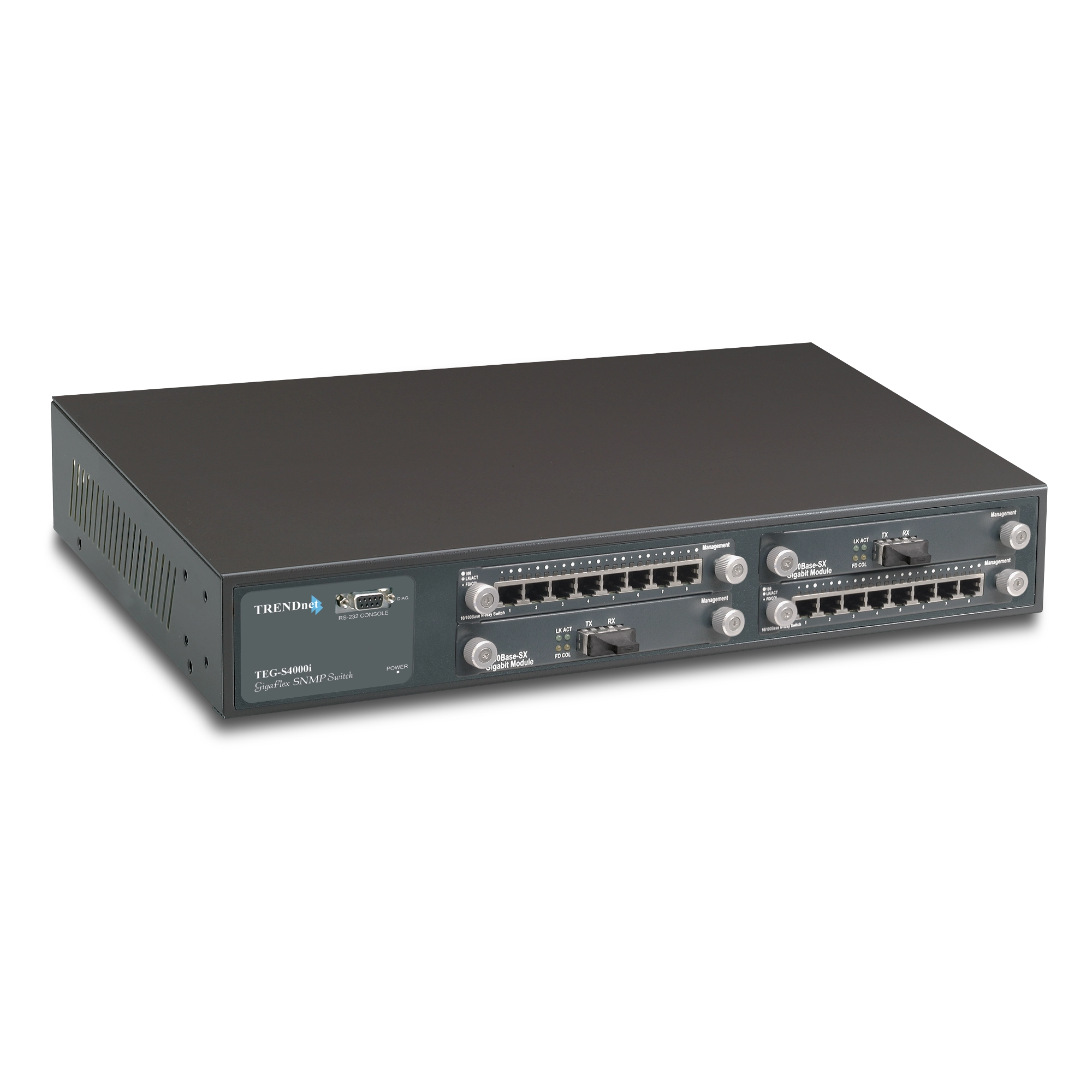

4-Slot SNMP Modular Switch

TEG-S4000i

  • This 4 port intelligent switch provides up to 9.6Gbps backplane which provides non-blocking performance
  • Accepts up to 4 modules that provide connections for up to 4 different types of network medias
  • Auto-Learns networking configurations

DISCONTINUED PRODUCT

The TEG-S4000i  has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet (English)
Nome do arquivo: EN_Spec_TEG-S4000i.pdf
Data: 7/20/2006
Tamanho de arquivo: 272.52 KB
Download Email
Datasheet (Français)
Nome do arquivo: FR_Spec_TEG-S4000i.pdf
Data: 7/20/2006
Tamanho de arquivo: 276.62 KB
Download Email
Datasheet (Deutsch)
Nome do arquivo: GE_Spec_TEG-S4000i.pdf
Data: 7/20/2006
Tamanho de arquivo: 276.00 KB
Download Email
Datasheet (Español)
Nome do arquivo: SP_Spec_TEG-S4000i.pdf
Data: 7/20/2006
Tamanho de arquivo: 275.89 KB
Download Email
Datasheet (Pусский)
Nome do arquivo: RU_Spec_TEG-S4000i.pdf
Data: 7/20/2006
Tamanho de arquivo: 1.53 MB
Download Email

Guia do Usuário

Manual
Manual for all TEG-S4000i modules.
Nome do arquivo: UG_All_ Modules_v1.0-1.pdf
Data: 8/18/2004
Tamanho de arquivo: 236.93 KB
Download
Manual
Manual for TEG-S4000i
Nome do arquivo: UG_TEG-S4000i_v2.0(12142004).pdf
Data: 12/14/2004
Tamanho de arquivo: 2.96 MB
Download

Imagem(ns) do Produto

JPEG Image
Tamanho de arquivo: : 186.92 KB
Data: : 9/1/2004
Download
TIFF Image
Tamanho de arquivo: : 2.42 MB
Data: : 9/1/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x Flow Control
  • IEEE 802.3ad Port Trunk
  • IEEE 802.1d Spanning Tree Protocol
  • IEEE 802.1p Class of service
  • IEEE 802.1Q VLAN Tagging, RFC 768 UDP, RFC 783 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 854 Telnet Server/Client, RFC 1112 IGMP, RFC 2068 HTTP, RFC 1157 SNMP, RFC 1213 (MIB II), RFC 1215 Trap (Link Down/Up, Cold/Warm Start, Authorization Failed), RFC1493 (Bridge MIB), RFC 2674 (VLAN MIB)
Protocol:
  • CSMA/CD
Data Transfer Rate:
  • Ethernet: 14,880pps
  • Fast Ethernet: 148,800pps
  • Gigabit Ethernet: 1,488,000pps
Cabling:
  • Ethernet:
  • UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm, 100 meters max.
  • Fast Ethernet:
  • UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max.
  • 62.5/125µm Multimode Fiber with SC-type (or MT-RJ) connector, 2Km max.
  • 8,9/125µm Single-mode Fiber with SC-type connector, 30Km max.
  • Gigabit Ethernet:
  • UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max.
  • 62.5/125µm Multimode Fiber with SC-type connector, 220 meters max.
  • 50/125µm Multimode Fiber with SC-type connector, 550 meters max.
  • 10/125µm Single-mode Fiber with SC-type connector, 10Km max.
Console Port:
  • Female DB-9 RS-232 (serial cable included)
Data RAM Buffers:
  • 256KB for 8-port 10/100Mbps module, 5MB for 100Mbps fiber module, 128Bytes for Gigabit module
Filtering Address Table:
  • 4K for 8-Port 10/100Mbps Module and Gigabit Module. 12K for 100Base-FX module
Diagnostic LEDs:
  • Per Device: Power, Diag.
  • Per Port:
  • 8-Port 10/100Mbps module: 100M, Link/Activity, Full-Duplex/Collision (3 LEDs)
  • 100Mbps Fiber: Link/Activity, Full-Duplex/Collision (2 LEDs)
  • 1000Mbps: Link, Activity, Full-Duplex, Collision (4 LEDs)
Power Supply:
  • 100 ~ 240 VAC, 50 ~ 60Hz, Internal Universal Power Supply
Power Consumption:
  • 30~42 Watts, depending on the module
Dimensions:
  • 440 x 227 x 66.5 mm (17.3 x 9 x 2.6 inches) (W x H x D)
Weight:
  • 3.8 Kg. (8.4 lb.) without module
Operating Temperature:
  • 0° ~ 45° C (32° ~ 113° F)
Humidity:
  • Operating: 10% ~ 90% non-condensing
Certifications:
  • FCC Class A, CE & UL, cUL

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
