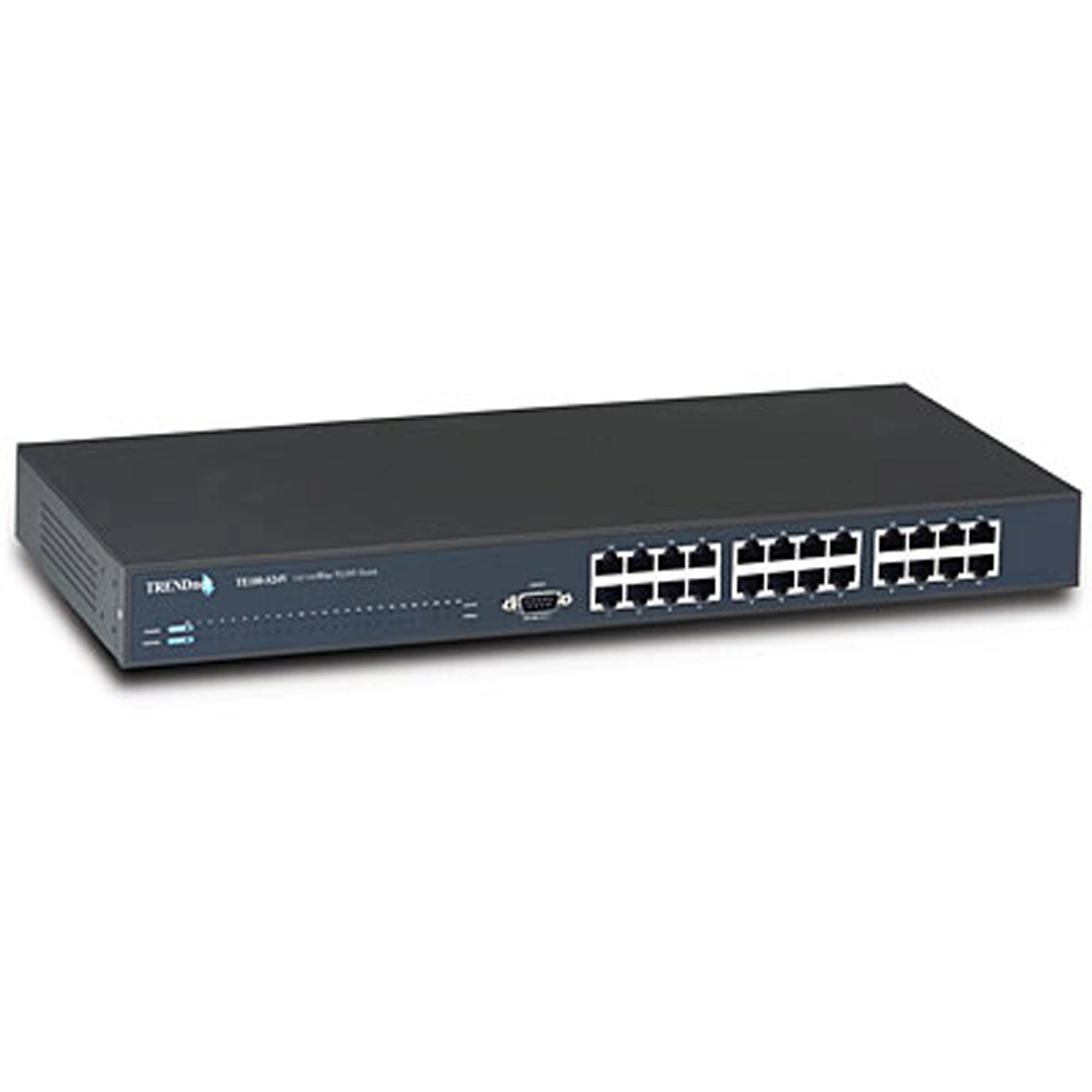

24-port 10/100Mbps Smart Switch

TE100-S24V

  • This 24 port high performance auto-sensing N-way switch automatically negotiates between 10Base-T and 100Base-TX network speeds
  • With Virtual Local Area Net-working (VLAN) this switch is powerful and easy-to-use in reducing unnecessary broadcast traffic, segmenting the network, and enhancing network security
  • This rack mount switch provides a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S24V  has been discontinued. It has been replaced by the TEG-S24g (Version v3.0R). For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-S24V.pdf
Data: 5/2/2013
Tamanho de arquivo: 198.32 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-S24V.pdf
Data: 8/20/2004
Tamanho de arquivo: 488.80 KB
Download
Hardware
LAN Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, 100Base-FX
Network Media:
  • Ethernet: UTP/STP Cat. 3, 4, 5
  • Fast Ethernet: UTP/STP Cat. 5
  • Fiber Module: 50/125 or 62.5/125um multimode fiber.
Protocol:
  • CSMA/CD
Topology:
  • Star
LAN Port:
  • 24 x 10/100Mbps Auto Negotiation, Auto-MDIX ports, 1 x expansion slot for 100Base-FX fiber module
Address Table:
  • 4K entries per device
Data Transfer Rate:
  • Ethernet: 10/20Mbps – Half/Full-Duplex
  • Fast Ethernet: 100/200Mbps – Half/Full Duplex
Diagnostic LEDs:
  • Per Unit: Power, System,
  • Per Port: TX: Link/Activity, Speed , FX: Link/Activity, FDX
Power Consumption:
  • 14 Watts. Max
Dimensions:
  • 440 x 200 x 44 mm (17.32 x 7.87 x 1.73 inches) (W x H x D)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • 10% ~ 90% (no-condensing)
Emission:
  • FCC Class A, CE Mark A, VCCI-A

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
