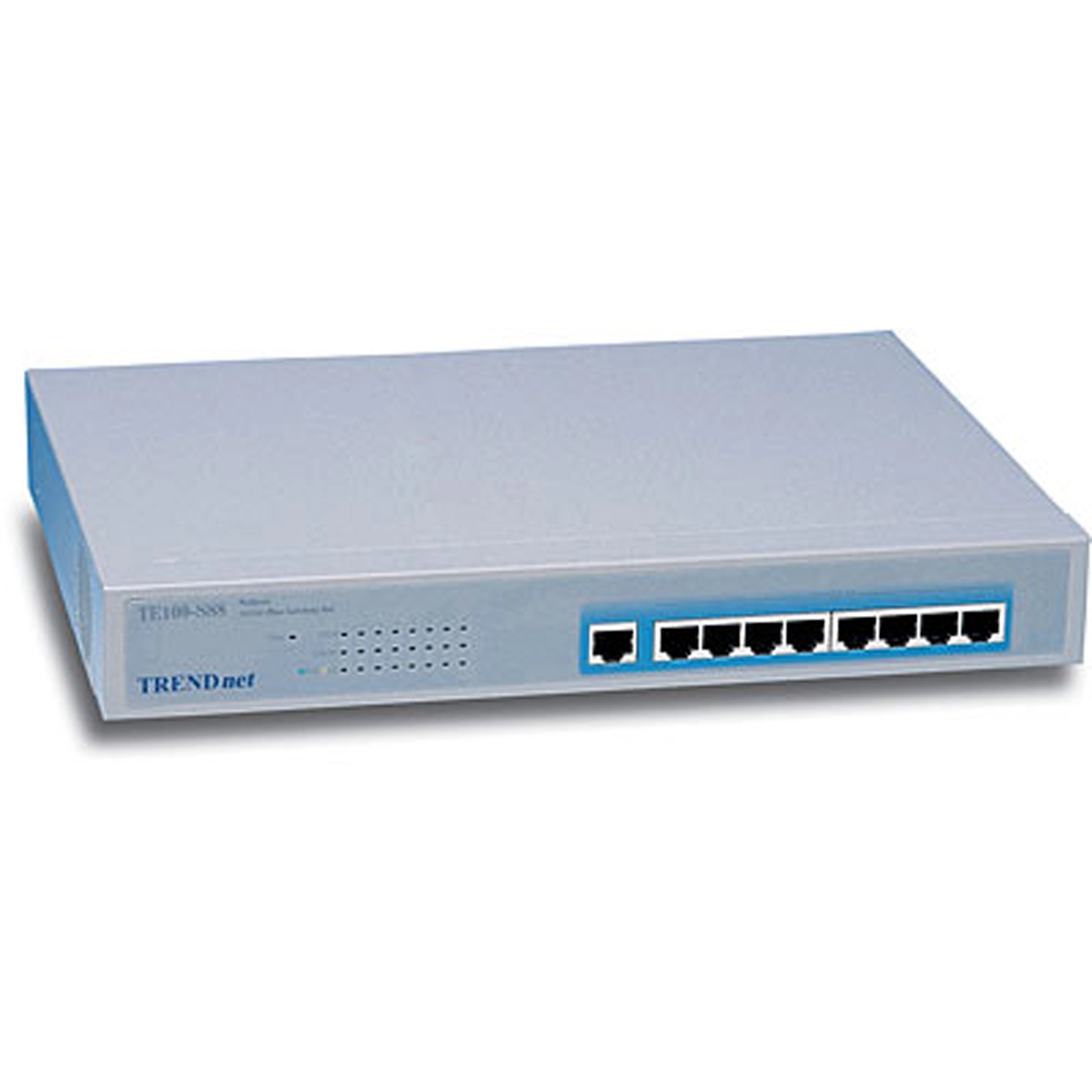

ProXpress 10/100Mbps Switching Hub

TE100-S88

  • This feature rich 10/100Mbps Ethernet switching hub includes 8 auto-sensing 10/100Mbpsports
  • This 19" rack-mountable hub provides 8 independent segments for 10Mbps and 100Mbps via switching technology
  • Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S88  has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-S88.pdf
Data: 5/2/2013
Tamanho de arquivo: 135.51 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-S88.pdf
Data: 8/20/2004
Tamanho de arquivo: 467.38 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX
Port:
  • 8 10/100Mbps ports (uplink port is shared with port 1)
Cabling:
  • Category 5 UTP/STP for 100Base-TX connections
  • Category 3, 4, or 5 UTP/STP for 10Base-T connections
Dimensions:
  • 324mm x 231mm x 43mm
Weight:
  • 2.5kg/5.5lbs
Power Consumption:
  • 40W (maximum)
Temperature:
  • Operating: 32°F to 122°F (0°C to 50°C)
  • Storage: -22°F to 140°F (-30°C to 60°C)
Humidity:
  • 5% to 95%, non-condensing
Emissions:
  • FCC Class A, Part 15; VCCI-1; CE
Certifications:
  • UL, CSA, and TUV/GS

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
