5-Port 100Base-TX Hub Starter Kit

TE100-SK1

  • Total solution for connecting two personal computers to enable them to share files, printers, fax servers, and/or email

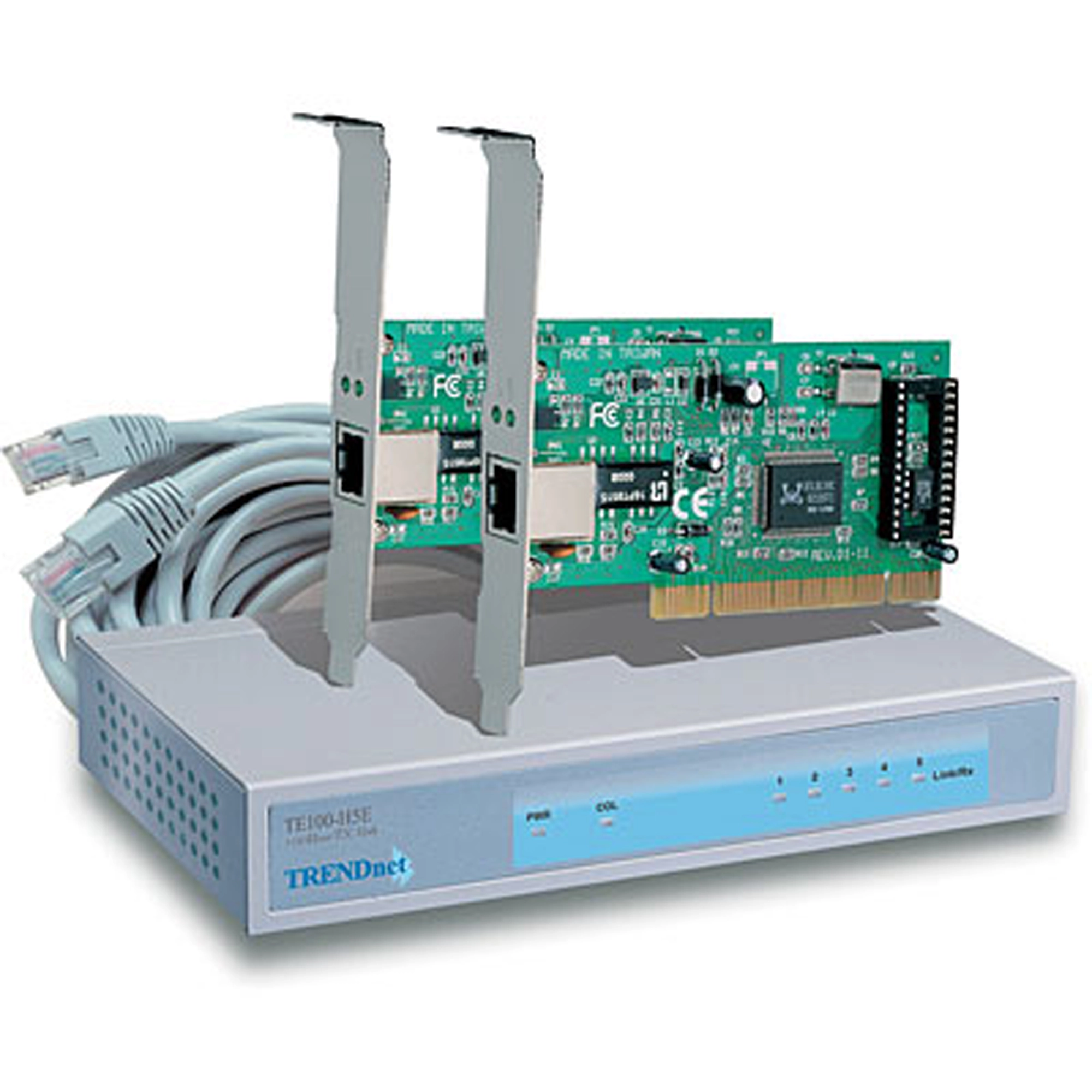

  • The TE100-SK1 features a 5-Port 100Base-TX hub and two 10/100Mbps fast Ethernet cards
  • There is enough room on the hub to add a server, network printer and a third personal computer

DISCONTINUED PRODUCT

The TE100-SK1  has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-SK1.pdf
Data: 5/2/2013
Tamanho de arquivo: 191.02 KB
Download Email
Hardware (TE100-H5E)
DC Input:
  • 12V, 800mA
Standards:
  • IEEE 802.3µ 100Base-TX standard
Power Consumption:
  • 10W max
Cabling:
  • EIA Category 5 STP/UTP
Uplink Port:
  • Shared port #1 (Slide Switch)
Weight:
  • 600 grams (excluding power adapter)
Dimensions:
  • 160 mm x 120 mm x 30 mm (LxWxH)
Operating Temperature:
  • 0° - 50° C
Certification:
  • FCC, UL, C-tick, CE
Hardware (TE100-PCIW)
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX
Data Transfer Rate:
  • 10 or 100Mbps /20 or 200Mbps (Full Duplex)
Topology:
  • Star
Diagnostic LED's:
  • ACT, LINK, 100, FDX

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
