GREENnet technology reduces power consumption by up to 70% when:*
Ethernet ports are not in use
Connected devices are turned off
Connected device are in power-saving modes
Based on Ethernet cable length
GREENnet technology requires feedback from the cable and the attached device. Please...
The TEG-S50g and TEG-S80g have Jumbo Frame support up to 9216Bytes
The TEG-S50g and TEG-S80g carry a 3 year limited warranty. Warranty disclaimer included with the product and available at www.TRENDnet.com....
The TEG-S50g and TEG-S80g are non-manageable switches. They are not configurable.

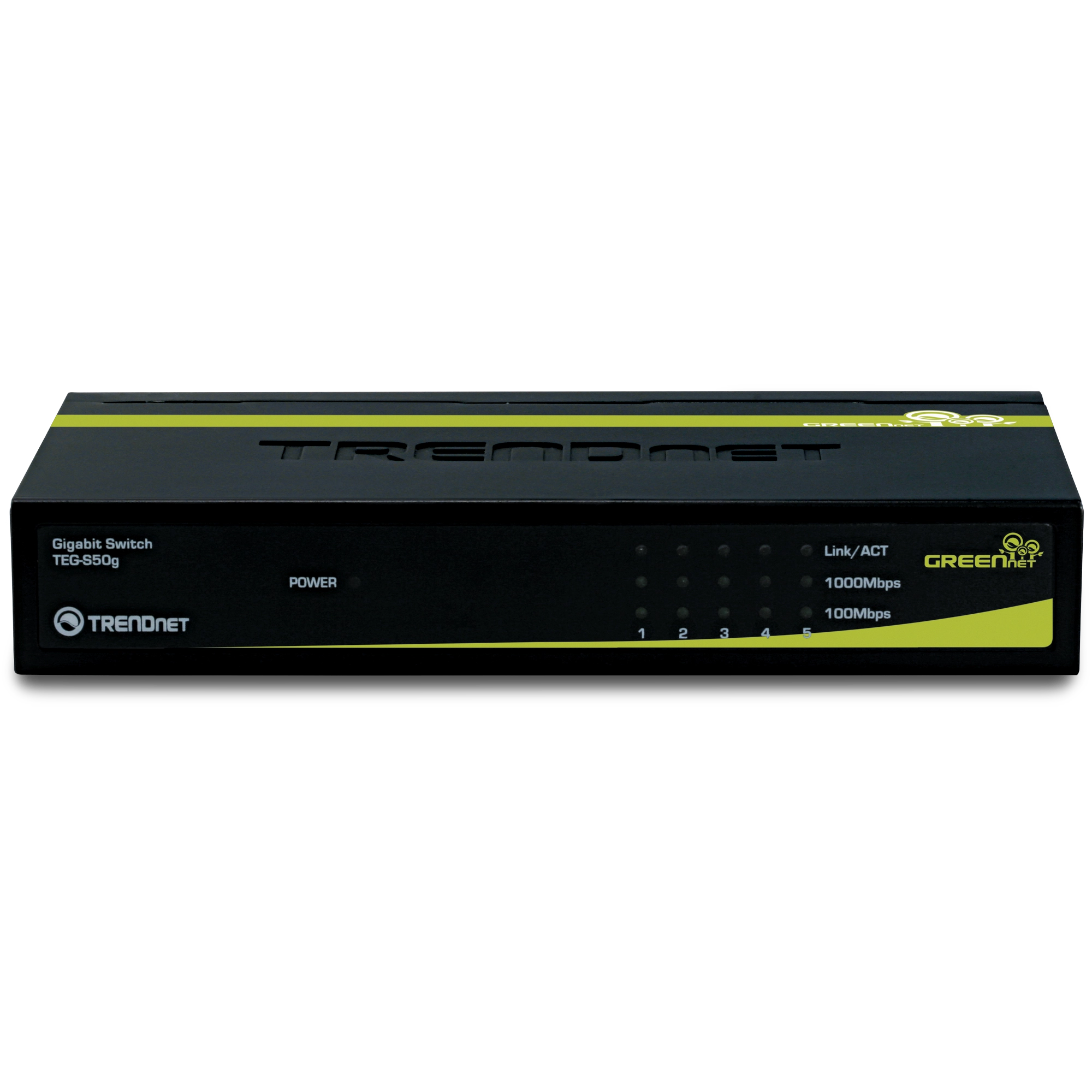

Power
Green: Power successfully applied to the switch
Not illuminated: No active power to the switch
LINK/ACT
Green (Solid): Successful link to a network device
Green (Blinking): Indicates network activity
Not illuminated: No physical connection to the port
100/1000M (T...
To share an Internet connection you will need a router. The switch can be utilized to expand the available ports on your existing router or network. ...
GREENnet technology reduces power consumption by up to 40% by turning off unused ports and intelligently providing power depending on the length of the Ethernet cable connected to active ports....
Hardware |
Standards | - IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3x Flow Control
|
---|
Network Media | - Ethernet: Cat. 3,4,5, up to 100m
- Fast Ethernet: Cat. 5, up to 100m
- Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
|
---|
Data Rate | - Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
- Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
- Gigabit Ethernet: 2000Mbps (Full-Duplex)
|
---|
Protocol / Topology | |
---|
Power Consumption | |
---|
Switch Fabric | - 10Gbps Forwarding Capacity
|
---|

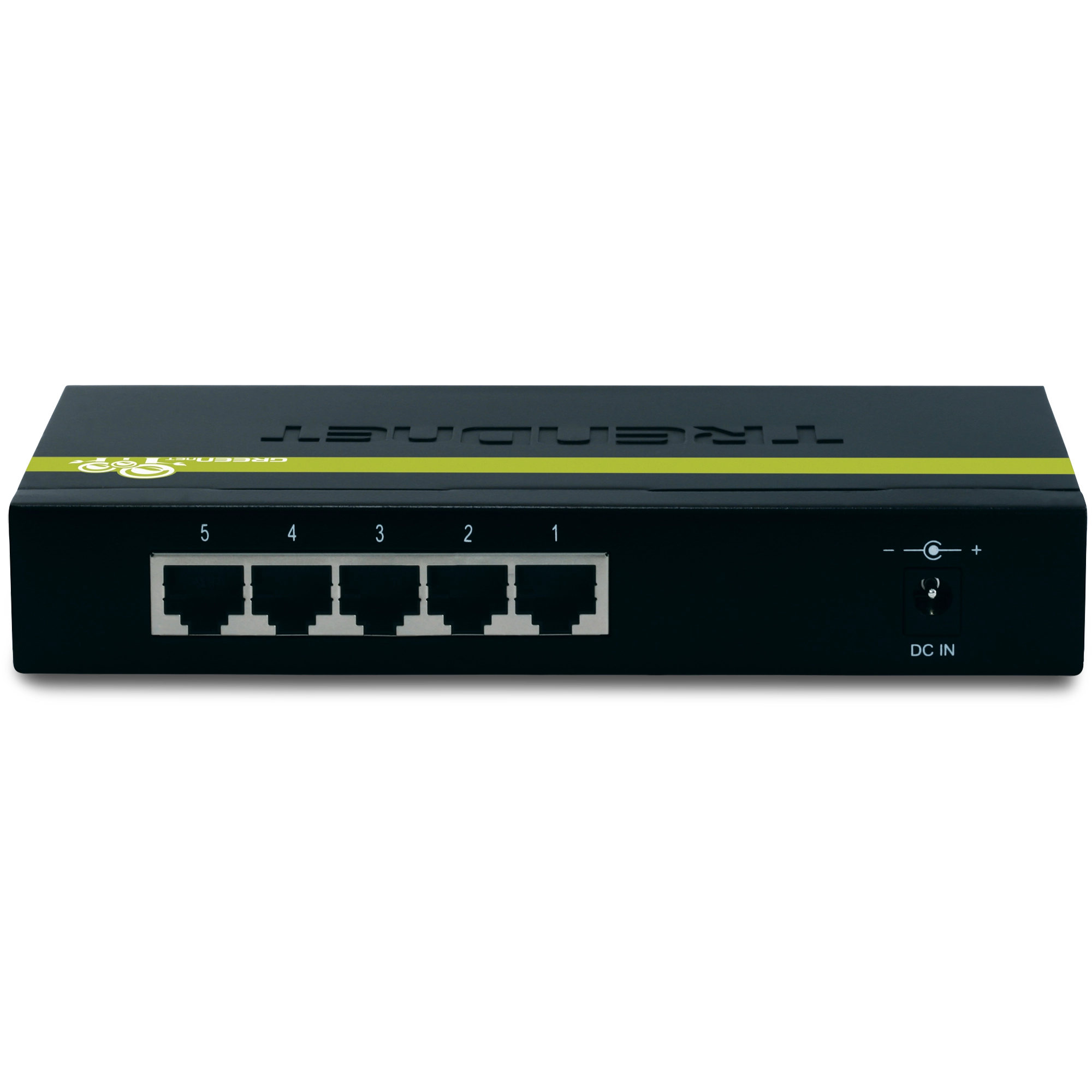

Interface | - 5 10/100/1000Mbps Auto-MDIX RJ-45 Ports
|
---|
Data RAM Buffer | |
---|
Filtering Table | |
---|
Diagnostic LED | - Power, Link/ACT, 100Mbps, 1000Mbps
|
---|
Power Adapter | - 7.5V DC, 1A external power adapter
|
---|
Dimension | - 171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
|
---|
Weight | |
---|
Temperature | - Operating: 0° ~ 40° C (32° ~ 104° F)
- Storage: -10° ~ 70° C (14° ~ 158° F)
|
---|
Humidity | |
---|
Certifications | |
---|
CONTEÚDO DA EMBALAGEM |
- TEG-S50g
- Multi-Language Quick Installation Guide
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
