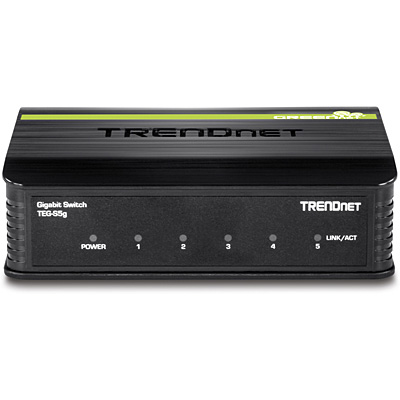

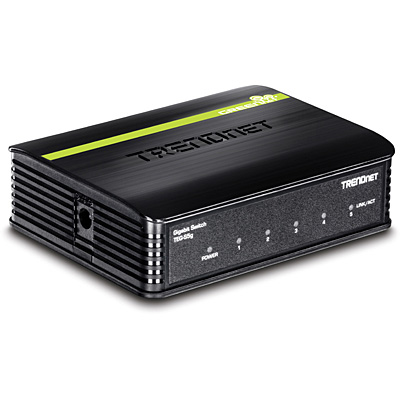

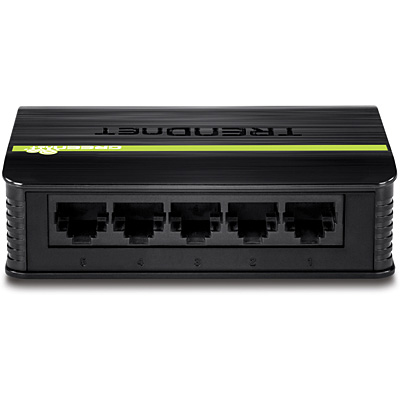

5-Port Gigabit GREENnet Switch

TEG-S5g (Version v4.0R)

  • Plug and Play installation
  • 5 x Gigabit ports
  • 10Gbps switching capacity
  • Up to 70% energy savings with GREENnet technology*

The 5-Port Gigabit GREENnet Switch, model TEG-S5g, provides high bandwidth performance, ease of use, and reliability, while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting.

A hand with 5-port Ethernet switch above it emphasizing the small size.

Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.

Diagram of a network switch with multiple ports, showcasing gigabit speeds and the ability to handle jumbo frames up to 9KB. Icons for music, files, and video are shown moving through the network, indicated by bidirectional arrows and port symbols.

Gigabit Speeds

Five gigabit ports provide high-speed network connections to devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks

An illustration of a network switch with multiple ports labeled Flex-Power. To the right, there is a gradient blue arrow pointing to the right, indicating variable power distances. The distances are marked at three points along the arrow: 20m, 60m, and 100m.

Energy Savings

Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization.

На иллюстрации слева изображен стол со стулом перед ноутбуком. В центре находится устройство с маркировкой TEG-S5g, сетевой коммутатор с несколькими портами Ethernet. Справа находится маршрутизатор с несколькими портами Ethernet. Крайний справа на подставке стоит монитор. В соответствии с конфигурацией ноутбук и монитор должны быть подключены к сетевому коммутатору и маршрутизатору, что облегчает подключение к Интернету и сети.

Plug and Play

Simply power up the switch and plug in connected devices

Ports

5 x Gigabit Ethernet ports

Switching Capacity

10Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Fanless

Fanless design lowers energy consumption and reduces operating noise

LED Indicators

LEDs convey power, link and activity

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 5 x Gigabit Ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data Ram Buffer: 128KB
  • Switch Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo frame: 9KB
Special Features
  • GREENnet energy saving technology
  • Input: 90 - 260 V AC, 50/60 Hz, 0.2 A
  • Output: 5 V DC, 1 A
  • Consumption: 3.68 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 140 x 76 x 27.5 mm (5.5 x 3 x 1.1 in.)
Weight
  • 153.4 g (5.4 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

Содержимое упаковки
  • TEG-S5g
  • Quick Installation Guide
  • Power Adapter (5 V DC, 1 A)

Все значения скорости приведены только в целях сравнения. Технические характеристики, размер и форма продукта могут быть изменены без предварительного уведомления, а фактический внешний вид продукта может отличаться от описанного в настоящем документе.
