Log in to the TV-IP302PI by entering https://192.168.10.30 into the address bar of your browser.

You will be prompted to log in to the camera. The default username is admin and the password is the one created during the initial installation.

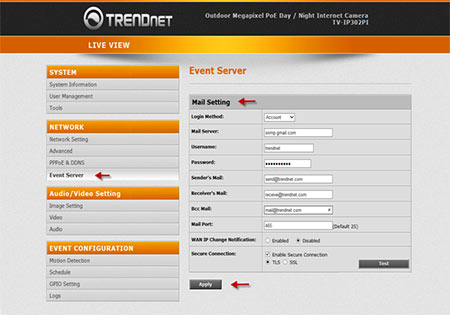

Click Setup > Event Server, enter your Mail Settings and click Apply.

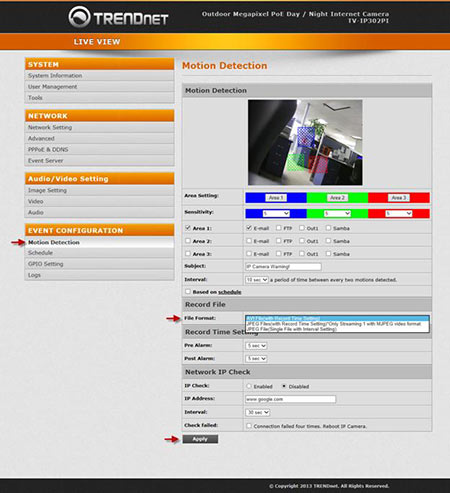

Click Motion Detection then enable the E-mail featurein the motion detection window you want to use to trigger emails then click Apply. You can choose multiple areas to trigger emails based on motion detected events.

You can select from 3 different file formats in which to receive when a motion event is triggered. Once you have selected the file format click Apply.

AVI File (with Record Time Setting): Save AVI video file. The video length is determined by the value set in the Record Time Setting section.

JPEG File (Single File with Interval Setting): Save a single JPEG image file when event is triggered.

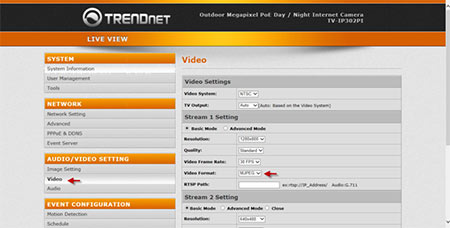

JPEG Files (with Record Time Setting): Option available when you have MJPEG selected as your video format. You can change your video format under Video > Stream 1 Settings.

Select this option to save several JPEG image files, and the successive image files over a period of time determined by the value set in the Record Time Setting section.
