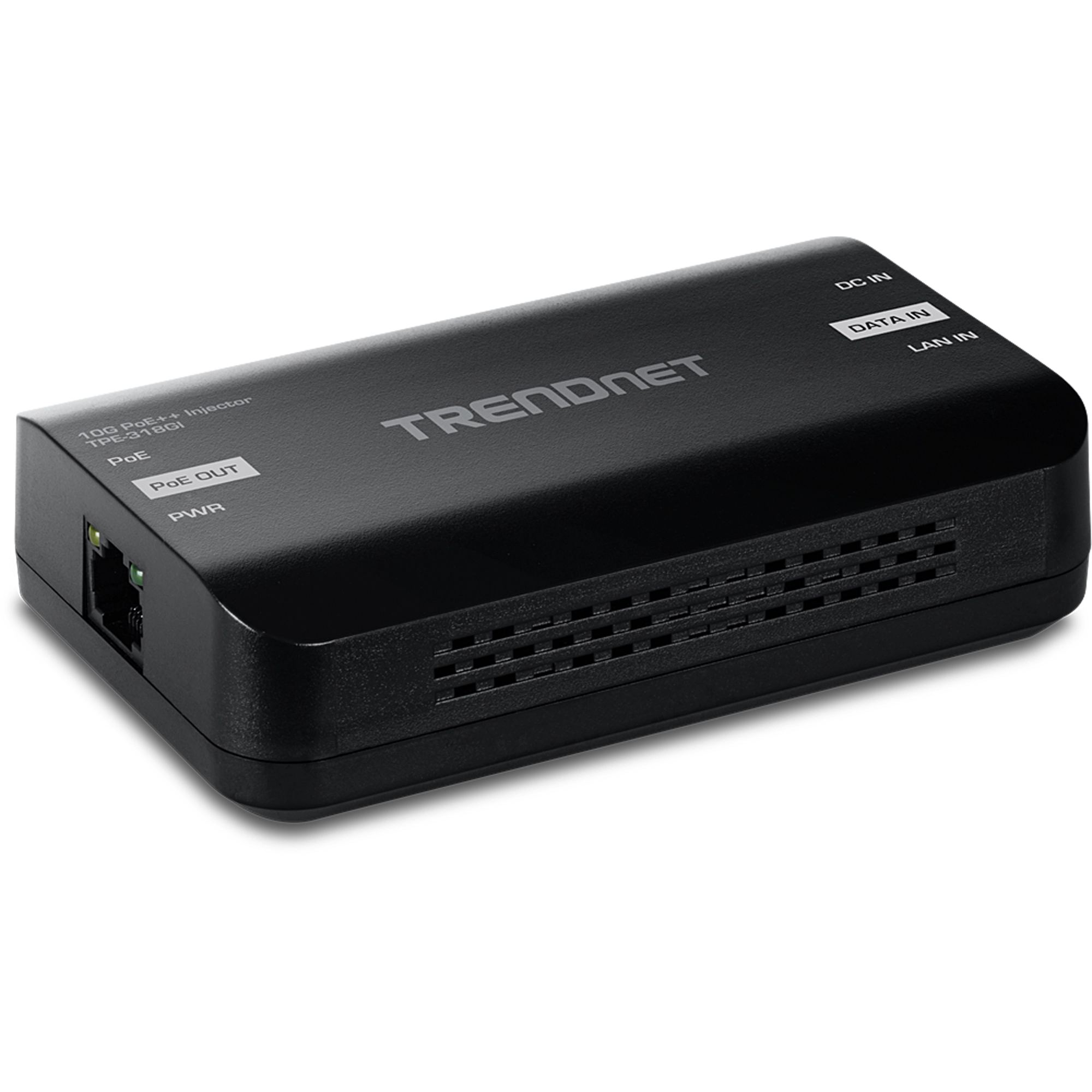

10G PoE++ Injector

TPE-318GI (Version v1.0R)

Converts a non-PoE port to a PoE++ 10G port
Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
10GBASE-T compliant
Network a PoE device up to 100m (328 ft.) over Cat6A or better cabling
Save on installation and equipment costs
IEEE 802.3af, 802.3at, and 802.3bt compliant
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s 10G PoE++ Injector, model TPE-318GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

A 10G PoE++ injector powering a PoE++ access point with up to 90W, connected to a non-PoE switch.

PoE++

The 10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

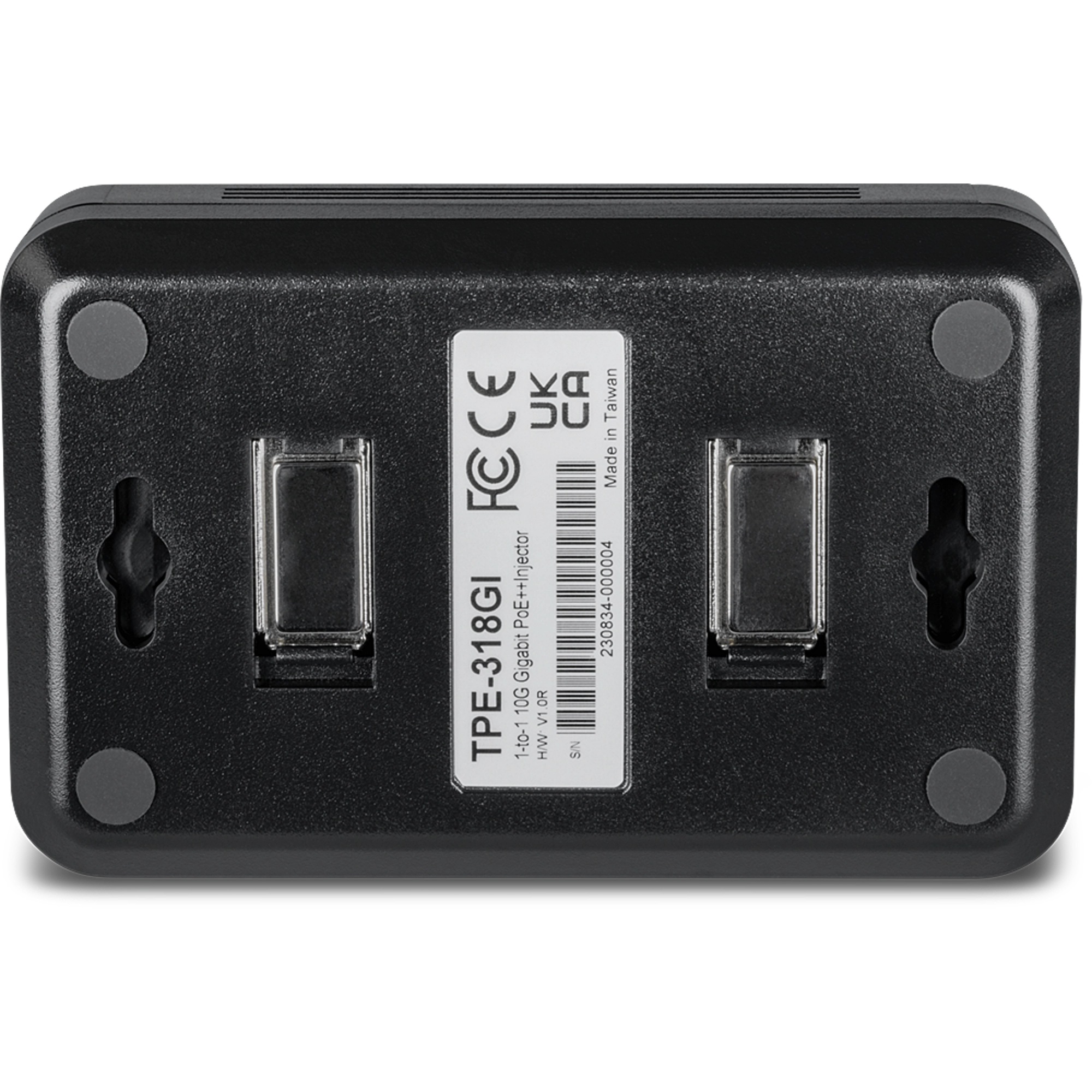

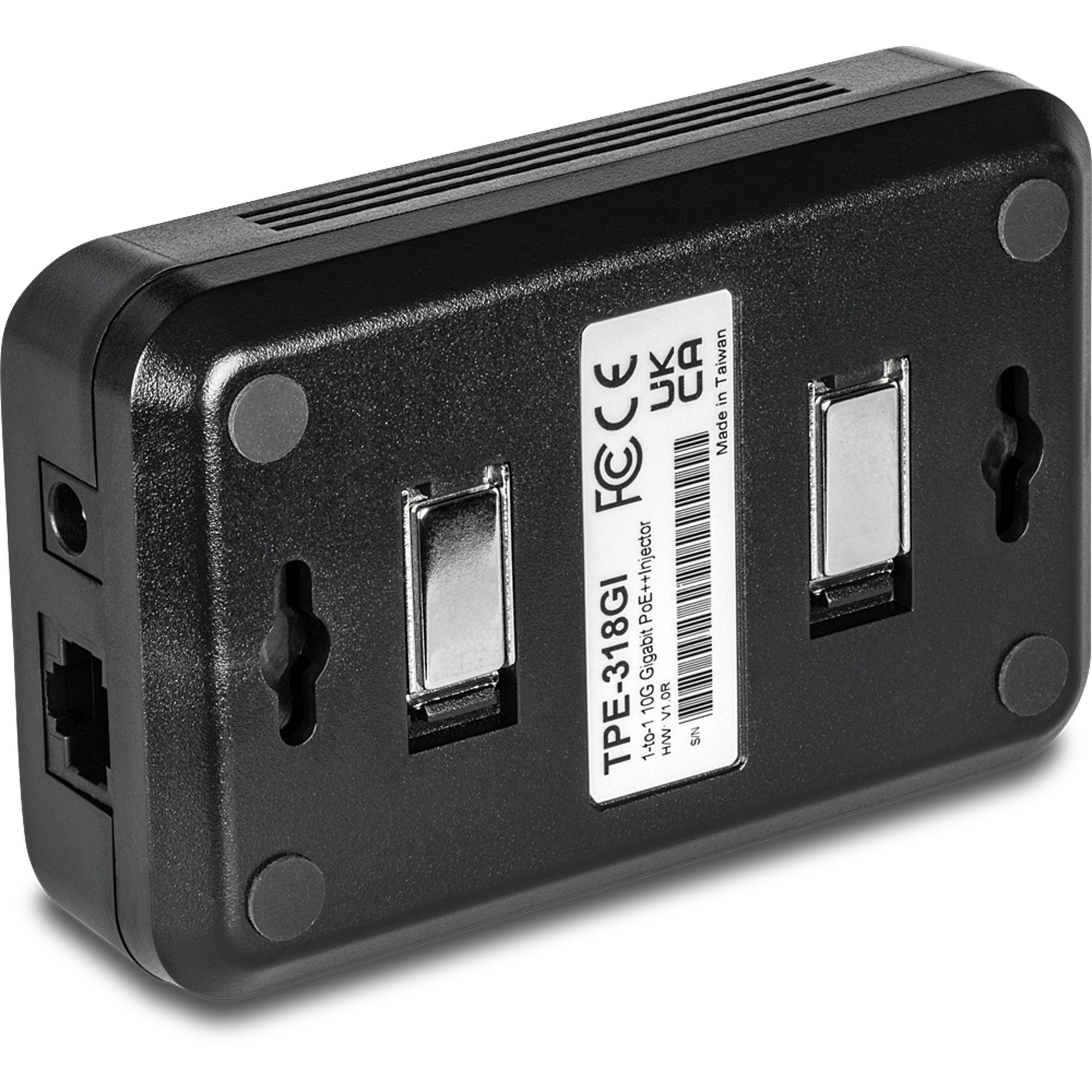

A 10G PoE++ injector with a magnetic wall mount, shown attached to a surface with a magnet icon indicating flexible installation.

Installation Flexibility

Magnetic wall-mount design enclosure accommodates most installations scenarios.

Internet speed gauge showing 10000 Mbps transfer rate.

10G Speeds

Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6A or better cabling.

The illustration shows a TRENDnet 10G PoE++ Injector, highlighting its ports and connections. The top section displays the injector with labeled ports: 10G Data In Port, Power, 10G Data + PoE++ Out Port, and LED Indicators. The bottom section illustrates a setup where the injector connects a 10G Non-PoE Switch to a wireless access point, providing both data and power. The diagram includes labels for the connections: Data from the switch to the injector and Data + PoE from the injector to the access point. The setup is depicted in a reception environment with furniture and plants, emphasizing the practical application of the device in providing network connectivity and power to devices.

PoE++

10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power

Easy Installation

Simply connect the 10G PoE++ injector to your switch and PoE device – no configuration needed

Installation Flexibility

Magnetic wall-mount design accommodates most installations scenarios

10G Ports

1 x 10G port (data) and 1 x 10G PoE++ port (data + power)

PoE Distance

Provides a PoE++ network connection up to 100m (328 ft.) over Cat6A or better cabling

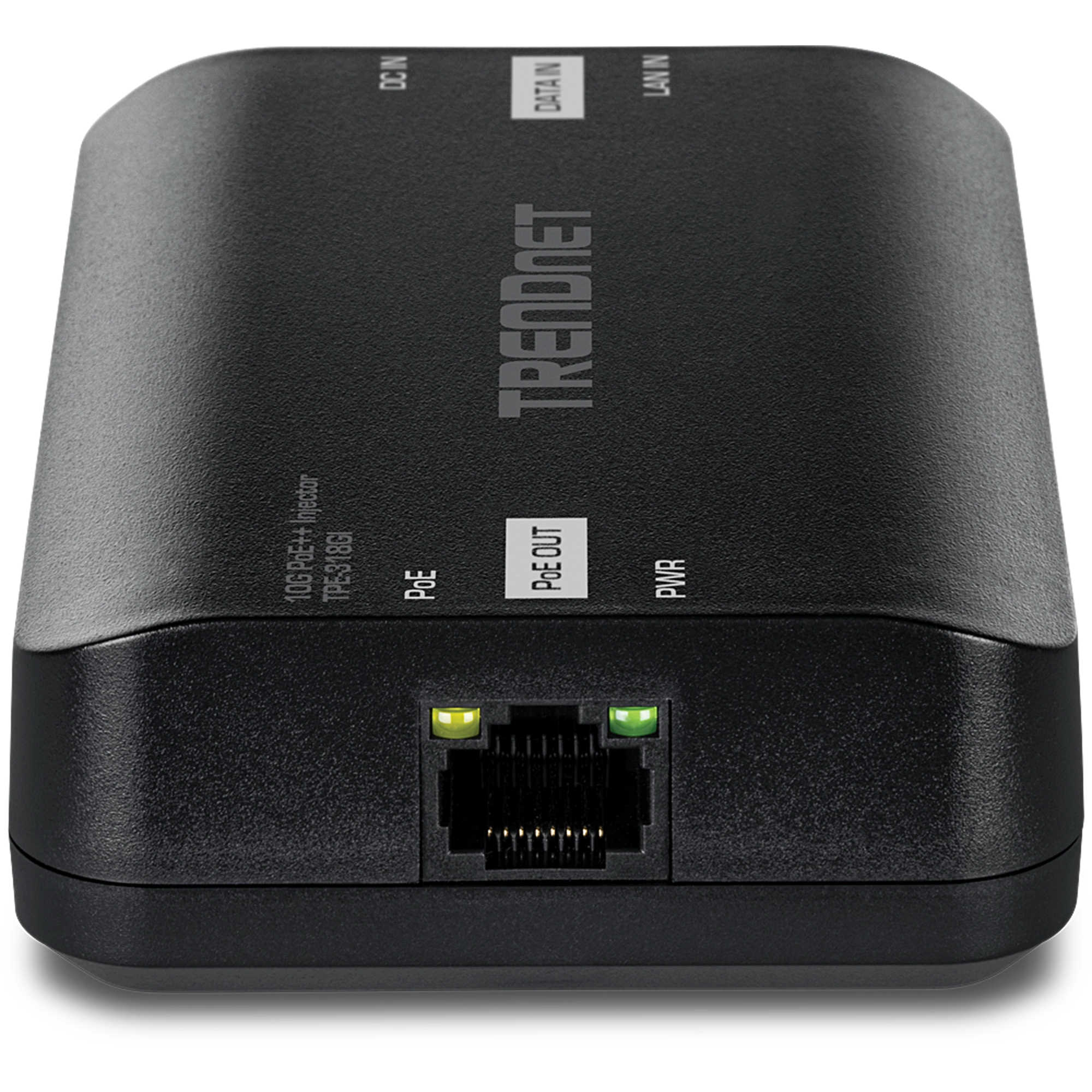

LED Indicators

LED indicators on the 10G PoE++ injector confirm PoE and network connectivity

Auto-Sensing Technology

Featuring auto-sensing technology, the 10G PoE++ injector conveniently delivers the correct wattage needed to power your PoE, PoE+, or PoE++ devices

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3an IEEE 802.3at IEEE 802.3bt IEEE 802.3bz
Device Interface	1 x 10GBASE-T port (data) 1 x 10GBASE-T PoE++ port (data + power)
Throughput & Distance	Cat5e Cabling: 2.5Gbps @ 100m (328 ft.) Cat6 Cabling: 10Gbps @ 50m (164 ft.)* Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
PoE Budget	Max. 90W
Power Consumption	Max. 0.7W (without PD)
Temperature	0° – 50° C (32° – 122° F)
Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	109.7 x 70 x 28.6mm (4.3 x 2.8 x 1.1 in.)
Weight	672g (1.48 lbs.)
Warranty	3 year

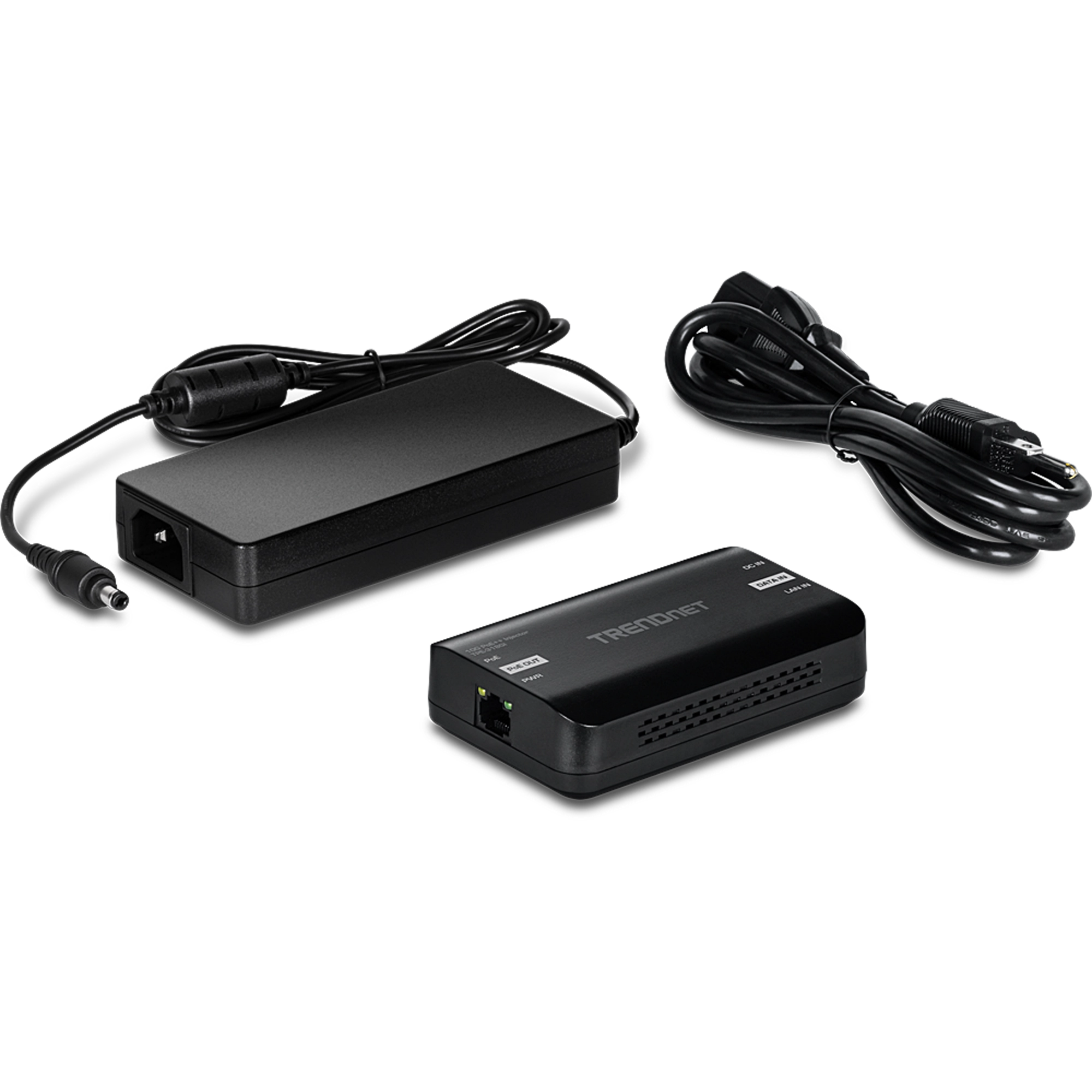

PACKAGE CONTENTS

TPE-318GI
Quick Installation Guide
Power adapter (54V DC, 1.67A)

*Maximum distance of Cat6 and Cat6a cabling are references to IEEE 802.3an standard. Actual data throughput and distance will vary depending on the quality of the cable.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
