10G PoE++ Injector

TPE-319GI (Version v2.0R)

  • Converts a non-PoE port to a PoE++ 10G port
  • Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
  • 10GBASE-T compliant
  • Integrated power supply
  • Network a PoE device up to 100m (328 ft.) over cat6a or better cabling
  • Save on installation and equipment costs
  • IEEE 802.3af, 802.3at, and 802.3bt compliant
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 10G PoE++ Injector, model TPE-319GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over cat6a or better cabling. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Network Diagram of a PoE++ Injector connected into a Non-PoE Switch and Poe + Wireless Access Point with Up to 90W of power.

PoE++

The 10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

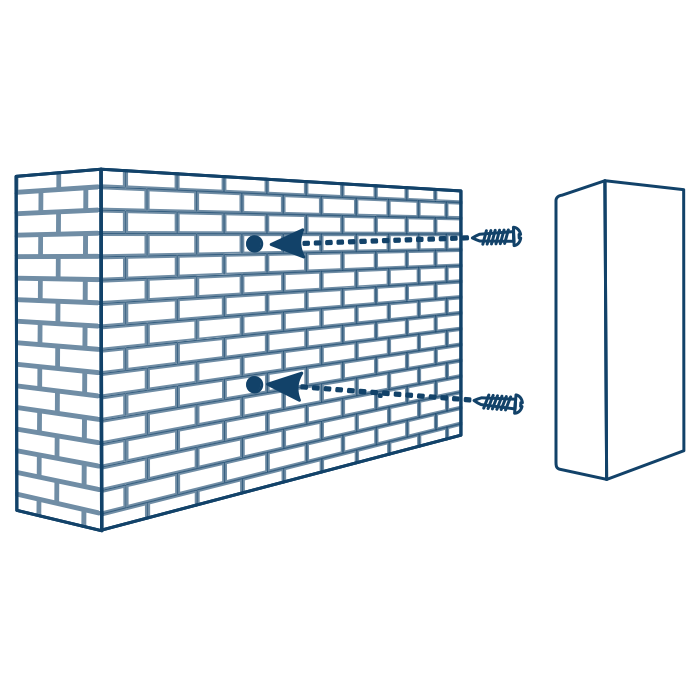

An illustration of a PoE++ Injector with an arrow pointing toward a wall.

Installation Flexibility

Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios.

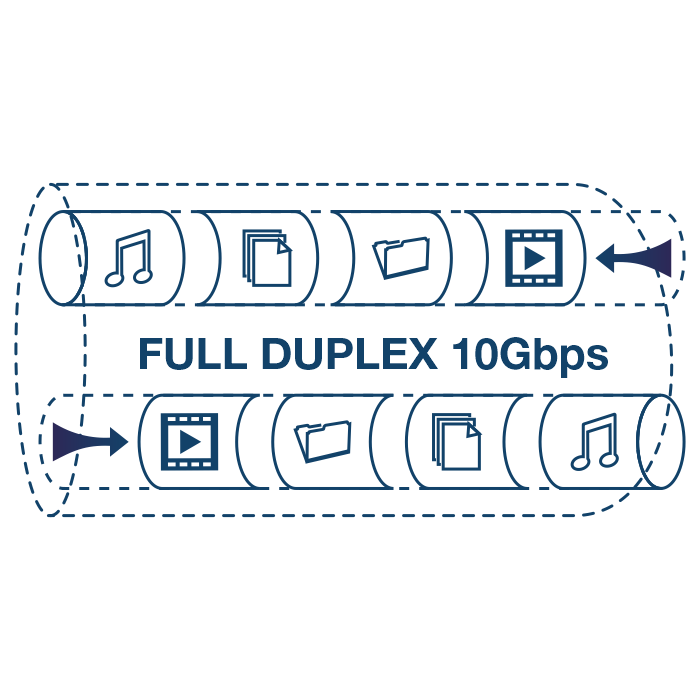

Illustration of a network cable labeled Full Duplex 10Gbs with icons representing music, video, gaming, data transfer moving through the network.

10G Speeds

Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6a or better cabling.

A network setup in a public space, such as a lobby or waiting area. It includes a PoE+ Access Point connected via an orange cable labeled Data + PoE to a 10G PoE++ Injector TPE-319GI. The injector is connected to a power outlet with a blue cable labeled Power. Additionally, the injector is connected to a Non-PoE Switch with a black cable labeled Data. The scene includes various people, such as a family, individuals at a reception desk, and people sitting on benches, indicating a busy environment where network connectivity is essential. The setup highlights the use of Power over Ethernet (PoE) technology to provide both data and power to the access point, ensuring seamless internet connectivity in the area.
A device with front and back views. The front displays two ports labeled PoE and DATA. The PoE port is a 10GBASE-T PoE++ port that supports both data and power, while the DATA port is a 10GBASE-T port that supports data only. LED indicators next to the ports are labeled LAN PORT and POWER. The back view shows an integrated power supply with an AC input labeled 100-240VAC 50/60Hz 2.0A MAX.

PoE++

10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power

Easy Installation

Simply connect the 10G PoE++ injector to your switch and PoE device – no configuration needed

Installation Flexibility

Wall-mount design and a sturdy metal housing accommodates most installations scenarios

10G Ports

1 x 10G port (data) and 1 x 10G PoE++ port (data + power)

PoE Distance

Provides a PoE++ network connection up to 100m (328 ft.) over cat6a or better cabling

LED Indicators

LED indicators on the 10G PoE++ injector confirm PoE and network connectivity

Auto-Sensing Technology

Featuring auto-sensing technology, the 10G PoE++ injector conveniently delivers the correct wattage needed to power your PoE, PoE+, or PoE++ devices

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3an
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 1 x 10GBASE-T port (data)
  • 1 x 10GBASE-T PoE++ port (data + power)
Throughput & Distance
  • Cat5e Cabling: 1Gbps @ 100m (328 ft.)
  • Cat6 Cabling: 10Gbps @ 50m (164 ft.)*
  • Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
PoE Budget
  • Max. 90W
Power Consumption
  • Max. 0.7W (without PD)
Temperature
  • 0 – 40° C (32 – 104° F)
Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • ETL
Dimensions
  • 193 x 82 x 38mm (7.6 x 3.2 x 1.5 in.)
Weight
  • 672g (1.48 lbs.)
Warranty
  • 3 year

PACKAGE CONTENTS

  • TPE-319GI
  • Quick Installation Guide
  • Power cord

*Maximum distance of Cat6 and Cat6a cabling are references to IEEE 802.3an standard. Actual data throughput and distance will vary depending on the quality of the cable.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
