10 Gigabit PCIe SFP+ Network Adapter

TEG-10GECSFP (Version v3.0R)

  • Converts a PCIe slot into a 10G SFP+ Slot
  • Supports 802.1Q VLAN Tagging
  • Includes standard and low-profile brackets
  • Windows® and Linux® support
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet's 10 Gigabit PCIe SFP+ Network Adapter, model TEG-10GECSFP, converts a free PCI Express slot into a 10 Gigabit SFP+ slot. The 10G SFP+ PCIe adapter includes advanced features such as jumbo frame and VLAN tagging support. The included standard and low profile brackets are compatible with Windows® and Linux® desktop computer designs.

Illustration of a PCIe Network Adapter with two desktop computers connected to a network switch, highlighting the adapter’s role in providing network connectivity.

10G SFP+

10G SFP+ PCIe adapter provides one SFP+ slot for high speed 10 Gigabit fiber connectivity

Illustration of a network tunnel labeled ‘JUMBO FRAME UP TO 9KB’ with icons for music, film, and images, indicating data transfer.

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

Three computers, including a desktop, server, and laptop, connected in a circular arrangement, representing compatibility with various operating systems.

Operating Systems

Compatible with Windows, Windows Server, and Linux operating systems.

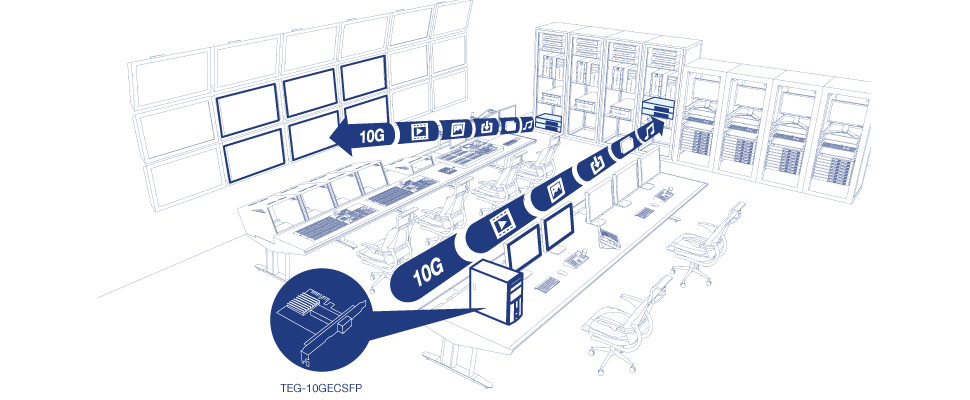

A control room setup with multiple computer monitors arranged on desks and several server racks in the background. The setup includes two highlighted paths labeled 10G, connecting the servers to the monitors. There is also a close-up of a network interface card labeled TEG-10GECSFP, used to facilitate these high-speed connections.

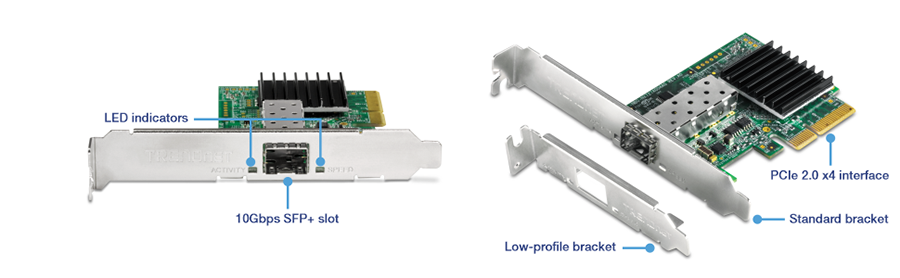

A network interface card (NIC) with various labeled components. The left side of the NIC highlights the LED indicators and the 10Gbps SFP+ slot. The right side shows additional components, including a PCIe 2.0 x4 interface, a standard bracket, and a low-profile bracket. This image provides a detailed view of the NIC's components and their functions, useful for installation and use in a computer system.

10G SFP+

10G SFP+ PCIe adapter provides one SFP+ slot for high speed 10 Gigabit Ethernet connectivity

PCI Express

Converts a PCIe 2.0 x4 slot into a 10G SFP+ slot

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

VLAN Support

IEEE 802.1Q tagged-based VLAN support

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows, Windows Server, and Linux operating systems.

LED Indicator

LED indicator conveys status and activity

Standards
  • IEEE 802.1Q
  • IEEE 802.3ae
  • IEEE 802.3x
  • IEEE 802.3bz
  • IEEE 802.3u
Hardware Interface
  • PCIe 2.0 x4 interface
  • 1 x 10Gbps SFP+ slot (Supported speeds: 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps) (SFP+ modules sold separately: TEG-10GBSR, TEG-10GBS10, TEG-10GBS40)
  • LED indicator
Data Transfer Rate
  • SFP: 1000Mbps (full duplex), 10Gbps (full duplex)
Compatibility
  • Windows® 10, 8.1, 8, 7
  • Windows® Server 2012, 2012 R2, 2008, 2008 R2
  • Linux® 2.6.x, 3.x.x, 4.6.x or later
  • Microsoft® Hyper-V
  • Oracle® VirtualBox
Jumbo Frames
  • Up to 16KB
Special Features
  • 10G SFP+ for high speed network connectivity
  • Compatible with standard 10G SFP+ modules and Direct Attach Copper (DAC) cables
  • Windows Server support
  • Microsoft® Hyper-V hypervisor support for virtualization
Additional Support
  • 802.1Q VLAN Tagging
  • Microsoft Scalable Networking
  • Receive-side scaling (RSS)
  • Message Signaled Interrupts (MSI)
  • IP, TCP, and UDP checksum offloading
  • Minimize overhead with reduced host bus traffic and CPU utilization
Power
  • Max. Consumption: 1.5W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 87 x 62 x 18mm (3.4 x 2.4 x 0.7 in.)
Weight
  • 58g (2 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEG-10GECSFP
  • Quick Installation Guide
  • Standard & low-profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
