8-Port 10G Switch

TEG-S708 (Version v1.0R)

8 x 10G RJ-45 ports
Compatible with existing Cat6A or better cabling
160Gbps switching capacity
Rack mountable
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

TRENDnet’s 8-Port 10G Switch, model TEG-S708, is a multi-gig switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TEG-S708 multi-gig switch offers eight dedicated 10G ports for high-speed network connections with a 160Gbps switching capacity and a sturdy, rack mountable metal housing. This 10G switch is a cost-effective switch solution for high-speed 10 Gigabit network connections.

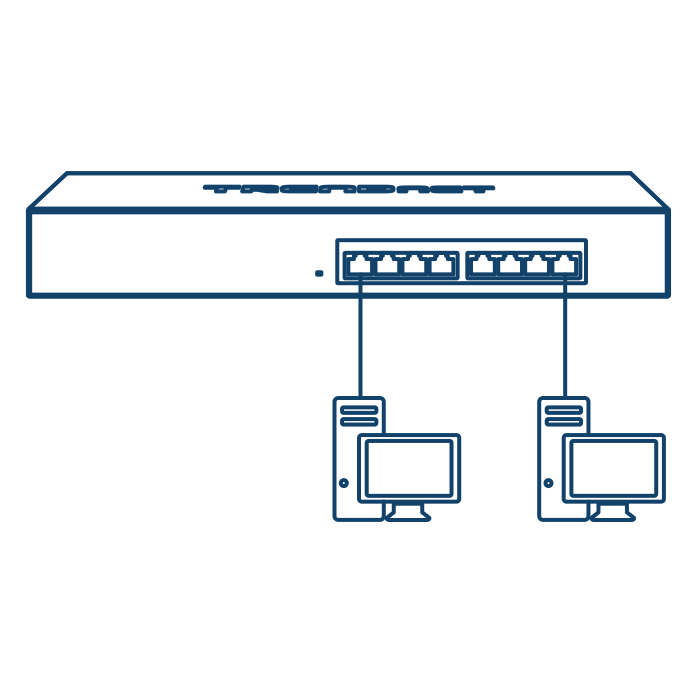

This illustration shows a network switch with two CPUs connected to it via lines.

10G Ports

Eight 10G ports for high-speed network connections provide a cost-effective solution in adding 10G link capability.

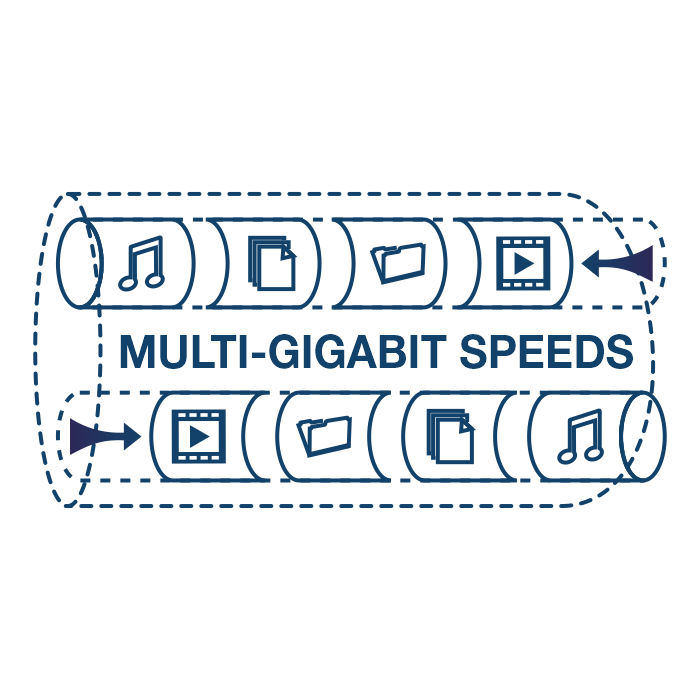

Illustration of a network cable labeled MULTI-GIGABIT SPEEDS with icons representing music, video, data transfer moving through the network.

2.5G/5G Support

Supports 2.5G/5GBASE-T RJ-45 multi-gigabit speeds capable of up to 2.5Gbps or 5Gbps over existing Cat5e or better cabling.

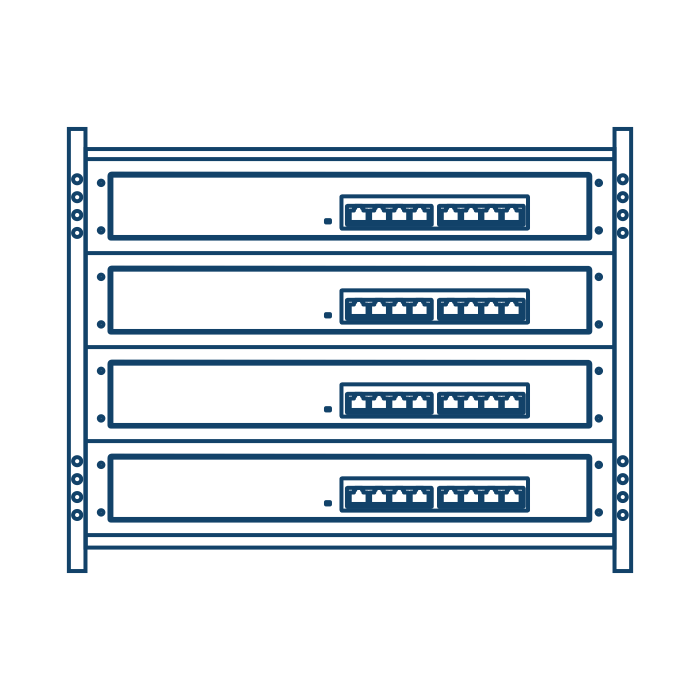

An illustration of a rackmount with four switches installed.

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.

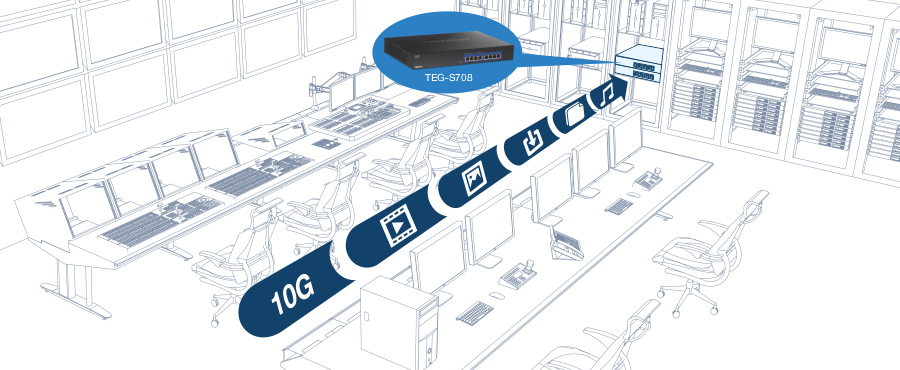

Illustration of a network server room with an arrow featuring icons for 10G, Media, Image, Download, File, and Music, pointing into a switch on a rack with a zoomed view of TEG-S708.

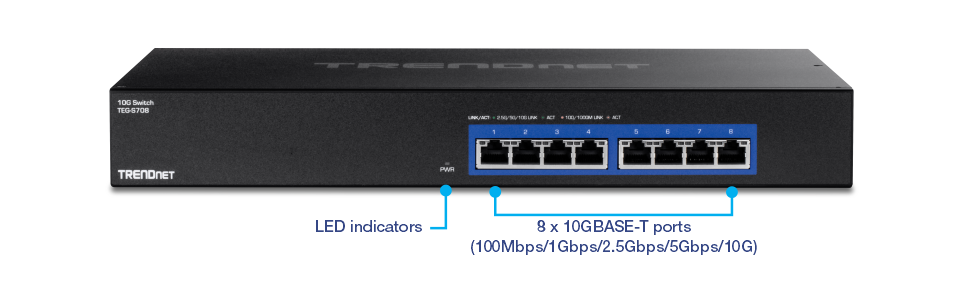

Front view of 8-Port 10G Switch TEG-S708 with labels for LED indicators and 8 x 10GBASE-T ports (100Mbps/1Gbps/2.5Gbps/5Gbps/10G).

Network Ports

Provides 8 x 10G ports for high-speed network connections

10G Ports

Connect 10GBASE-T supported devices at 10Gbps for increased throughput over existing Cat6A or better cabling

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Rack Mountable

Sturdy metal housing with rack mountable design for greater installation flexibility

LED Indicators

LED indicators conveniently convey port status

Standards	IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3an IEEE 802.3bz
Device Interface	8 x 10GBASE-T ports (1Gbps/2.5Gbps/10G) LED indicators
Data Transfer Rate	Gigabit: 2000Mbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex) 10 Gigabit: 20Gbps (full duplex)
Performance	Switching Capacity: 160Gbps RAM Buffer: 1.5MB MAC Address Table: 16K entries Forwarding Rate: 115.9Mpps (64-byte packet size) Jumbo Frames: 12KB
Special Features	Rack Mountable
Power	Input: 100 – 240V AC, 50/60 Hz, 0.5A, internal power supply Max. Consumption: 36.8W
Fan/Acoustics	Quantity: 1 Noise Level: 52.2dB(A) (max.)
MTBF	674,176 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	326 x 230 x 43mm (12.83 x 9.05 x 1.69 in.)
Weight	414g (14.6 oz.)
Certifications	FCC CE ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S708
Quick Installation Guide
Power Cord (1.5m / 4.9 ft.)
Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
