16-Channel HD PoE+ NVR

TV-NVR216 (Version v1.0R)

Standalone 16-channel PoE+ network video recorder
Plug and play up to 16 TRENDnet PoE cameras*
Concurrent 1080p video recording for all channels
Two 3.5” SATA II bays support up to a 12 TB of storage (6 TB per bay, HDDs sold separately)
Over three weeks of continuous HD video recording**
Advanced video playback
Rack mount hardware included
PoE power budget: 200W
Supports ONVIF compliant network camera

DISCONTINUED PRODUCT

The TV-NVR216 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's standalone 16-channel HD PoE+ NVR, model TV-NVR216, offers a comprehensive rack mountable camera management solution. The NVR networks and powers up to sixteen PoE cameras*. Install up to 12 terabytes of storage (hard drives sold separately) to record over three weeks of continuous video from sixteen HD PoE cameras**. The TV-NVR216 features advanced video playback and comes with a free iOS^®/Android^™ app.

The illustration shows a computer monitor displaying REC in bold letters, with a network video recorder (NVR) positioned below it. The NVR has multiple ports and connectors for audio, video, USB, network, and power connections, indicating an active security and surveillance recording setup.

Standalone HD NVR

This standalone 1080p HD NVR supports a total storage capacity of up to 12 TB and powers up to sixteen PoE network cameras-HDDs, cameras, and display sold separately.

A network setup features a PoE NVR with multiple ports, including PoE ports, connected to a security camera. The back panel of the switch shows various ports and connectors such as VGA, HDMI, USB, power, and audio. The illustration emphasizes the connection between the PoE switch and the camera, highlighting the simplicity of powering and networking the camera through the PoE NVR.

Plug, Play, & Power

The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video

The sequence shows three main elements connected by arrows. On the left, a panel features buttons labeled REC, a play button, and a pause button. In the center, a monitor displays playback control icons including play, pause, forward, and backward. On the right, there is a calendar interface with selectable dates, visually representing the process of managing recording schedules, playback controls, and viewing preferences.

Intuitive Interface

Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.

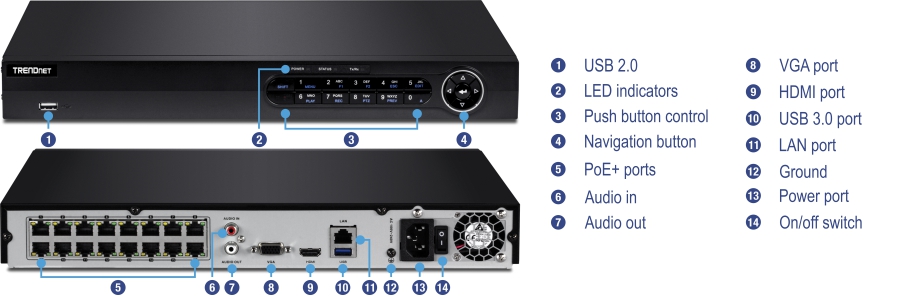

A TRENDnet device with labeled ports and controls. The front panel includes a USB 2.0 port, LED indicators, push button control, and a navigation button. The back panel features PoE+ ports, audio in and out, VGA, HDMI, USB 3.0, LAN, ground, power, and an on/off switch.

PoE+ Ports

Plug and play TRENDnet PoE network cameras* to the sixteen PoE+ ports with a total power budget of 200W

Storage

Two 3.5” SATA II bays support up to 12 TB of total storage (6 TB per bay, HDDs sold separately)

Network Uplink Port

Gigabit Ethernet network uplink port

Display Interface

HDMI and VGA interfaces

Audio Ports

Audio in and out ports

USB Ports

One USB port for the included mouse and one for configuration backup

Mouse Included

Supports mouse and keyboard (keyboard sold separately)

Rack Mount

Rack mount hardware included

Mobile App

See live video on a mobile device with the free iOS® and Android™apps

Remote Access

Access the NVR over the internet

Camera Setup

Auto-recognizes TRENDnet cameras* and works with most PoE network cameras

Live View

Multiple camera viewing options with auto-scan function

Camera Management

For each camera, manage on-screen display (OSD), image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss

Video Recording

Max. resolution for all cameras concurrently: Full HD 1080p video at 30 fps in H.264 compression
Max. for a single camera: 6 MP resolution in H.264 compression

Recording Time

Over three weeks of recording per camera with 12 TB of storage (HDDs sold separately) and 16x 1080p cameras at 30 fps with medium VBR
Over one month of recording per camera with 12 TB of storage (HDDs sold separately) and 16x 720p cameras at 30 fps with medium VBR

Scheduled Recording

Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full

Advanced Playback

Advanced archived video playback with a quick reference timeline and calendar

Video Export

Quickly export and archive recorded video

Dynamic DNS Support

Support for dyn.com and NO-IP.com

IPv6

IPv6 support

ONVIF

Supports ONVIF compliant network camera

Video Output	HDMI / VGA Resolution: 1920 × 1080P/60 Hz 1600 × 1200P/60 Hz 1280 × 1024/60 Hz 1280 × 720/60 Hz 1024 × 768/60 Hz
Audio	Line-in with RCA connector (2.0Vp-p, 1 kΩ) Line-out with RCA connector
Recording	16-channel simultaneous recording up to 1080p 30 fps 2 SATA interface for HDD or SSD up to 6 TB storage each
Playback	Playback resolution: 6MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	1 x Gigabit network port 16 x 10/100 PoE+ camera network ports 1 x USB 2.0, 1 x USB 3.0 HDMI port VGA port Analog audio in / out port Power port LED indicators (Power, Storage, and Network) IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2 DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2 HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature	-10 - 55 °C (14 - 131 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC UL
Dimensions	380 x 270 x 45 mm (15 x 11 x 1.8 in.)
Weight	1.64 kg (3.6 lb.)
Power	Input: 100 – 240 V AC, 50/60 Hz Consumption: 15 Watts max. (without PoE)
PoE	PoE 802.3at (max. 30W per port) Total PoE power budget: 200W Plug and play with TRENDnet PoE cameras*
Management Interface	Live view: Simultaneous 2x2, 3x3, 4x4, 1+5, 1+7 views or auto switch single view Scheduled recording: continuous and motion detection with optional holiday exceptions. Supporting camera configuration through NVR*: On Screen Display, display settings: brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss. Holiday scheduling for custom recording schedules during observed holidays Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag Video export: tag, cut, and export video clips HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage Local live view settings: define screen layout and channel viewing sequence Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions Supported dynamic DNS services: Dyn.com and NO-IP.com Management Setting: maximum 32 user accounts Traffic chart and statistics for network management
TRENDnet IP View App	Free iOS^® and Android^™ app View your NVR's live video on your mobile device Take snapshots Digital Zoom / Optical Zoom
Warranty	2 year limited

PACKAGE CONTENTS

TV-NVR216 (No HDD installed)
CD-ROM (Utility & User's Guide)
Power Adapter (12V DC)
Network cable (1.8 m / 6 ft.)
HDMI cable (1.8 m / 6 ft.)
Optical mouse
IR Remote Control
SATA data cables / power cables
Quick Installation Guide
Rack mount hardware

* See list of compatible cameras http://www.trendnet.com/products/nvr-solutions
** Three weeks of continuous recording 16 cameras in 1080p resolution at 30 fps (medium VBR) with 12 TB of storage (HDDs not included)
