16-Port Gigabit PoE+ Switch

TPE-TG160g (Version v1.0R)

  • 16 x Gigabit PoE+ ports
  • 246 W PoE budget
  • 32 Gbps switching capacity
  • Sturdy metal switch
  • Rack mount brackets included
  • Lifetime Warranty*

TRENDnet's 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.

PoE Camera Flexibility

The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.

Full PoE Power

The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.

Gigabit Networking

All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

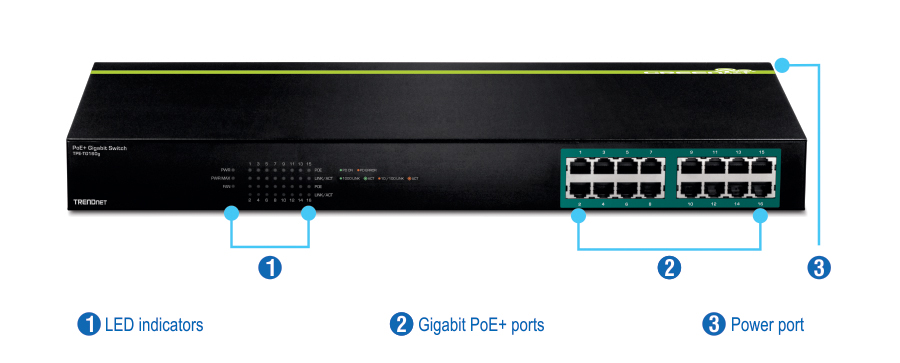

The illustration depicts a TRENDnet PoE+ Gigabit Switch model TPE-TG160g, highlighting three main features. LED indicators are located on the front panel to display the status of the switch and its ports. Sixteen Gigabit PoE ports connect network devices, and a power port supplies power to the switch.

PoE+

Supplies up to 30 Watts of power per port with a 246 Watt PoE budget

Ports

16 x Gigabit PoE+ ports

Switching Capacity

32 Gbps switching capacity

Jumbo Frame

Sends Jumbo Frames (up to 10 KB) for increased performance

Energy Savings

Embedded GREENnet technology reduces power consumption

Rack Mountable

Rack mountable metal enclosure with included mounting kit

LED Indicators

LED indicators convey port status

Standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af (15.4 Watts / port)
  • IEEE 802.3at (30 Watts / port)
  • IEEE 802.3az
Device Interface
  • 16 x Gigabit PoE/PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2,000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 512 KB
  • Switch Fabric: 32 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 23.8 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB
Power
  • Input: 110-240 V AC, 50/60 Hz, 54 V / 4.82 A; 12 V / 1.67 A
  • Consumption: 36 Watts (Max. without PD)
PoE
  • PoE budget: 246 Watts
  • Pin 3,6 for power+ and pin 1,2 for power- (mode A)
  • Over current protection
  • Short circuit protection
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44 mm (17.3 x 8.3 x 1.7 in.)
Weight
  • 3 kg (6.8 lbs.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-TG160g
  • Quick Installation Guide
  • Rack mount kit
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
