18-Port Gigabit EdgeSmart PoE+ Switch

TPE-TG182ES (Version v1.0R)

16 x Gigabit PoE+ ports
2 x Gigabit SFP ports (100Mbps / 1000Mbps)
240W PoE power budget
Easy-to-use web-based management interface
Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
Voice VLAN for VoIP applications
Bandwidth control per port
36Gbps switching capacity
IEEE 802.1p CoS with queue scheduling support
Smart fan reduce noise during operation
1U 19” rack mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

TRENDnet’s 18-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG182ES, is a cost-effective rackmount PoE+ managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG182ES rackmount PoE+ managed switch provides 16 gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and VoIP handsets; and two gigabit SFP ports for long-distance connectivity.

18-Port Network Switch, showing an image of a dashboard for managing features.

EdgeSmart Management

Provides an easy-to-use management interface and offers the more commonly used SMB management features for reduced switch configuration complexity and easy deployment.

18-Port Network Switch, connected to PoE Camera and wireless access point device.

PoE+ Power

Features a 240W PoE power budget for up to 16 Power over Ethernet devices, such as wireless access points and IP cameras.

18-Port Network Switch, connected to VLAN, QoS, IGMP & PoE to cloud.

Integration Flexibility

Managed features include loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.

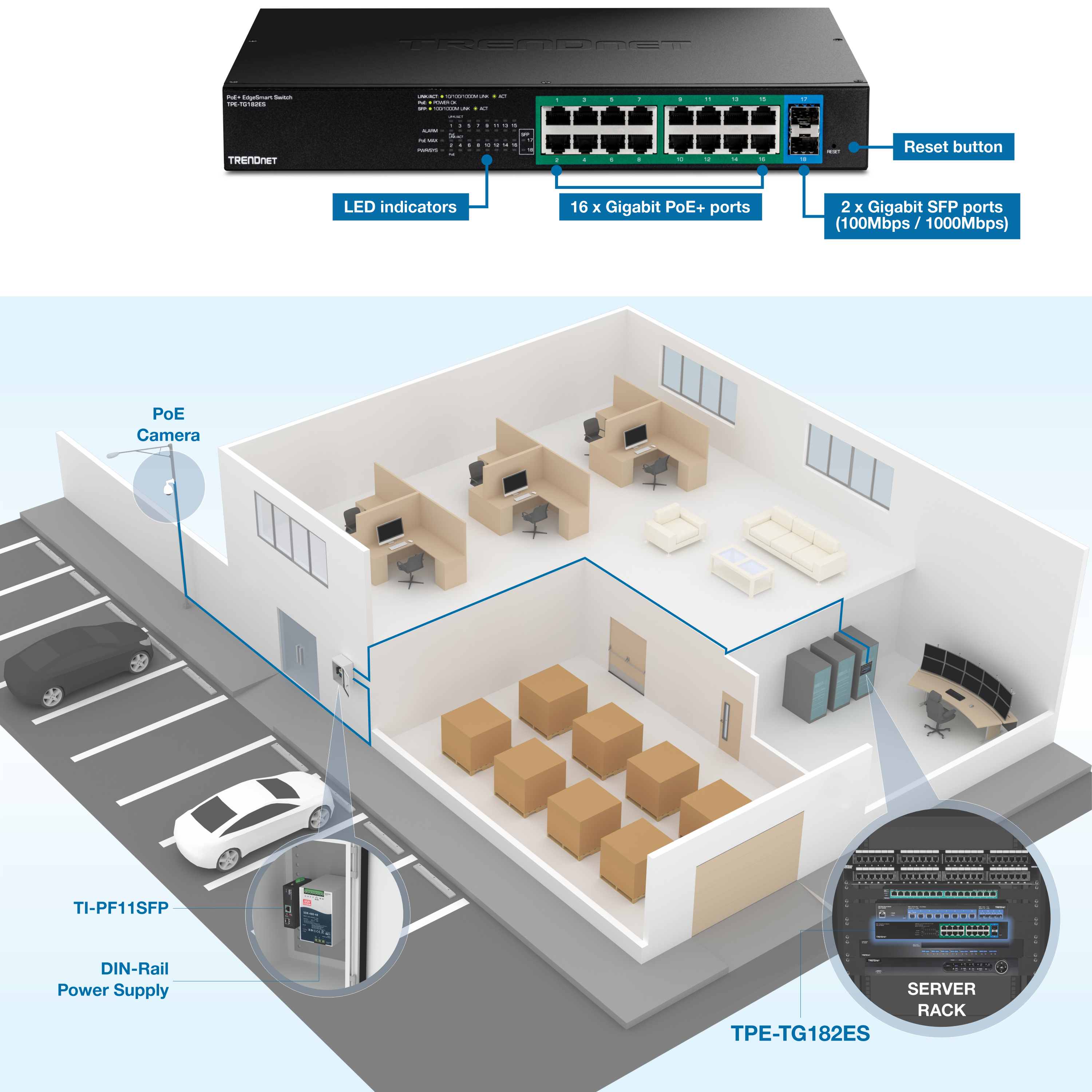

The illustration shows a TRENDnet TPE-TG182ES network switch with 16 Gigabit PoE+ ports and 2 Gigabit SFP ports. The switch features LED indicators and a reset button. Below the switch, a diagram depicts an office layout with cubicles, a lounge area, a storage room, and a server rack. A PoE camera is mounted outside the building, connected to the switch. The TI-PF11SFP DIN-Rail Power Supply is also highlighted, indicating its installation near the entrance. The server rack is shown with the TPE-TG182ES switch installed, demonstrating its application in a network setup.

Hardware Design

The switch includes 16 x gigabit PoE+ ports, 2 x gigabit SFP ports, and a built-in power supply

Power over Ethernet

Provides a total PoE power budget of 240W, with gigabit PoE+ ports for 802.3at PoE+ and 802.3af PoE powered devices

SFP Ports

Includes two dedicated gigabit SFP ports for high-speed, long-distance network connections

Network Management

The web-based management interface offers features for loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS

Monitoring

SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Troubleshooting

Traffic statistics and a convenient cable diagnostic test

Smart Fan

Saves energy and reduces noise during operation by auto adjusting the fan speed based on cooling needs

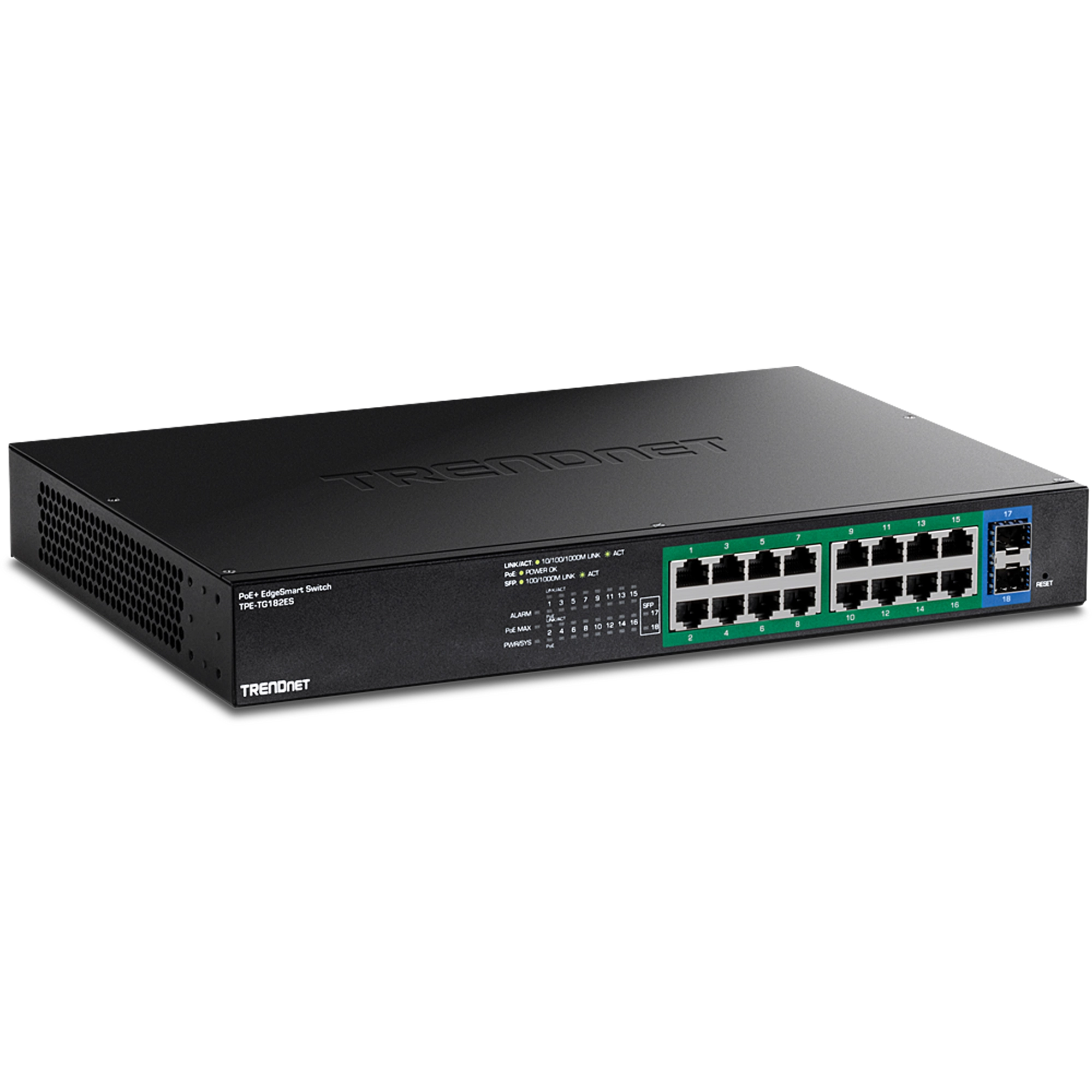

Rackmount Design

Sturdy 1U rack mountable metal housing with mounting brackets included

LED Indicators

The PoE+ managed switch includes LED indicators that convey port status

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az

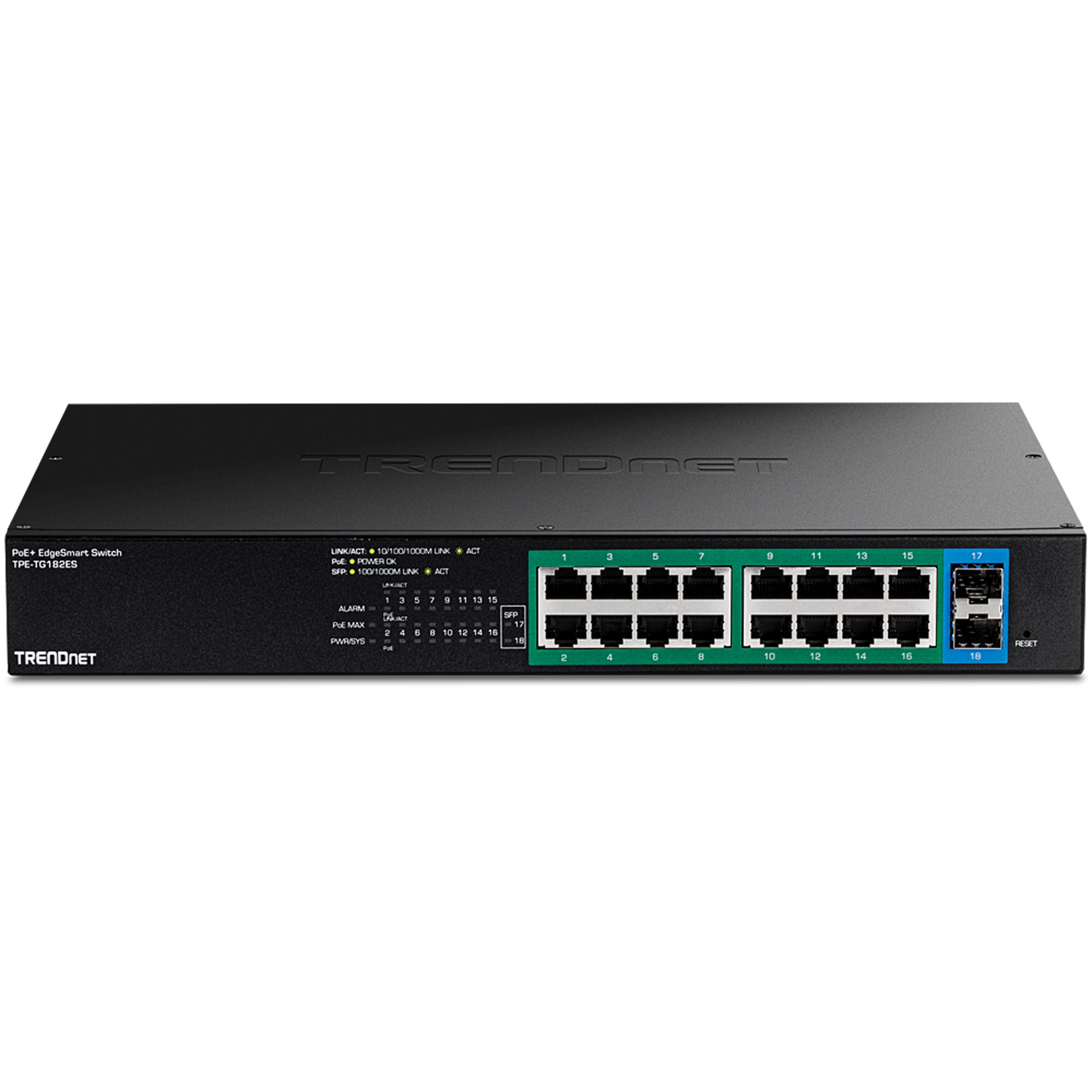

Device Interface	16 x Gigabit PoE+ ports 2 x Gigabit SFP ports (100Mbps / 1000Mbps) LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 36Gbps RAM buffer: 512KB MAC Address Table: 8K entries Jumbo Frames: 9KB Forwarding rate: 26.78Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control/Rate Limiting per port (Min. Limit: 16Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 16Kbps) Multicast (Min. Limit: 16Kbps) Loopback Detection
Special Features	PoE+ support Enable/disable 802.3az Power Saving SFP ports

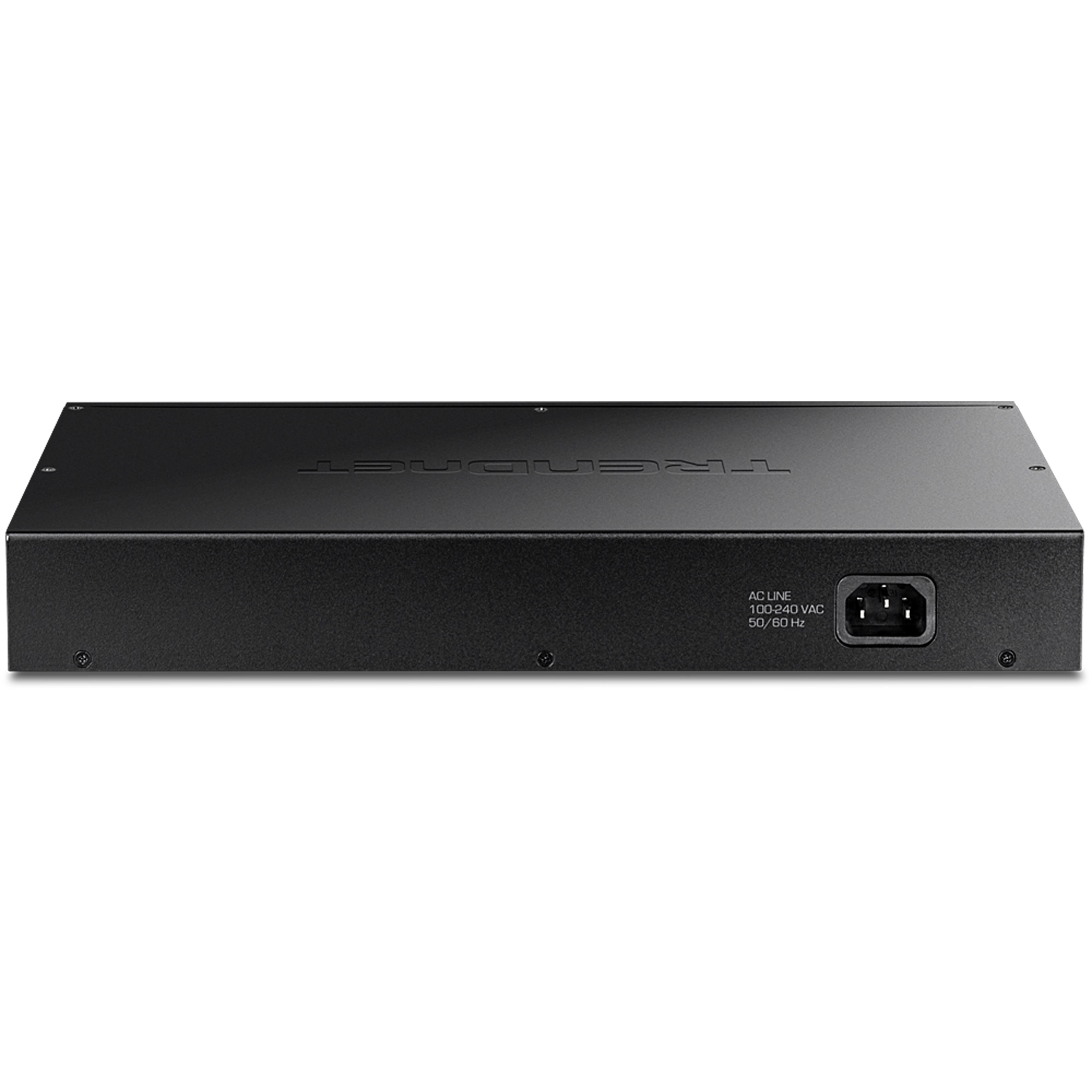

Power	Input: 100 – 240V AC, 50/60Hz, 2.6A Max. consumption: 9.77W (without PD load) / 248.18W (with full PD load)
PoE	PoE budget: 240W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power and pins 3,6 for power PD auto classification Over current/short circuit protection
Fan/Acoustics	Quantity: 1 Smart Fan Noise Level: 47 dBa (max.)
MTBF	609,351 hours @ 25° C
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	328 x 228 x 44mm (12.9 x 8.98 x 1.73 in.)
Weight	2.58kg (5.69 lbs.)
Certifications	CE FCC ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG182ES
Quick Installation Guide
Power cord (1.5m / 5 ft.)
Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
