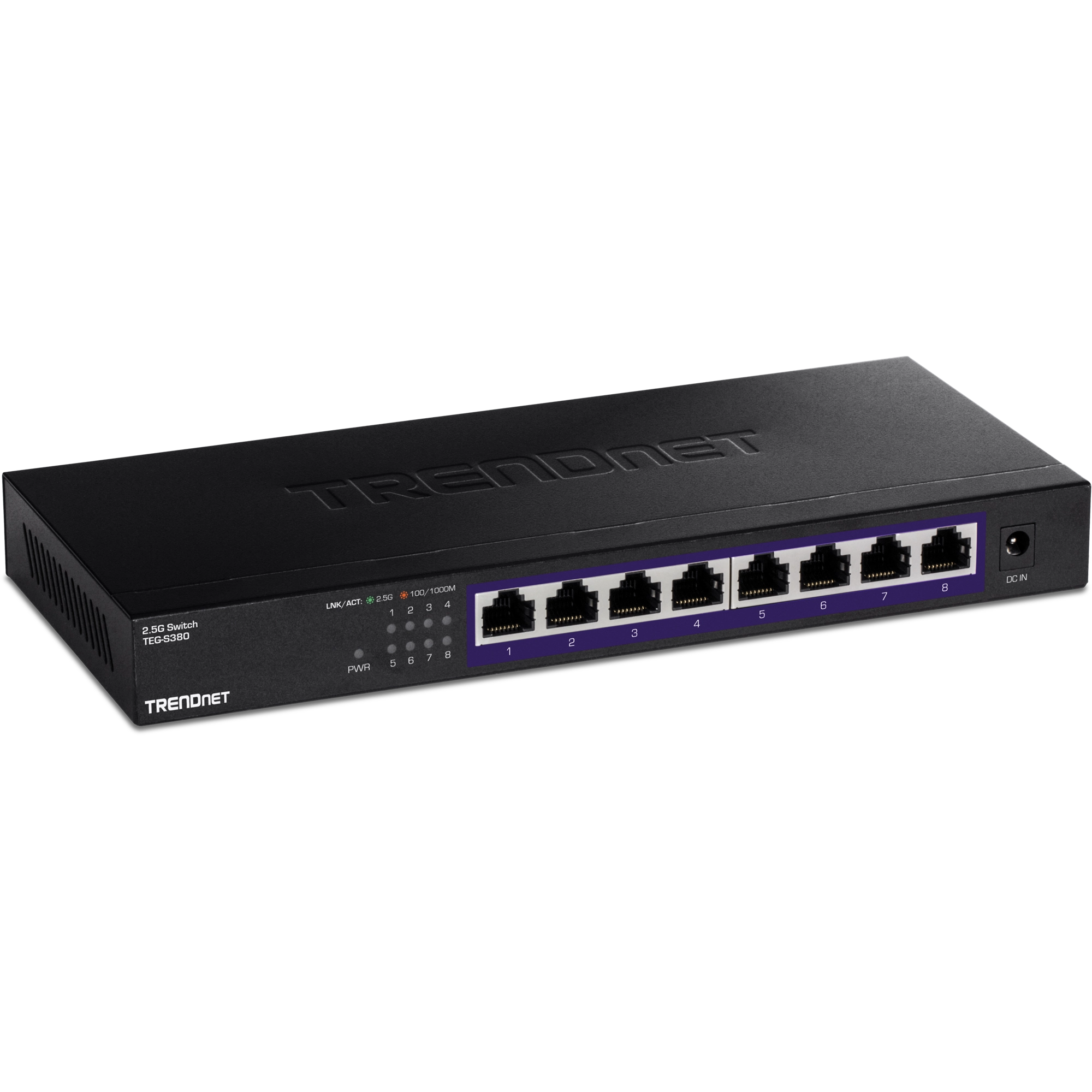

8-Port Unmanaged 2.5G Switch

TEG-S380 (Version v1.0R)

  • 8 x 2.5GBASE-T ports
  • IEEE 802.3bz (2.5G) compliant
  • Backwards compatible with 10/100/1000Mbps devices
  • 40Gbps switching capacity
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

Illustration of a network cable labeled GIGABIT SPEEDS with icons representing music, video, data transfer moving through the network.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Arrow and screw pointing at wall, next to a network switch.

Wall Mountable

The 2.5G switches feature metal housing with a convenient wall mountable design for greater installation flexibility.

Line art of a 8-Port Network Switch with a no-fan icon.

Fanless

The fanless design of the 2.5G switches lowers energy consumption costs and eliminates operating noise.

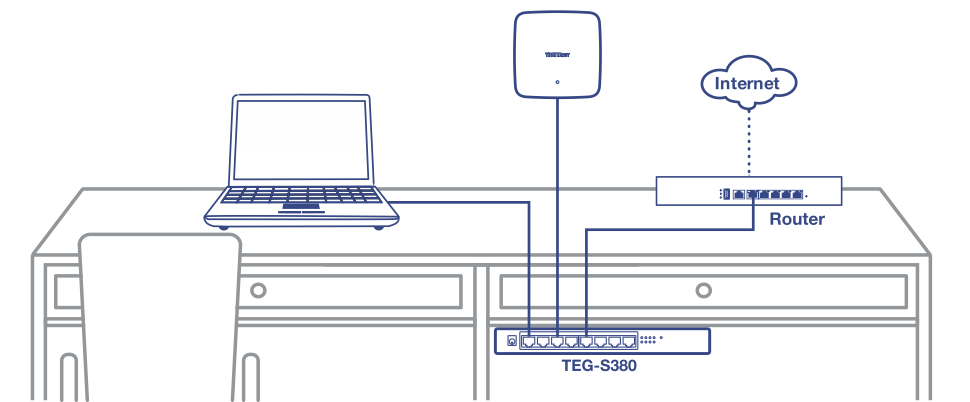

An illustration of a desk with a laptop on the left, a wireless access point in the middle up on the wall, and a router on the right with a cloud icon labeled Internet, all connected to a TEG-S380 switch located under the desk.

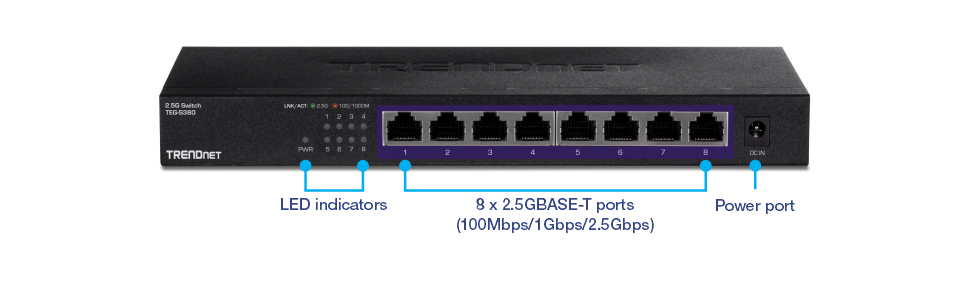

A front view of the 5-Port Unmanaged 2.5G Switch TEG-S380 with labels for LED indicators, 8 x 2.5GBASE-T ports (100Mbps/1Gbps/2.5Gbps), and a Power port.

Easy Installation

No configuration needed, simply connect network devices to the 2.5G Ethernet switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance

LED Indicators

LED indicators on this 2.5G switch conveys port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 8 x 2.5GBASE-T ports (100Mbps/1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Switching Capacity: 40Gbps
  • RAM Buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 29.76Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Special Features
  • Wall-Mountable
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.6A
  • Output: 12V DC, 1.5A
  • Max. Consumption: 12.4W
Fan/Acoustics
  • Fanless design
MTBF
  • 1,401,356 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 240 x 103 x 26mm (9.4 x 4.0 x 1.02 in.)
Weight
  • 600g (1.32 lbs.)
Certifications
  • FCC
  • CE
Warranty

PACKAGE CONTENTS
  • TEG-S380
  • Quick Installation Guide
  • Power adapter (12V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
