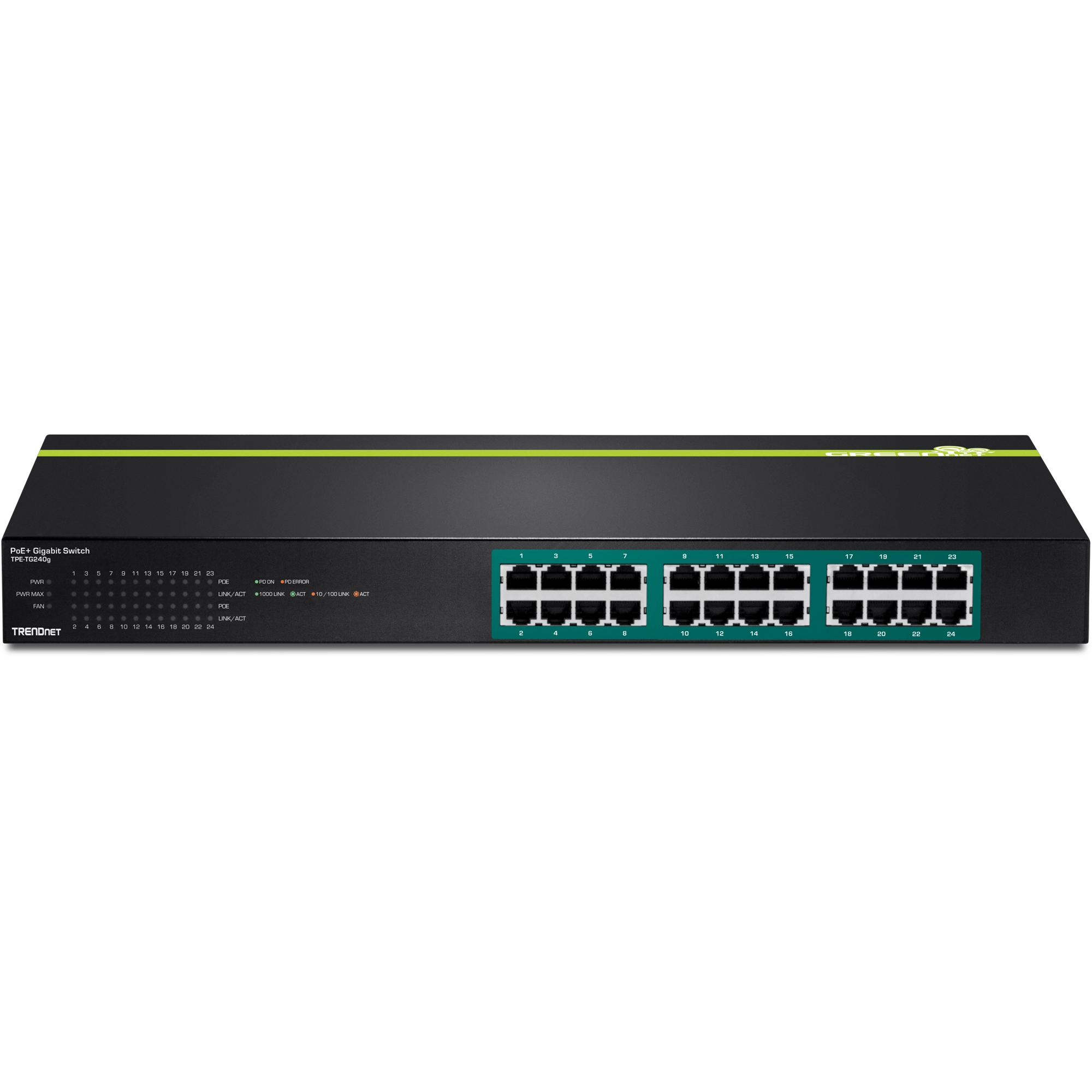

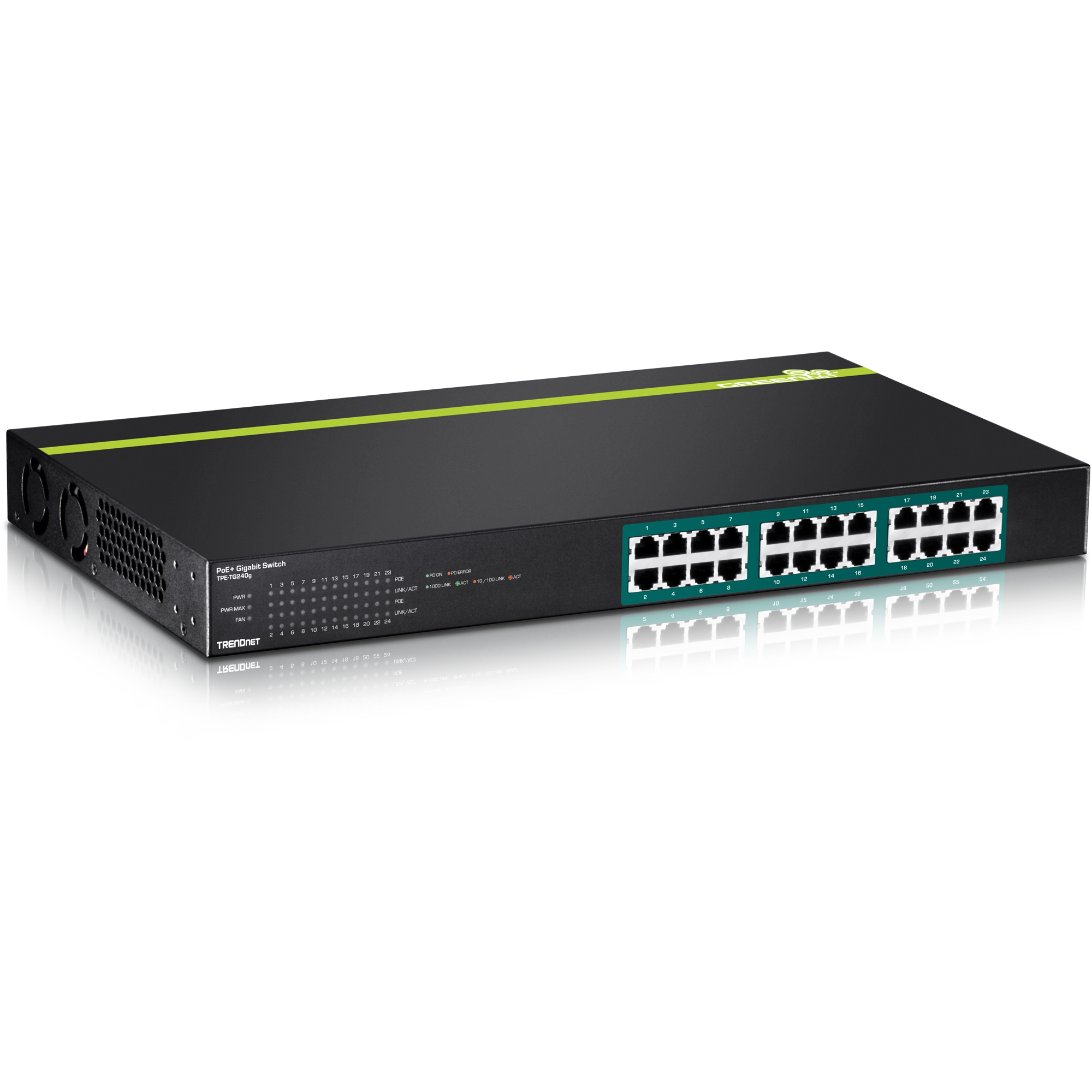

24-Port Gigabit PoE+ Switch

TPE-TG240g (Version v1.0R)

  • 24 x Gigabit PoE+ ports
  • 370 Watts total power budget
  • 48 Gbps switching capacity
  • Sturdy metal switch
  • Rack mount brackets included
  • Lifetime Warranty*
DISCONTINUED PRODUCT
The TPE-TG240g (Version v1.0R) has been discontinued. It has been replaced by the TPE-TG240g (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's 24-Port Gigabit PoE+ Switch, model TPE-TG240g, offers 24 x Gigabit PoE+ ports, a 48 Gbps switching capacity, and a PoE power budget of 370 Watts. This rugged metal switch comes with a rack mount kit.

PoE Camera Flexibility

The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.

Full PoE Power

The large 370 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.

Gigabit Networking

All Gigabit ports produce a 48 Gbps switching capacity and support Jumbo Frames up to 10 KB.

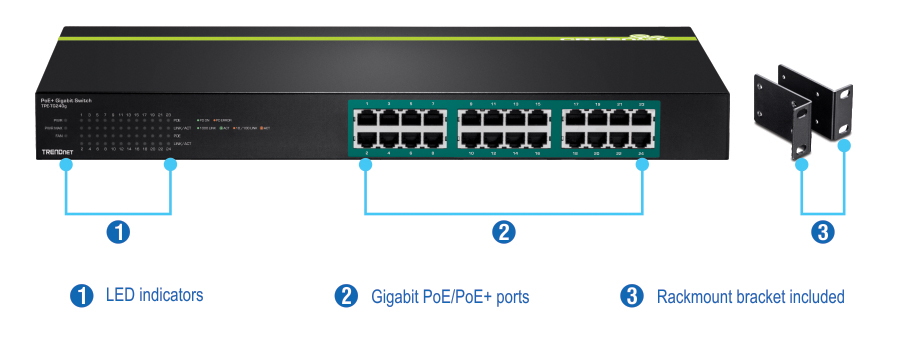

A rack-mountable PoE+ Gigabit Switch with 24 ports, featuring LED indicators on the left side, centrally positioned Gigabit PoE/PoE+ ports, and an included rackmount bracket shown separately on the right side.

PoE+

Supplies up to 30 Watts of PoE power per port with a 370 Watt power budget

Ports

24 x Gigabit PoE+ ports

Switching Capacity

48 Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB) for increased performance

Rack Mountable

Rack mountable metal enclosure with included mounting kit

LED Indicators

LED indicators convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 24 x Gigabit PoE / PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 512 KB
  • Switch Fabric: 48 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 35.7 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB
Power
  • Input: 110-240 V AC, 50/60 Hz, 0.75 A
  • Consumption: 36 Watts (Max. without PD)
PoE
  • PoE budget: 370 Watts
  • Pin 3,6 for power+ and pin 1,2 for power- (mode A)
  • Over current protection
  • Circuit sorting protection
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 250 x 44 mm (17.3 x 9.8 x 1.7 in.)
Weight
  • 3.6 kg (8 lbs.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-TG240g
  • Quick Installation Guide
  • Rack mount kit
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
