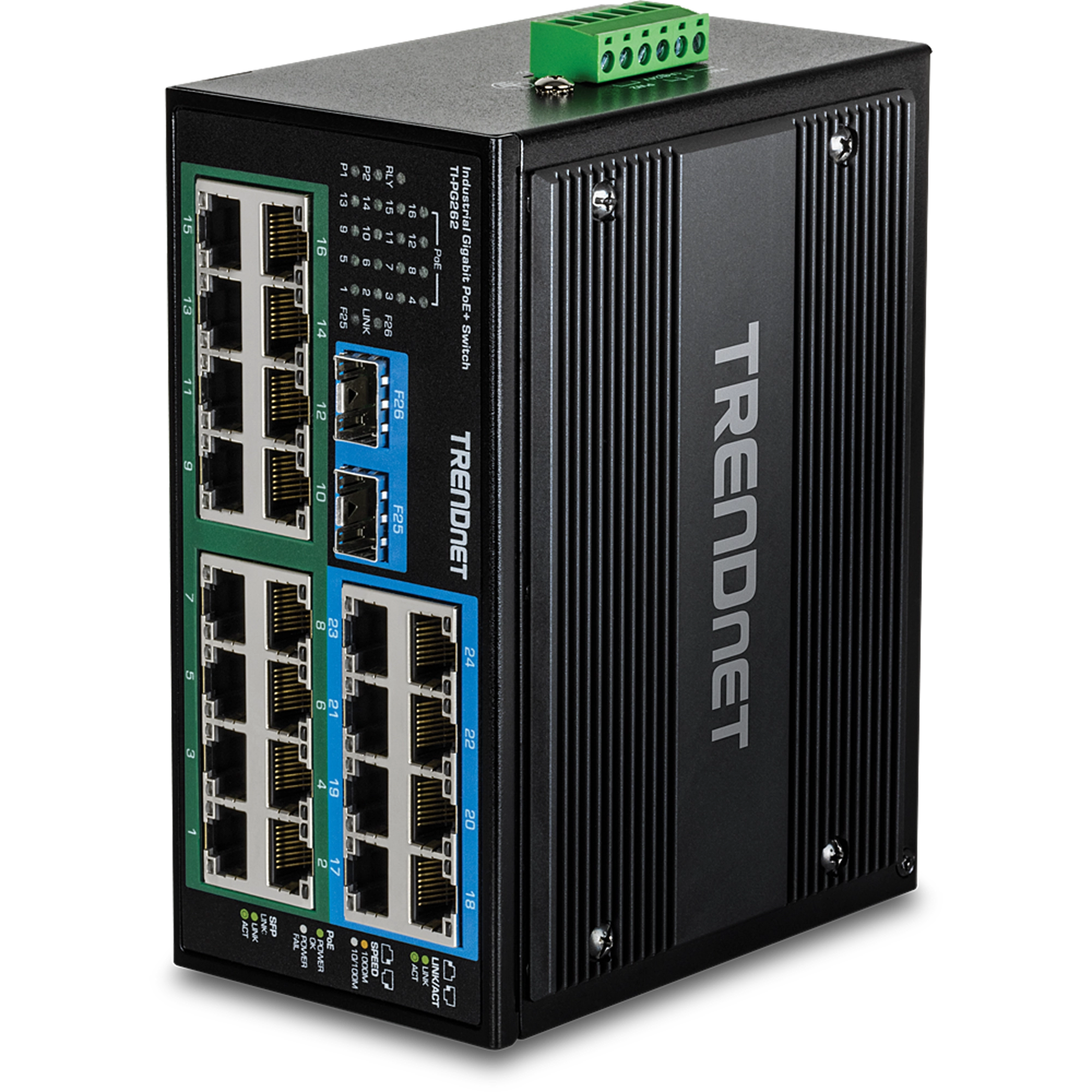

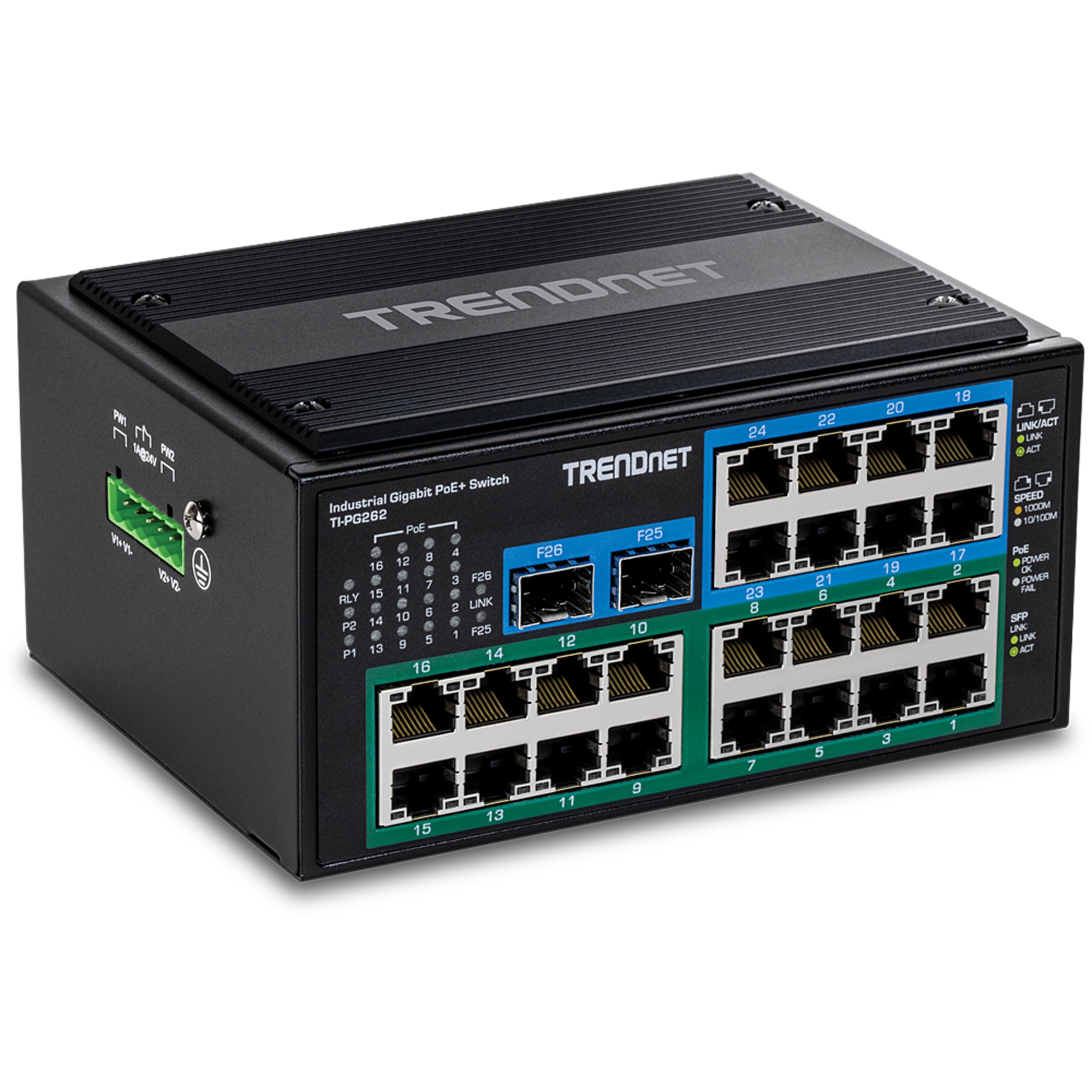

26-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG262 (Version v1.0R)

  • 16 x Gigabit PoE+ ports
  • 8 x Gigabit ports
  • 2 x 100/1000Mbps SFP ports
  • Up to a 480 watt full PoE+ power budget
  • 52Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Powers supply sold separately (Model TI-S48048)
  • NDAA / TAA compliant
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These Industrial Unmanaged PoE+ Switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

3D model of a factory building with large windows, representing industrial architecture.

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

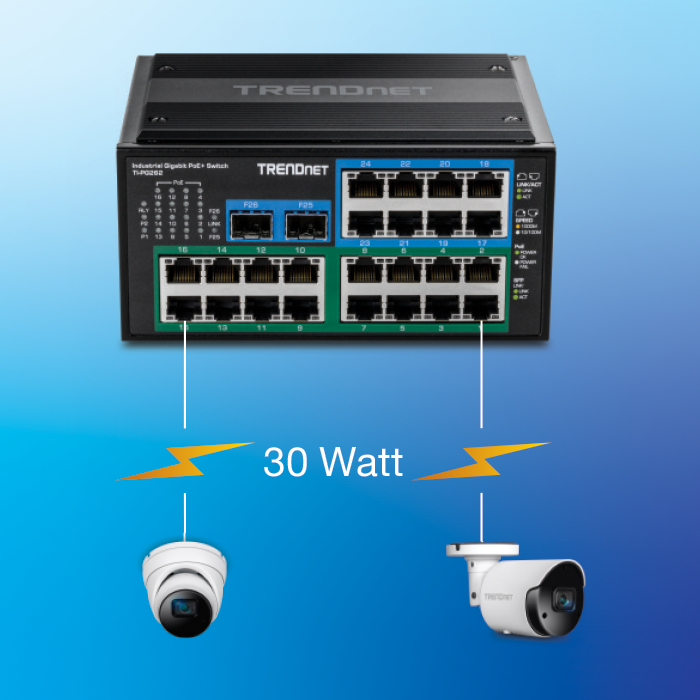

Two cameras linked to 16-Port High-Power PoE+ Switch using Power over Ethernet.

PoE+ Power

Provides full PoE+ (30 watts) per port for devices such as access points, cameras, access control equipment, and more.

Graphic with four icons: vibration, temperature, shock, and IP30 rating.

Extreme Environments

Hardened IP30 switch, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range, functions in most environments.

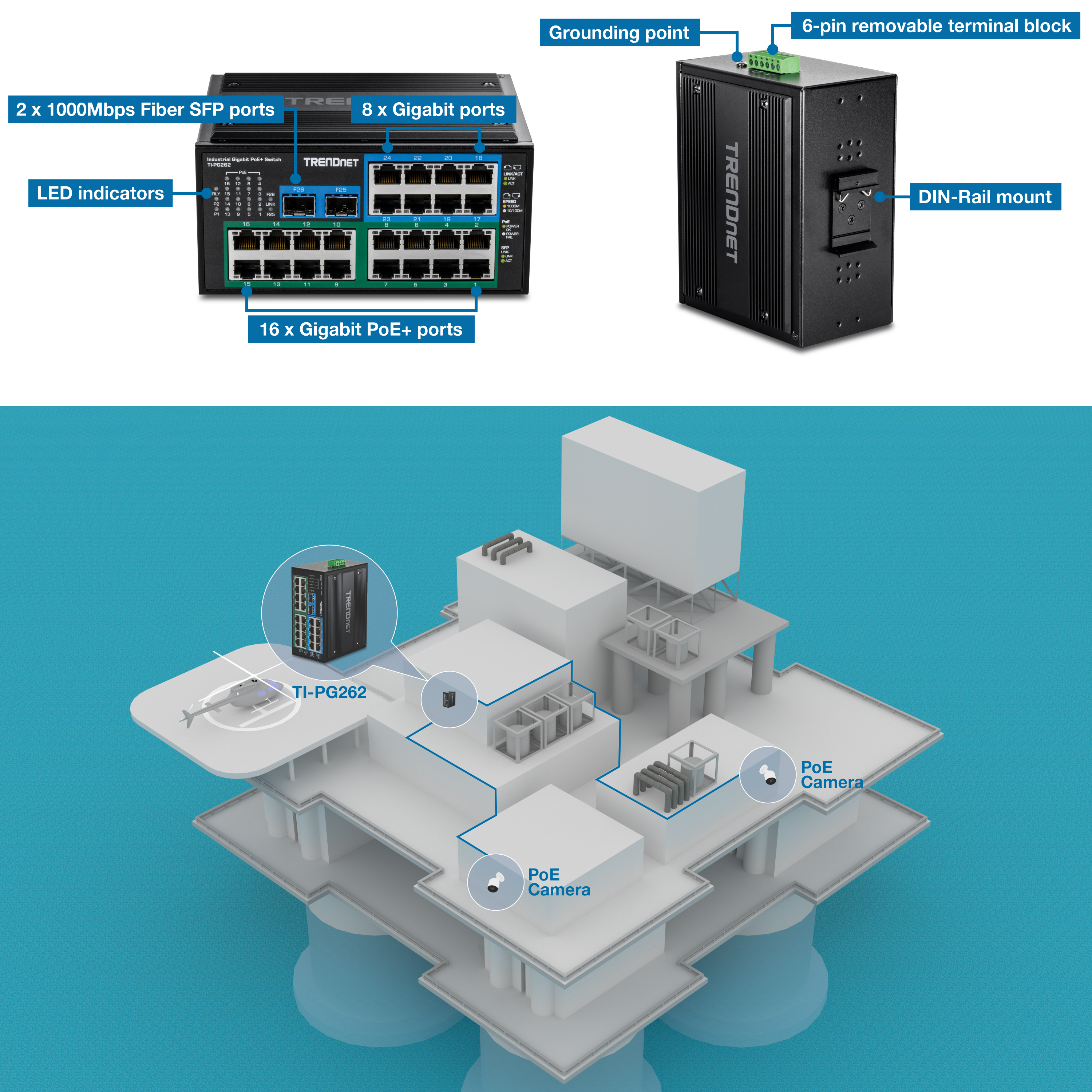

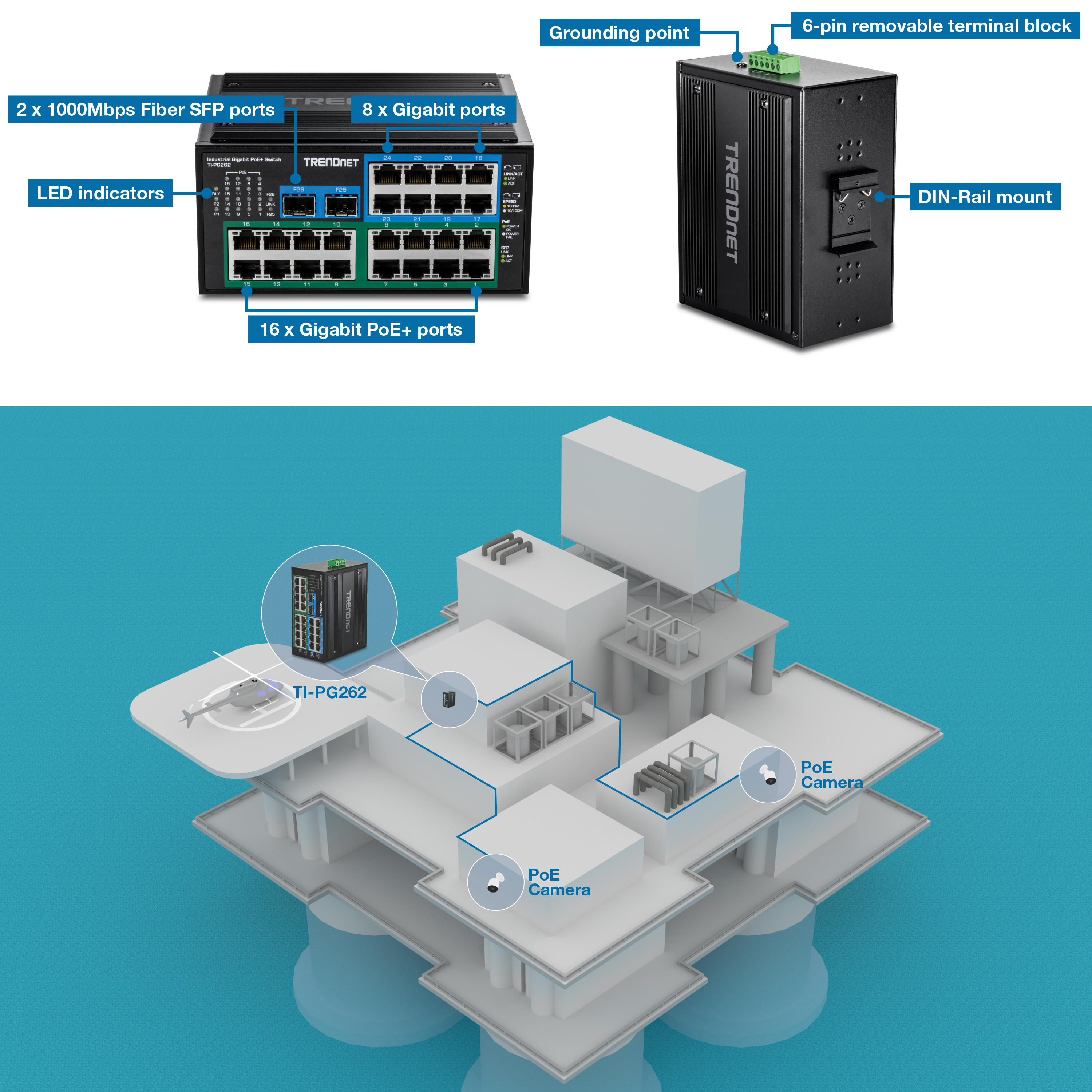

Front view of a TRENDnet industrial switch with LED indicators, sixteen Gigabit PoE+ ports, eight Gigabit ports, and two 1000Mbps Fiber SFP ports. Back view with grounding point, six-pin terminal block, wall mount holes, and DIN-rail mount. Below is an offshore platform with a TI-PG262 device, two PoE cameras, and a helicopter on the helipad, showcasing device integration for monitoring and control.

Full PoE+ Power Budget

Supplies up to 30W of PoE/PoE+ power per port (802.3at/802.3af) with an up to 480W PoE power budget

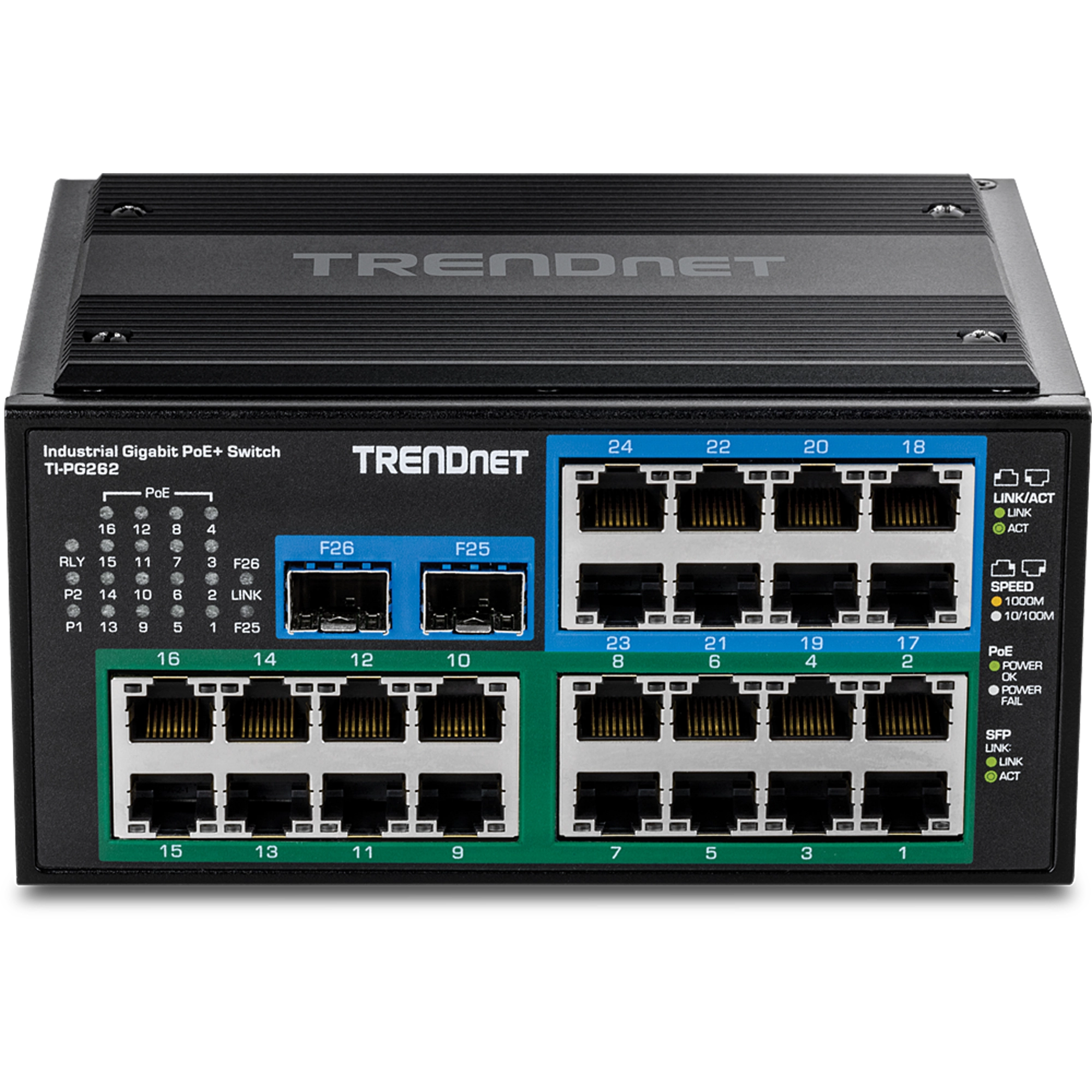

Network Ports

The 24-port DIN-Rail Ethernet switch with SFP ports features 16 x Gigabit PoE+ ports, 8 x Gigabit ports, and 2 x 100/1000Mbps SFP ports

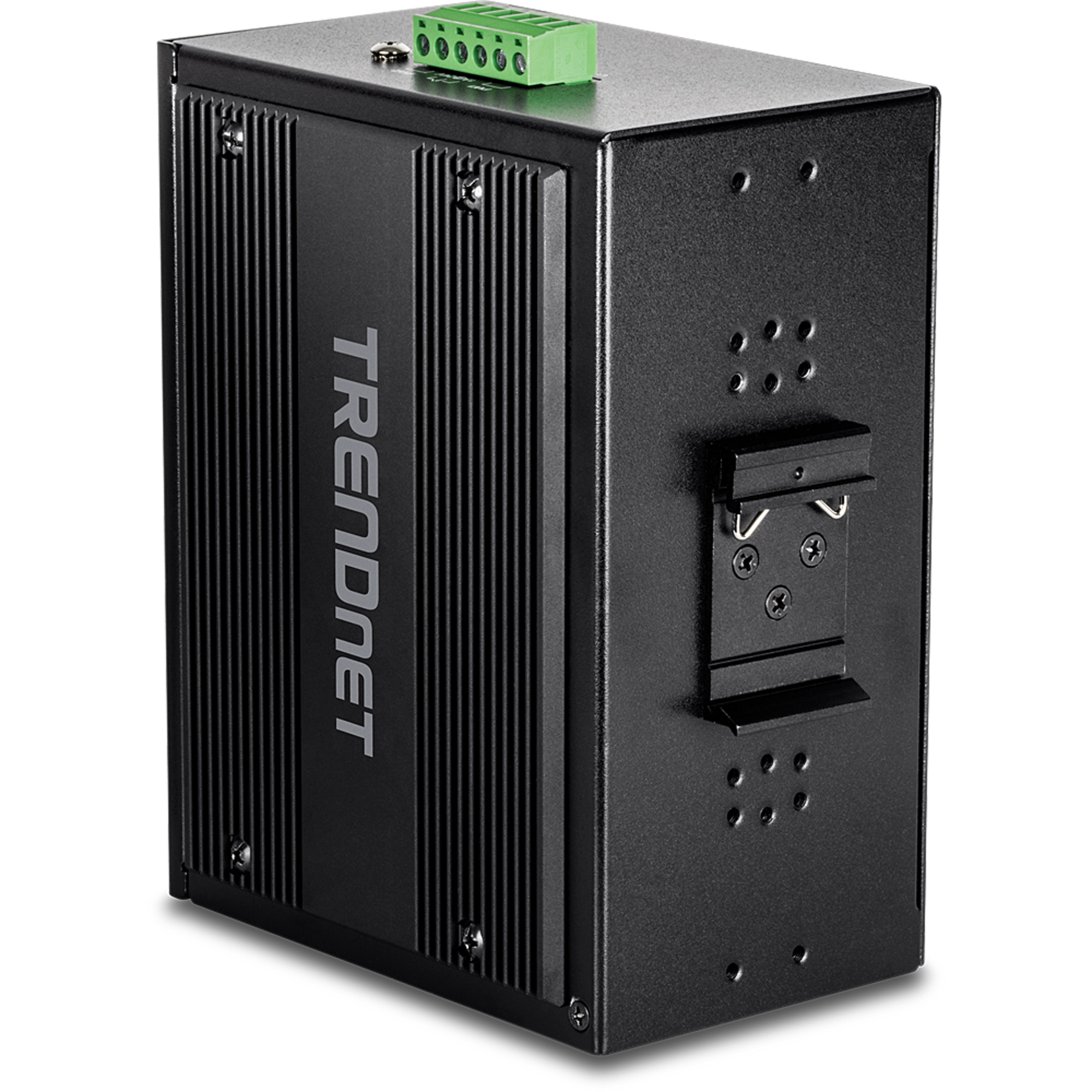

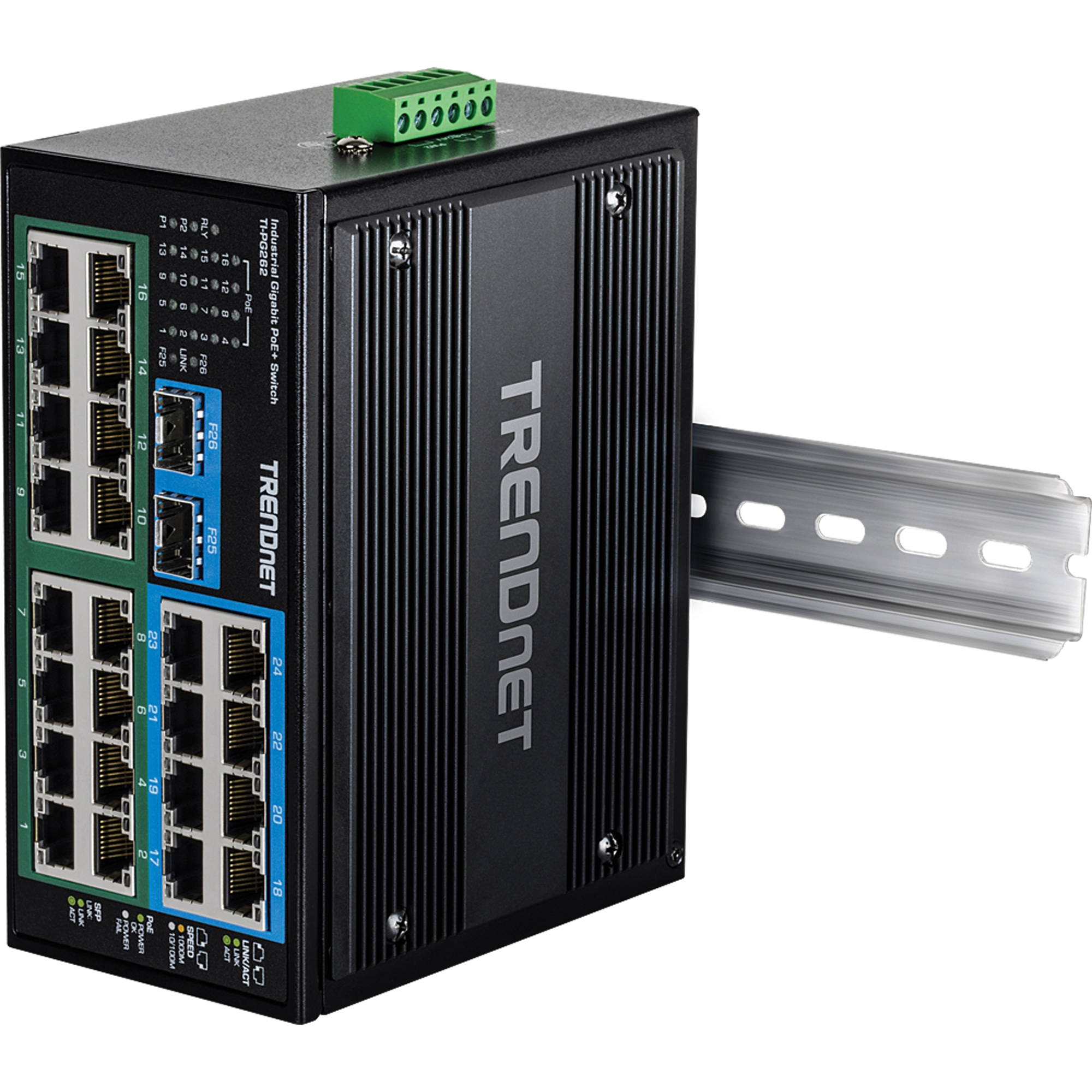

DIN-Rail/Wall Mounts

The 24-Port DIN-Rail Ethernet Switch with SFP ports features a IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity

The 24-port industrial PoE+ switch with SFP ports features a 52Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately, model: TI-S48048)

Alarm Output

Alarm output triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures

This hardened 24-port rugged PoE+ switch with SFP ports is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55032 Class A standards

Certifications

Rated for information technology (ITE) and industrial equipment (EN55032/35)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point on the 24-Port DIN-Rail Ethernet switch with SFP ports protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE+ ports
  • 8 x Gigabit ports
  • 2 x 1000Mbps Fiber SFP ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • Fiber: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switching Fabric: 52Gbps
  • MAC Address Table: 8K entries
  • Jumbo Frame: 9KB
  • Forwarding Rate: 38.6Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual power inputs
  • Auto negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8KV and Surge 2KV protection
Power
  • Input: 48 - 56V DC
  • Compatible power supply: TI-S48048 (sold separately)
  • Max. consumption: 5.76W @48D VC
PoE
  • 802.3at: Up to 30W per port
  • PoE budget: 480W @56V DC
  • PoE Mode A: Pins 1, 2, 3, and 6 for power

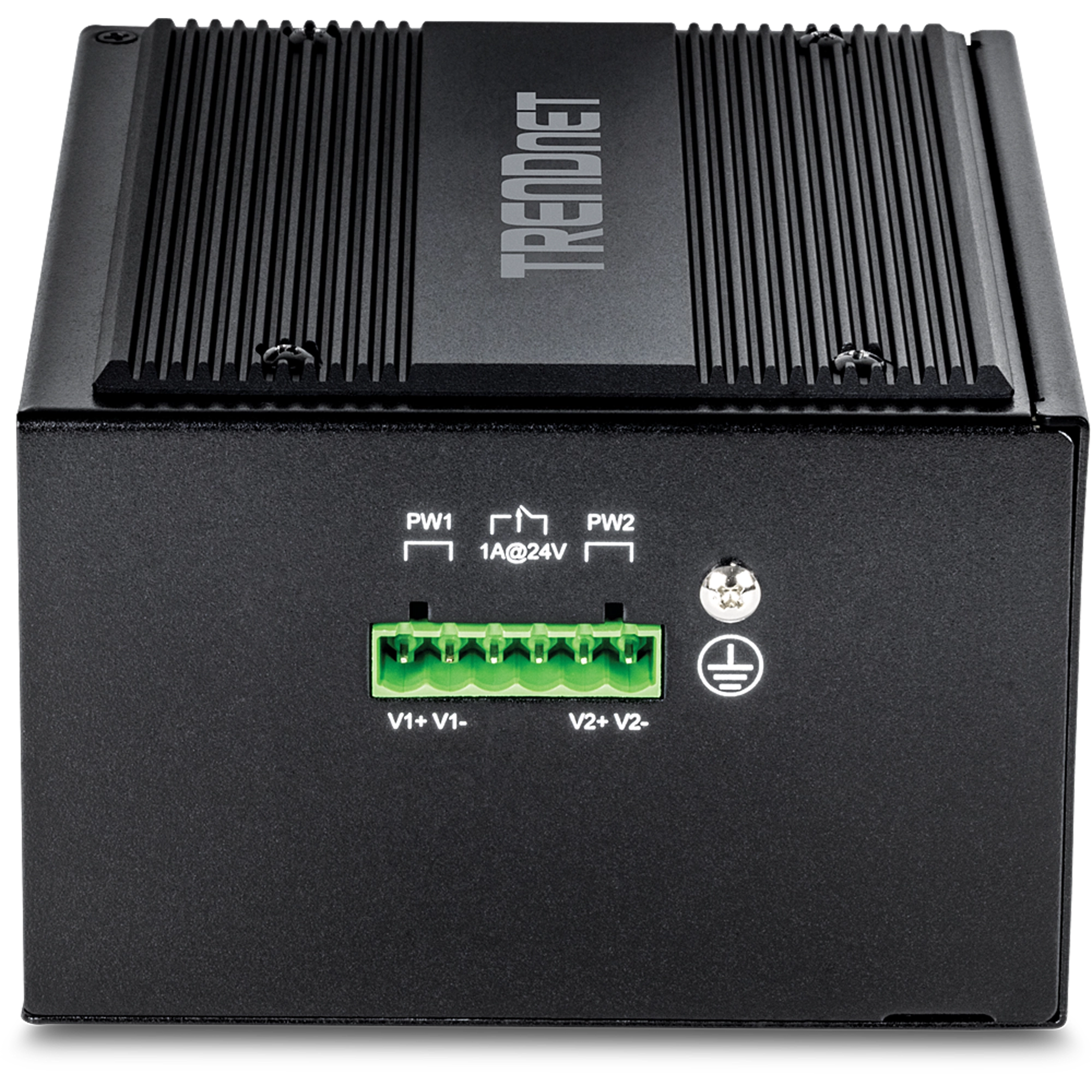

Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Short circuit mode when two power sources are connected
  • Open circuit mode when only one power source is connected
MTBF
  • 503,149 hours
Housing
  • IP30 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 8KV ESD protection
  • 2KV surge protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 155 x 120 x 78mm (6.1 x 4.7 x 3 in.)
Weight
  • 0.9kg (2 lb)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-PG262
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail / wall mount kit
