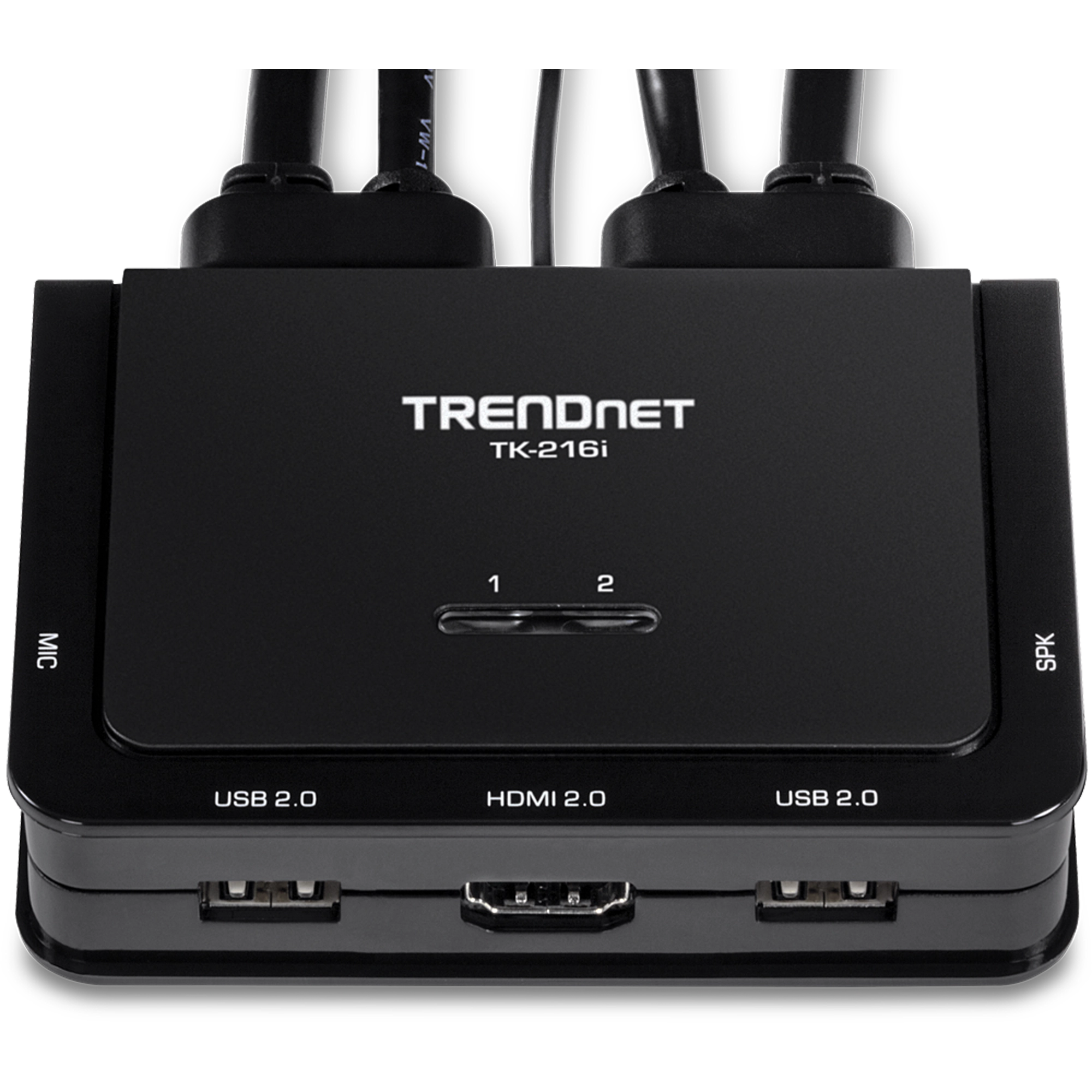

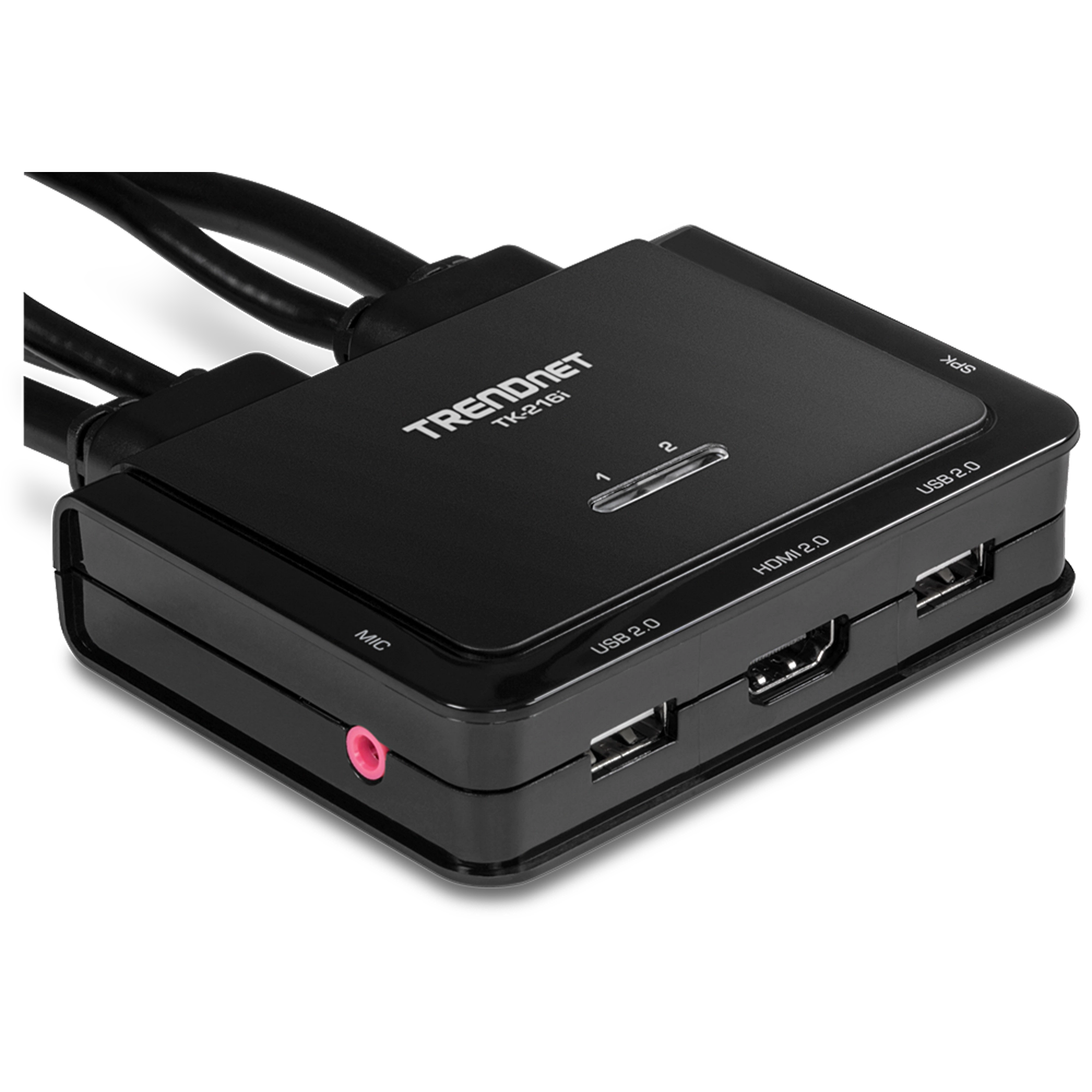

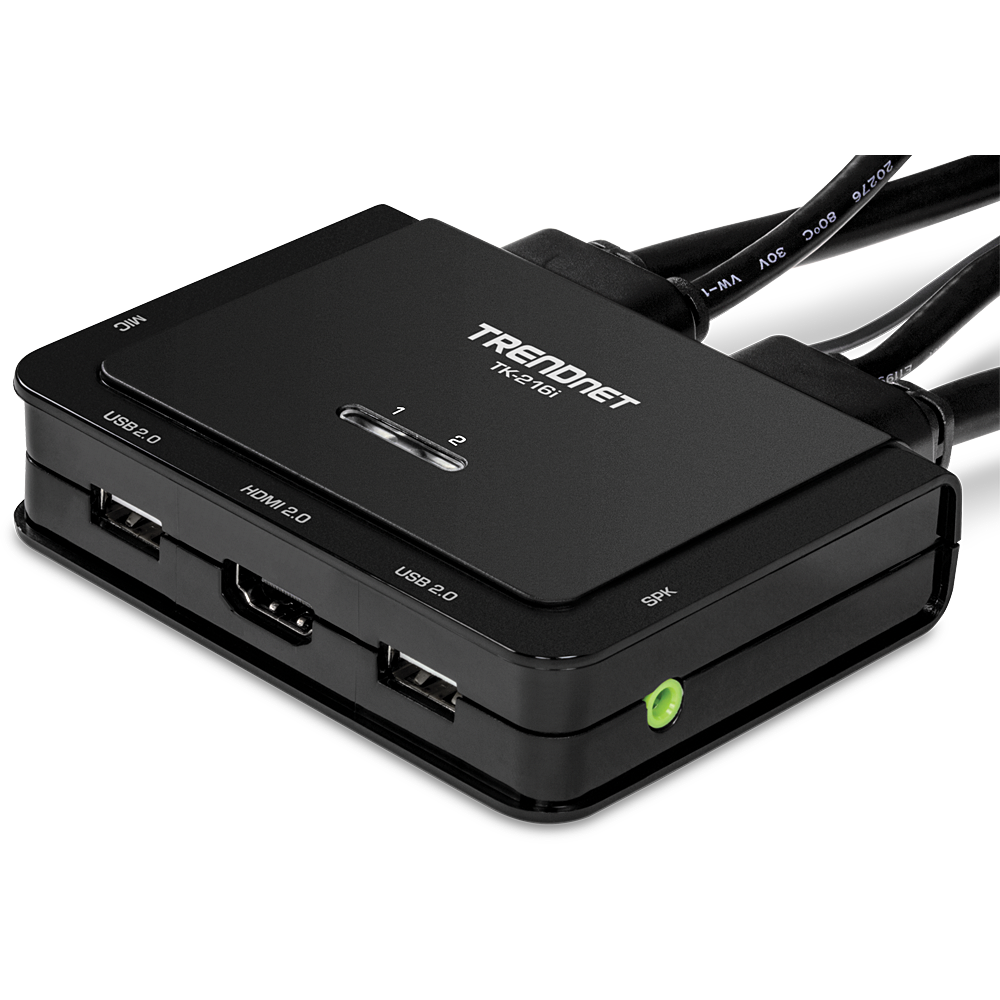

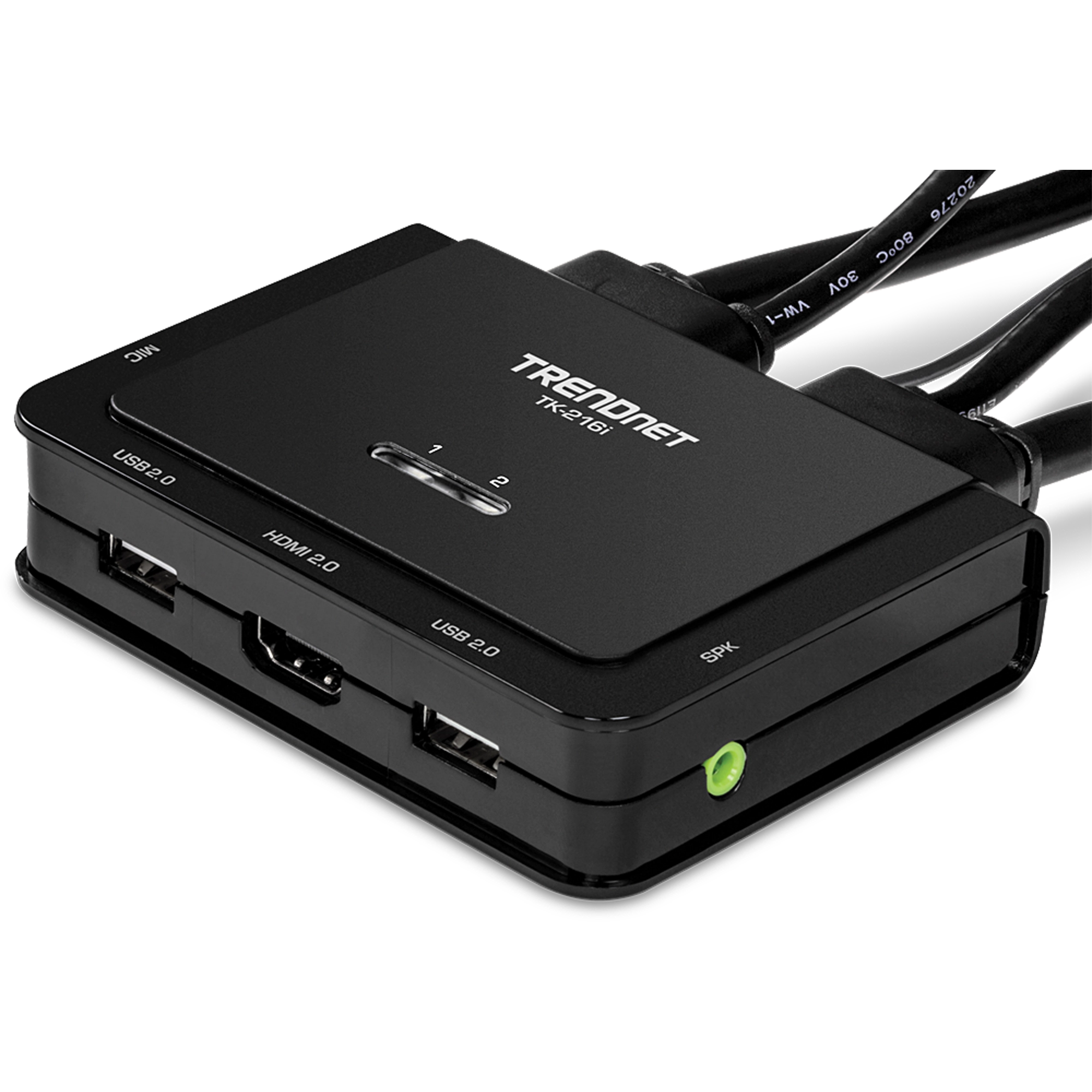

2-Port 4K HDMI KVM Switch

TK-216i (Version v1.0R)

Control two computers with one set of console controls
Works with displays with an HDMI port
Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz
HDMI 5.1 audio support
3.5mm speaker and microphone connections for analog audio

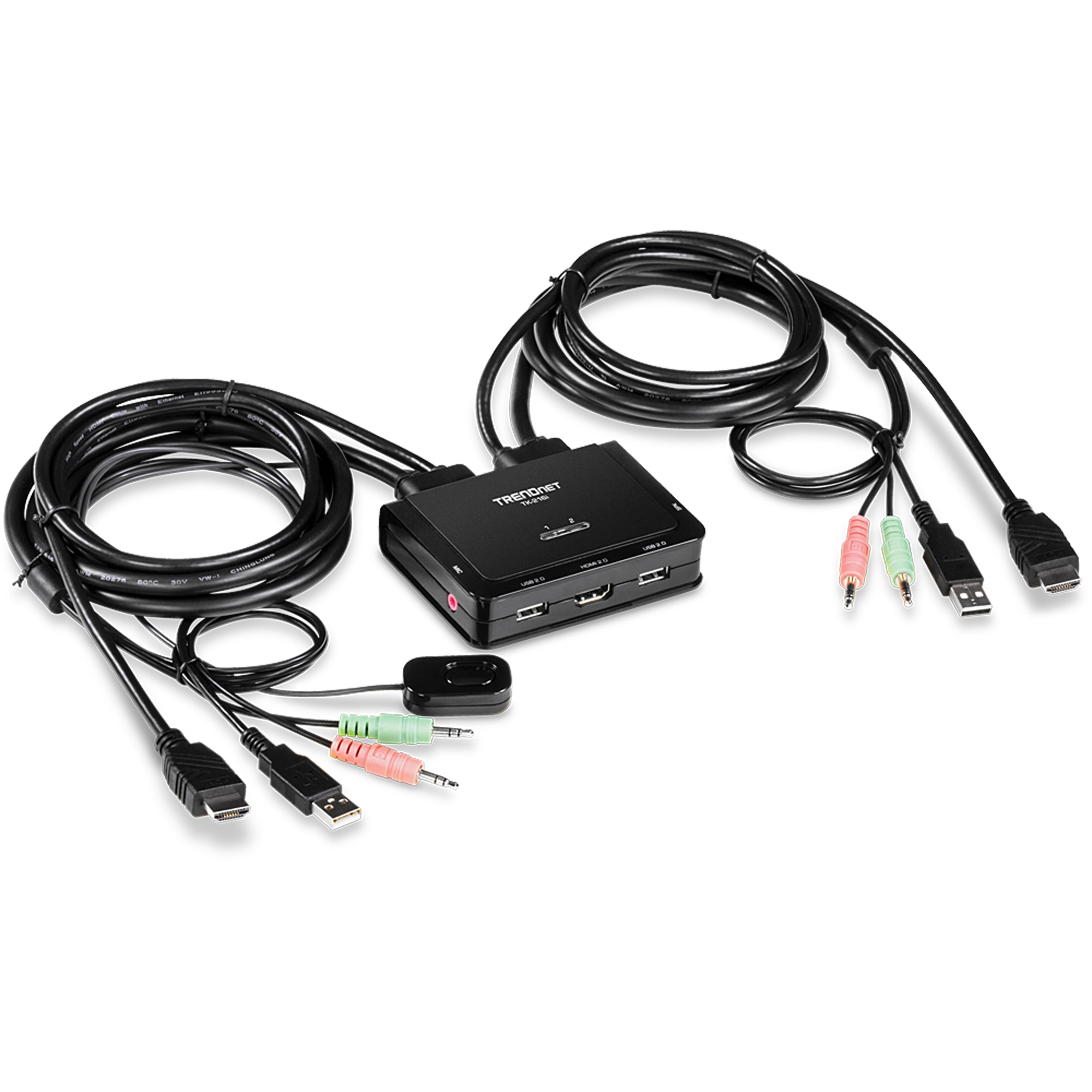

Fully integrated HDMI, USB, and audio cables
USB powered – No external power adapter required
Convenient computer toggle switch
No CD installation required

DISCONTINUED PRODUCT

The TK-216i (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's 2-Port 4K HDMI KVM Switch, model TK-216i, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-216i 4K HDMI KVM switch is designed for 4K HDMI systems with USB mouse and keyboard connections. This 4K HDMI KVM switch also features 3.5mm speaker and microphone connections to switch between computers.

4K HDMI 2.0

The 4K HDMI KVM Switch is designed for HDMI systems with resolutions up to 4K UHD (3840 x 2160 @ 60Hz).

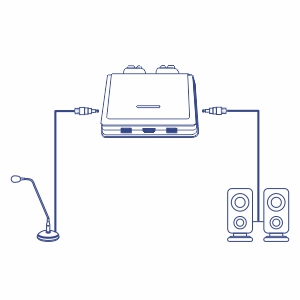

Diagram of a connection with two speakers and a microphone, detailing their configuration with the KVM switch.

Audio Support

Full audio support through HDMI cable connections with optional 3.5mm microphone and speaker jacks.

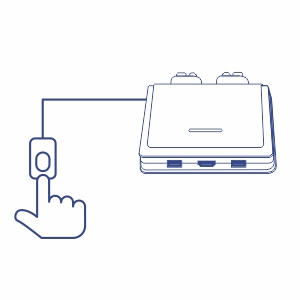

Illustration of a wired button switch for easy access.

Quick Toggle Switch

Use the integrated 1.2m (3.9 ft.) cable to position the toggle switch in the most convenient location.

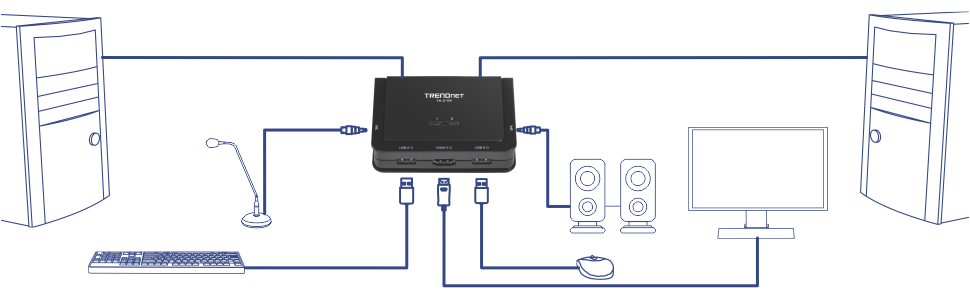

The diagram depicts a setup involving two desktop computers connected to a TRENDnet device. The TRENDnet device is centrally positioned and has multiple connections. The left computer is connected to the TRENDnet device via a VGA cable and an audio cable. A microphone is also connected to the TRENDnet device. A keyboard and mouse are connected to the TRENDnet device via USB ports. The right computer is connected to the TRENDnet device via a VGA cable and an audio cable. Additionally, a monitor and a pair of speakers are connected to the TRENDnet device. The setup illustrates how the TRENDnet device can be used to manage multiple peripherals and computers through a single interface.

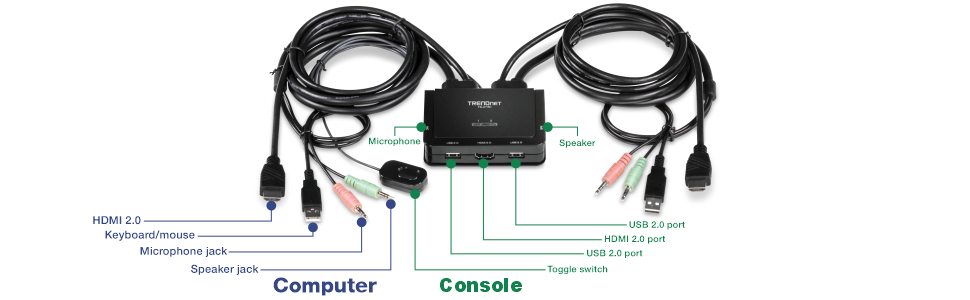

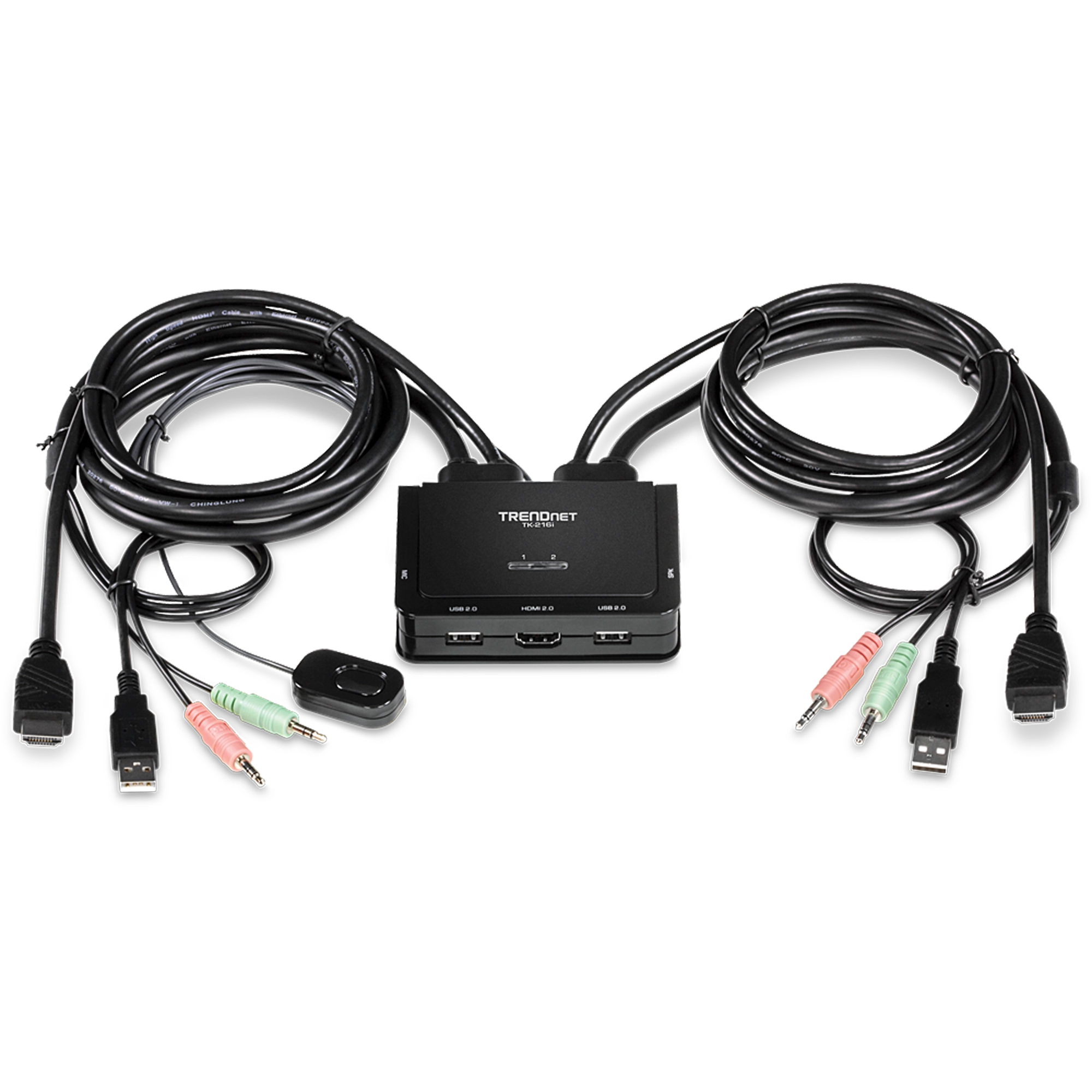

The illustration depicts a TRENDnet device with various cables and ports labeled. On the left, labeled as Computer, are connections for HDMI 2.0, keyboard/mouse, microphone jack, and speaker jack. In the center, labeled as Console, are connections for a microphone, speaker, USB 2.0 port, HDMI 2.0 port, USB 2.0 port, and a toggle switch. The cables are neatly arranged and connected to the device, showcasing the different input and output options available for connecting a computer to the console.

Computers

Control up to 2 computers

4K UHD

4K HDMI KVM switch supports resolutions up to 4K UHD (3840 x 2160) with a 60Hz refresh rate

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) technology supports most keyboard and mouse designs

HDMI Display

HDMI 2.0 with HDCP support

Integrated Cables

Fully integrated HDMI, USB, and audio cables

Computer Ports

Requires free USB and HDMI ports from connected computers

Hot Keys

4K HDMI KVM switch features Hot Key command shortcuts

Console Port Connectors	Keyboard: USB 2.0 Mouse: USB 2.0 Monitor: HDMI 2.0 Speaker jack: 3.5mm Microphone jack: 3.5mm
Computer Interface (up to 2)	Keyboard/mouse: USB 2.0 type A Monitor: HDMI 2.0 Speaker jack: 3.5mm Microphone jack: 3.5mm Cable length: 1.2m (3.9 ft.)
Monitor Resolution	3840 x 2160 @ 60Hz
Audio Support	5.1 Audio support over HDMI cables Analog audio over speaker and microphone jacks
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90 % non-condensing
Dimensions	Unit: 97 x 83 x 25mm (3.8 x 3.3 x 1 in.) Integrated cables: 1.2m (3.9 ft.)
Weight	426g (15 oz.)
Warranty	2 year
Certifications	CE FCC

PACKAGE CONTENTS

TK-216i
Quick Installation Guide
