Indoor / Outdoor 8MP 4K H.265 WDR PoE IR Dome Network Camera

TV-IP1319PI (Version v1.0R)

  • Easy Cloud P2P QR code installation
  • 8MP 4K UHD video (3840 x 2160) at 15 fps
  • Smart covert IR LEDs for night vision up to 30m (98 ft.)
  • Outdoor IP67 weather rating
  • 120dB Wide Dynamic Range image balancing
  • Save installation costs with Power over Ethernet (PoE)
  • Program motion detection recording and email alerts
  • Micro SD card slot (up to 128GB)
  • Free iOS® and Android™ mobile apps

TRENDnet's Indoor/Outdoor 8MP 4K H.265 WDR PoE IR Bullet and Dome Network Cameras provide day and night surveillance with a night vision range of up to 30 meters (98 ft.) These compact 4K IP cameras deliver year-round surveillance with an IP67 weather rated housing to withstand harsh outdoor environments. With these 4K IP cameras, users can record up to 8MP 4K UHD video at 15 fps in a space saving H.265 compression format. Setup and view live video with included complimentary software and free mobile apps.

A stylized representation of the sun and moon, with the sun's rays extending outward and a crescent moon overlapping the sun. Inside the crescent moon are four stars, all in a blue color scheme.

Day/Night HD Surveillance

Powerful 8MP video in H.265 compression and 30m night vision provides 24-hour surveillance. Masked IR LEDs provide covert night-time viewing.

A security camera is depicted with a cable extending from it, leading to a connector. A magnified view of the connector shows a symbol indicating Power over Ethernet (PoE).

Power over Ethernet (PoE)

PoE offers cost savings and the flexibility to install this night vision camera up to 100m (328 ft.) from the PoE source equipment.

The illustration depicts two icons side by side. The first icon, on the left, shows several raindrops representing water resistance. The second icon, on the right, features a cloud with small dots, signifying dust resistance. These icons emphasize the product's durability in outdoor conditions.

Outdoor Ready

Built for outdoor environments, the 4K IP camera has an IP67 weather rating and an operating temperature range of -30° – 60°C (-22° – 140°F).

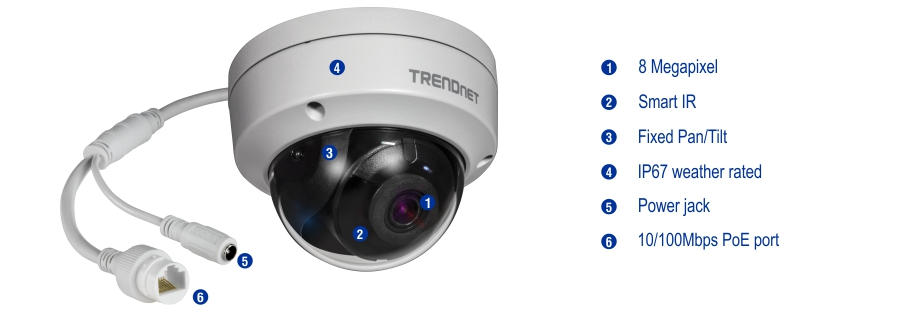

A white dome security camera labeled TRENDnet, featuring 8 Megapixel resolution, Smart IR, Fixed Pan/Tilt, IP67 weather rating, power jack, and 10/100Mbps PoE port, with cables extending from it.

8 Megapixel

Record up to 8MP 4K UHD video (3840 x 2160) at 15 fps in the space saving H.265 compression format

Night Vision

Masked IR LEDs on the 4K IP camera provide covert night-time viewing invisible to the human eye, up to 30m (98 ft.)

Smart IR

Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near the 4K IP camera, and increasing IR intensity when objects are farther away from the 4K IP camera

PoE

Save installation costs with Power over Ethernet (PoE)

Outdoor Ready

Outdoor IP67 weather rated housing

Adjustable Mounting Base

Fully adjustable integrated mounting base provides installation flexibility for this 4K IP camera

Storage

Record video to a network storage device or to a Micro SD card (up to 128GB sold separately)

Advanced Playback

4K IP camera features advanced in-camera archived video playback functionality

Motion Detection

Create custom motion detection zones to record video and send email notifications when a zone is triggered

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed

Wide Dynamic Range (WDR)

Adjustable 120dB WDR setting improves image quality and focus when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible

Recording Flexibility

Define custom schedules using continuous (24/7) and event-based recording modes

Complimentary VMS Software

Complimentary pro-grade software to manage any TRENDnet cameras

Complimentary Apps

View live video from the 4K IP camera to a mobile device with free iOS® and Android™ apps

Lens
  • Focal length: 2.8mm @ F1.2
  • Sensor: 1/2.5” CMOS sensor
  • Digital zoom: 4x
  • WDR: 120dB
Viewing
  • Horizontal angle: 102°
  • Manual pan: 0° to 355°
  • Manual tilt: 0° to 75°
  • Lens rotation: 0° to 355°
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • IR distance: 30m (98 ft.)
  • IR wavelength: 850nm
Compression
  • H.265+ / H.265
  • H.264+ / H.264
  • MJPEG
Resolution
  • Main stream: H.265+/H.265/H.264+/H.264: 3840 x 2160 up to 15 fps
  • Sub stream: H.265/H.264/MJPEG: 640 x 360 up to 30 fps
  • Third stream: H.265/H.264: 1280 x 720 up to 30 fps
Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10/100Mbps PoE port
  • Micro SD card slot
  • Power jack
  • Reset button
Micro SD slot
  • Supports Micro SD/SDHC/SDXC (not included)
  • Up to 128GB
Housing
  • IP67 weather rated
  • Impact resistant
Network Protocol
  • IPv4, IPv6, UDP, TCP/IP
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Compliant Standard
  • ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Dimensions
  • 110 x 110 x 82.5mm. (4.3 x 4.3 x 3.2 in.)
Weight
  • 500g (1.1 lb.)
Operating Temperature
  • -30° – 60° C (-22° – 140° F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Consumption: Max. 9W
Power Adapter (optional model: 12VDC1A)
  • Input: 100 – 240V AC , 50/60Hz
  • Output: 12V DC, 1A external power adapter
Management Interface
  • Multi-language support: English, French, German, Spanish, and Portuguese
  • Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart Supplement Light (Smart IR), BLC, WDR, white balance, Digital Noise Reduction, Mirror, Scene Mode, Video Standard
  • WDR enhances video quality in high contrast daytime lighting
  • Digital Noise Reduction removes digital noise from the video signal
  • Recording: to computer, or SAMBA share
  • Time, date, and text overlay
  • IP Address Filter
  • Video Recording: scheduled, motion detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Video masks: define custom video masks
  • Tamper detection function: email notification
  • Snapshot: real time snapshot and motion triggered
  • Supported dynamic DNS services: dyn.com and no-ip.com
  • Supports remote management
  • Compatible browsers: Chrome™ or Firefox® (live view resolution up to 1280 x 720), Internet Explorer® (live view resolution up to 3840 x 2160)
TRENDnet Mira VMS
  • Supports TRENDnet cameras
  • Manage basic configurations for connected cameras
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® and Mac®
TRENDnet Mira App
  • Free iOS® and Android™ apps
  • View live camera video
  • Push notifications
  • Take snapshots and videos
  • Playback
  • Share live view to family members or friends
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TV-IP1319PI
  • Weather seal
  • Torx® Security (pin-in) Allen Key
  • Quick installation guide
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
