Indoor/Outdoor 4MP H.265 PoE IR Bullet Network Camera

TV-IP1328PI (Version v1.0R)

Easy Cloud P2P QR code installation
4MP HD video (2560 x 1440) at 20 fps
Night vision up to 30m (98 ft.)
Outdoor IP67 weather rated housing
Save installation costs with Power over Ethernet (PoE)
120dB Wide Dynamic Range image balancing
Program motion detection with email alerts
Free Mira iOS® and Android™ mobile apps

TRENDnet's Indoor/Outdoor 4MP H.265 WDR PoE IR Bullet and Dome Network Cameras provide day and night surveillance with a night vision range of up to 30m (98 ft.) These compact network cameras deliver year-round surveillance, each with an IP67 weather rated housing to withstand harsh outdoor environments. Record up to 4MP HD video at 20fps in a space-saving H.265 compression format. Setup and view live video with included complimentary software and mobile apps.

A graphic illustration of a building divided down the middle depicting day and night. The left half shows a sun above, representing daytime. The right half displays a crescent moon and stars above, representing nighttime.

Day/Night HD Surveillance

Powerful 4MP video in H.265 compression and 30m night vision provides 24-hour surveillance. Masked IR LEDs provide covert night-time viewing.

Illustration of a closed-circuit television (CCTV) camera mounted on a wall, with a focus on its power connection point and an enlarged detail showing a PoE symbol, indicating the camera’s electrical power source.

Power over Ethernet (PoE)

PoE offers cost savings and the flexibility to install the surveillance camera up to 100m (328 ft.) from your PoE source equipment.

Water Droplets icons and dust particles.

Outdoor Ready

Built for outdoor environments with an IP67 weather rating and an operating temperature range of -30° – 50° C (-22° – 122° F).

4 Megapixel

Record up to 4MP HD video at 20fps in space-saving H.265 compression format

Night Vision

Masked IR LEDs provide covert night-time viewing invisible to the human eye, up to 30m (98 ft.)

Smart IR

Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away

PoE

Save installation costs with Power over Ethernet (PoE)

Outdoor Ready

Outdoor IP67 weather rated housing

Adjustable Mounting Base

Fully adjustable integrated mounting base provides installation flexibility

Motion Detection

Create custom motion detection zones to record video and send email notifications when a zone is triggered

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed

Wide Dynamic Range (WDR)

Adjustable Wide Dynamic Range (WDR) setting improves image quality and clarity when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible

Recording Flexibility

Define custom schedules using continuous (24/7) and event-based recording modes

Complimentary VMS Software

Complimentary pro-grade software to manage TRENDnet cameras

Complimentary Apps

Live video to a mobile device with free iOS® and Android™ apps

Lens	Focal length: 4mm @ F1.2 Sensor: 1/3” CMOS sensor Digital zoom WDR: 120dB
Viewing	Horizontal angle: 77˚
3-Axis Manually Adjustable Mounting Arm	Pan: 0° to 360° Tilt: 0° to 180° Rotate: 0° to 360°
Minimum Illumination	IR off: 0.01 lux IR on: 0 lux IR distance: 30m (98 ft.) IR LED wavelength: 850nm
Compression	H.265+ / H.265 H.264+ / H.264 MJPEG
Resolution	Main stream: H.265+/H.265/H.264+/H.264: 2560 x 1440 up to 20fps Sub stream: H.265/H.264/MJPEG: 640 x 480 up to 30fps Third stream: H.265/H.264: 1280 x 720 up to 10fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af

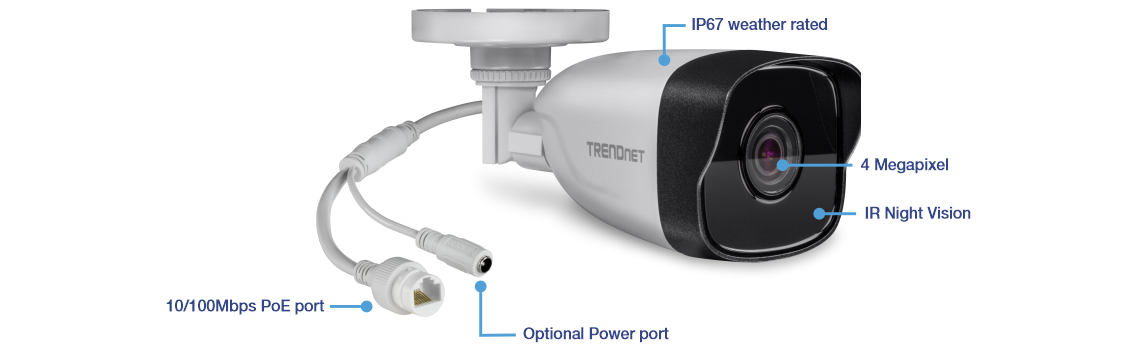

Device Interface	10/100Mbps PoE port Power jack
Housing	IP67 weather rated
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X NFS, SMB/CIFS HTTP, HTTPS PPPoE UPnP, RTSP, RTP
Compliant Standard	ONVIF (Profile S, Profile G)
Dimension	173 x 70 x 70mm (6.8 x 2.75 x 2.75 in.)
Weight	280g (9.9 oz.)
Operating Temperature	-30° – 50° C (-22° – 122° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Max. consumption: 7W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support: English, French, German, Spanish, and Portuguese Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart IR, BLC, WDR, white balance, Digital Noise Reduction, Mirror, Scene Mode, Video Standard WDR enhances video quality in high contrast daytime lighting Digital Noise Reduction removes digital noise from the video signal Recording: to computer, or SAMBA share Time, date, and text overlay IP Address Filter Video Recording: scheduled, motion detection, and tamper detection Motion detection: define up to three motion detection areas and motion sensitivity Privacy masks: define custom privacy masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supported dynamic DNS services: dyn.com and no-ip.com Supports remote management Compatible browsers: Chrome™ or Firefox® (live view resolution up to 1280 x 720), Internet Explorer® (live view resolution up to 2560 x 1440)
TRENDnet Mira VMS	Supports TRENDnet cameras Set recording options (motion detection, schedule, event trigger) Search and playback Custom viewing modes and options Compatibility: Windows® and Mac®
TRENDnet Mira App	Free iOS® and Android™ apps View live camera video Push notifications Take snapshots and videos Playback Share live view to family members or friends
Certifications	CE FCC UL
Warranty	3 year

PACKAGE CONTENTS

TV-IP1328PI

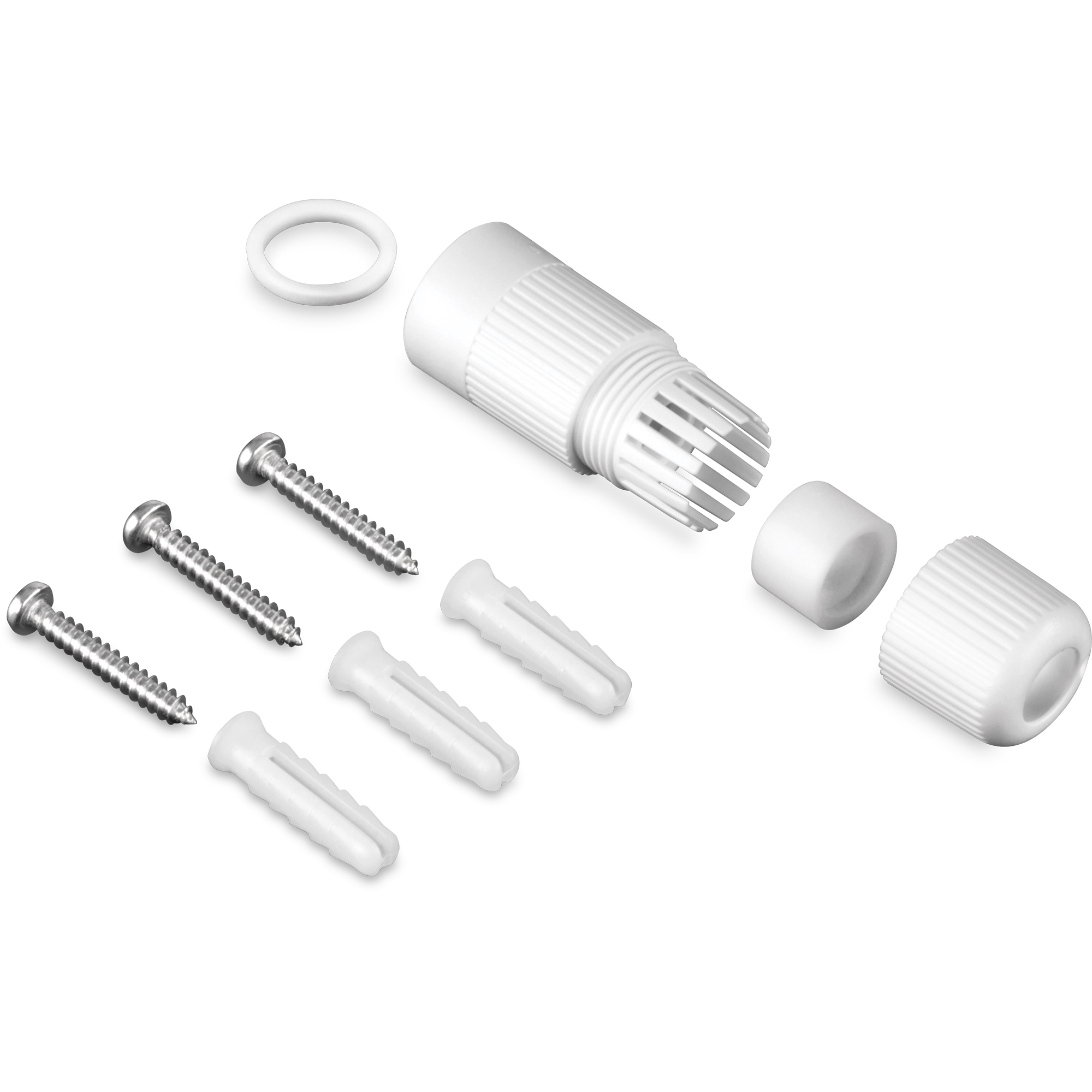

Weather seal
Quick installation guide
Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
