2-Port USB KVM Switch Kit

TK-207K (Version v1.3R)

  • 2-port KVM switch with VGA and USB connections to computers
  • Device monitoring with Auto-Scan and audible feedback
  • High quality 2048 x 1536 resolution for a crisp display
  • Support most operating systems and advance mouse designs
  • All required cabling included

The 2-Port USB KVM Switch Kit lets you manage two PC's with just one set of keyboard, monitor, and mouse. Switch between two PC's with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 2 PC's instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 2-Port USB KVM Switch is the perfect choice for managing multiple PC's.

  • Control up to 2 computers / servers with one set of console device
  • USB keyboard / mouse emulation with 2 sets of detachable KVM cables
  • Compliant with Windows and Linux
  • High video quality: up to 2048 x 1536 VGA resolution
  • Auto-scan and LED display for computer monitoring
  • Keyboard status restored when switching between computers
  • Computer selection by front panel push buttons, keyboard hot key commands or Windows-based client switching software*
  • User definable hot key (Windows only)
  • USB interface power method
  • Plug & Play and hot-pluggable
  • 2-year limited warranty

*For optimal performance, we recommend using a wired keyboard and mouse. Please go tohttp://www.trendnet.com/downloadto download the client switching software.

Hardware
Connections
  • 2 computers
USB Interface
  • USB 1.1 compliant
KVM Cable
  • 2 sets of 1.2 m (4 ft.) USB KVM cables
Cable Interface
  • To KVM
  • 1 x VGA / SVGA HDB 15-pin (male)
  • To Computer
  • 1 x USB (type A)
  • 1 x VGA / SVGA HDB 15-Pin (male)

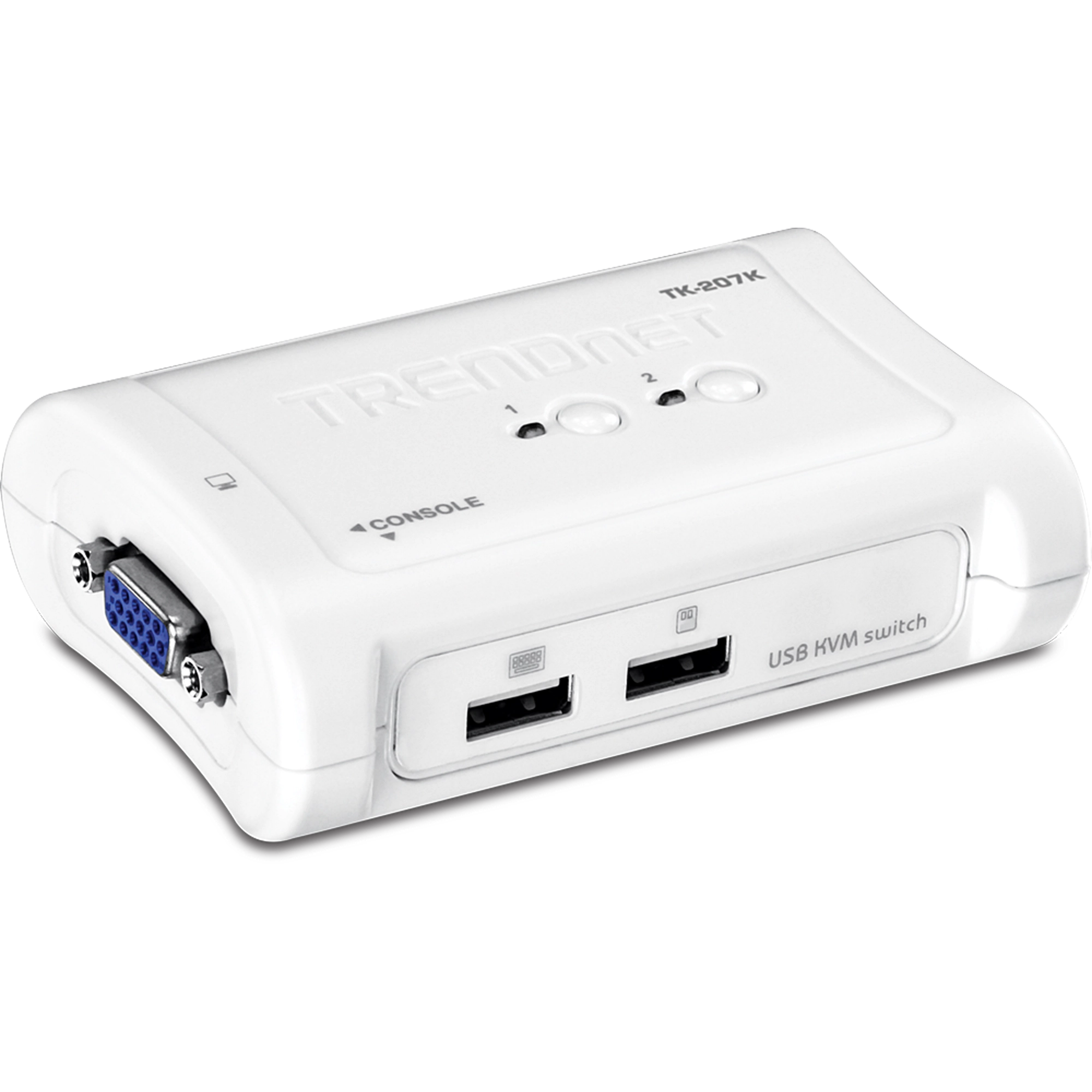

PC Port Connectors
  • 2 x VGA / SVGA HDB 15-pin (female)

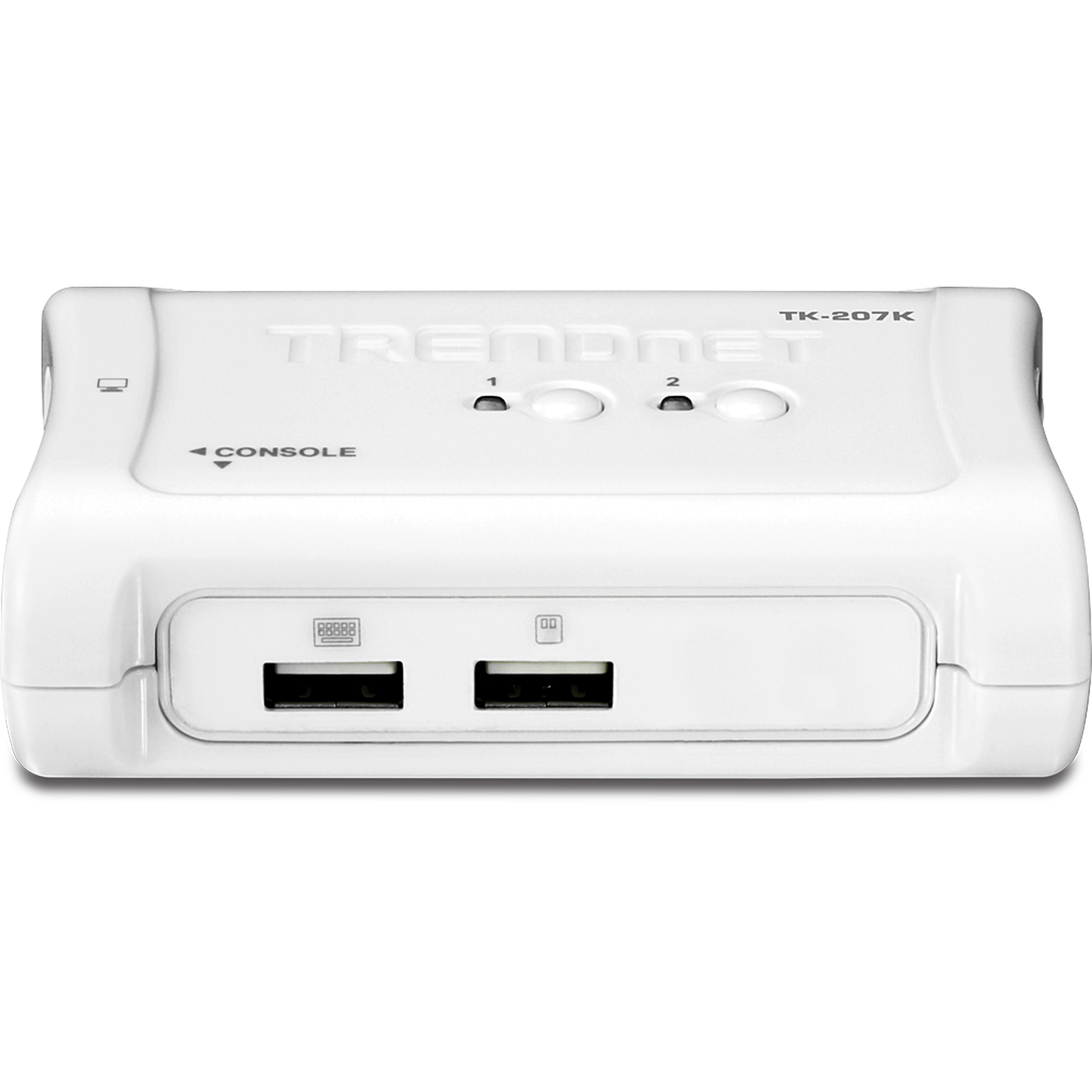

Console Port Connectors
  • 2 x USB Keyboard / Mouse: (type A)
  • 1 x VGA / SVGA 15-pin HDB (female)
Computer Selection
  • Face panel push buttons, keyboard hot key commands or Windows-based client switching software*
  • Windows and Linux
Auto-Scan Interval
  • 10 seconds
Keyboard State
  • Save and restore
Power Type
  • USB interface power
Dimensions
  • 98 x 70 x 28 mm (3.86 x 2.76 x 1.1 in.)
Weight
  • 99 g (3. 4oz)
Temperature
  • Operating: 0°C ~ 40°C (32°F ~104°F)
  • Storage: -20°C ~ 60°C (-4°F ~140°F)
Humidity
  • Max 90% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TK-207K
  • Quick Installation Guide
  • 2 sets of USB KVM cables (2 x 1.2 m / 4 ft.)

*For optimal performance, we recommend using a wired keyboard and mouse. Please go to http:/www.trendnet.com/downloads to download the client switching software.


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
