4-Port USB KVM Switch Kit

TK-407K (Version v1.3R)

  • 4-Port KVM switch with VGA and USB connections to computers
  • Device monitoring with Auto-Scan and audible feedback
  • High quality 2048 x 1536 resolution for a crisp display
  • Supports most operating systems and advanced mouse designs
  • All required cabling included
  • NDAA compliant
NDAA Compliant

The 4-Port USB KVM Switch lets you manage four PC's with just one set of keyboard, monitor, and mouse. Switch between 4 PC's with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 4 PC's instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 4-Port USB KVM Switch is the perfect choice for managing multiple PC's.

  • Control up to 4 computers / servers with one set of console devices
  • USB keyboard / mouse emulation with 4 sets of detachable KVM cables
  • Compliant with Windows, Linux, and Mac OS
  • High video quality, up to 2048 x 1536 VGA resolution
  • Auto-Scan and LED display for computer monitoring
  • Keyboard status restored when switching between computers
  • Computer selection by front panel push buttons, keyboard hot key commands or Windows-based client switching software*
  • User definable hot key (Windows only)
  • Plug & Play and hot-pluggable
  • USB interface power method
  • 2-year limited warranty

*For optimal performance, we recommend using a wired keyboard and mouse. Please go to http://www.trendnet.com/support/TK-407K-v1.3 to download the client switching software.

Hardware
Connections
  • 4 computers
USB Interface
  • USB 1.1 compliant
KVM Cable
  • 2 sets of 1.2m (4ft.) USB KVM cables
  • 2 sets of 1.8m (6ft.) USB KVM cables
Cable Interface (all male)
  • To KVM
  • 1 x VGA/SVGA HDB 15-pin
  • To Computer
  • 1 x USB (Type A)
  • 1 x VGA/SVGA HDB 15-Pin

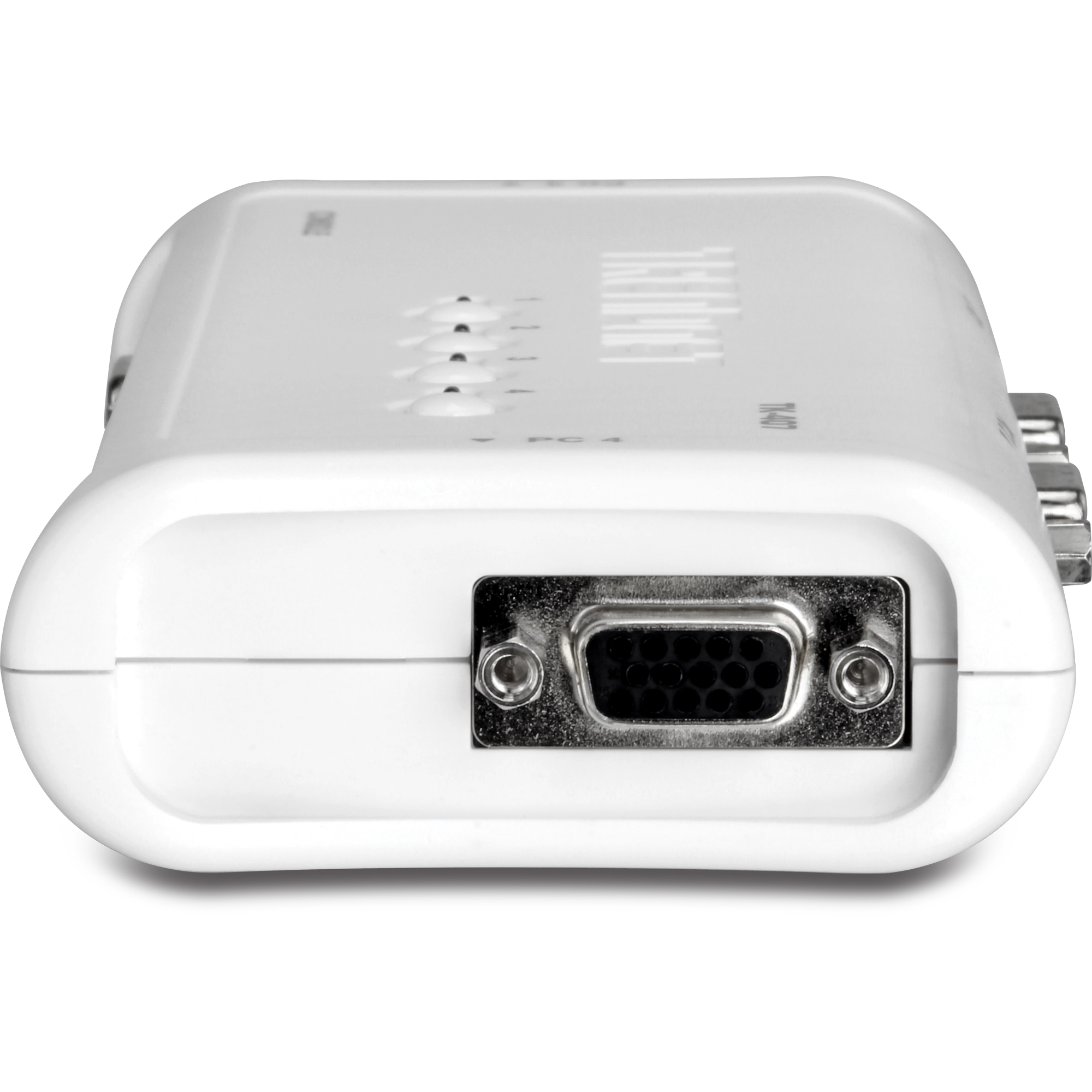

PC Port Connectors
  • 4 x VGA/SVGA HDB 15-pin (female)

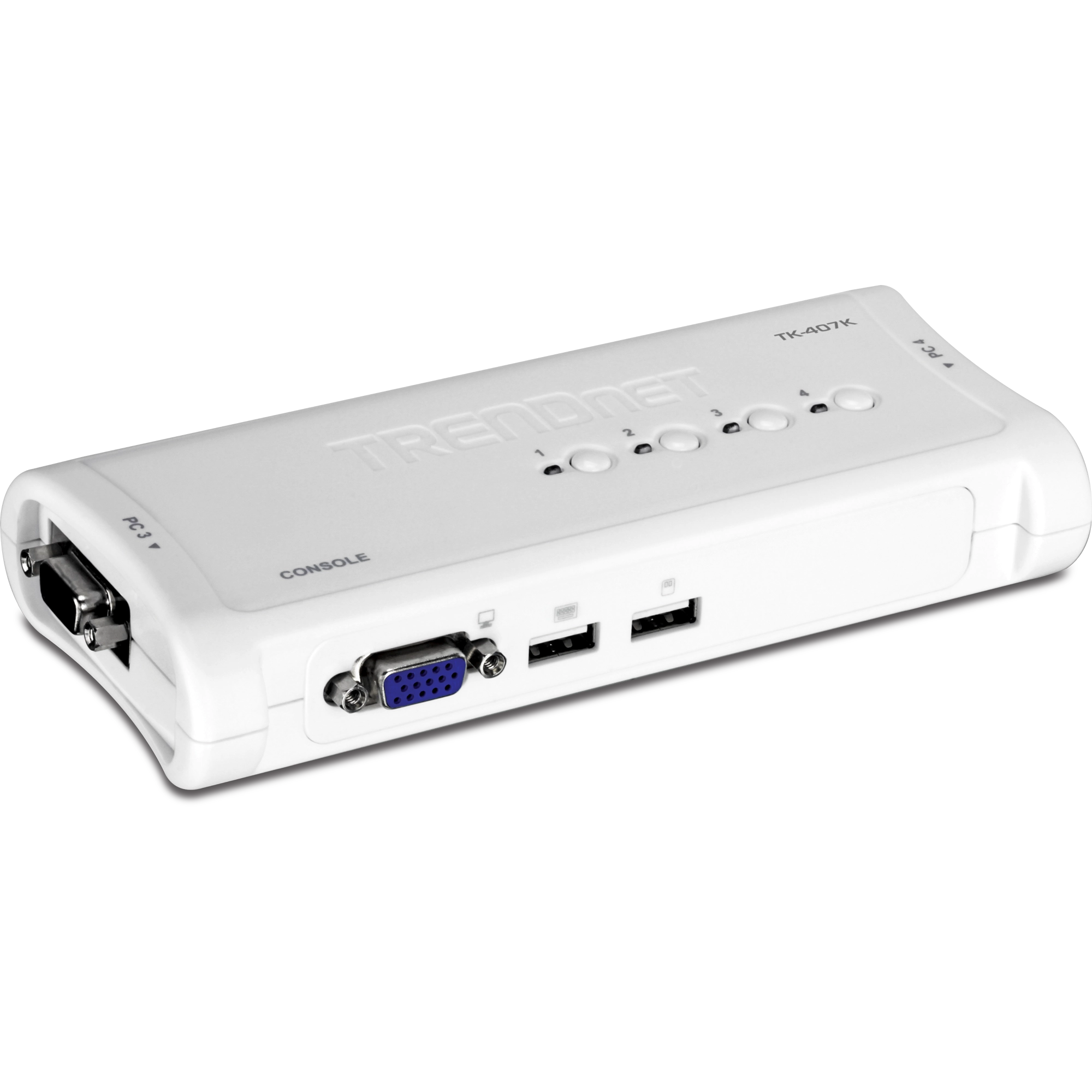

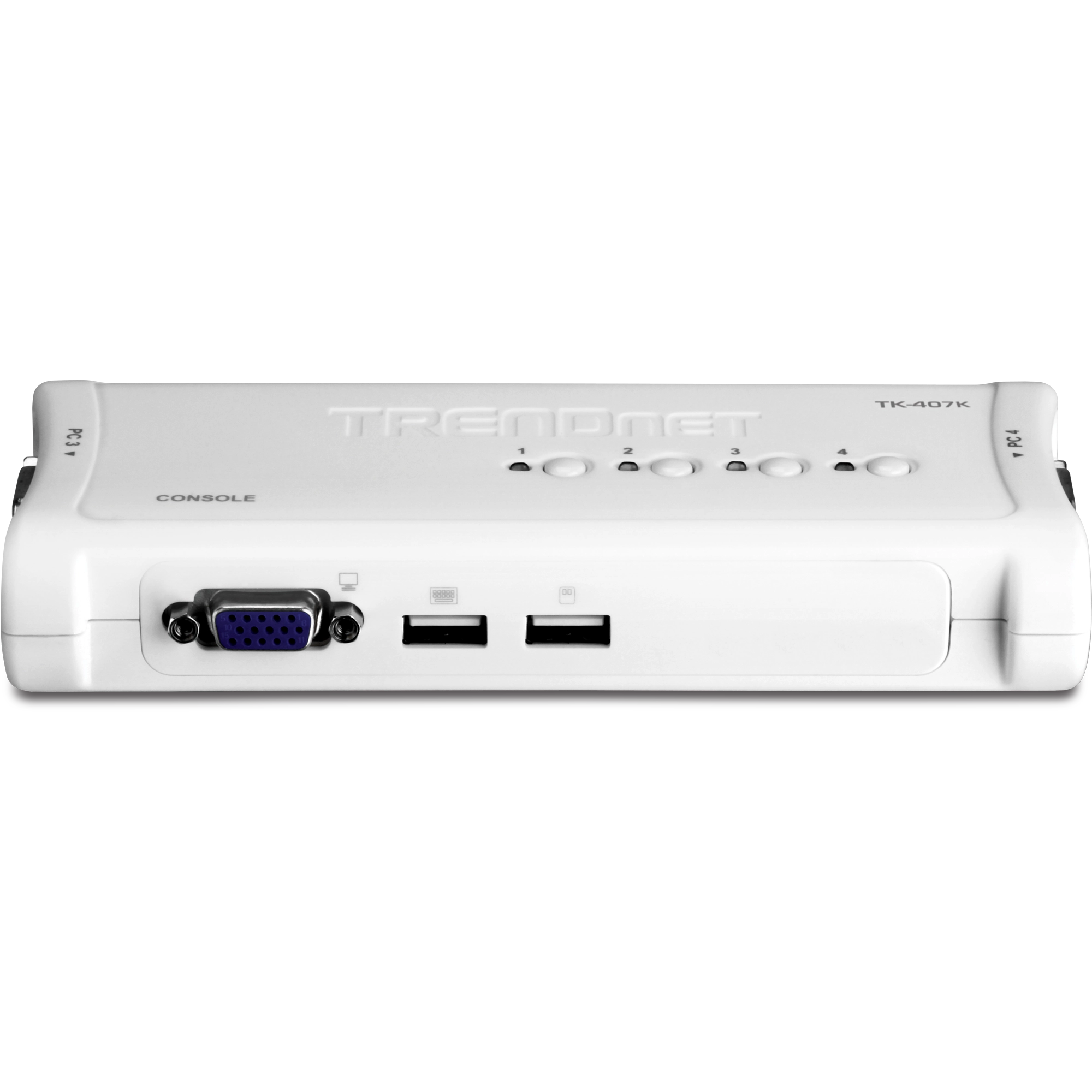

Console Port Connectors
  • 2 x USB keyboard/mouse (type A)
  • 1 x VGA/SVGA 15-pin HDB (female)
PC Selection
  • Face panel push buttons, keyboard hot key commands or Windows-based client switching software*
  • Windows, Linux and Mac.
Auto-Scan Interval
  • 10 seconds
Keyboard State
  • Save and restore
Power Type
  • USB interface power
Dimensions
  • 167 x 80 x 28 mm (6.6 x 3.2x 1.1 in.)
Weight
  • 159 g (5.6 oz.)
Temperature
  • Operating: 0°C ~ 40°C (32°F ~104°F)
  • Storage: -20°C ~ 60°C (-4°F ~140°F)
Humidity
  • Max 90% (non-condensing)
Certifications
  • CE, FCC

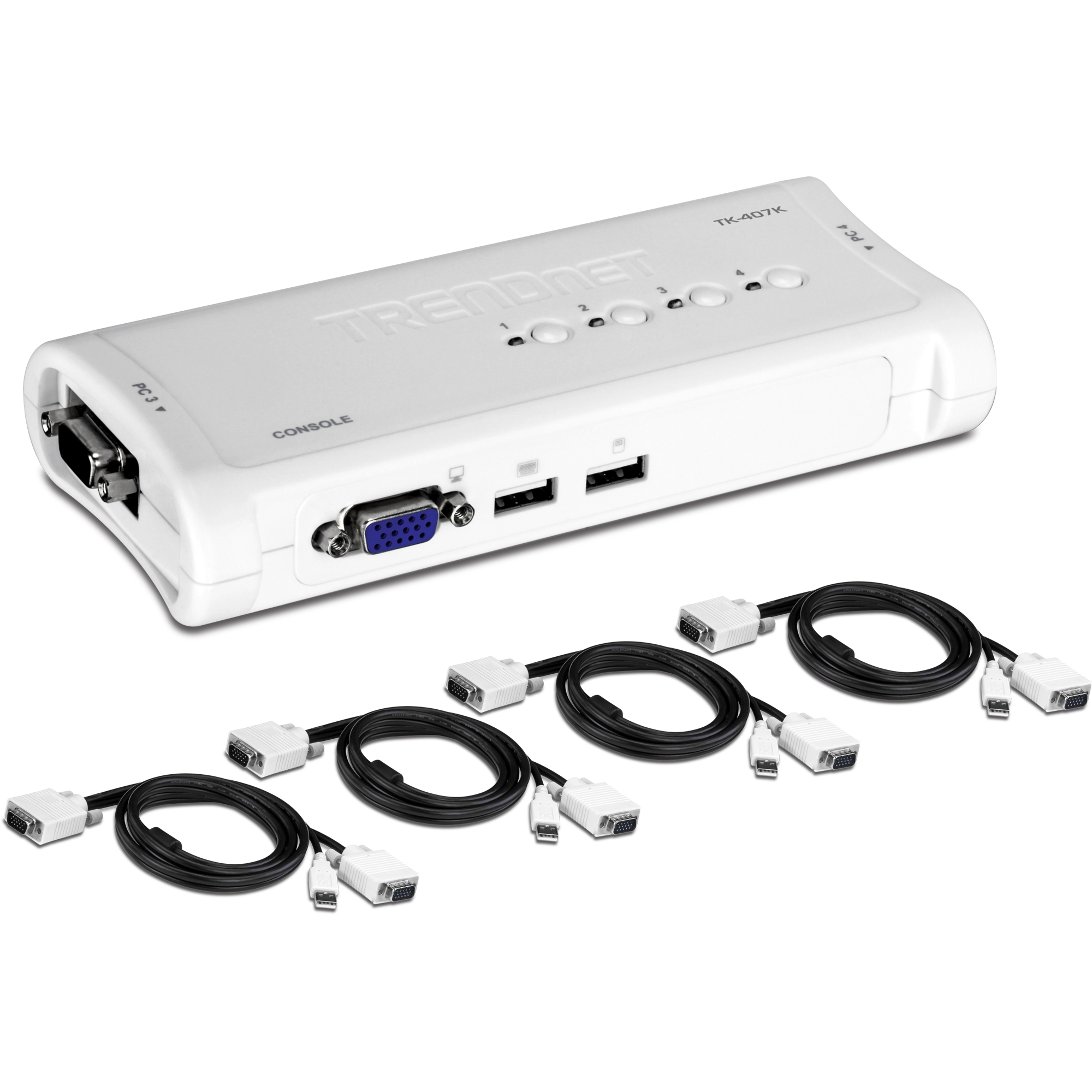

PACKAGE CONTENTS
  • TK-407K
  • Quick Installation Guide
  • 2 sets of USB KVM Cables (2 x 1.2 m / 4 ft.)
  • 2 sets of USB KVM Cables (2 x 1.8 m / 6 ft.)

*For optimal performance, we recommend using a wired keyboard and mouse. Please go to http://www.trendnet.com/downloads to download the client switching software.


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
