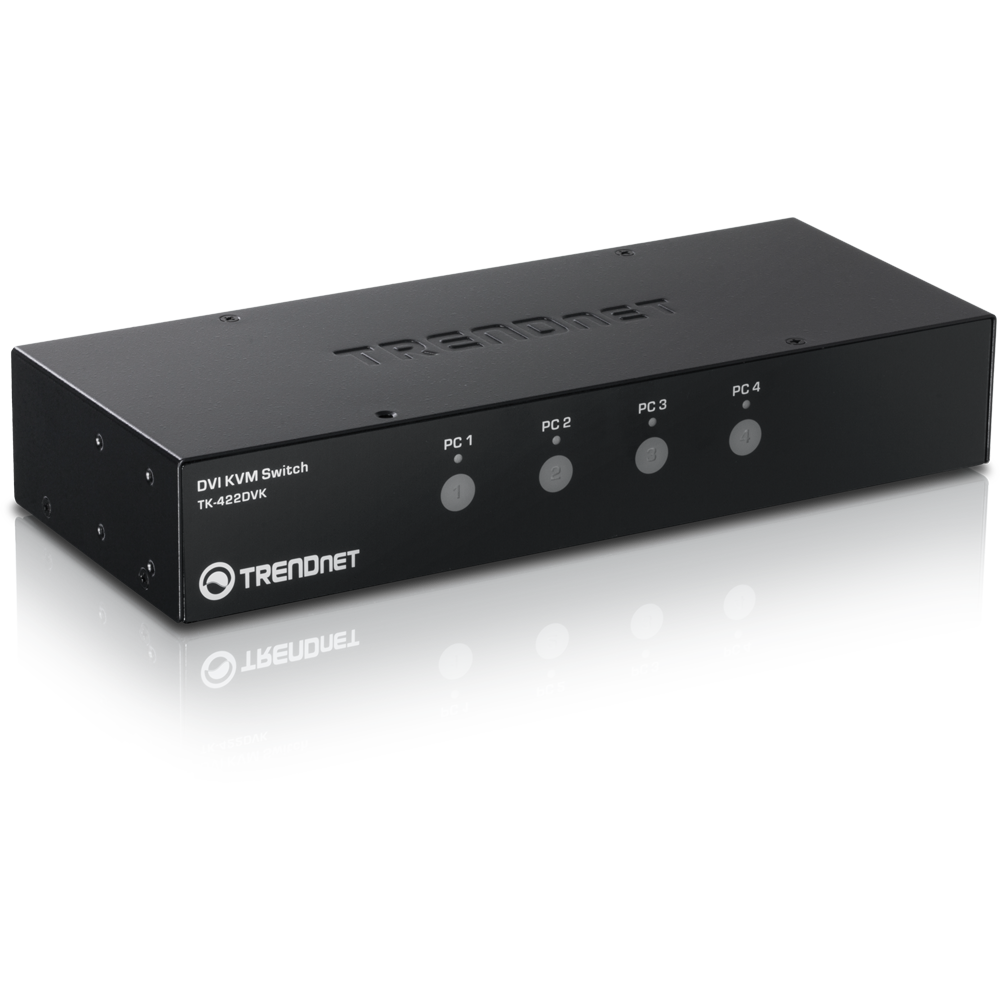

4-Port DVI KVM Switch Kit

TK-422DVK (Version v1.0R)

  • Control four computers with one set of console controls
  • Designed for use with an Dual Link DVI-D monitor
  • Supports HD resolution above 1080p
  • 2 bonus USB share ports for storage devices or printers
  • All required cabling included
  • No CD installation

The 4-Port DVI KVM Switch Kit, model TK-422DVK, allows you to control four computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-422DVK supports advanced keyboard and mouse designs and offers two bonus USB share ports to connect storage devices or printers.

Features

Computers

Control up to 4 computers

HD+

Supports resolutions higher that 1080p HD (up to 2560 x 1600 pixels)

2-Way Audio

Full audio support maximizes work station productivity

Console Connectors

Emulation Technology supports most advanced keyboard and mouse designs

DVI-D Monitor

Designed to connect to a monitor's DVI port and supports a 60 Hz refresh rate

Resolution Optimization

Adopts screen resolution from the connected device settings

Computer Ports

Requires free USB and DVI ports from connected computer

Housing

Rugged metal enclosure

USB Share Ports

Two additional USB ports to connect storage drives and printers

Cables Included

All required cables included

Hot Keys

Hot Key command shortcuts

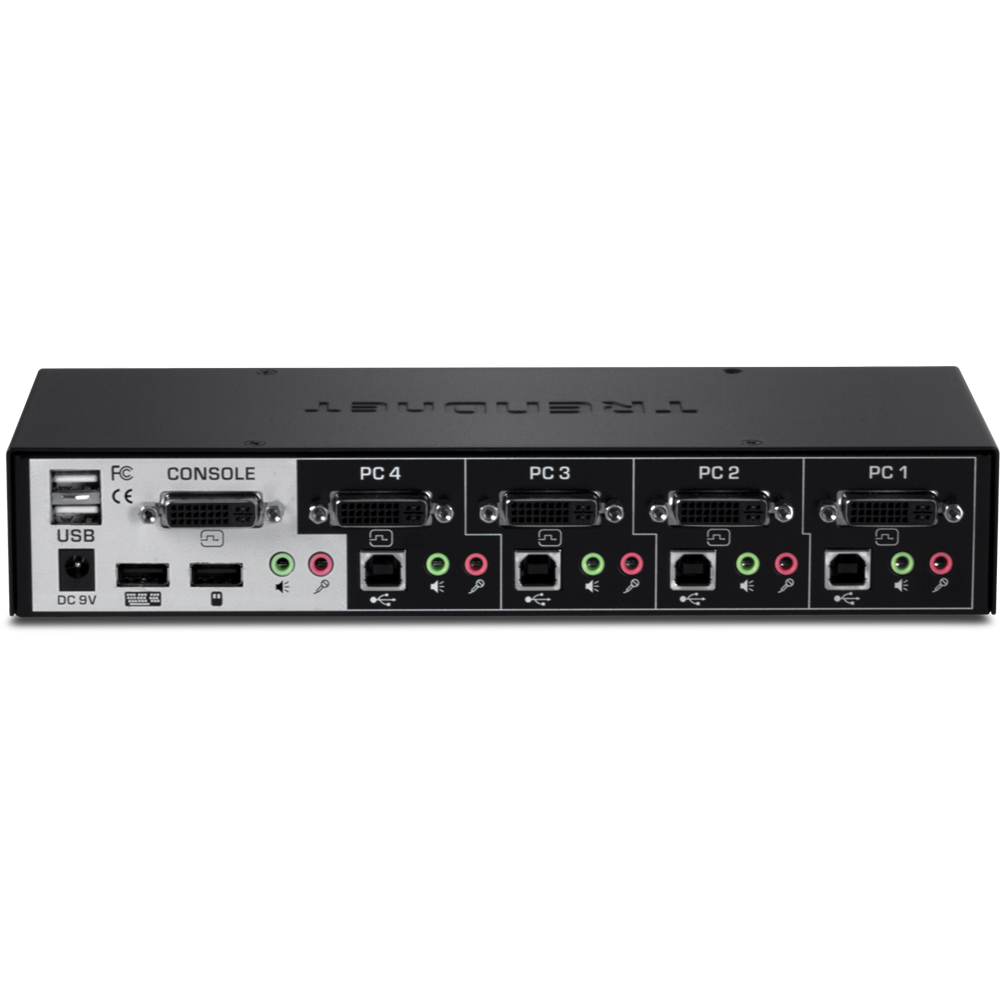

KVM Ports to Console
  • Keyboard: USB
  • Mouse: USB
  • Monitor: DVI-I
  • 2-portUSB 2.0 hub
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
KVM Ports to Computer (up to 4)
  • Keyboard/mouse: USB 2.0 type B
  • Monitor: DVI-I
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
Computer Connections (up to 4)
  • Keyboard/mouse: USB 2.0 type A
  • Monitor: Single Link/ Dual Link DVI-I/DVI-D
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
Monitor Resolution
  • Digital: 2560 x 1600 @ 60 Hz
  • Analog: 2048 x 1536 @ 60 Hz

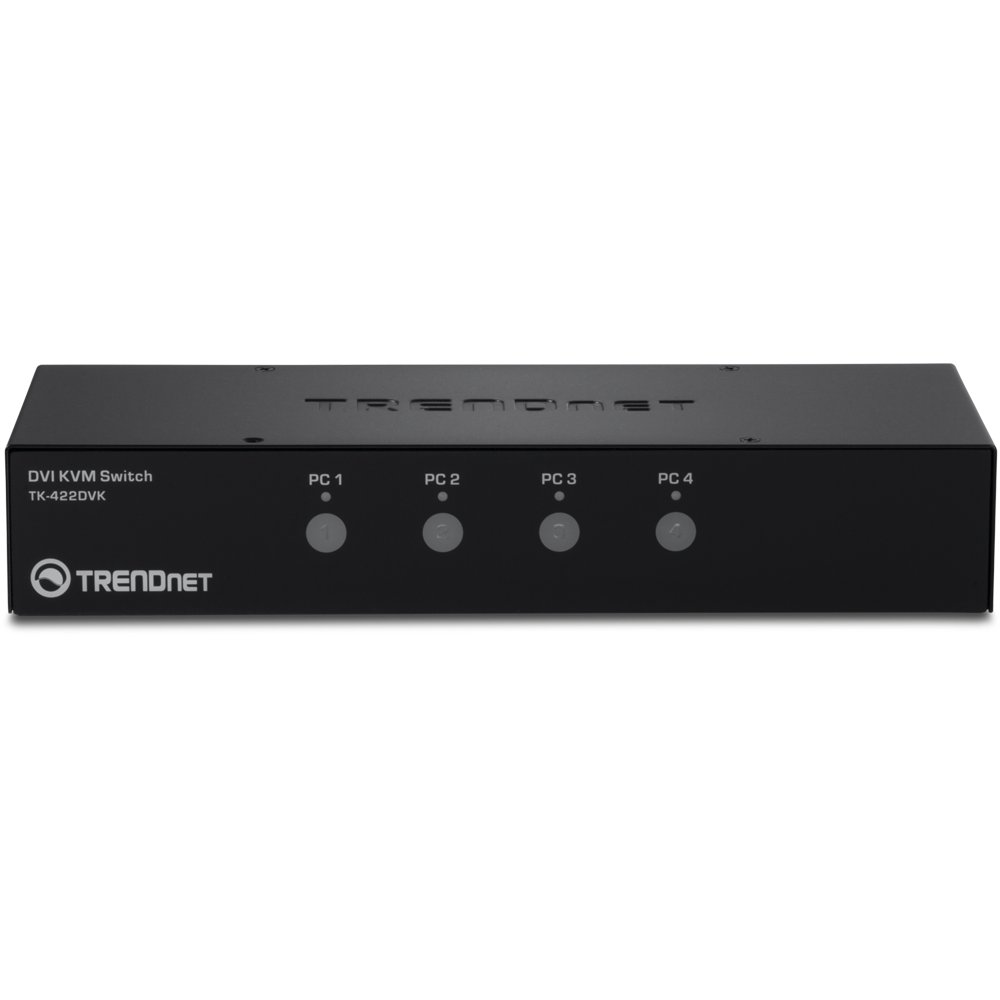

Switching Control
  • Face panel touch buttons
  • Keyboard hot key commands
Switching Notification
  • Audio
Scanning Interval
  • 10 - 60 seconds (Hot key controls)
Special Features
  • Support Dual Link DVI-D monitor
  • Advance mouse and keyboard support
  • All time DDC emulation
  • Two bonus USB ports
  • Metal housing
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 - 240 V AC, 50/60 Hz, 0.4 A
  • Output: 9 V DC 1 A external power adapter
  • Consumption: 0.85 Watts (Max.)
Dimensions
  • 254 x 120 x 45 mm (10 x 4.7 x 1.8 in.)
Weight
  • 936 g (2.1 lbs.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC

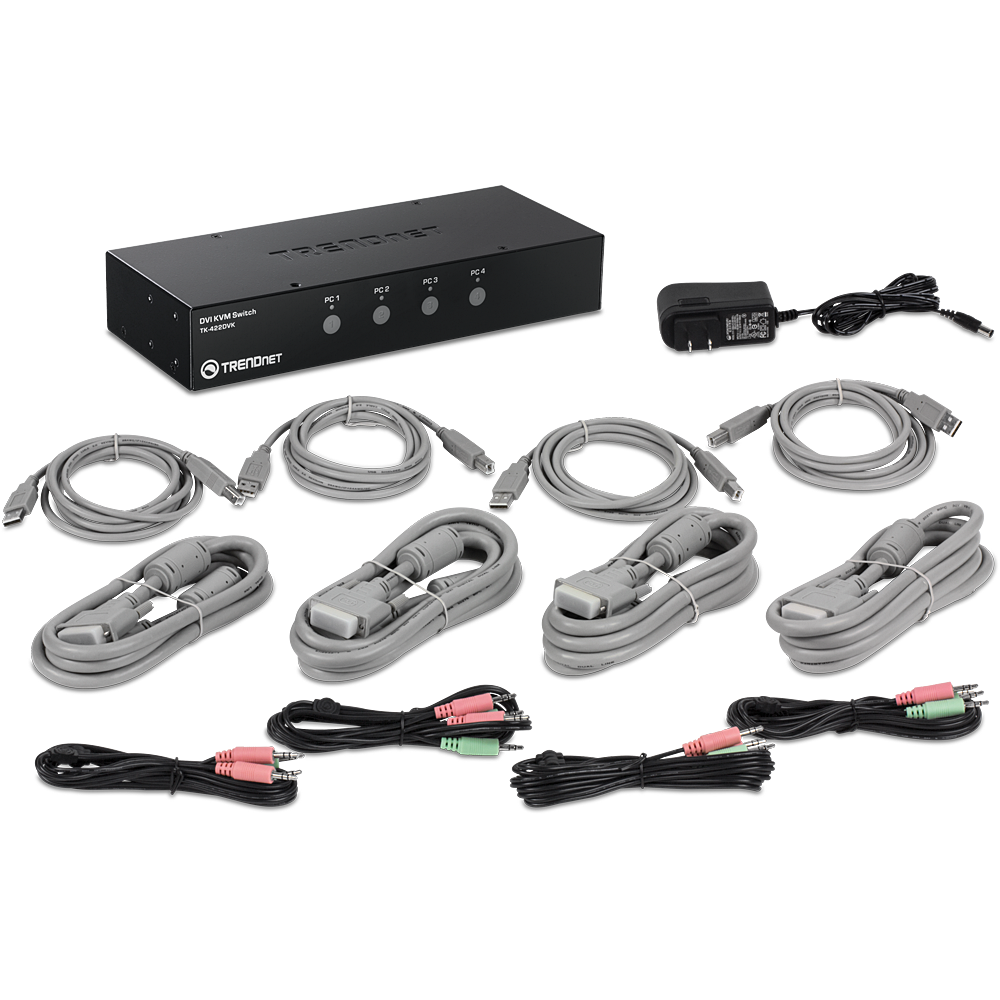

PACKAGE CONTENTS
  • TK-422DVK
  • Quick Installation Guide
  • Power adapter (9 V DC, 1 A)
  • 4 sets of DVI-D KVM cables (1.8 m/6 ft.)
  • 4 sets of USB 2.0 type A to B cables (1.8 m/6 ft.)
  • 4 sets of audio cables (1.8 m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
